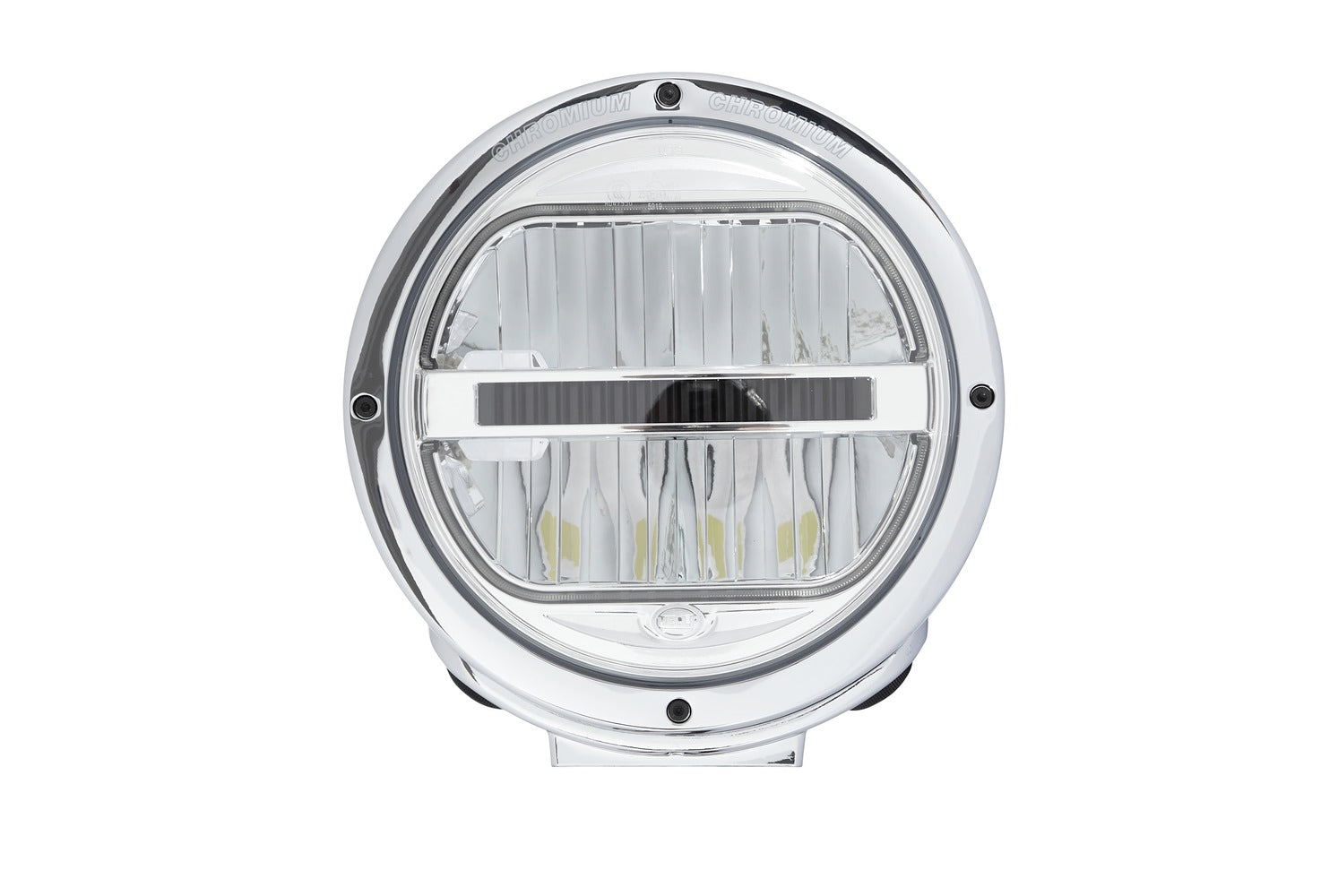

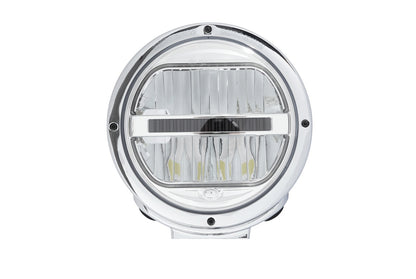

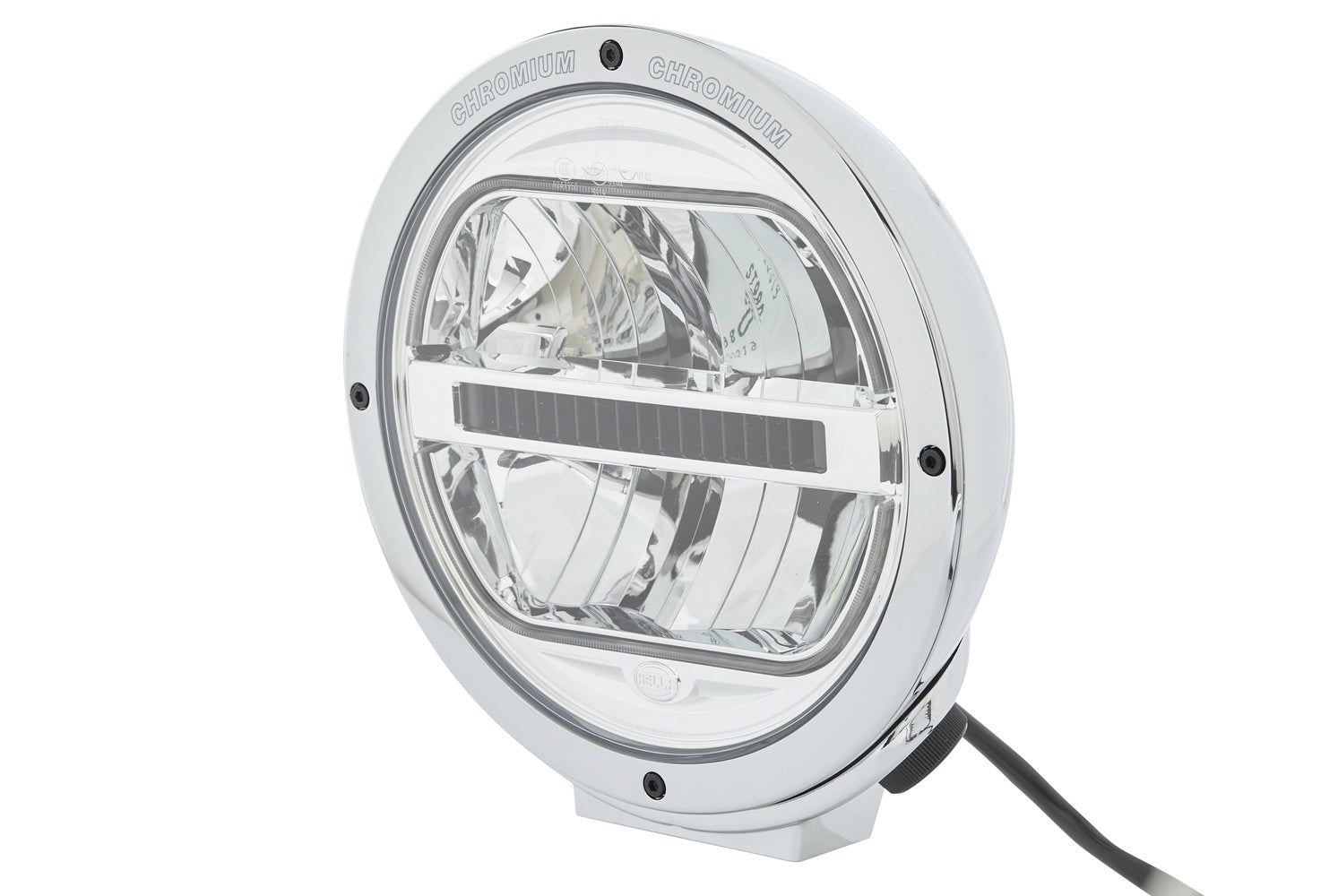

HELLA LED-Spotlight - Luminator LED - 24/12V 1F8016560-021

LED-Spotlight - Luminator LED - 24/12V - round - Reference number: 25 - Clear diffusing lens - Crystal clear - Cable: 800mm - left/right

HELLA's Luminator auxiliary headlamps offer that decisive extra: more light to keep you on top of things in every driving situation. Whether as a proven standard solution or in LED technology, whether with or without position light, whether in large format or as a compact version, the Luminator family offers the optimum solution for every application situation. All Luminator products are robust, of high quality workmanship and of reliable HELLA quality. The LED versions also have a striking light design. Thanks to computer-optimised fine tuning, the high-performance LEDs ensure even, ideal illumination of the road. The advantages for the driver: more safety and less fatigue.

• Auxiliary driving lamps with future-oriented look using the latest LED technology
• The striking night design is realised by the LED position light with characteristic hexagonal contour design
• Delay-free light signal thanks to attention-grabbing flasher function
• The horizontal cooling fin in the auxiliary headlamp with a cooling surface of 230 cm² enables efficient thermal management
• High-quality, robust, full-metal headlamp with die-cast zinc housing and mounting bracket
• Width: 222mm - Height: 222mm - Depth: 131mm - Fitting Depth: 90mm - Overall Height: 232mm - Lamp Type: LED - with LED - Electromagnetic Compatibility (EMC)/without top
• Light functions: 2 - with high beam (LED)/with position light (LED)

Item Attributes:
Mounting Type: Bolted
Fastening Type: Swivelling Mounting Bracket
Light Design: LED
Lamp Type: LED
Voltage: 24 V / 12 V
Fitting Position: right / left
Height: 222 mm
Overall Height: 232 mm
Width: 222 mm
Depth: 131 mm
Fitting Depth: 90 mm
Light Function: with position light (LED) / with high beam (LED)
Light functions: 2
Supplementary Article/Supplementary Info 2: without top / Electromagnetic Compatibility (EMC)
fulfils ECE standard: R112 / R10 / R7
Reference number: 25

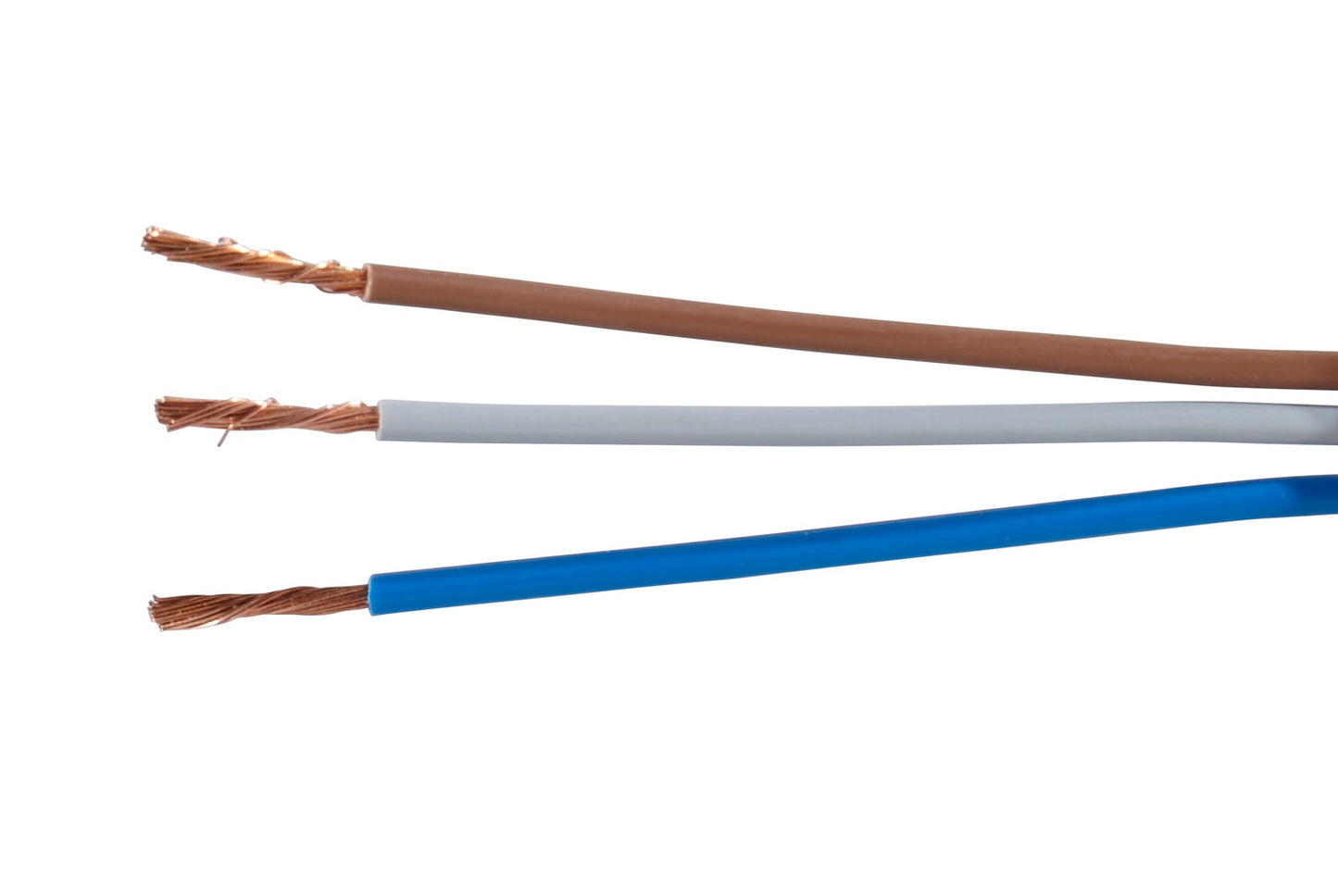

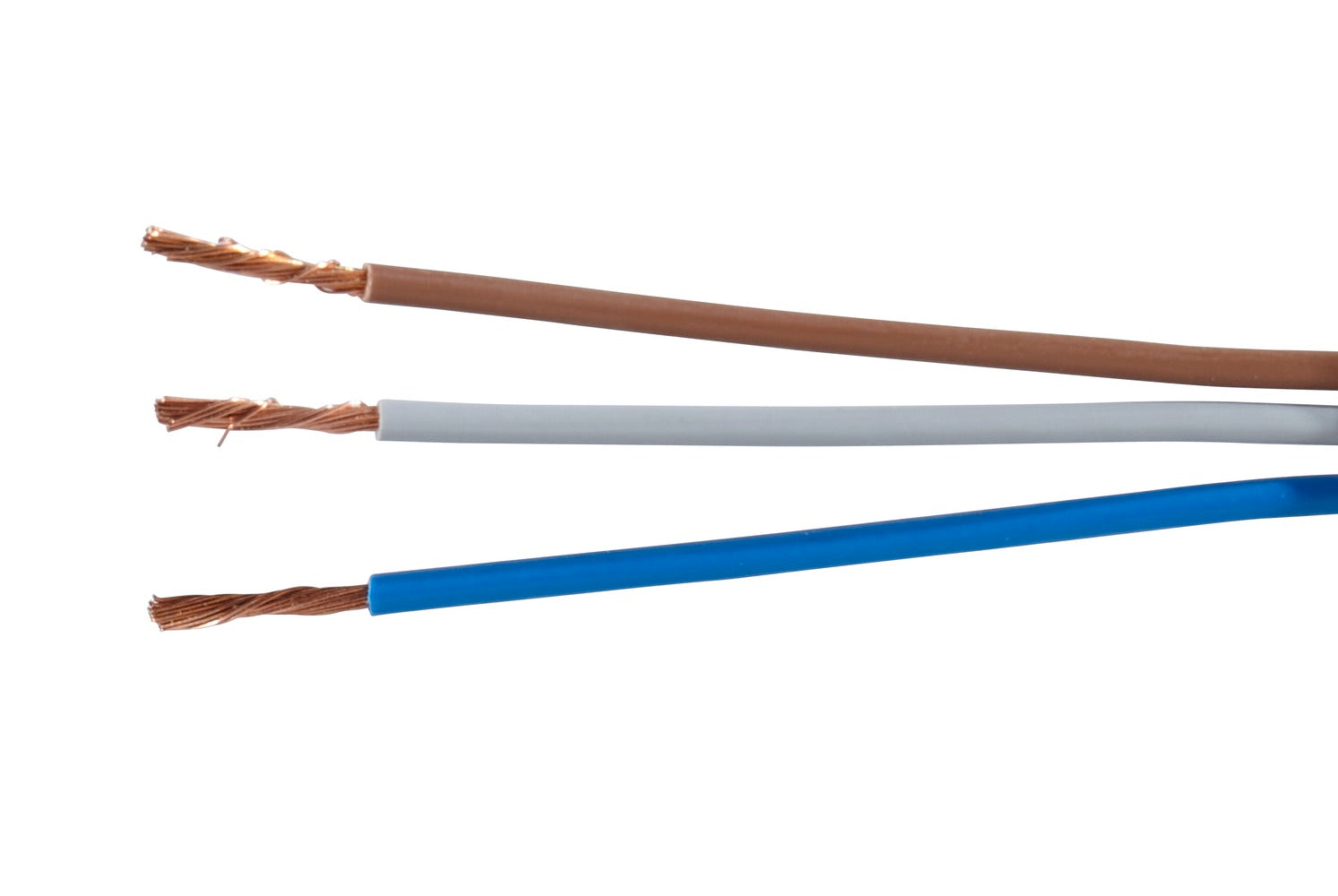

Cable: 800 mm
Housing Colour: chrome
Lens Colour: Crystal clear
Frame Colour: chrome
Shape: round
Housing Type: Metal Housing
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info: with LED
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: DAF 1544974; DAF 2860453; IVECO 500051165; SCANIA 2860453; SCANIA SP1068208
