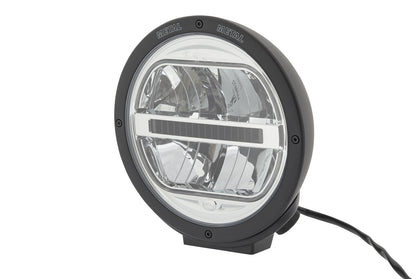

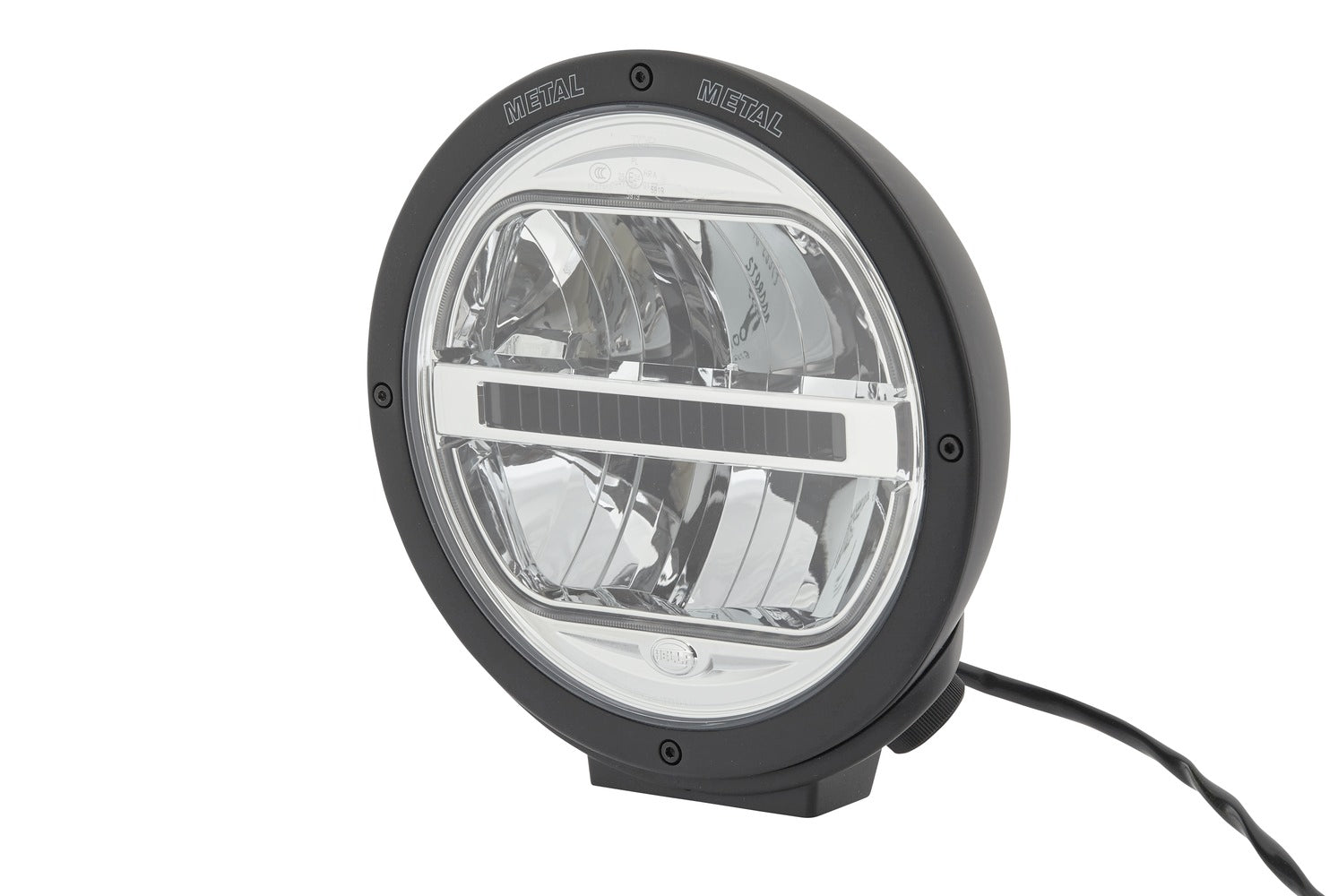

HELLA LED-Spotlight - Luminator LED - 24/12V - white - 1050lm 1F8016560-001

LED-Spotlight - Luminator LED - 24/12V - 1050lm - round - Reference number: 25 - ECE - Clear diffusing lens - Crystal clear - Light colour: white - Cable: 800mm - left/right

HELLA's Luminator auxiliary headlamps offer that decisive extra: more light to keep you on top of things in every driving situation. Whether as a proven standard solution or in LED technology, whether with or without position light, whether in large format or as a compact version, the Luminator family offers the optimum solution for every application situation. All Luminator products are robust, of high quality workmanship and of reliable HELLA quality. The LED versions also have a striking light design. Thanks to computer-optimised fine tuning, the high-performance LEDs ensure even, ideal illumination of the road. The advantages for the driver: more safety and less fatigue.

• Auxiliary driving lamps with future-oriented look using the latest LED technology
• The striking night design is realised by the LED position light with characteristic hexagonal contour design
• Delay-free light signal thanks to attention-grabbing flasher function
• The horizontal cooling fin in the auxiliary headlamp with a cooling surface of 230 cm² enables efficient thermal management
• High-quality, robust, full-metal headlamp with die-cast zinc housing and mounting bracket
• Width: 222mm - Height: 222mm - Depth: 131mm - Fitting Depth: 90mm - Overall Height: 232mm - Lamp Type: LED - Number of LEDs: 5 - with LED
• Light functions: 2 - with position light (LED)/with high beam (LED)

Item Attributes:
Mounting Type: Bolted
Fastening Type: Swivelling Mounting Bracket
Light Design: LED
Lamp Type: LED
Light colour: white
Voltage: 24 V / 12 V
Fitting Position: right / left
Height: 222 mm
Overall Height: 232 mm
Width: 222 mm
Depth: 131 mm
Fitting Depth: 90 mm
Length: 5 "
Light Function: with high beam (LED) / with position light (LED)
Light functions: 2
fulfils ECE standard: R10 / R7 / R112
Reference number: 25
Cable: 800 mm
Housing Colour: black
Lens Colour: Crystal clear
Frame Colour: black
Shape: round
Number of LEDs: 5
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info: with LED
SVHC: 7439-92-1; Lead
Prot.type (IP Code): IP69K / IP67
Registration Type: ECE
Power consumption: 1.3 W / 8 W / 2.7 W
Colour Temperature: 6000 K
Weight: 2681 g
Luminous Flux: 1050 lm
Housing material: Zinc Die Casting
Assembly by qualified personnel required!

OE references: DAF 1544972; DAF 2860451; IVECO 500051164; SCANIA 2860451; SCANIA SP1068209
