HELLA LED-Spotlight - Luminator X LED - 12/24V 1F0012206-001

LED-Spotlight - Luminator X LED - 12/24V - round - Reference number: 37.5 - Clear diffusing lens - Crystal clear - Cable: 3000mm - left/right

HELLA's Luminator auxiliary headlamps offer that decisive extra: more light to keep you on top of things in every driving situation. Whether as a proven standard solution or in LED technology, whether with or without position light, whether in large format or as a compact version, the Luminator family offers the optimum solution for every application situation. All Luminator products are robust, of high quality workmanship and of reliable HELLA quality. The LED versions also have a striking light design. Thanks to computer-optimised fine tuning, the high-performance LEDs ensure even, ideal illumination of the road. The advantages for the driver: more safety and less fatigue.

• High-performance LED for long range
• Illumination of the roadway by computer-calculated double reflector technology

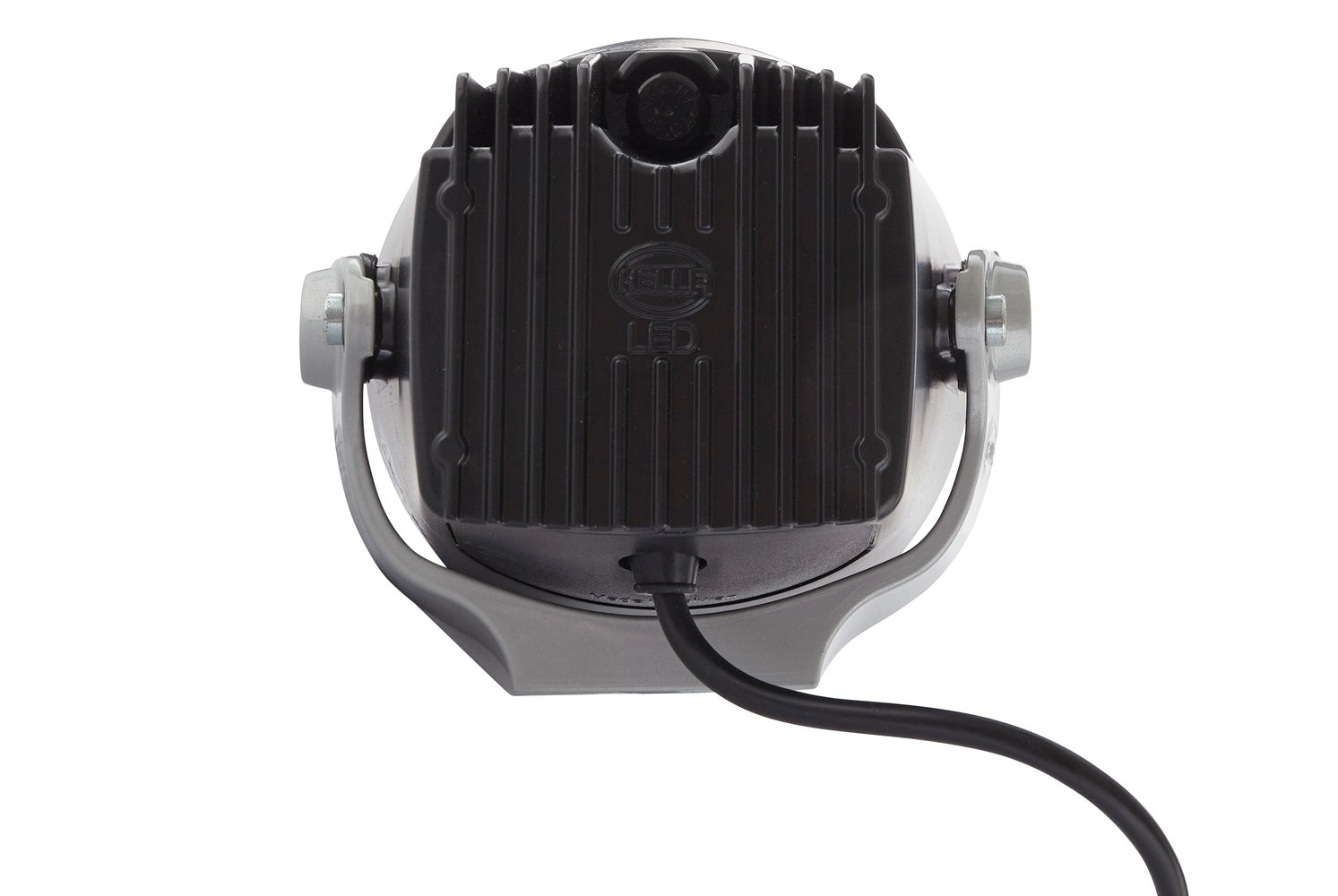

• Integrated electronics and cooling fins for passive heat dissipation, no fan necessary
• Immediate light without delay when light flashes
• Bulb replacement no longer necessary
• Width: 145mm - Height: 127mm - Depth: 116mm - Fitting Depth: 59mm - Overall Height: 133mm - Lamp Type: LED - with LED - without top
• Light functions: 1 - with high beam (LED)

Item Attributes:

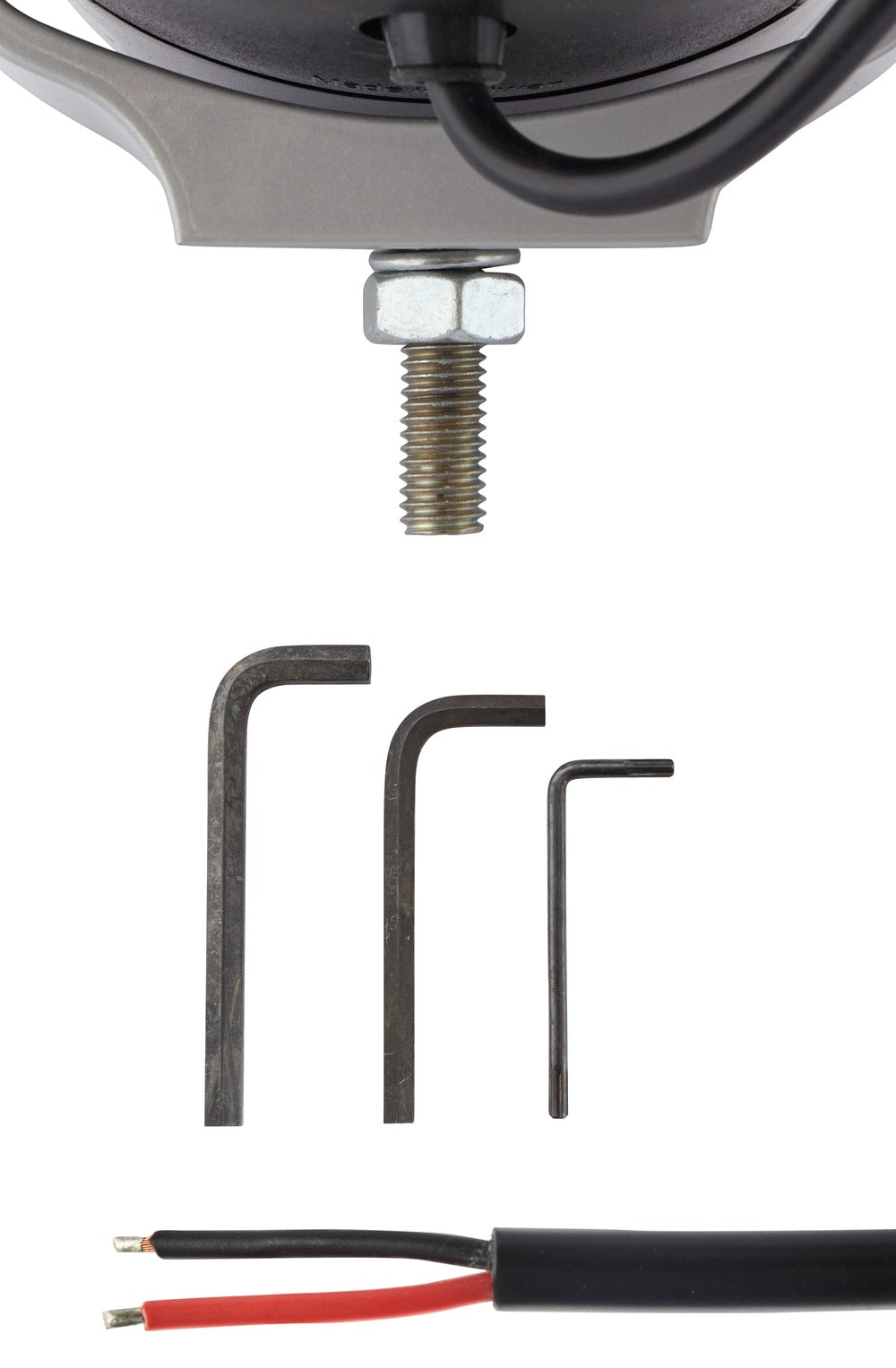

Mounting Type: Bolted

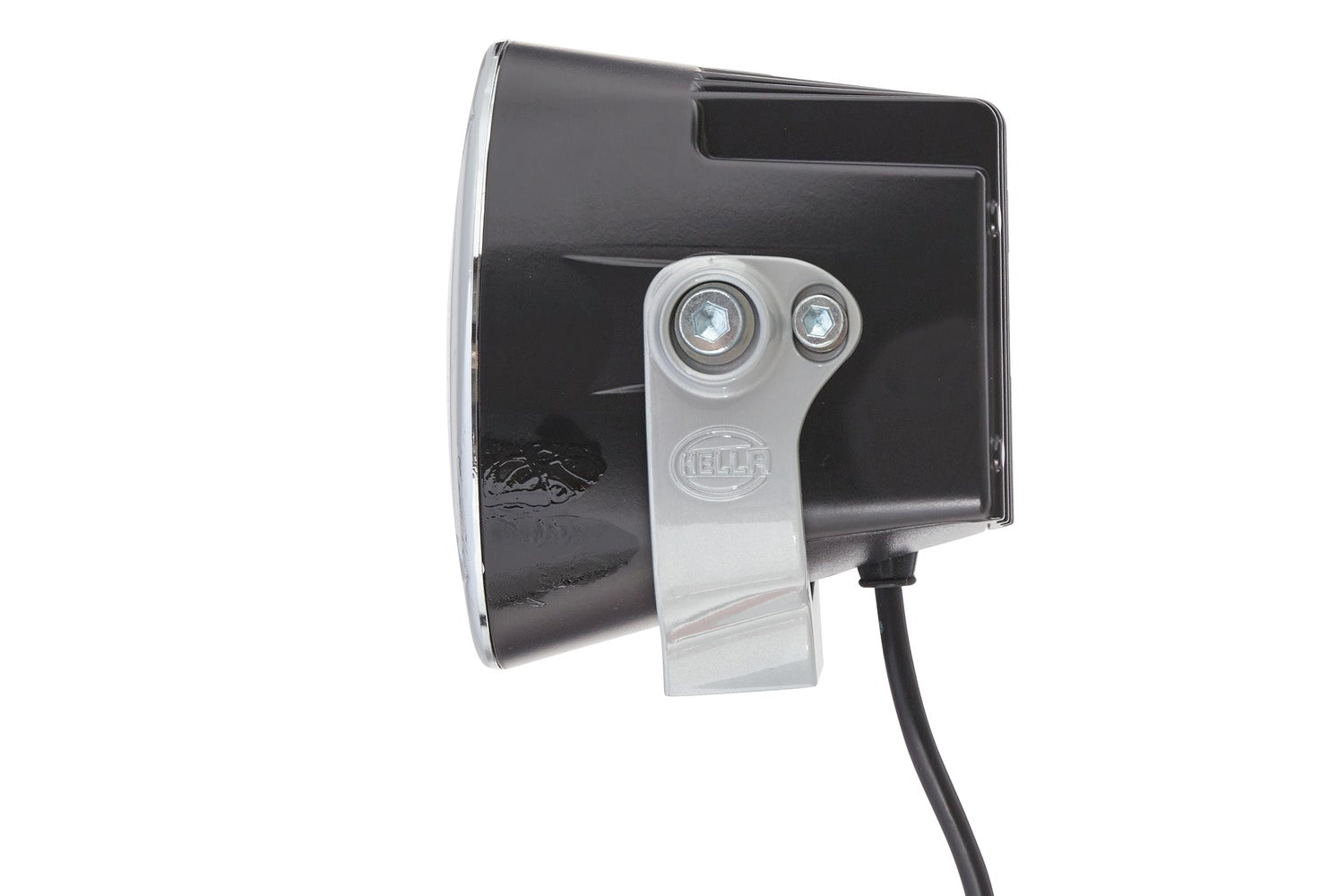

Fastening Type: Suspended / Swivelling Mounting Bracket / Vertical
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Fitting Position: left / right
Height: 127 mm
Overall Height: 133 mm
Width: 145 mm
Depth: 116 mm
Fitting Depth: 59 mm
Light Function: with high beam (LED)
Light functions: 1
fulfils ECE standard: R112
Reference number: 37.5
Cable: 3000 mm
Housing Colour: black
Lens Colour: Crystal clear
Frame Colour: chrome
Shape: round
Housing Type: Metal Housing
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info 2: without top
Supplementary Article/Supplementary Info: with LED
SVHC: 2451-62-9; 1,3,5-Tris(oxiran-2-ylmethyl)-1,3,5-triazinan... / 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AGCO ACV0753630; FENDT A CV0 753 630; MERCEDES-BENZ 514 908 13 80; MERCEDES-BENZ 514908138 000 00; MERCEDES-BENZ A 514 908 13 80; MERCEDES-BENZ A 514908138 000 00
