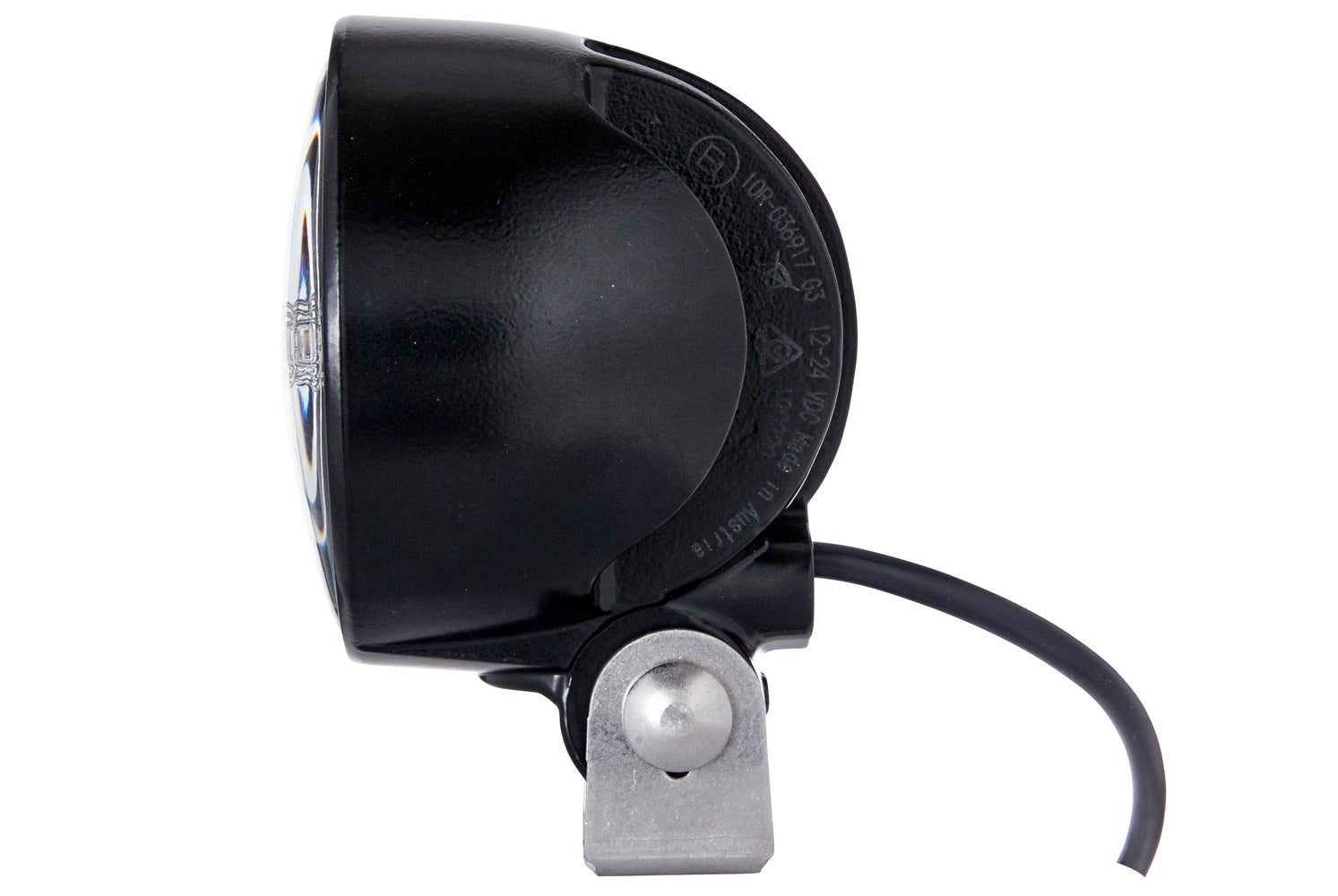

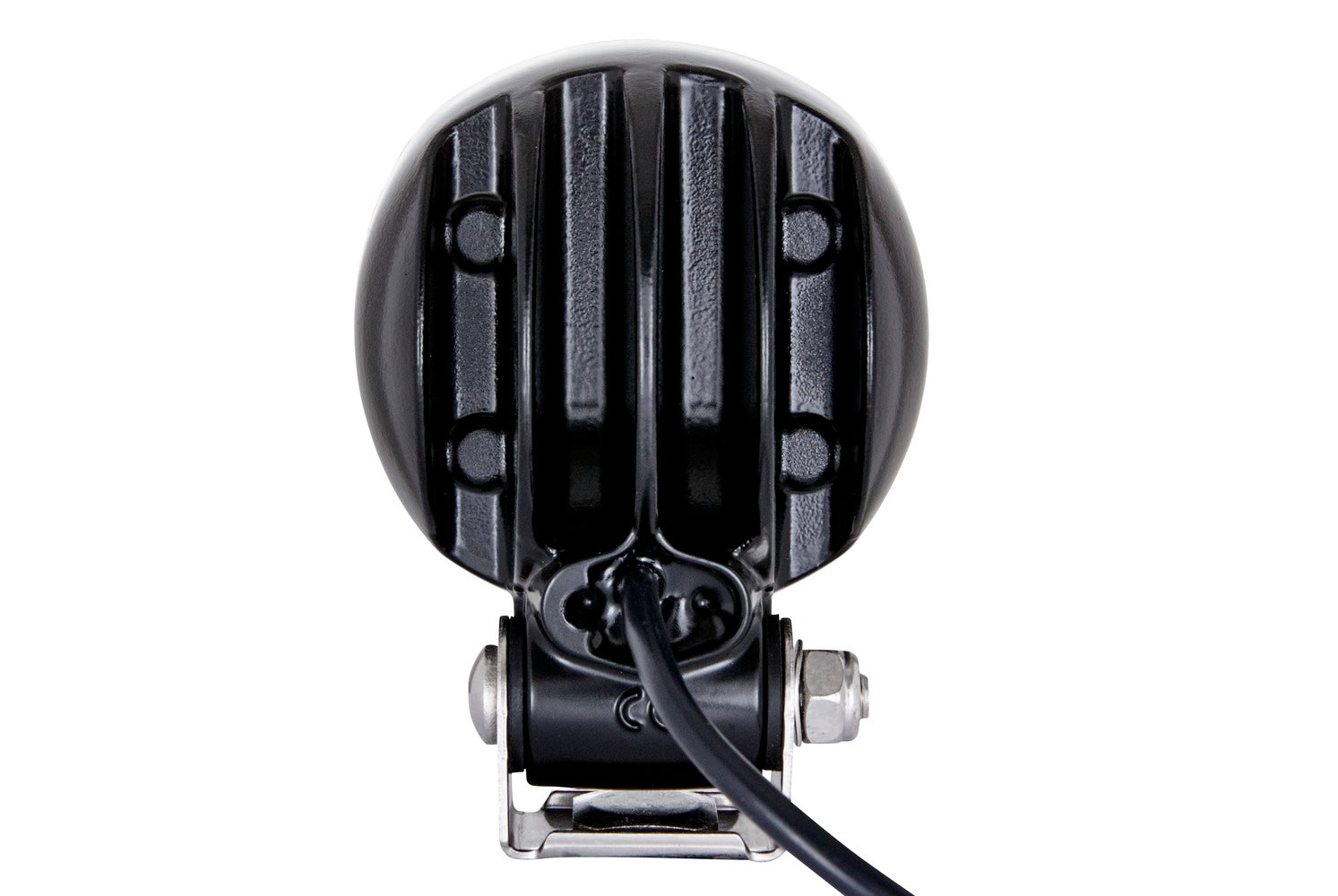

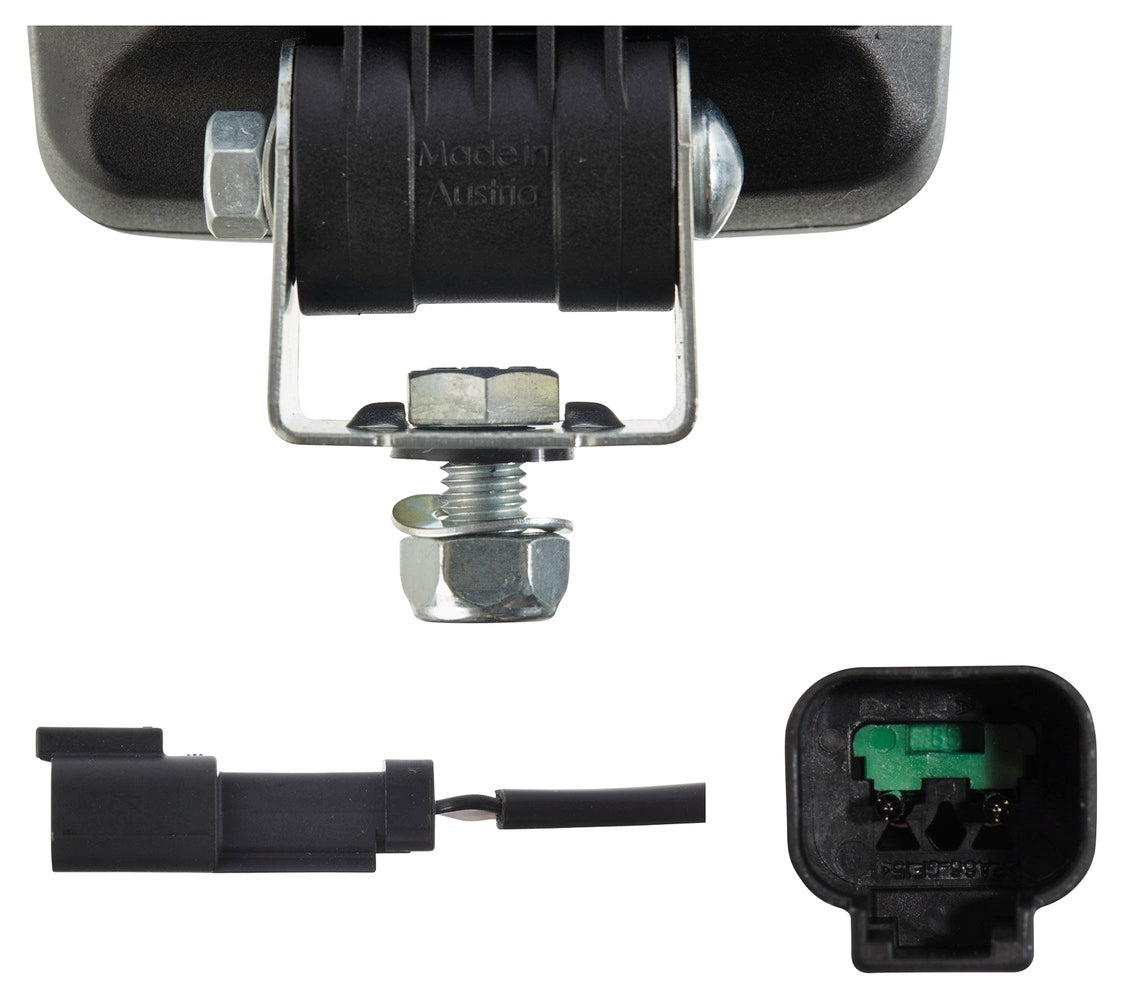

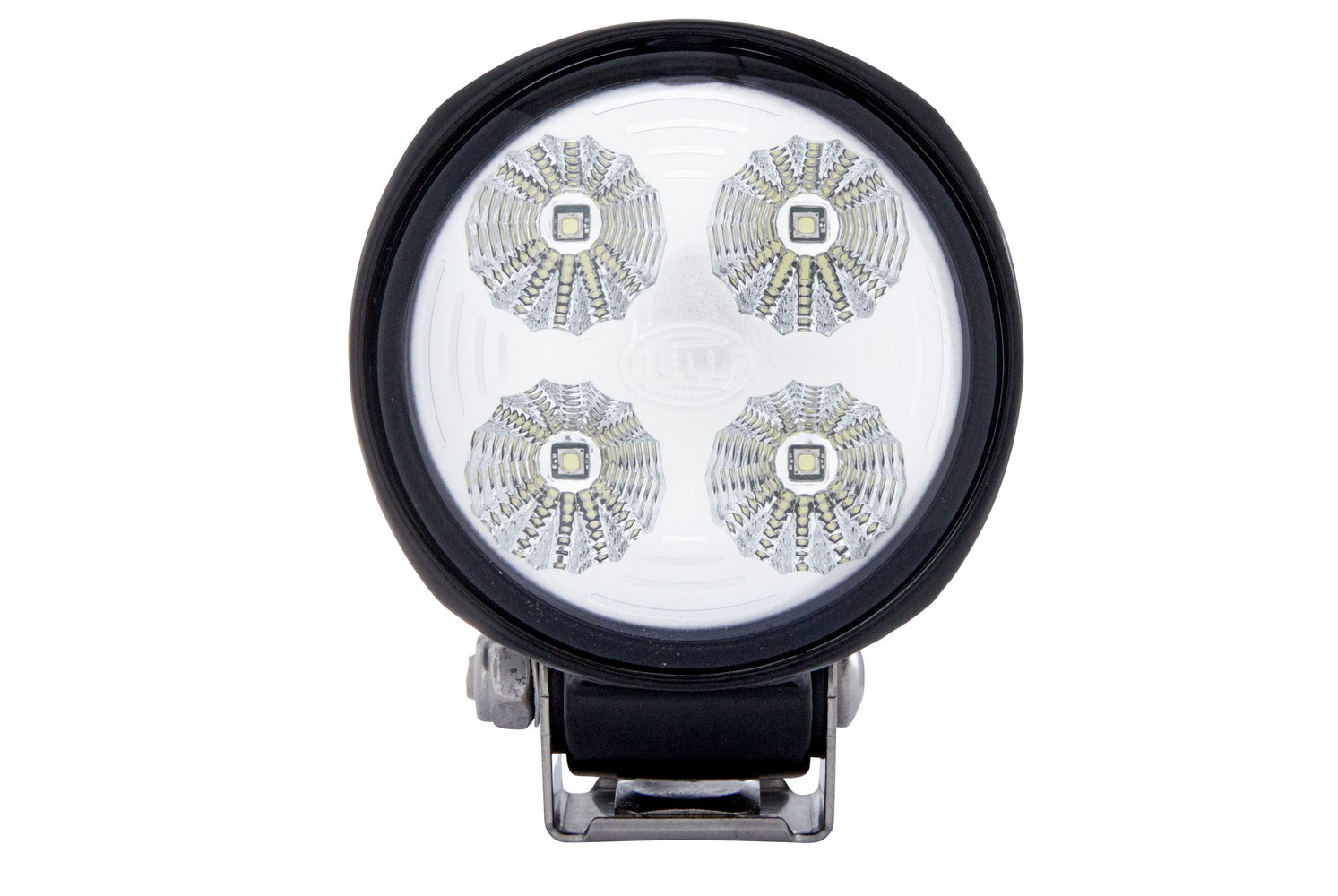

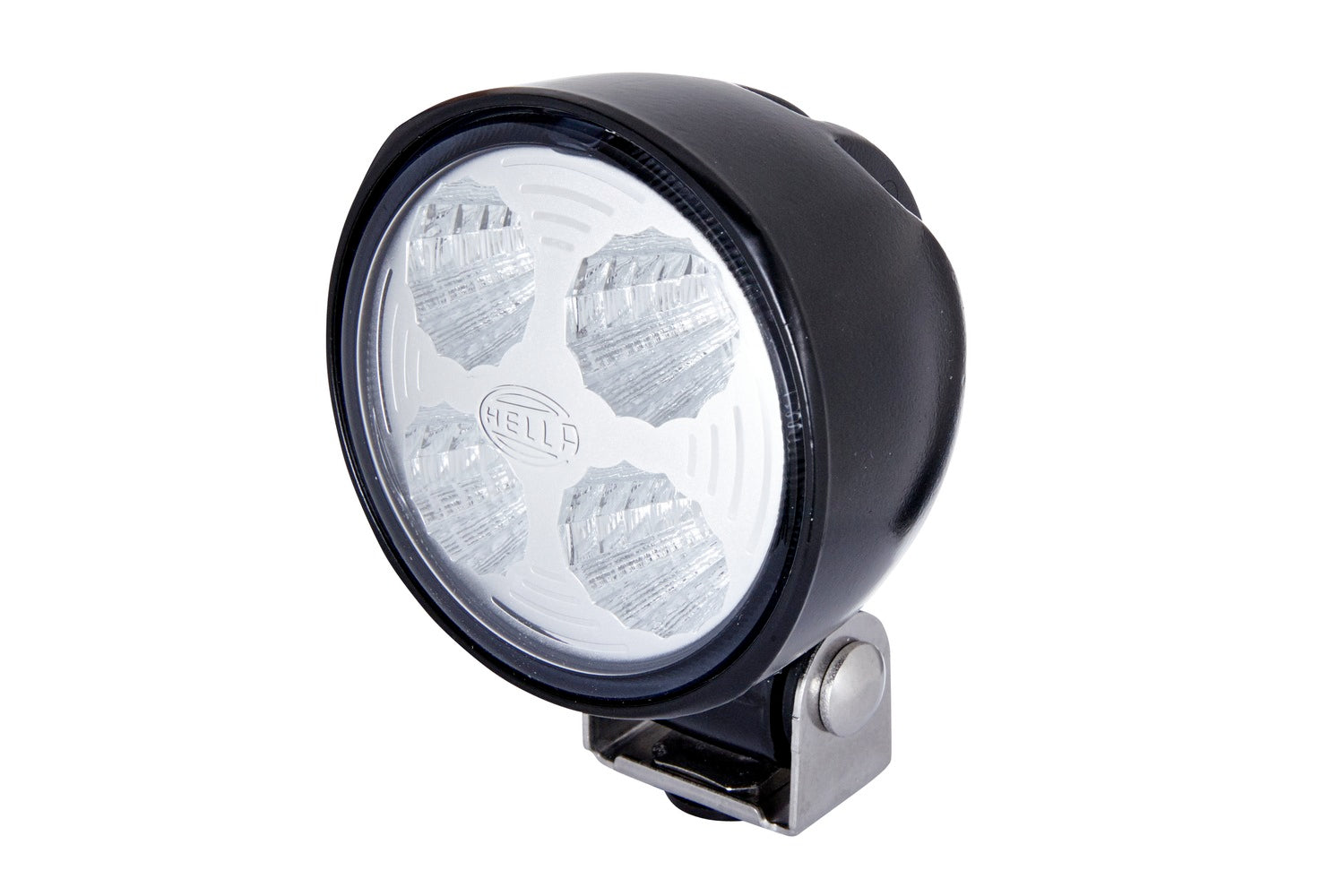

HELLA LED-Spotlight - Modul 70 Gen. III - 12/24V 1F0996376-181

LED-Spotlight - Modul 70 Gen. III - 12/24V - round - Reference number: 7.5 - Clear diffusing lens - Crystal clear - left/right

The Module 70 LED Gen. 3 spotlight is a recessed spotlight in a compact design. This LED headlight supplements the existing Modul 70 worklight series from HELLA with an LED main headlight with high beam function. The combination of the Modul 70 LED worklights with the new Modul 70 LED driving lamp enables manufacturers to give their vehicle series a uniform appearance.

• LED spotlight module 70 Gen. 3 for surface mounting (standing / hanging) - with ECE approval
• Black die-cast aluminium housing
• Approved for motorbikes and tractors
• Width: 83mm - Height: 83mm - Depth: 74mm - Fitting Depth: 27mm - Overall Height: 110mm - Lamp Type: LED - with LED - with clip
• Light functions: 1 - with high beam (LED)
• fulfils ECE standard: R112/R10
• Metal Housing - Housing Colour: Black - Lens Colour: Crystal clear

Item Attributes:
Mounting Type: Bolted
Fastening Type: Swivelling Mounting Bracket
Light Design: LED
Lamp Type: LED
Voltage: 24 V / 12 V
Fitting Position: left / right
Height: 83 mm
Overall Height: 110 mm
Width: 83 mm
Depth: 74 mm
Fitting Depth: 27 mm
Light Function: with high beam (LED)
Light functions: 1
fulfils ECE standard: R10 / R112
Reference number: 7.5
Housing Colour: black
Lens Colour: Crystal clear
Shape: round
Housing Type: Metal Housing
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info 2: with clip
Supplementary Article/Supplementary Info: with LED
Assembly by qualified personnel required!
