HELLA LED-Spotlight - Rallye 3003 LED - 24/12V - white - 1050lm 1F8016797-001

LED-Spotlight - Rallye 3003 LED - 24/12V - 1050lm - round - Reference number: 25 - ECE - Clear diffusing lens - Crystal clear - Light colour: white - Cable: 800mm - left/right

The first Rallye 3003 auxiliary driving lamp in LED technology impresses with its outstanding light design. When switched on, the clear, cool-white light shows a characteristic light design both during the day and at night. EdgeLight technology has been applied for a more intense appearance of the position light. The horizontal cooling fin in the auxiliary headlamp with a cooling surface of 230 cm² enables efficient thermal management. The LED headlight insert is replaceable. The PC lens is impact resistant and the impact resistant housing is made of high quality thermoplastic. The mounting brackets made of galvanized sheet steel allow a large adjustment range.

• Auxiliary driving lamps with future-oriented look using the latest LED technology
• The striking night design is realised by the LED position light with characteristic hexagonal contour design
• Delay-free light signal thanks to attention-grabbing flasher function
• The horizontal cooling fin in the auxiliary headlamp with a cooling surface of 230 cm² enables efficient thermal management
• Impact-resistant housing made of high-quality thermoplastic
• Width: 222mm - Height: 222mm - Depth: 125mm - Fitting Depth: 49mm - Overall Height: 243mm - Lamp Type: LED - with LED
• Light functions: 2 - with position light (LED)/with high beam (LED)

Item Attributes:
Mounting Type: Bolted

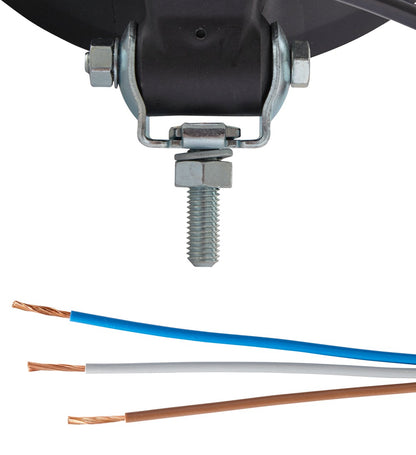

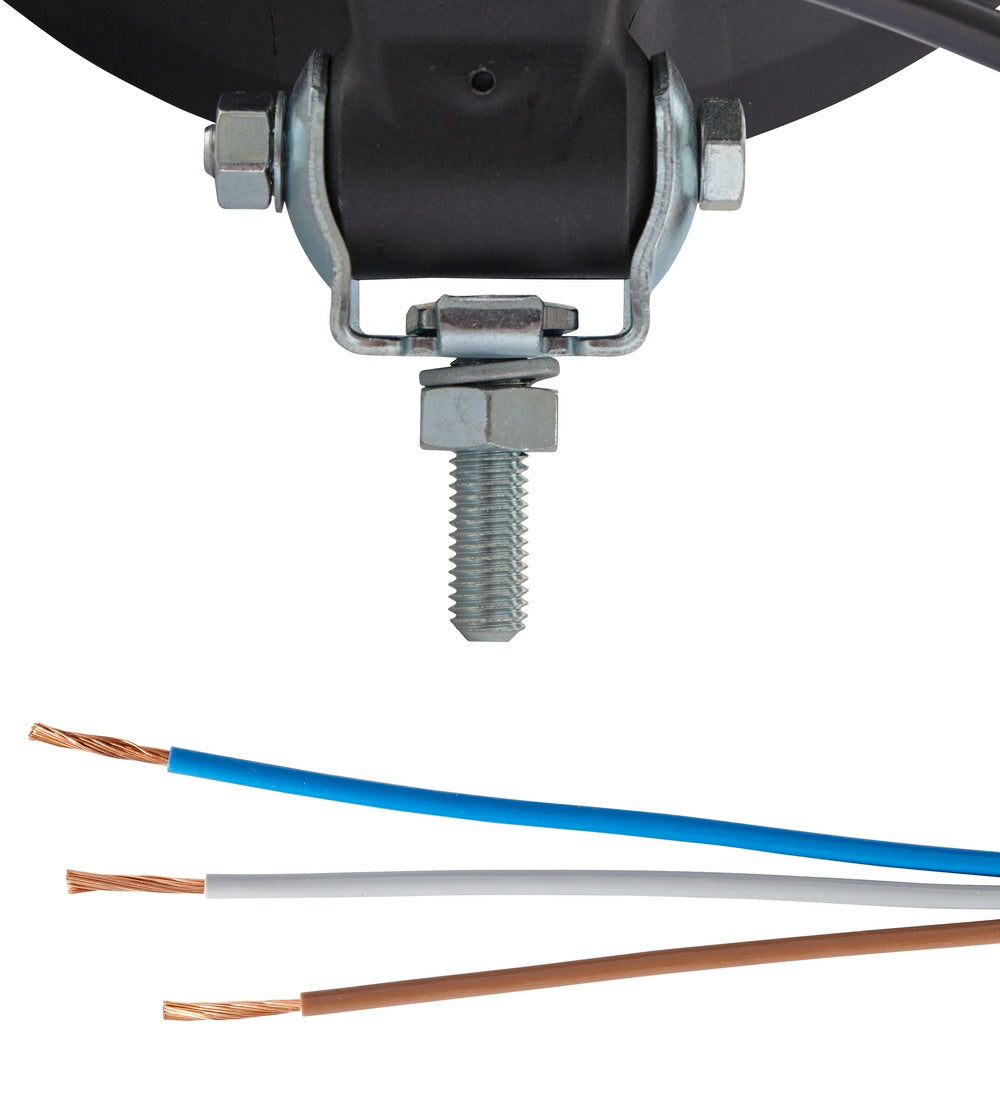

Fastening Type: Swivelling Mounting Bracket
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Fitting Position: right / left
Height: 222 mm
Overall Height: 243 mm
Width: 222 mm
Depth: 125 mm
Fitting Depth: 49 mm
Light Function: with high beam (LED) / with position light (LED)
Light functions: 2
fulfils ECE standard: R112 / R7 / R10
Reference number: 25
Cable: 800 mm
Housing Colour: black
Lens Colour: Crystal clear
Frame Colour: chrome
Shape: round
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info: with LED
SVHC: 7439-92-1; Lead
Registration Type: ECE
Luminous Flux: 1050 lm
Colour Temperature: 6000 K
Prot.type (IP Code): IP69K / IP67
Weight: 1577 g
Assembly by qualified personnel required!
Light colour: white
Colour: chrome
Length: 10 "
Power consumption: 5 W / 14.5 W / 2.4 W

OE references: CATERPILLAR 36740435; DAF 1544970; IVECO 500051169; SCANIA 2860455
