HELLA LED-Strobe-type Beacon - BST-Round - 12/24V - Red/Yellow 2XD014564-611

LED-Strobe-type Beacon - BST-Round - 12/24V - Red/Yellow - Fitting - Cable: 1850mm - mounting - Kit - Quantity: 2

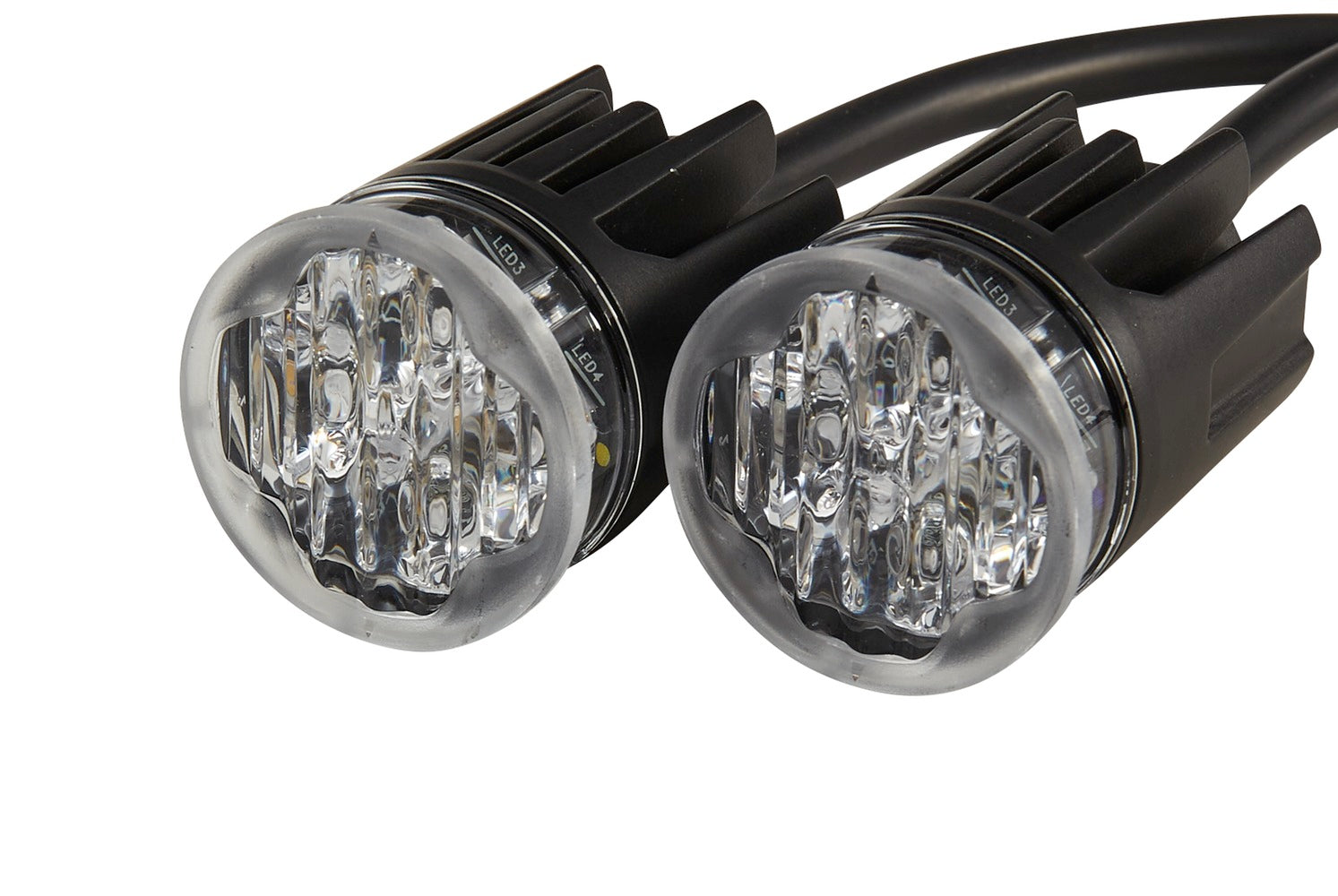

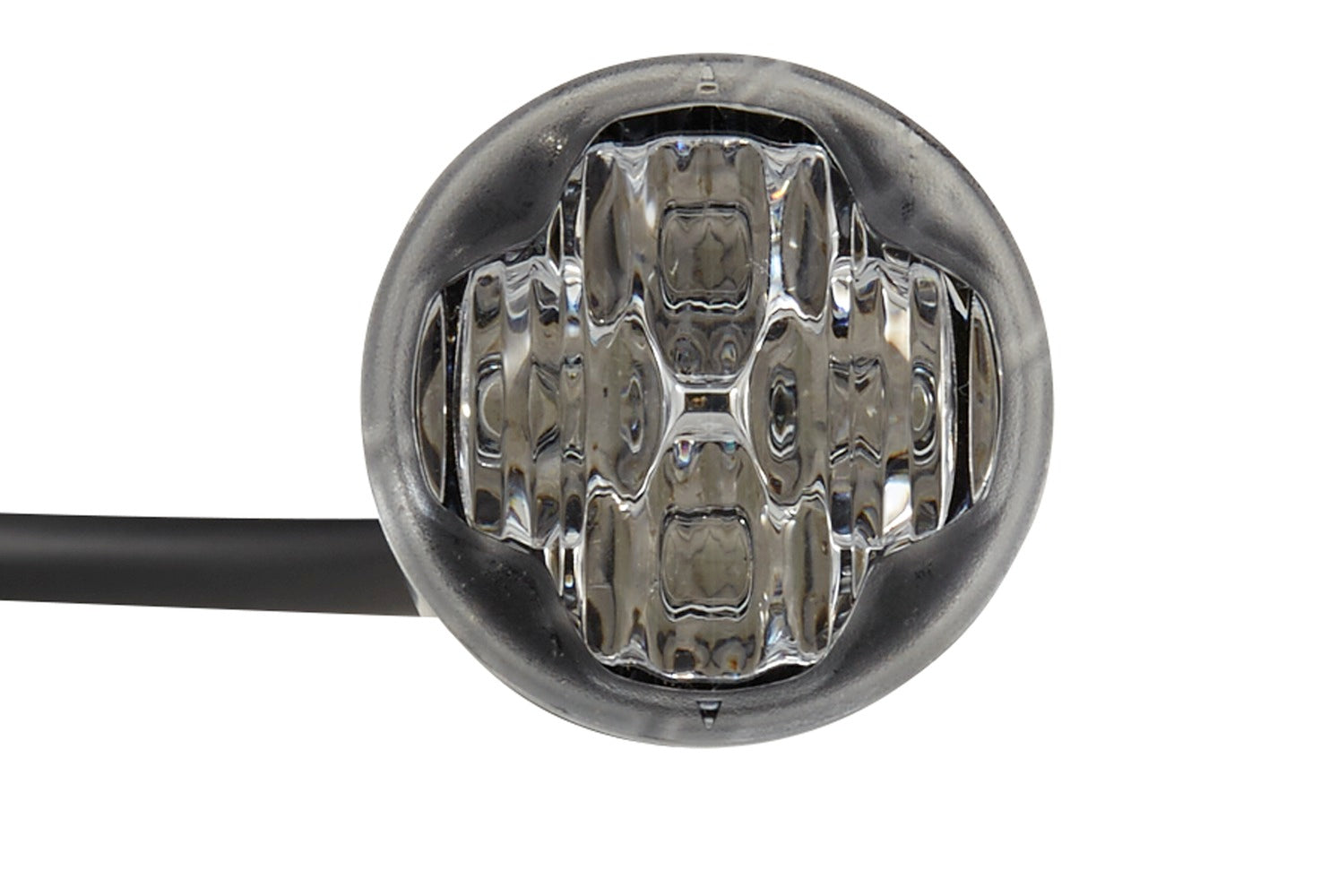

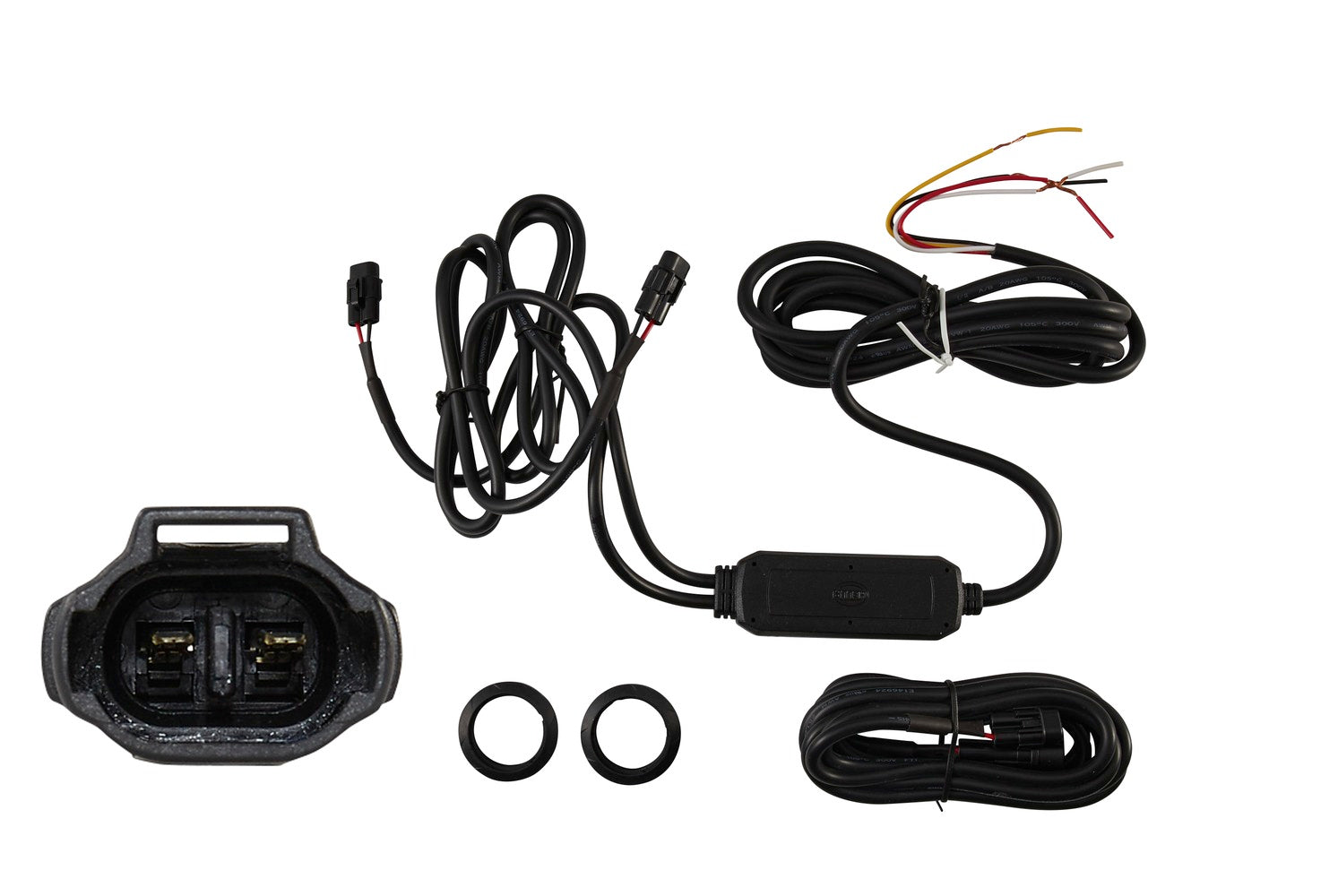

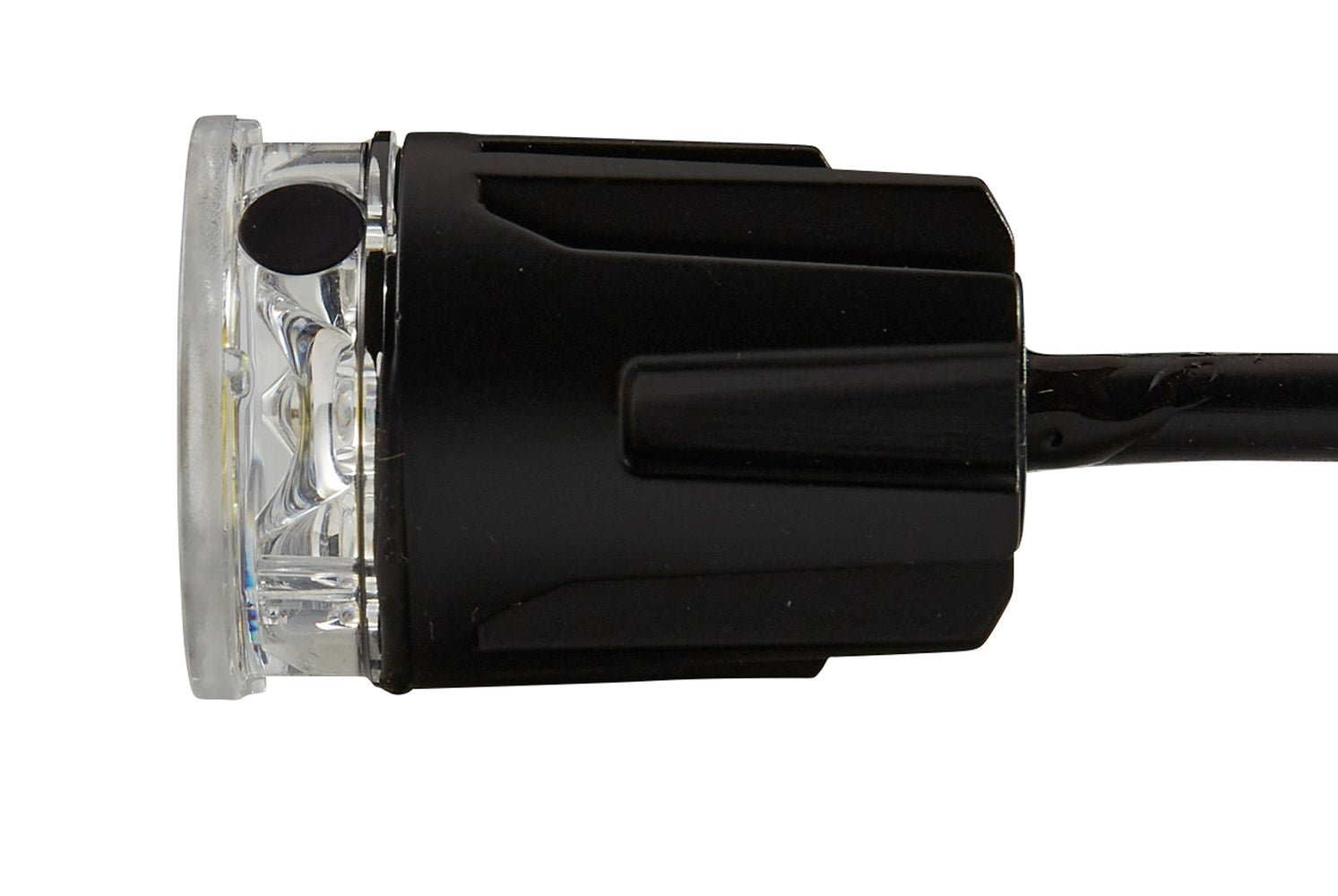

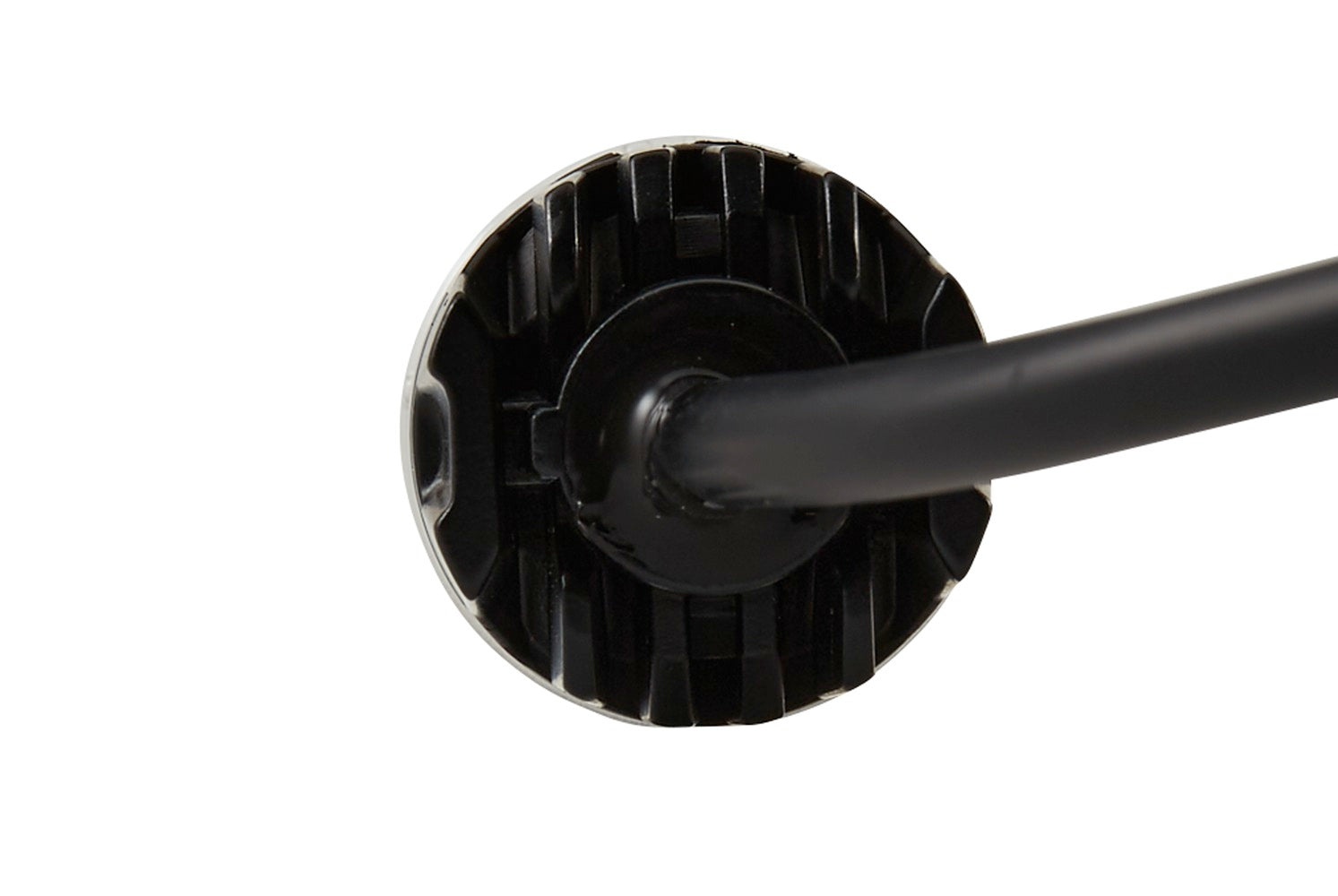

The BST-Round warning light is characterised by its round design, which allows flexible installation in different areas of the vehicle. Four power LEDs and high-quality precision optics produce an intense warning signal with minimal power consumption. The warning lights are supplied as a pre-configured set consisting of 1 ballast, 2 light modules and 2 mounting rings. They can be synchronised with several units and have different flash sequences. In addition, the BST-Round warning lights are ECE-R65 and SAE tested. The light modules have an integrated day/night mode and thus adjust the brightness of the warning signal to the ambient light. This ensures increased visibility during the day and the avoidance of glare at night. The warning lights can be mounted in various positions around the vehicle using the mounting rings included in the scope of delivery. They are particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots.

• Can be synchronised with several units
• Different flash patterns adjustable
• Integrated day / night mode
• Lamp Type: LED - Number of LEDs: 4 - Power consumption: 33W
• With flashing warning signal - Lens Colour: Crystal clear - LED colour: Red/Yellow - Fitting Position: mounting
• fulfils ECE standard: R10/R65 - Prot.type (IP Code): IP6X/IPX4K/IPX9K
• Housing material: Aluminium - Housing Colour: Black - Diffusing Lens Material: PC (Polycarbonate)

Item Attributes:
Fitting Position: mounting
Mounting Type: Fitting
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Outer Diameter 1: 36 mm
Light Function: With flashing warning signal
Prot.type (IP Code): IP6X / IPX9K / IPX4K
fulfils ECE standard: R65 / R10
Lens Colour: Crystal clear
Supplementary Article/Supplementary Info: Observe the national mounting, install. and operat. regs. / with control unit
Number of LEDs: 4
Housing material: Aluminium
Housing Colour: black
Power consumption: 33 W
Diffusing Lens Material: PC (Polycarbonate)
Reverse polarity protection: Yes
Temperature range from: -40 °C
Temperature range to: +80 °C
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Cable: 1850 mm
Light colour: red/yellow
Weight: 386 g
Quantity Unit: Kit
Quantity: 2
SVHC: 7439-92-1; Lead
LED colour: red/yellow
Assembly by qualified personnel required!
