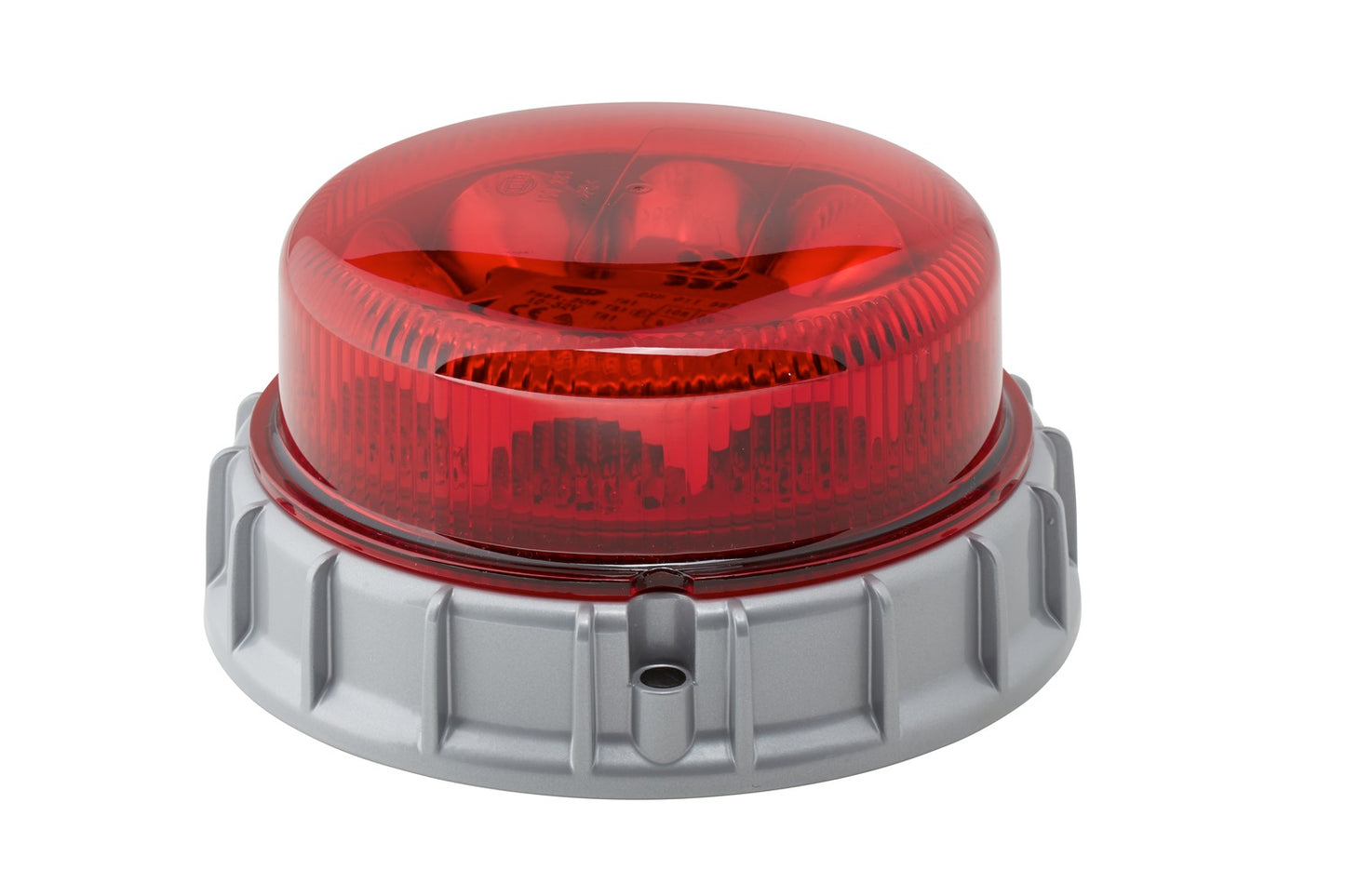

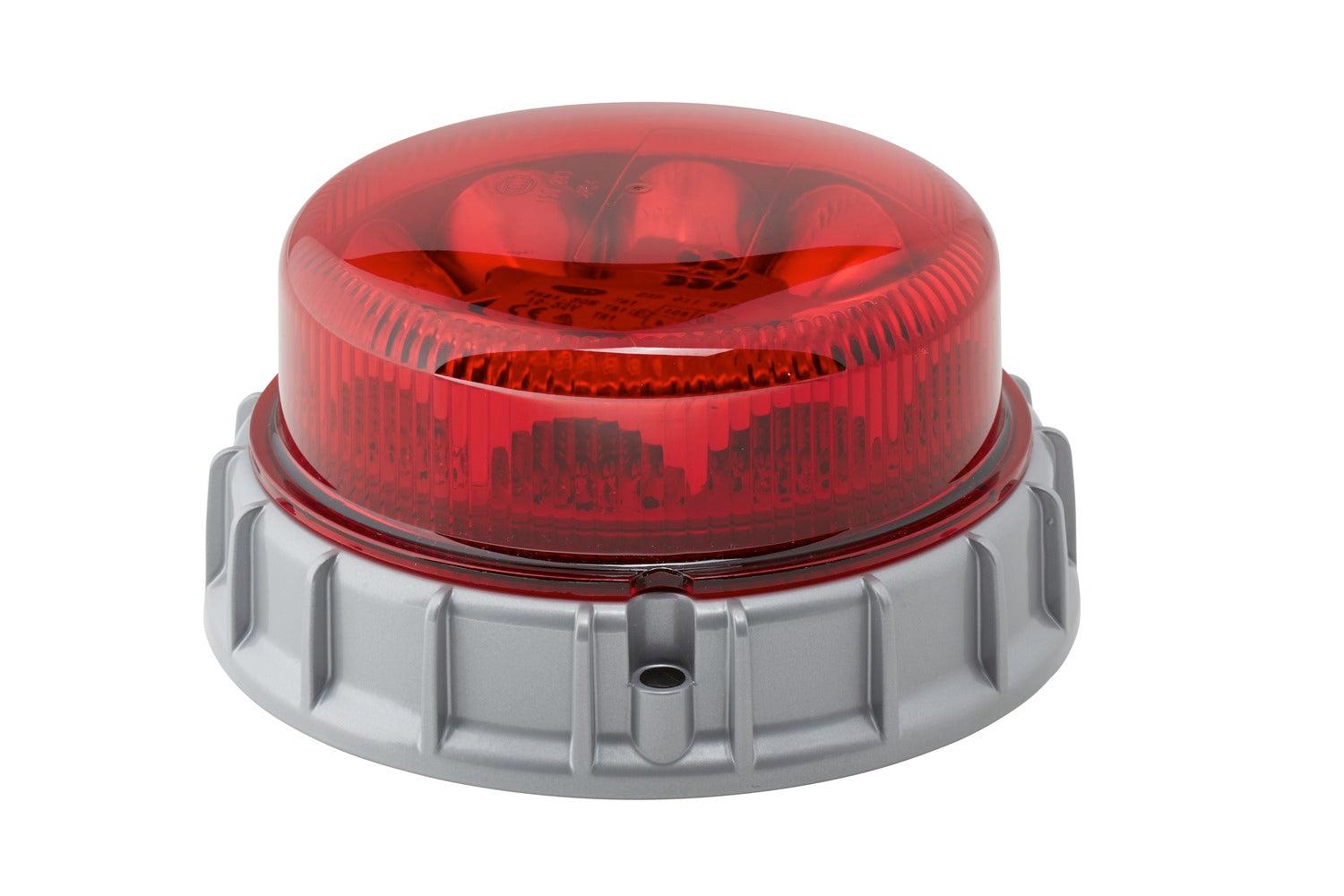

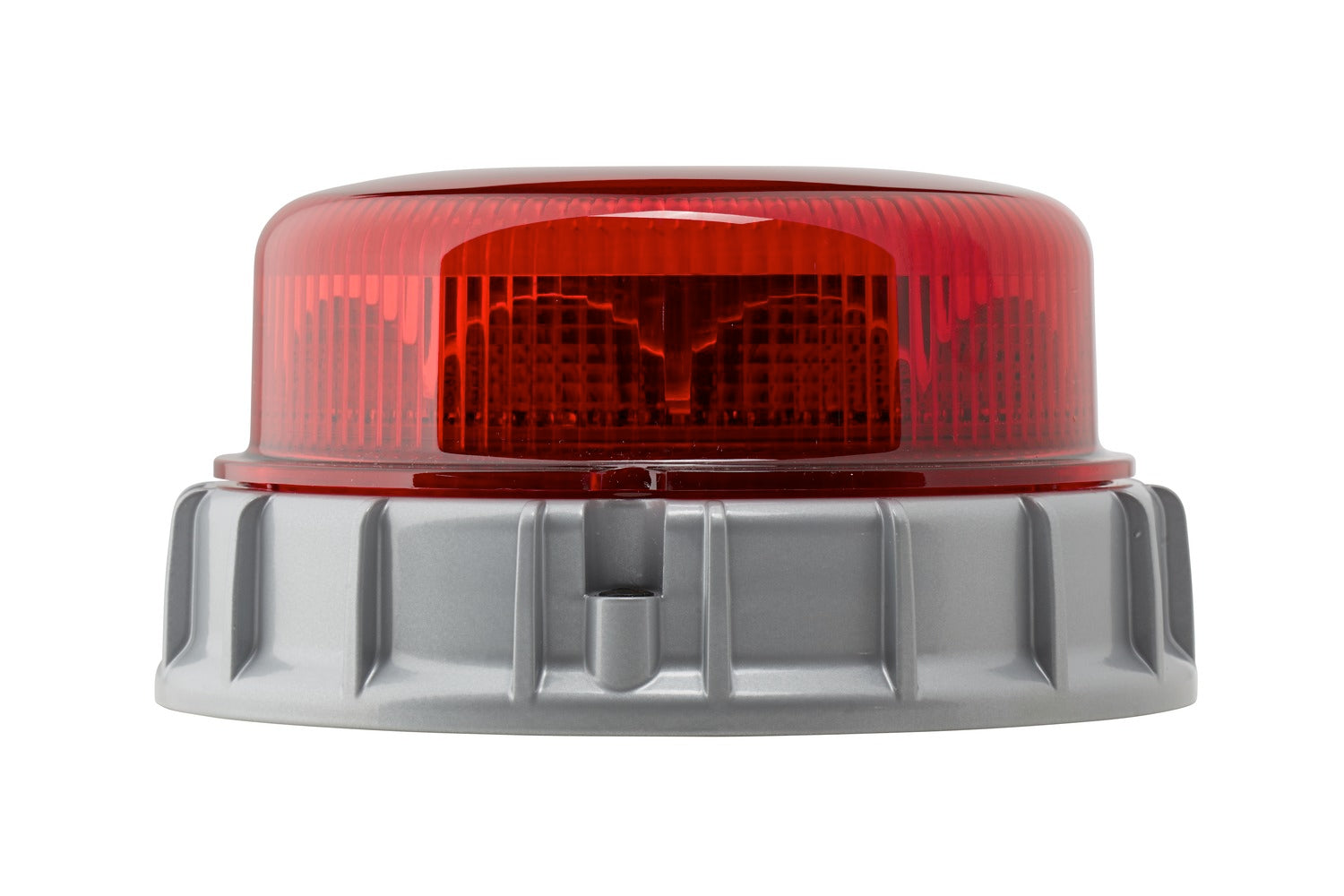

HELLA LED-Strobe-type Beacon - K-LED 2.0 F - 12/24V - Red 2XD011557-121

LED-Strobe-type Beacon - K-LED 2.0 F - 12/24V - Red - Screw Connection/mounting

The K-LED 2.0 beacon provides both a rotating and a flashing warning signal in one product. The signal is generated by means of an electronic concept and thus without moving parts and offers 16 different flash sequences. Thanks to the integrated "day/night mode", the brightness is adjusted to the ambient light by means of a sensor. This ensures increased visibility during the day and the avoidance of glare at night. The beacon can be connected to an operating voltage of 10 - 32 V. It is also very flat and has an impact-resistant polycarbonate light bonnet that protects against shocks. The height of the K-LED 2.0 is approx. 87.6 mm (F) to 160.6 mm (R), depending on the design. It meets the requirements of IP67 and is therefore dustproof and can be immersed in water for short periods. The product is attached to the vehicle by means of screws in the case of fixed mounting or by means of a pipe socket or magnetic adapter in the case of the other variants. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots.

• The K-LED 2.0 F can switch between a rotating or flashing warning signal by switch or programming
• A sensor measures the ambient brightness and controls the change between day / night level based on the measured values. This guarantees you the best possible warning effectiveness
• The beacon has been developed without moving parts and thus offers optimum protection against strong vibrations and shocks
• The K-LED 2.0 is characterised by a long service life
• The impact-resistant, extremely flat polycarbonate light dome guarantees particularly reliable protection against knocks, e.g. from branches
• Lamp Type: LED - Number of LEDs: 20
• With flashing warning signal - Lens Colour: Red - LED colour: White

Item Attributes:
Mounting Type: mounting / Screw Connection
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Light Function: With flashing warning signal
Light colour: red
Number of LEDs: 20
Prot.type (IP Code): IP6K7 / IP6K9K
Registration Type: ADR/GGVS
fulfils ECE standard: R65
Lens Colour: red
Housing Colour: silver
Housing material: Aluminium
Temperature range from: -40 °C
Temperature range to: +60 °C
Diffusing Lens Material: PC (Polycarbonate)
LED colour: white
Assembly by qualified personnel required!

OE references: HAMM 2604821; KAMAG 61132175; KÖGEL 61132175; PAUS 564423; ROSENBAUER 20391A
