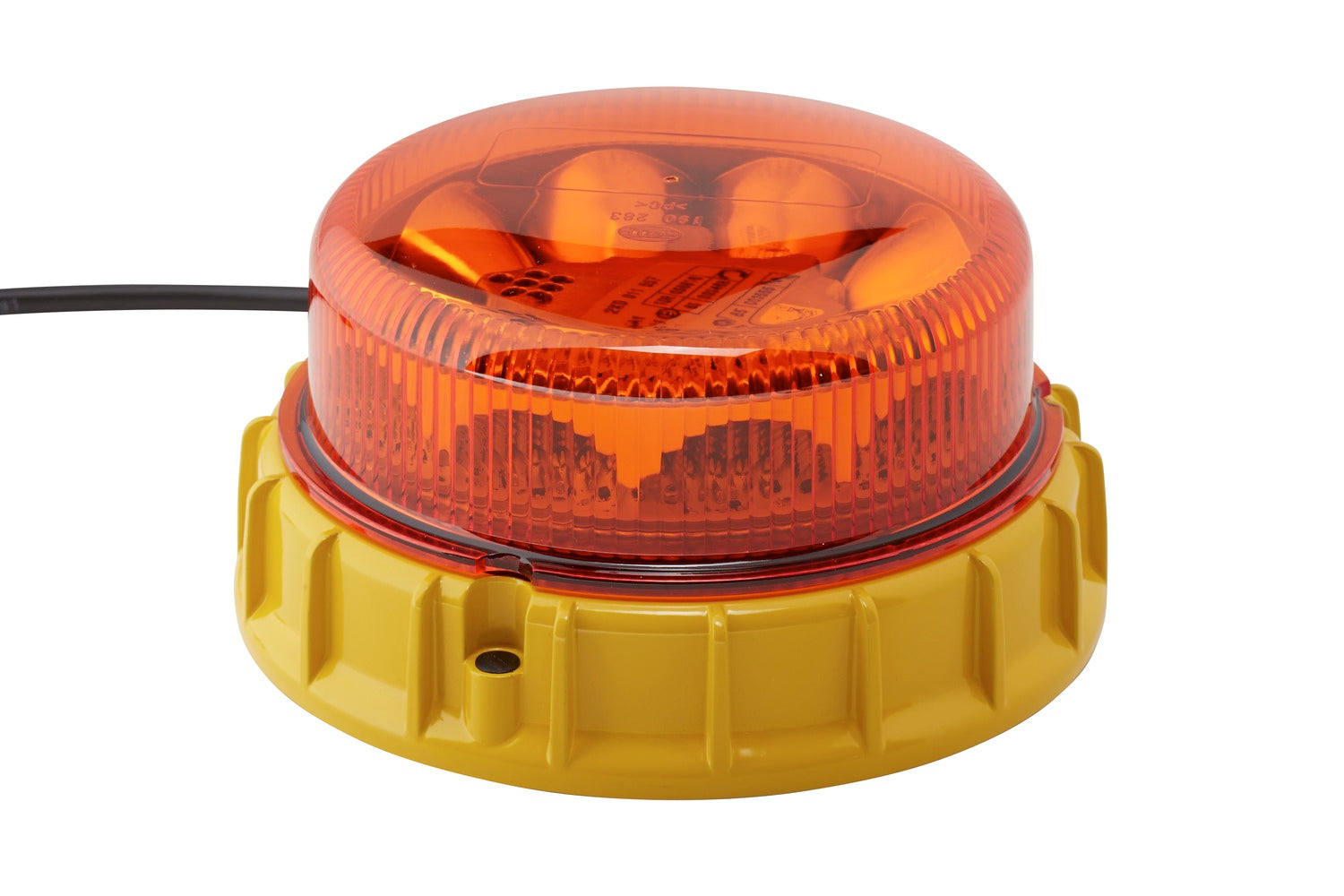

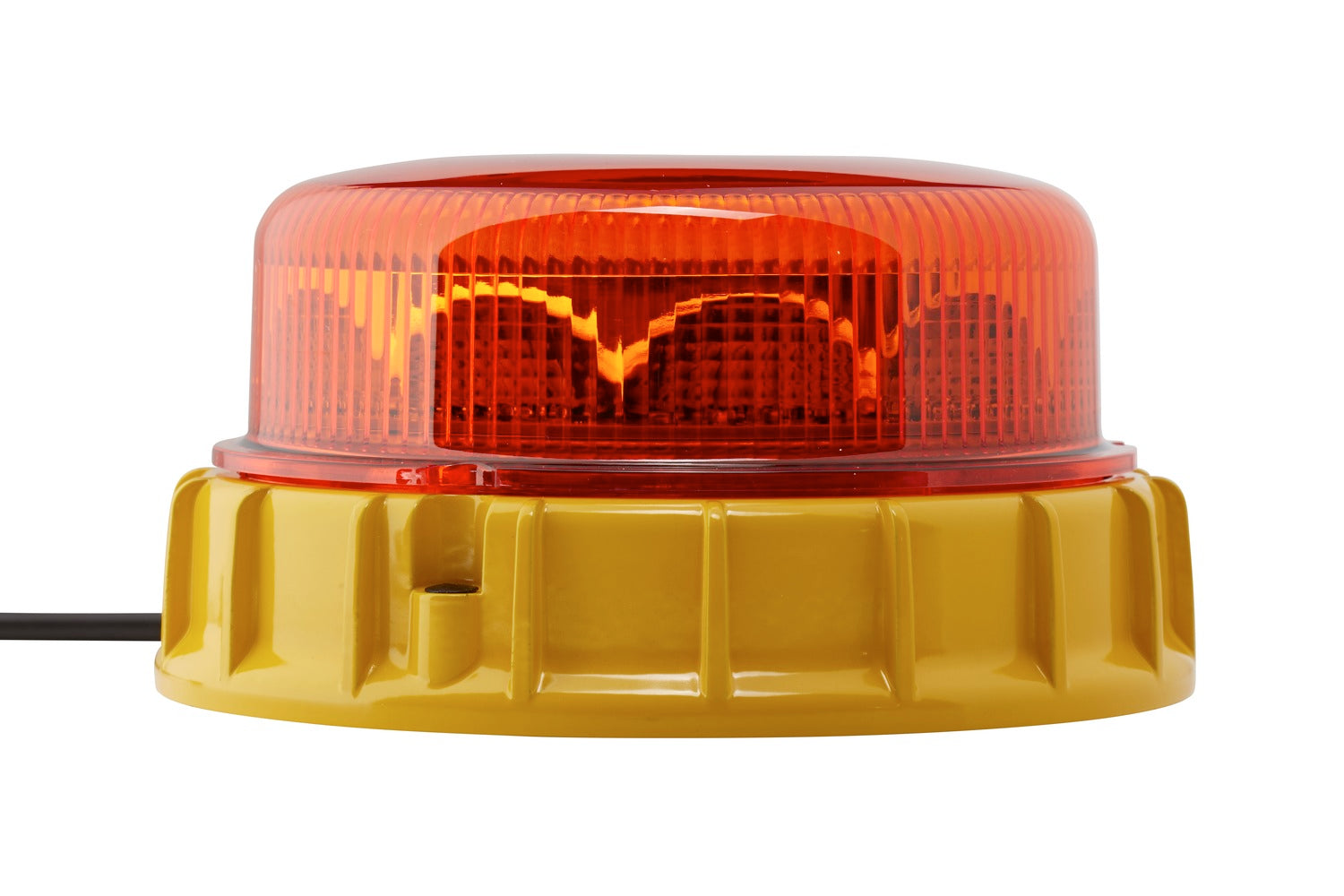

HELLA LED-Strobe-type Beacon - K-LED 2.0 F - 12/24V - yellow (amber) 2XD011557-601

LED-Strobe-type Beacon - K-LED 2.0 F - 12/24V - yellow (amber) - Bolted - Cable: 300mm - Plug: DEUTSCH plug - Quantity: 1

The K-LED 2.0 beacon provides both a rotating and a flashing warning signal in one product. The signal is generated by means of an electronic concept and thus without moving parts and offers 16 different flash sequences. Thanks to the integrated "day/night mode", the brightness is adjusted to the ambient light by means of a sensor. This ensures increased visibility during the day and the avoidance of glare at night. The beacon can be connected to an operating voltage of 10 - 32 V. It is also very flat and has an impact-resistant polycarbonate light bonnet that protects against shocks. The height of the K-LED 2.0 is approx. 87.6 mm (F) to 160.6 mm (R), depending on the design. It meets the requirements of IP67 and is therefore dustproof and can be immersed in water for short periods. The product is attached to the vehicle by means of screws in the case of fixed mounting or by means of a pipe socket or magnetic adapter in the case of the other variants. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots.

• The K-LED 2.0 F can switch between a rotating or flashing warning signal by switch or programming
• A sensor measures the ambient brightness and controls the change between day / night level based on the measured values. This guarantees you the best possible warning effectiveness
• The beacon has been developed without moving parts and thus offers optimum protection against strong vibrations and shocks
• The K-LED 2.0 is characterised by a long service life
• The impact-resistant, extremely flat polycarbonate light dome guarantees particularly reliable protection against knocks, e.g. from branches
• Lamp Type: LED - Number of LEDs: 20 - Power consumption: 30W
• With flashing warning signal - Lens Colour: yellow (amber) - LED colour: white

Item Attributes:
Mounting Type: Bolted
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Outer Diameter 1: 169 mm
Height: 88 mm
Light Function: With flashing warning signal
Light colour: yellow (amber)
Number of LEDs: 20

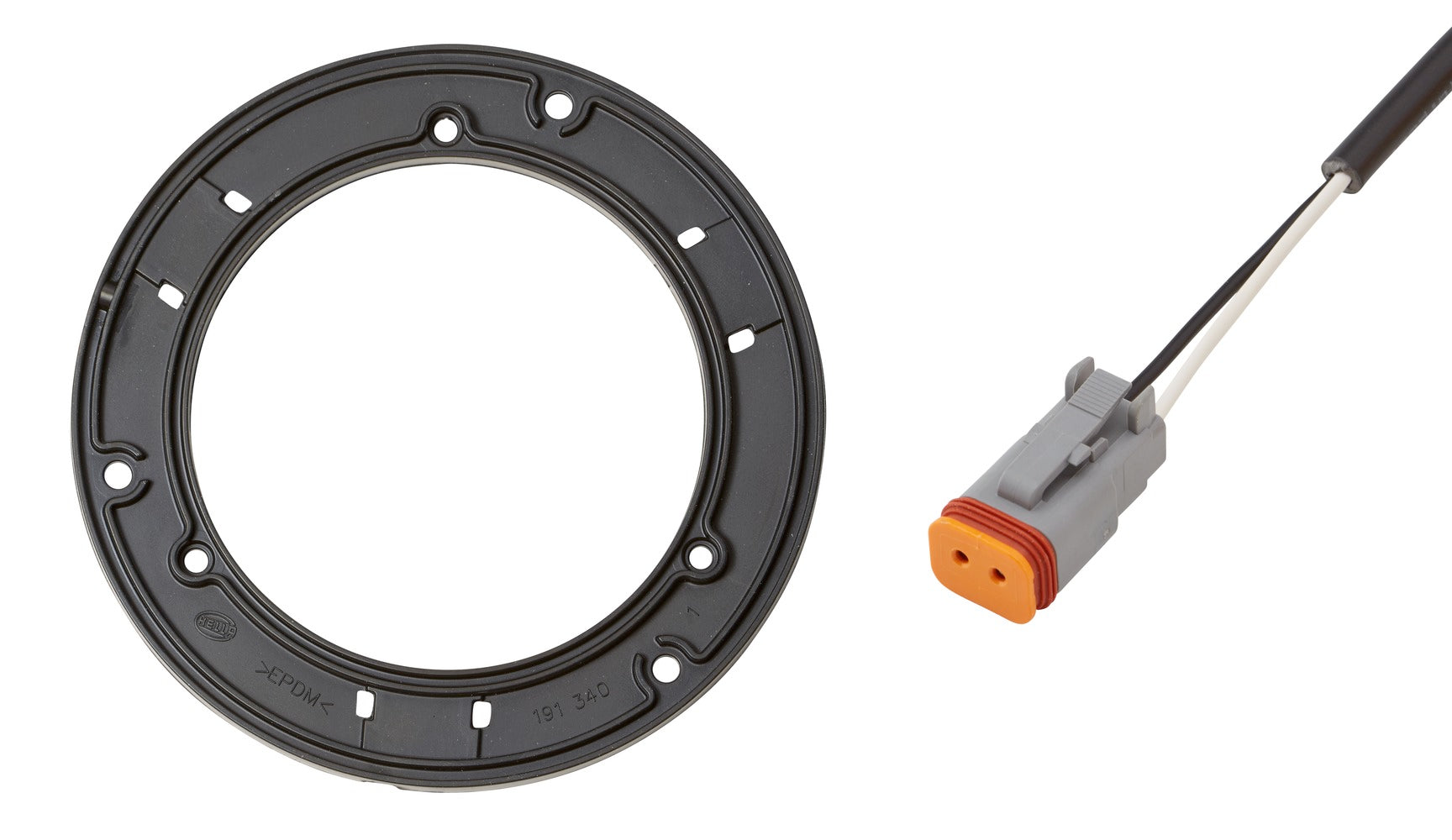

Plug: DEUTSCH plug
Prot.type (IP Code): IP6K9K / IP6K7
Registration Type: SAE / ADR/GGVS
fulfils ECE standard: R65 / R10
Lens Colour: yellow (amber)
Housing Colour: yellow
Rotating beacon RPM: 122 1/min
Flash rate per minute: 122
Power consumption: 30 W
Housing material: Aluminium
Temperature range from: -40 °C
Temperature range to: +60 °C
Cable: 300 mm
Diffusing Lens Material: PC (Polycarbonate)
Weight: 850 g
Quantity: 1
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
LED colour: white
Assembly by qualified personnel required!

OE references: LIEBHERR 1 169 357 7
