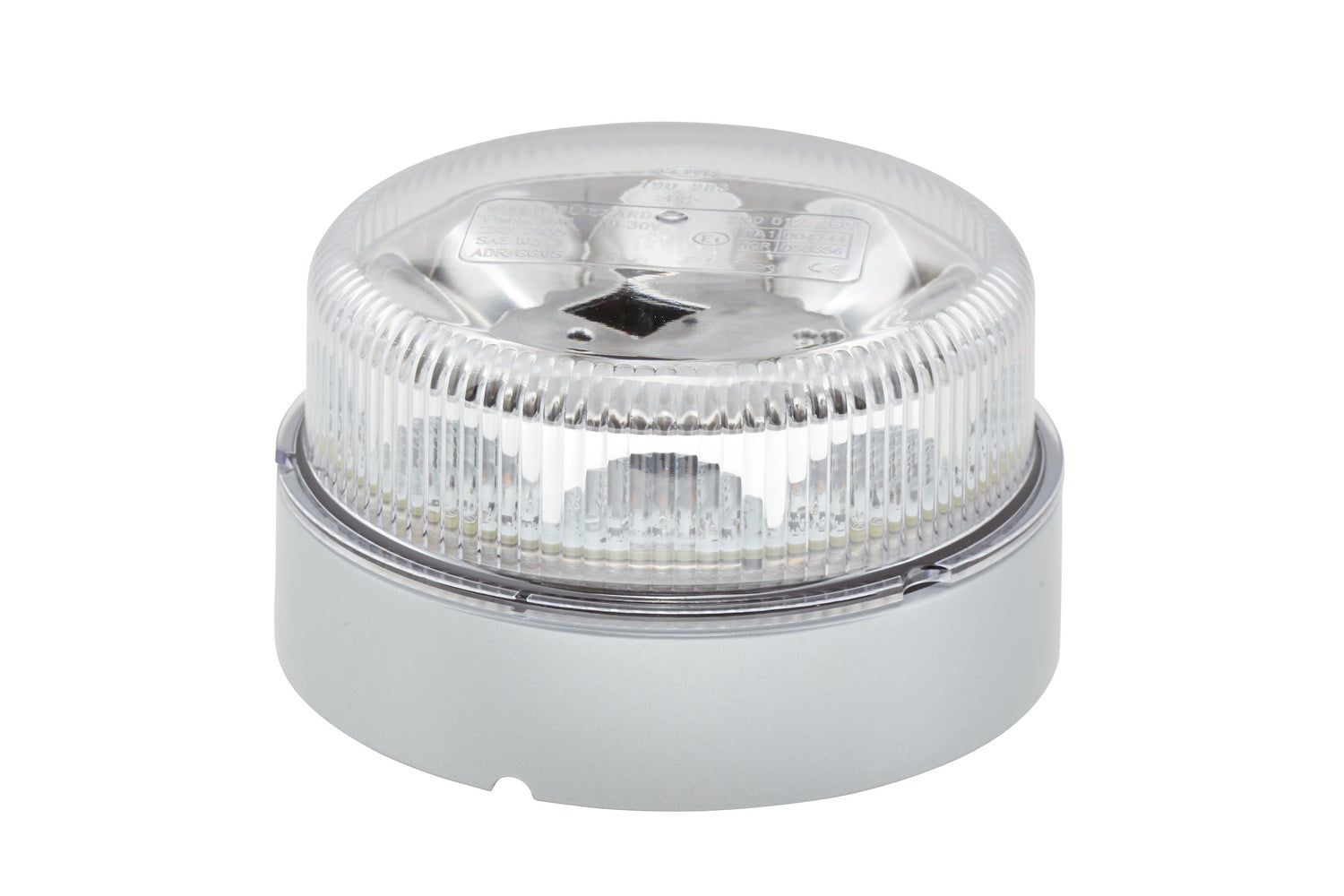

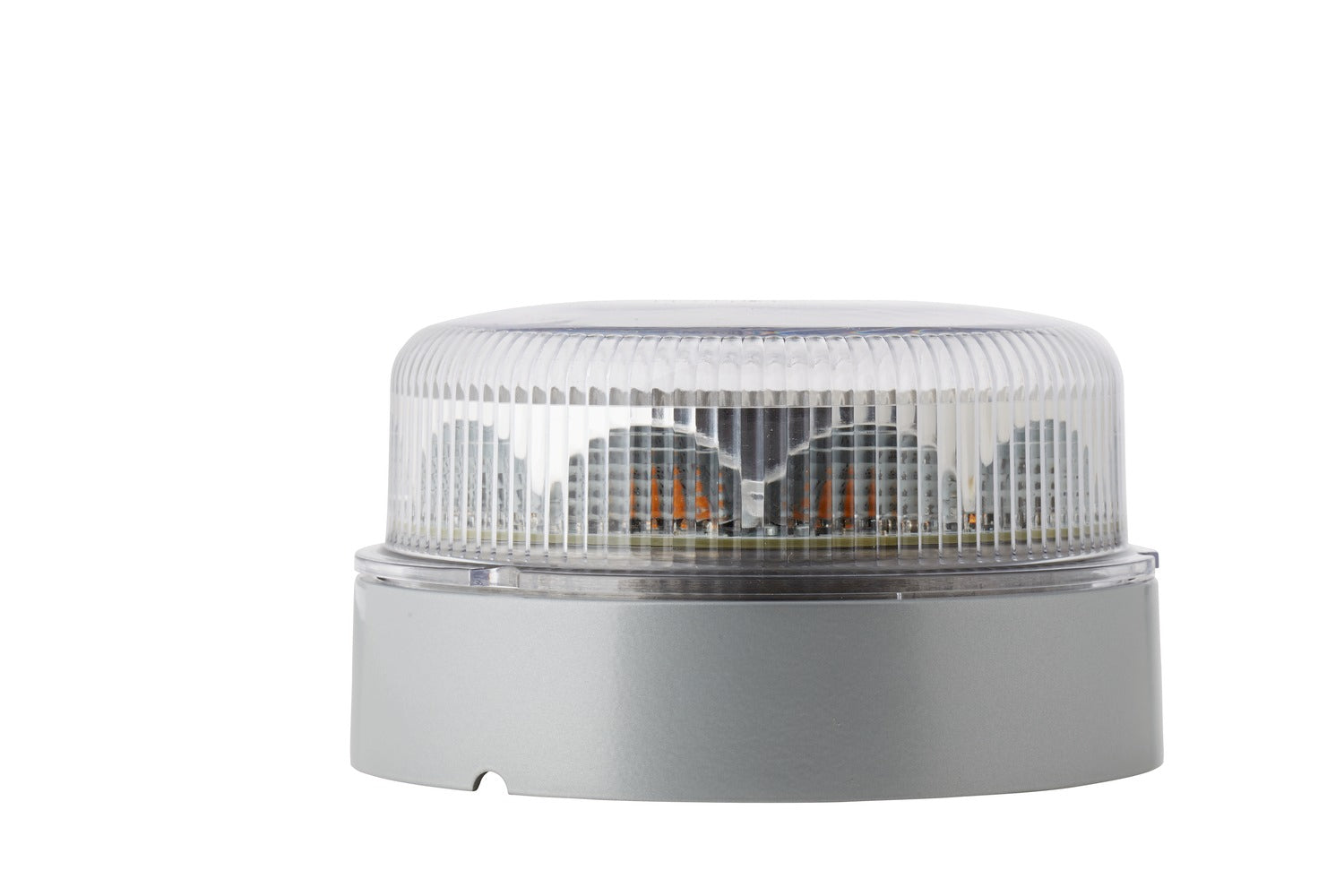

HELLA LED-Strobe-type Beacon - K-LED Blizzard - 12/24V - yellow (amber) 2XD012980-001

LED-Strobe-type Beacon - K-LED Blizzard - 12/24V - yellow (amber) - mounting/Bolted - Cable: 150mm - Plug: Euro flat plug - Quantity: 1

The K-LED Blizzard beacon generates an intensely perceptible double flash signal that provides an attention-grabbing 360° warning effect. The beacon can be connected to an operating voltage of 10-30 V and has an impact-resistant polycarbonate light cover. Depending on the design, the height is approx. 88 mm (F) to 132 mm (FL). The housing is passivated and then coated with powder paint, which provides a high level of protection against aggressive media such as salts and alkalis. The K-LED Blizzard meets the requirements of IP67 and IP9K and is therefore dust-tight as well as resistant to high-pressure cleaners. Even short-term immersion up to 1 metre under water is possible. The product is attached to the vehicle by means of screws in the case of fixed mounting or by means of a flexible pipe socket or magnetic adapter in the case of the other variants. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots. The K-LED Blizzard is the successor of the beacon series K-LED FO and makes a 1:1 exchange to the new version possible.

• The K-LED Blizzard with flashing light function is the successor of the popular and widely used K-LED FO. These are 1:1 interchangeable
• The new generation combines the popular design of its predecessor with the latest LED technology
• In addition to the function control, this beacon is equipped with the possibility to synchronise up to 4 beacons with each other
• The beacon is dustproof and resistant to high-pressure cleaners to IP 6K7 and IP 6K9K
• Lamp Type: LED - Number of LEDs: 10 - Power consumption: 16W
• With flashing warning signal - Lens Colour: Crystal clear - LED colour: yellow (amber)
• Registration Type: ADR/GGVS/SAE - fulfils ECE standard: R10/R65/TA1 - fulfils SAE standard: J845 Class 1 - Prot.type (IP Code): IP6K7/IP6K9K

Item Attributes:
Mounting Type: Bolted / mounting
Light Design: LED
Lamp Type: LED
Voltage: 24 V / 12 V
Height: 88 mm
Outer Diameter 1: 149 mm
Light Function: With flashing warning signal
Light colour: yellow (amber)
Number of LEDs: 10
Plug: Euro flat plug
Prot.type (IP Code): IP6K7 / IP6K9K
Registration Type: ADR/GGVS / SAE
fulfils SAE standard: J845 Class 1
fulfils ECE standard: R65 / TA1 / R10
fulfils EMC/CISPR standard: Class 5
Lens Colour: Crystal clear
Housing Colour: silver
Power consumption: 16 W
Flash rate per minute: 121
Housing material: Aluminium
Temperature range from: -40 °C
Temperature range to: +60 °C
Weight: 830 g
Cable: 150 mm
Diffusing Lens Material: PC (Polycarbonate)
Reverse polarity protection: Yes
Quantity: 1
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
LED colour: yellow (amber)
Assembly No.: up to 4
Observe mounting information
Assembly by qualified personnel required!

OE references: AEBI 1069182-4; BUCHER 7020725; DAF 1541963; DAF 1561963; FAUN 5644996; HUMBAUR 409.00217; IVECO 500051178; KAMAG 61301464; KEMPF 142687; LANGENDORF 1315938; LIEBHERR 13161809; MAFI 000,580,0729; SCANIA 20223245; SCANIA 2870468; SCANIA SP1068034; SCHWARZMÜLLER 102472; SPIERINGS 1073270; TATRA TW05834
