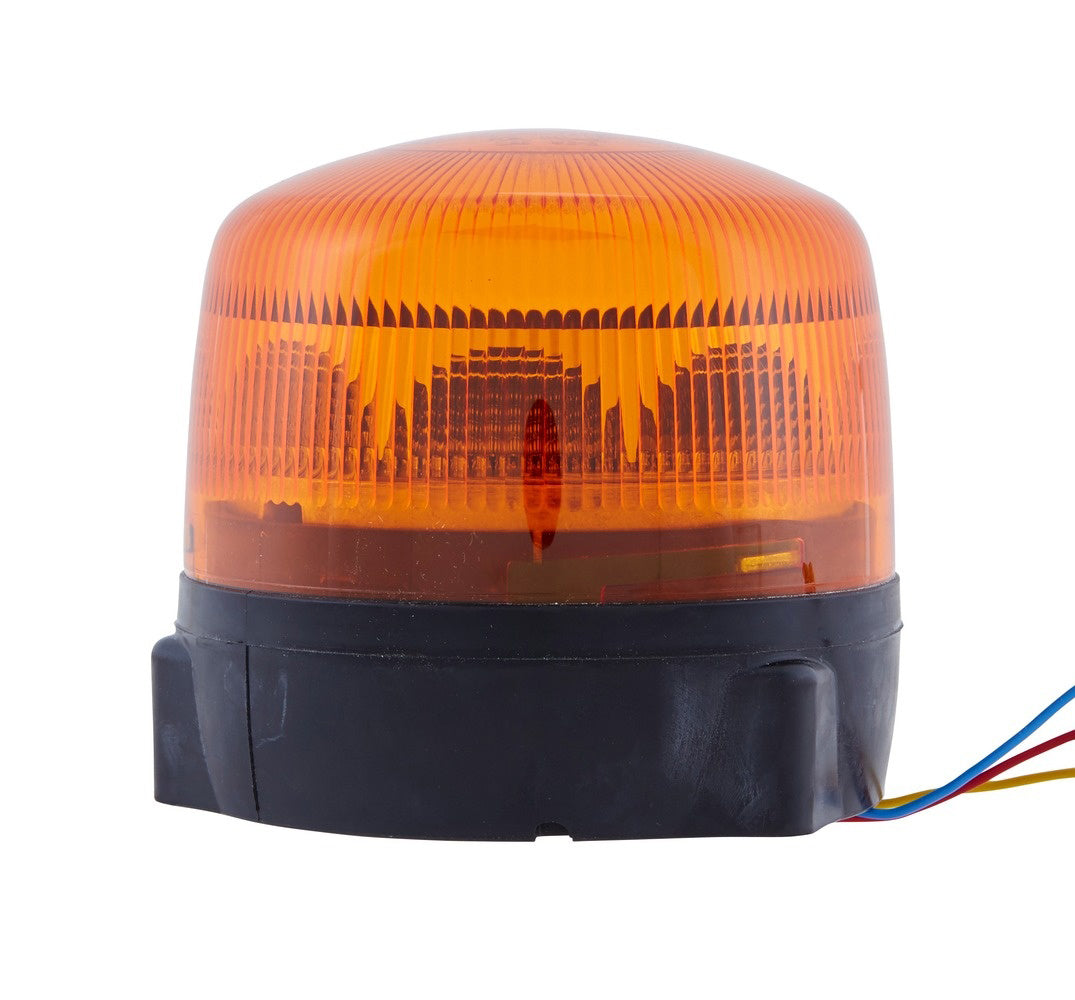

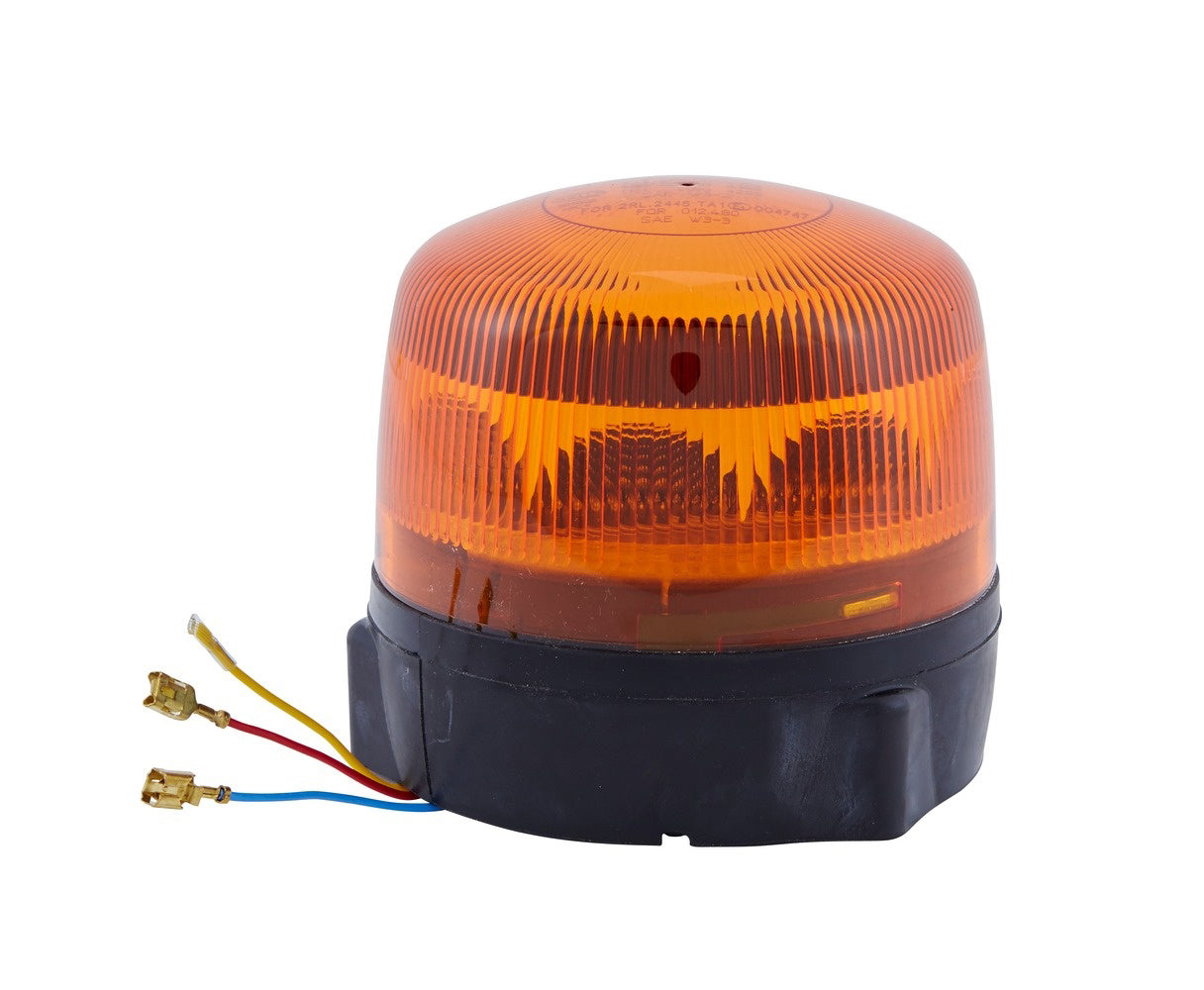

HELLA LED-Strobe-type Beacon - RotaLED - 12/24V - yellow (amber) 2XD012878-001

LED-Strobe-type Beacon - RotaLED - 12/24V - yellow (amber) - mounting/Bolted - Cable: 140mm - Plug: Euro flat plug - Quantity: 1

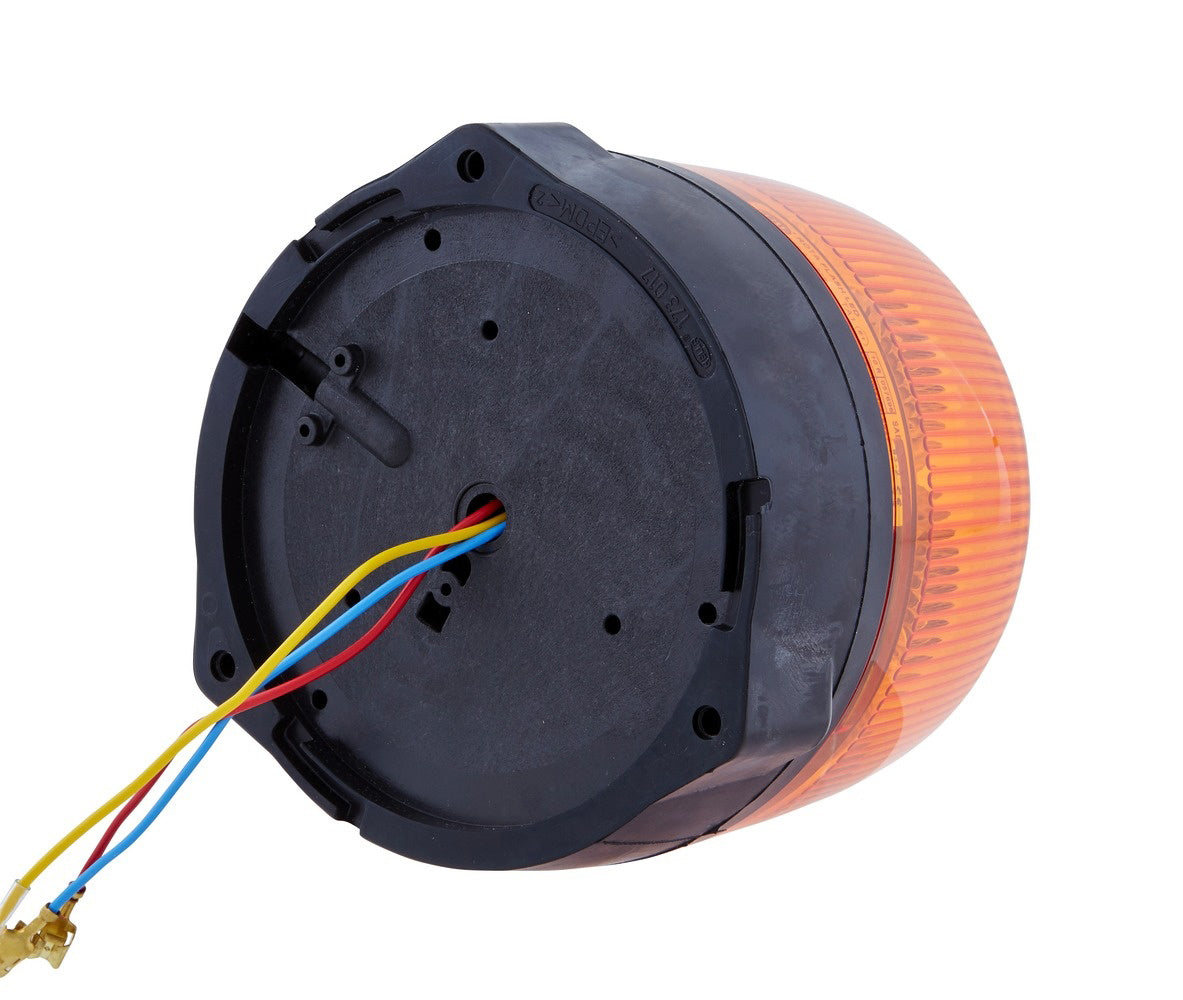

The RotaLED beacon is available as a flashing or rotating version. The signal is generated by means of an electronic concept and thus without moving parts. The beacon can be connected to an operating voltage of 10 - 30 V and has an impact-resistant polycarbonate light cover. The height is approx. 124 mm (F) to 184 mm (FL), depending on the design. The RotaLED beacon meets the requirements of IP 5K4K and IP X9K and is therefore protected against dust and resistant to high-pressure cleaners. The product is attached to the vehicle by means of screws in the case of fixed mounting or by means of a flexible pipe socket or magnetic adapter in the case of the other variants. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots.

• No moving parts are required for the lighting functions - no wear and tear and maximum reliability
• As LEDs are maintenance-free, they do not cause additional spare parts and maintenance costs
• Service life is reduced to a minimum
• Due to the shock-absorbing rubber base, the Rota LED is characterised by a very high vibration resistance and is therefore suitable for demanding applications
• The impact-resistant polycarbonate light dome protects against impacts (e.g. from branches)
• Lamp Type: LED - Number of LEDs: 8 - Power consumption: 12W
• With flashing warning signal - Lens Colour: yellow (amber)

Item Attributes:
Mounting Type: Bolted / mounting
Lamp Type: LED
Light Design: LED
Voltage: 24 V / 12 V
Outer Diameter 1: 132 mm
Height: 124 mm
Light Function: With flashing warning signal
Light colour: yellow (amber)
Number of LEDs: 8

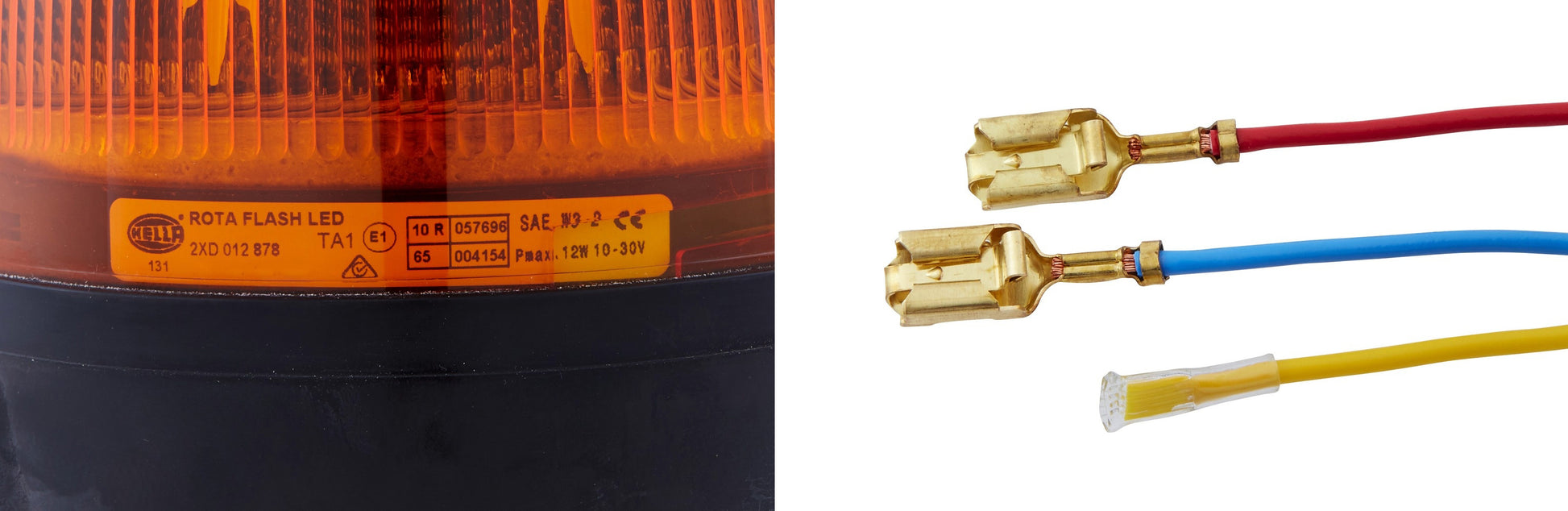

Plug: Euro flat plug
Prot.type (IP Code): IP5K4K / IPX9K
fulfils ECE standard: R65 / R10
Registration Type: SAE / ADR/GGVS
fulfils test standard: RCM
Lens Colour: yellow (amber)
Housing Colour: black
Flash rate per minute: 123
Power consumption: 12 W
Housing material: EPDM (ethylene propylene diene Monomer (M-class) rubber)
Temperature range from: -40 °C
Temperature range to: +60 °C
Weight: 620 g
Cable: 140 mm
Diffusing Lens Material: PC (Polycarbonate)
Reverse polarity protection: Yes
Quantity: 1
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Assembly by qualified personnel required!
