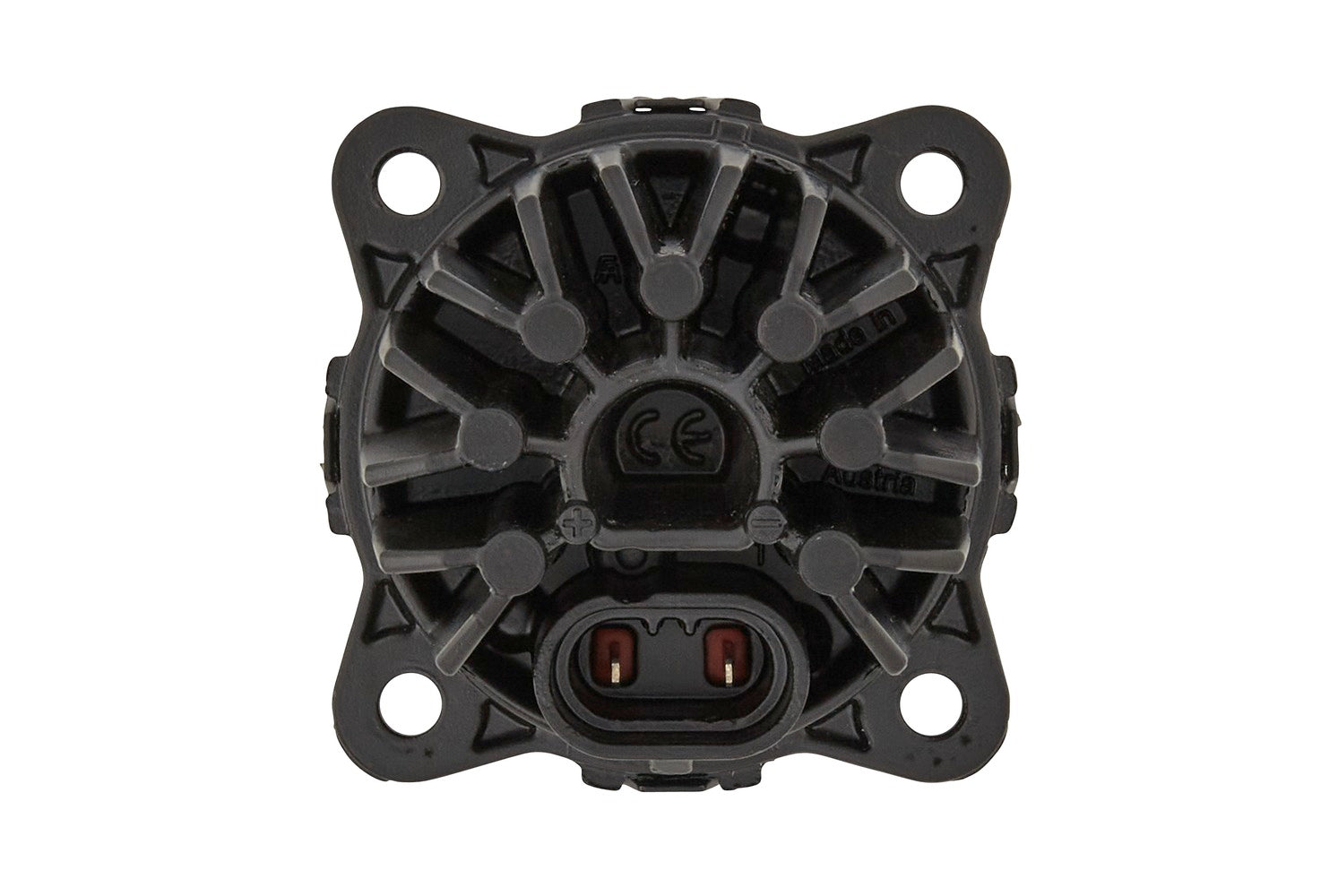

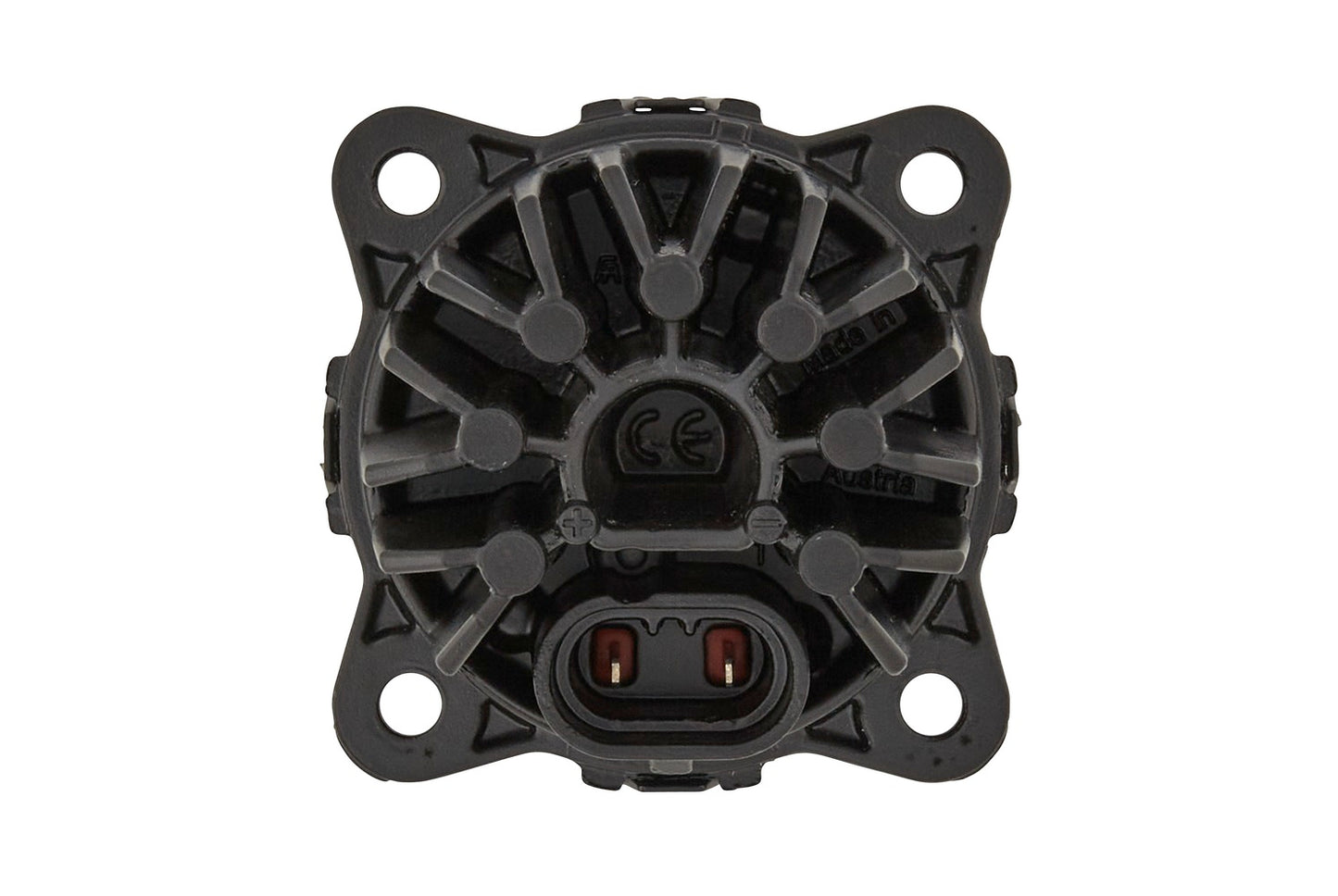

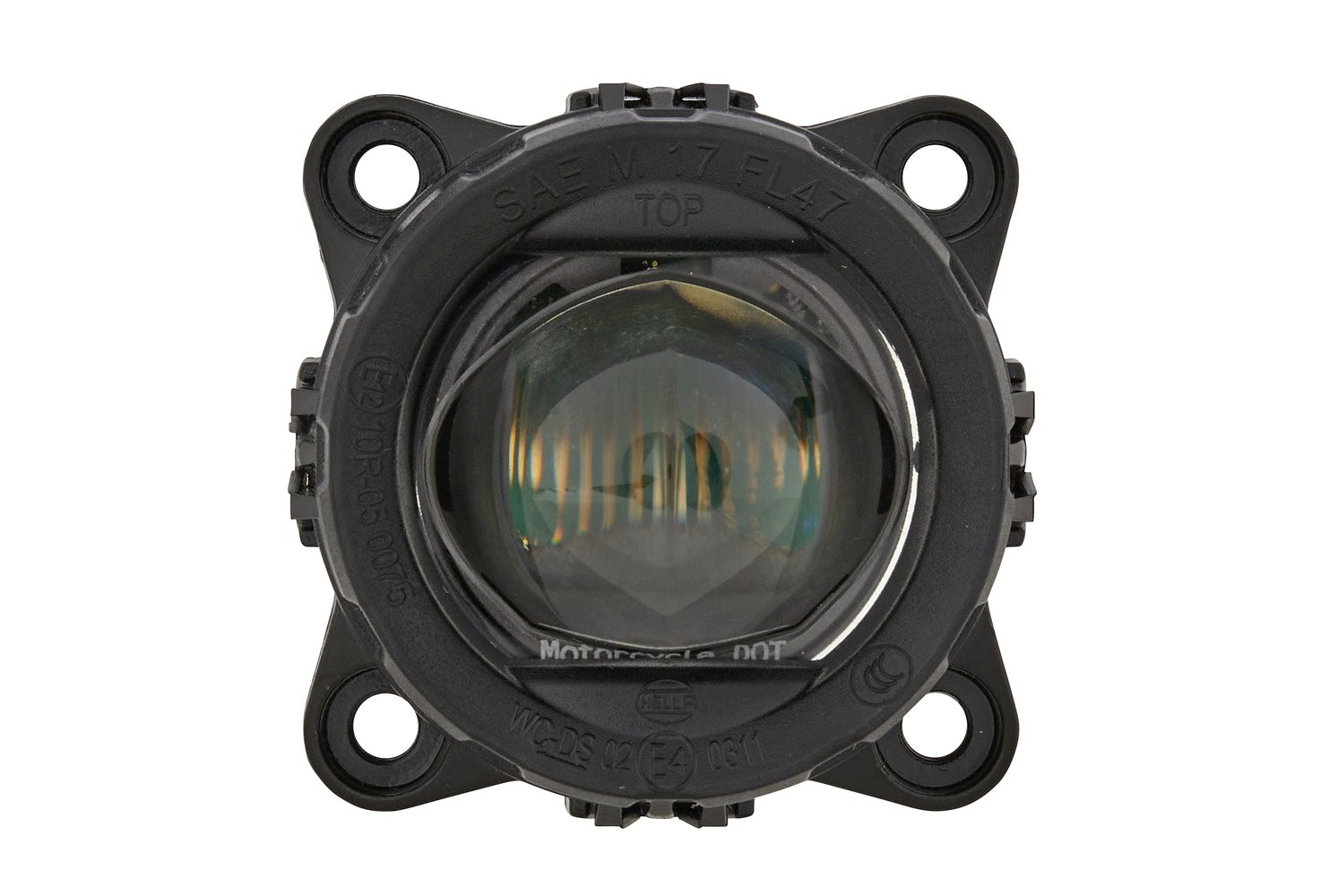

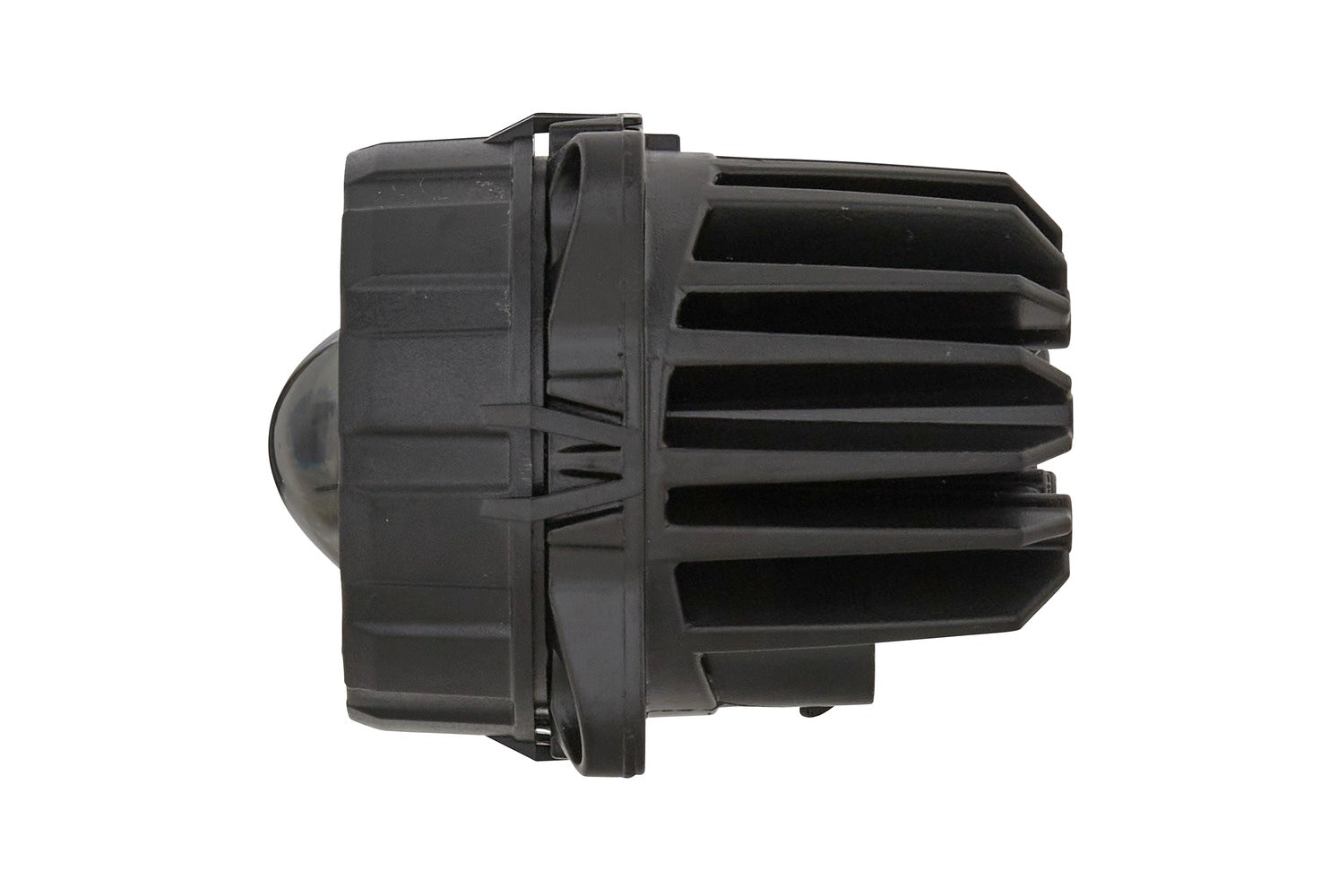

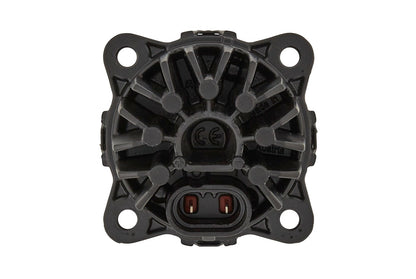

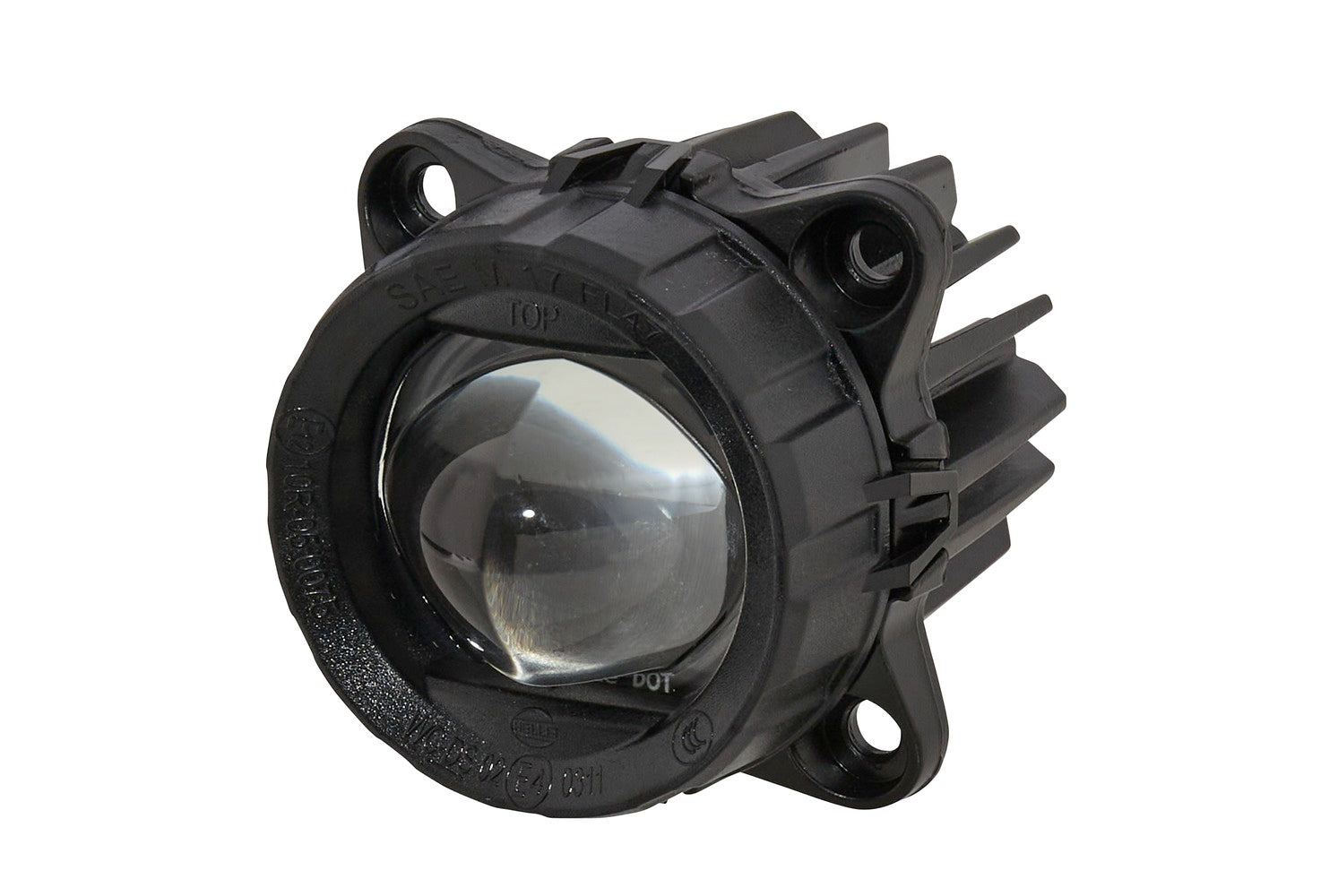

HELLA LED/Symmetric-Headlight - Modul 60 - 12V 1TL998670-021

LED/Symmetric-Headlight - Modul 60 - 12V - CCC - transparent - right/left

Anyone on the road or in the field at night must be able to rely one hundred percent on their illumination. HELLA's compact Module 60 LED headlamp series provides particularly homogeneous illumination and offers exactly the safety and reliability required on the road as well as in offhighway applications. The lens system specially developed by HELLA focuses the light of the LEDs and distributes it ideally over the application area. Additionally, the products are durable and resistant to vibration, dirt and water. A special version with an additional mounting frame is available for agricultural and construction machinery. The fixing points of the mounting frames are identical to those of the already established Module 60 halogen headlamp series. Thus, the conversion to LED technology is even easier and faster with this version, in just a few steps. The modules are available as low beam or high beam version.

• Specially developed lens system for homogeneous illumination provides exactly the safety and reliability needed on the road and off-highway.
• The lens system specially developed by HELLA concentrates the light of the LEDs and distributes it optimally to the area of application.
• The products are also durable and resistant to vibration, dirt and water.
• Enables easy changeover from halogen to LED technology.
• Width: 68mm - Height: 68mm - Depth: 84mm - Lamp Type: LED - Electromagnetic Compatibility (EMC)/without carrier frame
• Light functions: 1 - with low beam (LED)
• Registration Type: CCC - fulfils ECE standard: R10/R113 - for right-hand traffic - Prot.type (IP Code): IP6K9K/IP6K7

Item Attributes:
Mounting Type: Fitting
Fastening Type: 3-point attachment
Lamp Type: LED
Light Design: LED / Symmetric
Voltage: 12 V
Fitting Position: left / right
Width: 68 mm
Height: 68 mm
Depth: 84 mm
Light functions: 1
Prot.type (IP Code): IP6K7 / IP6K9K
fulfils ECE standard: R10 / R113
Registration Type: CCC
Housing Colour: black
Illuminated Area: 46 mm

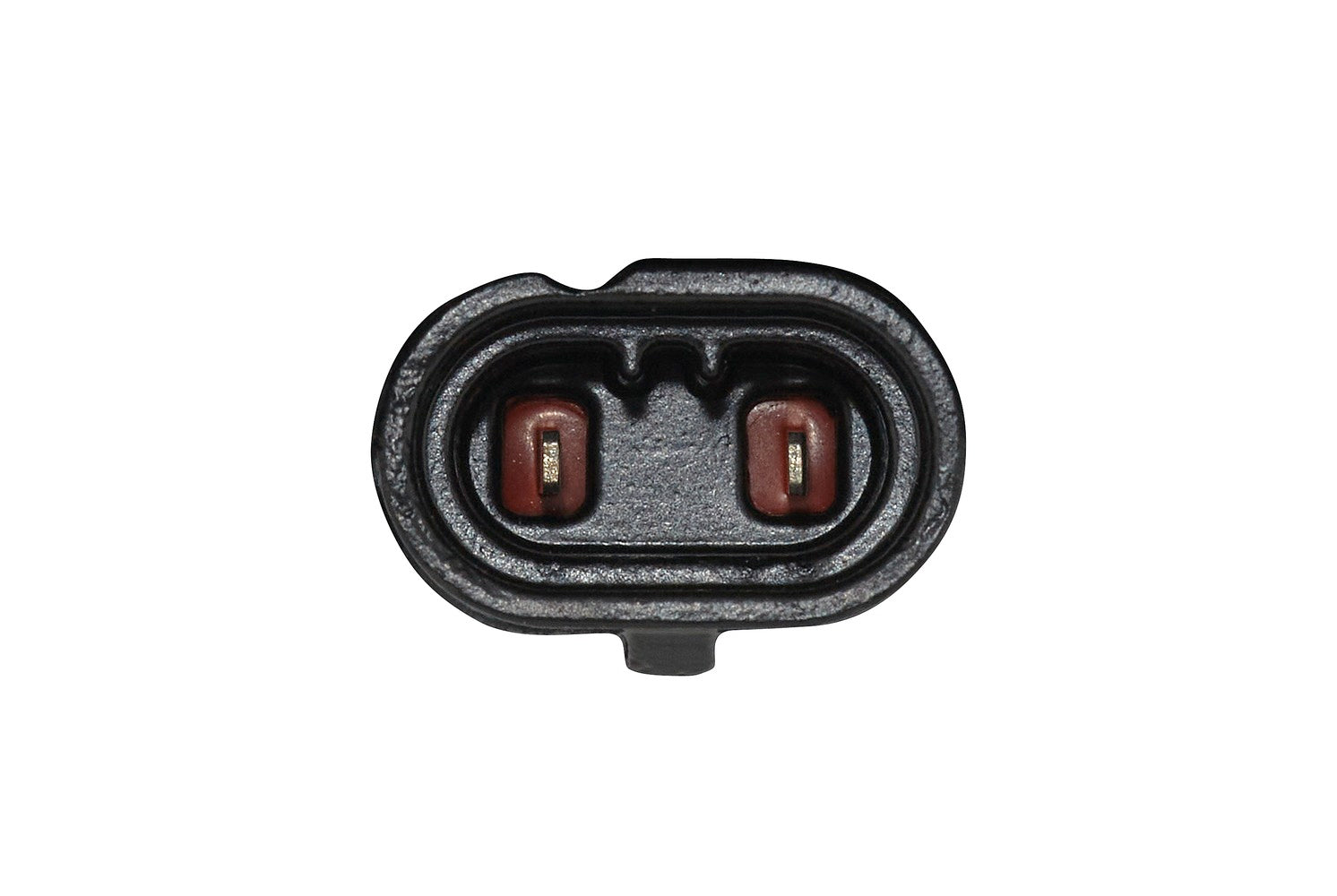

Connector type: TYCO connector (HB3)
Diffusing Lens Material: Glass
Lens Colour: transparent
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC) / without carrier frame
SVHC: 7439-92-1; Lead
Light Function: with low beam (LED)
Left-hand/Right-hand Traffic: for right-hand traffic
Assembly by qualified personnel required!

OE references: CARRARO 46840001
