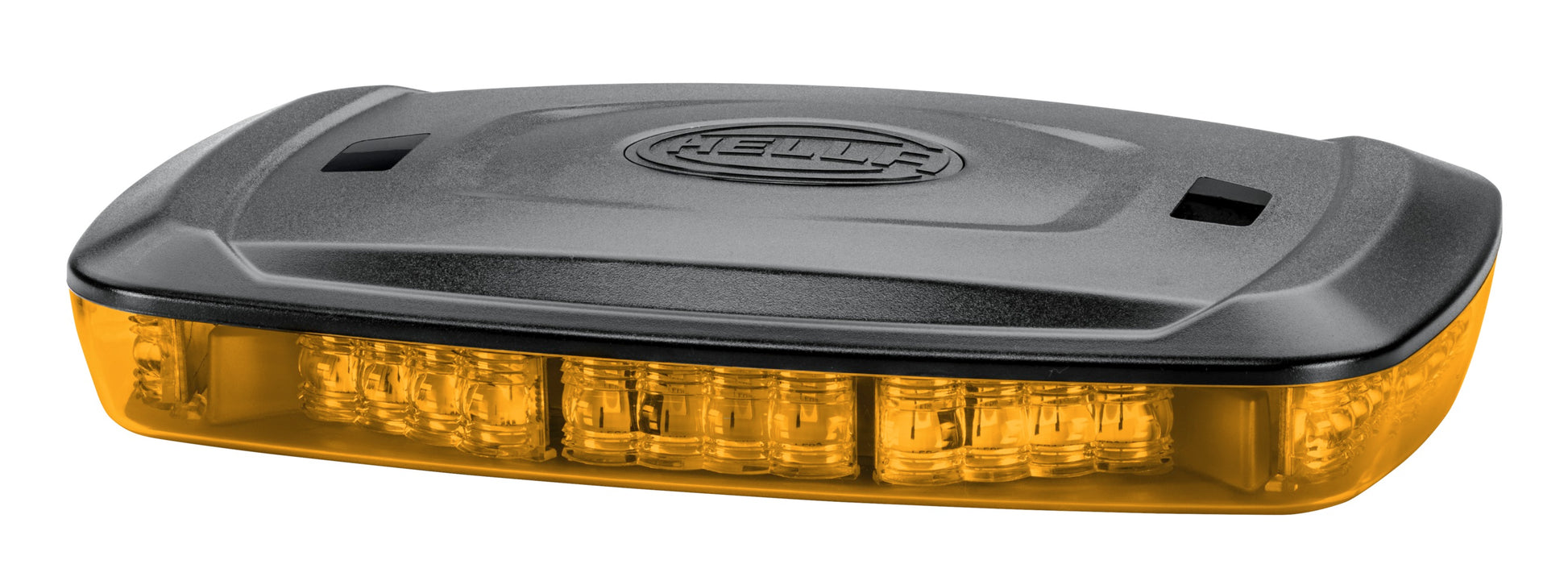

HELLA LED-Warning Light - Micro Lightbar - 12/24V - yellow (amber) 2RL014566-201

LED-Warning Light - Micro Lightbar - 12/24V - yellow (amber) - Screw Connection - Cable: 500mm - mounting

The powerful LED warning lights "Micro Lightbar" and "Mini Lightbar" generate an intensive 360-degree warning signal and are suitable for various applications. Both sizes of the light bar offer different design and mounting options and combine a flashing and a rotating signal in one product. The Micro and Mini Lightbars are available with a clear or yellow cover lens option, the built-in LEDs providing the warning signal are yellow for both design variants. In addition, there is also a special SAE version with a two-colour warning signal. Half of this is equipped with yellow LEDs and half with white LEDs. Depending on the mounting variant, the flat light bars can be fixed with screws, a bracket or by magnets. They are suitable for both 12V and 24V systems.

• Narrow roof beam with a height of only 49 mm (without bracket)
• Micro variant with a width of 255 mm and a depth of 165 mm
• Multivolt (10 - 30 V)
• Flashing or rotating light function
• Lamp Type: LED
• With rotating warning signal/With flashing warning signal - Lens Colour: Crystal clear - LED colour: yellow (amber) - Fitting Position: mounting
• Registration Type: ECE

Item Attributes:
Fitting Position: mounting
Mounting Type: Screw Connection
Light Design: LED
Lamp Type: LED
Registration Type: ECE
Lens Colour: Crystal clear
LED colour: yellow (amber)
Voltage: 24 V / 12 V
Housing material: PC (Polycarbonate)
Reverse polarity protection: Yes
Temperature range from: -40 °C
Temperature range to: +65 °C
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Light Function: With flashing warning signal / With rotating warning signal
Cable: 500 mm
SVHC: 7439-92-1; Lead / 123-77-3; Diazene-1,2-dicarboxamide (C,C-azodi(formamide)) / 25550-51-0; Hexahydromethylphthalic anhydride
Light colour: yellow (amber)
Housing Colour: black
Assembly by qualified personnel required!

OE references: VOLVO 24666718
