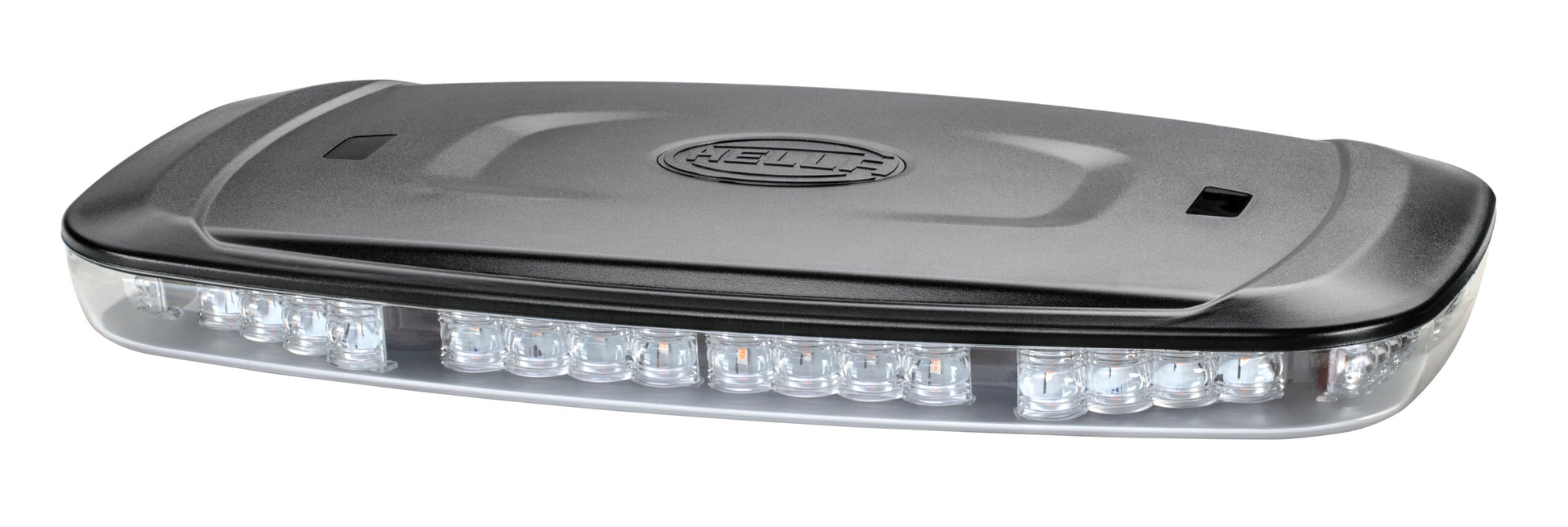

HELLA LED-Warning Light - Mini Lightbar - 12/24V - yellow (amber) 2RL014565-001

LED-Warning Light - Mini Lightbar - 12/24V - yellow (amber) - Screw Connection - Cable: 3000/500mm - frontal sided - Quantity: 1

The powerful LED warning lights "Micro Lightbar" and "Mini Lightbar" generate an intensive 360-degree warning signal and are suitable for various applications. Both sizes of the light bar offer different design and mounting options and combine a flashing and a rotating signal in one product. The Micro and Mini Lightbars are available with a clear or yellow cover lens option, the built-in LEDs providing the warning signal are yellow for both design variants. In addition, there is also a special SAE version with a two-colour warning signal. Half of this is equipped with yellow LEDs and half with white LEDs. Depending on the mounting variant, the flat light bars can be fixed with screws, a bracket or by magnets. They are suitable for both 12V and 24V systems.

• Narrow roof beam with a height of only 49 mm (without bracket)
• Mini variant with a width of 400 mm and a depth of 218 mm
• Multivolt (10 - 30 V)
• Flashing or rotating light function
• Lamp Type: LED - Power consumption: 70W
• With rotating warning signal/With flashing warning signal - Lens Colour: Crystal clear - LED colour: yellow (amber) - Fitting Position: frontal sided - Fastening Type: Horizontal fastening
• Registration Type: ADR/GGVS/ECE - fulfils ECE standard: R10/R65/TA1 - fulfils SAE standard: J845 Class 1 - Prot.type (IP Code): IPX9K/IPX4K/IP6X

Item Attributes:
Fitting Position: frontal sided
Mounting Type: Screw Connection
Lamp Type: LED
Light Design: LED
Length: 400 mm
Width: 218 mm
Height: 45 mm
Depth: 400 mm
Overall Height: 49 mm
Registration Type: ADR/GGVS / ECE
fulfils ECE standard: R10 / R65 / TA1
Cable: 3000 mm / 500 mm
Quantity: 1
Lens Colour: Crystal clear
LED colour: yellow (amber)
Voltage: 12 V / 24 V
fulfils SAE standard: J845 Class 1
Housing material: PC (Polycarbonate)
Fastening Type: Horizontal fastening
Reverse polarity protection: Yes
Temperature range from: -40 °C
Temperature range to: +65 °C
fulfils EMC/CISPR standard: Class 3
Prot.type (IP Code): IP6X / IPX9K / IPX4K
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Light Function: With flashing warning signal / With rotating warning signal
SVHC: 7439-92-1; Lead
Light colour: yellow (amber)
Housing Colour: black
Power consumption: 70 W
Diffusing Lens Material: PC (Polycarbonate)
Weight: 1300 g
Assembly by qualified personnel required!
