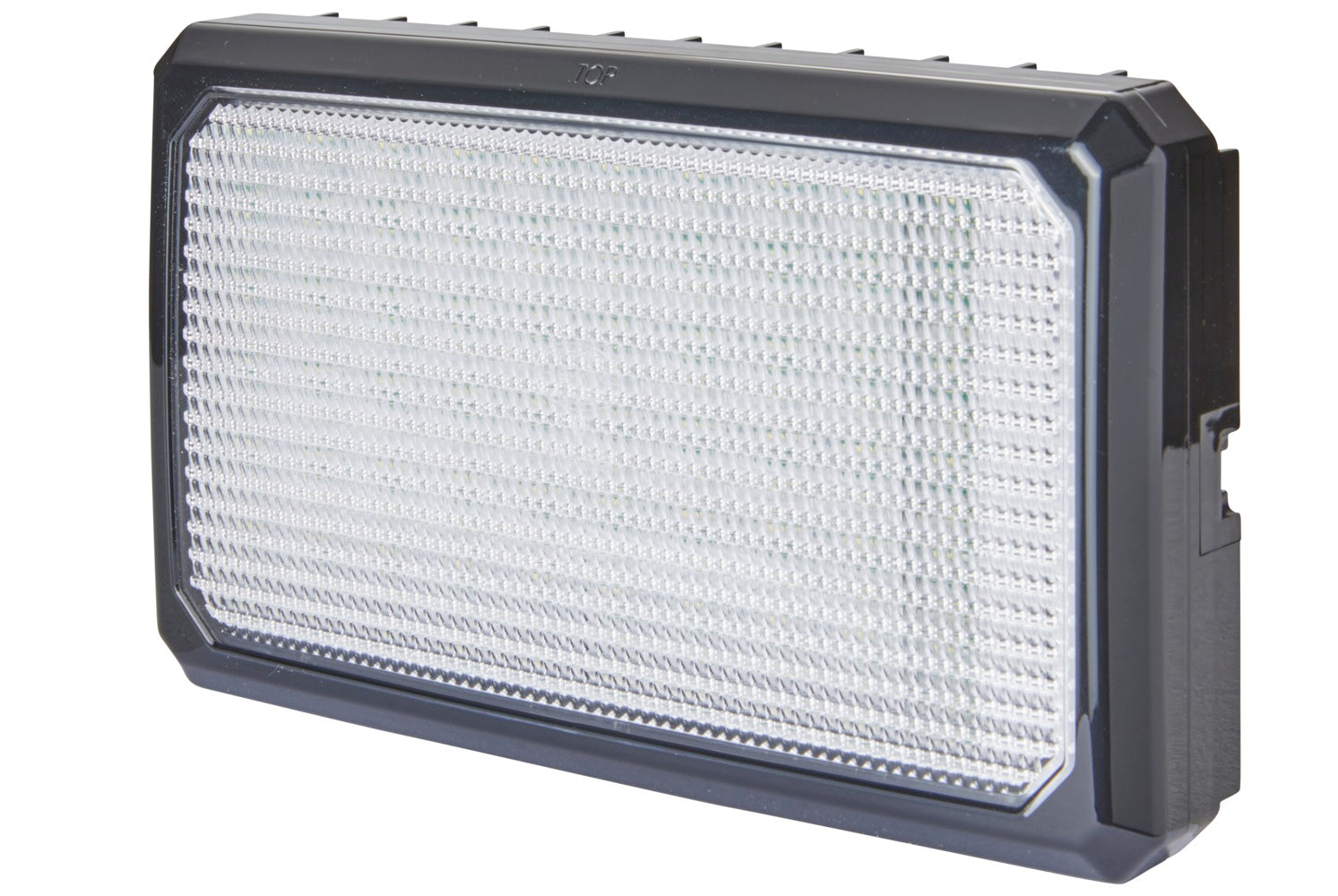

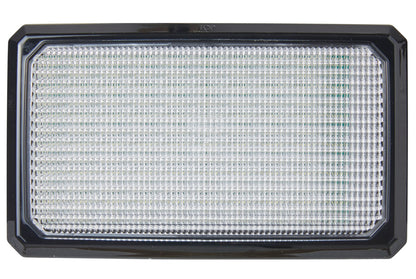

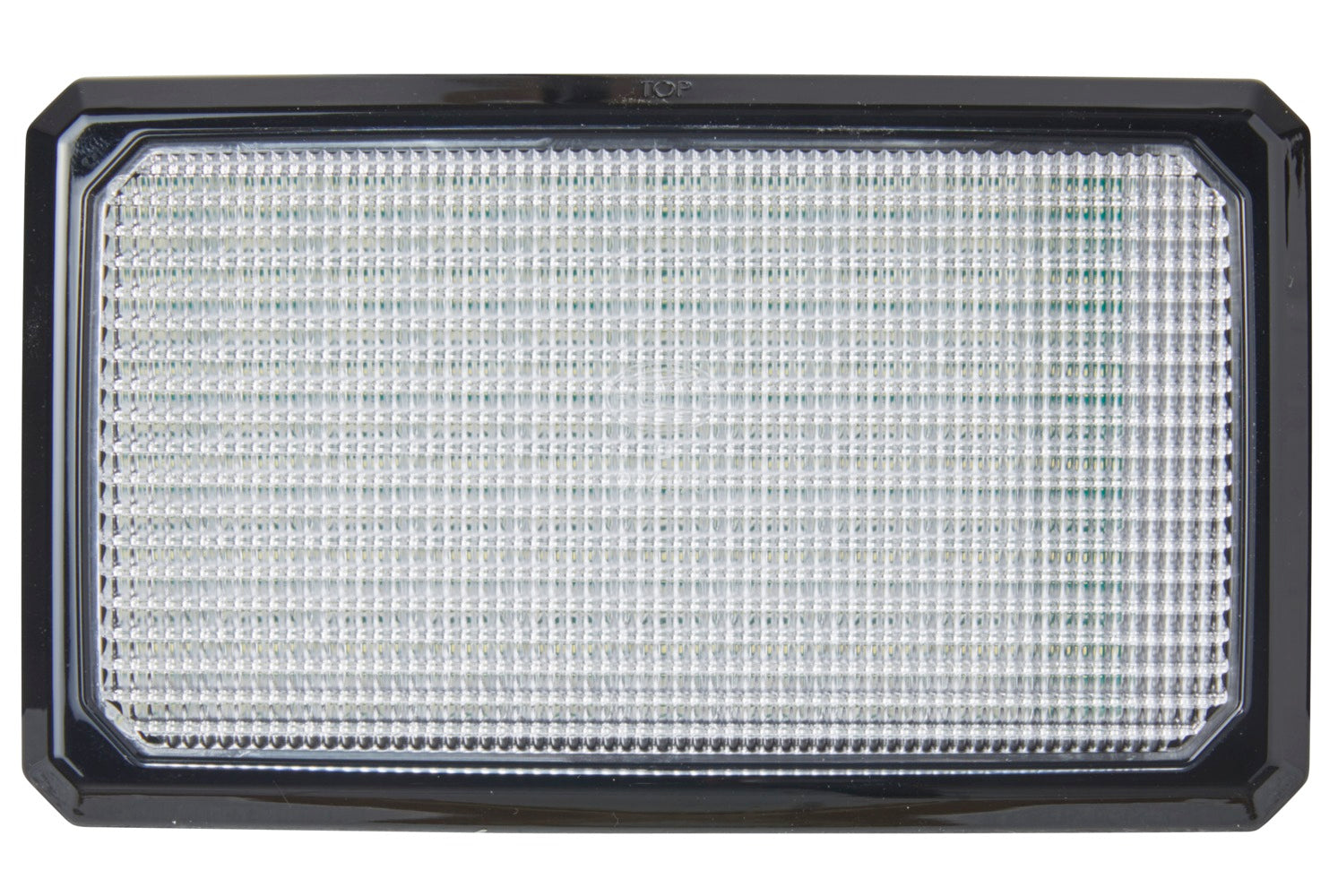

HELLA LED-Worklight - Flat Beam 1000 - 12/24V 1GD996193-051

LED-Worklight - Flat Beam 1000 - 12/24V - 1100lm - mounting/Screw Connection - Vertical - Ground Illumination - Cable: 2000mm - Plug: open cable ends

The Flat Beam 1000 LED from HELLA is a highly efficient LED worklight. Due to its extremely flat design, the worklight is ideal for mounting situations with little space and allows flexible mounting options, e.g. on the rear wall of trucks. With a light output of 1,100 lumens, the Flat Beam 1000 LED provides homogeneous illumination in the near-field area of the working environment. In addition to the standard light distribution for near-field illumination, the Flat Beam 1000 LED is also available as a variant with 45° near-field illumination. With this illumination variant, the special optics in the lens ensure that the light is perfectly directed into the working area, even when mounted vertically on the wall. The structure refracts the light downwards at a 45° angle and thus provides good illumination in the direct near-field area. This LED worklight features 60 energy-efficient LEDs that consume only 11 watts of power. To achieve the same amount of light with a 12 volt halogen headlamp, 70 watts (e.g. H3) are needed. The reduced energy consumption of the vehicle minimises energy costs and protects the environment. The Flat Beam 1000 LED can be operated with either 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensures constant brightness even with a fluctuating operating voltage of 9 to 32 volts.

• The highly efficient worklight with 60 LEDs and flat design consumes only 11 watts.
• To achieve the same amount of light with a halogen spotlight, 70 watts (e.g. H3) are required.
• The reduced energy consumption of the vehicle protects the environment.

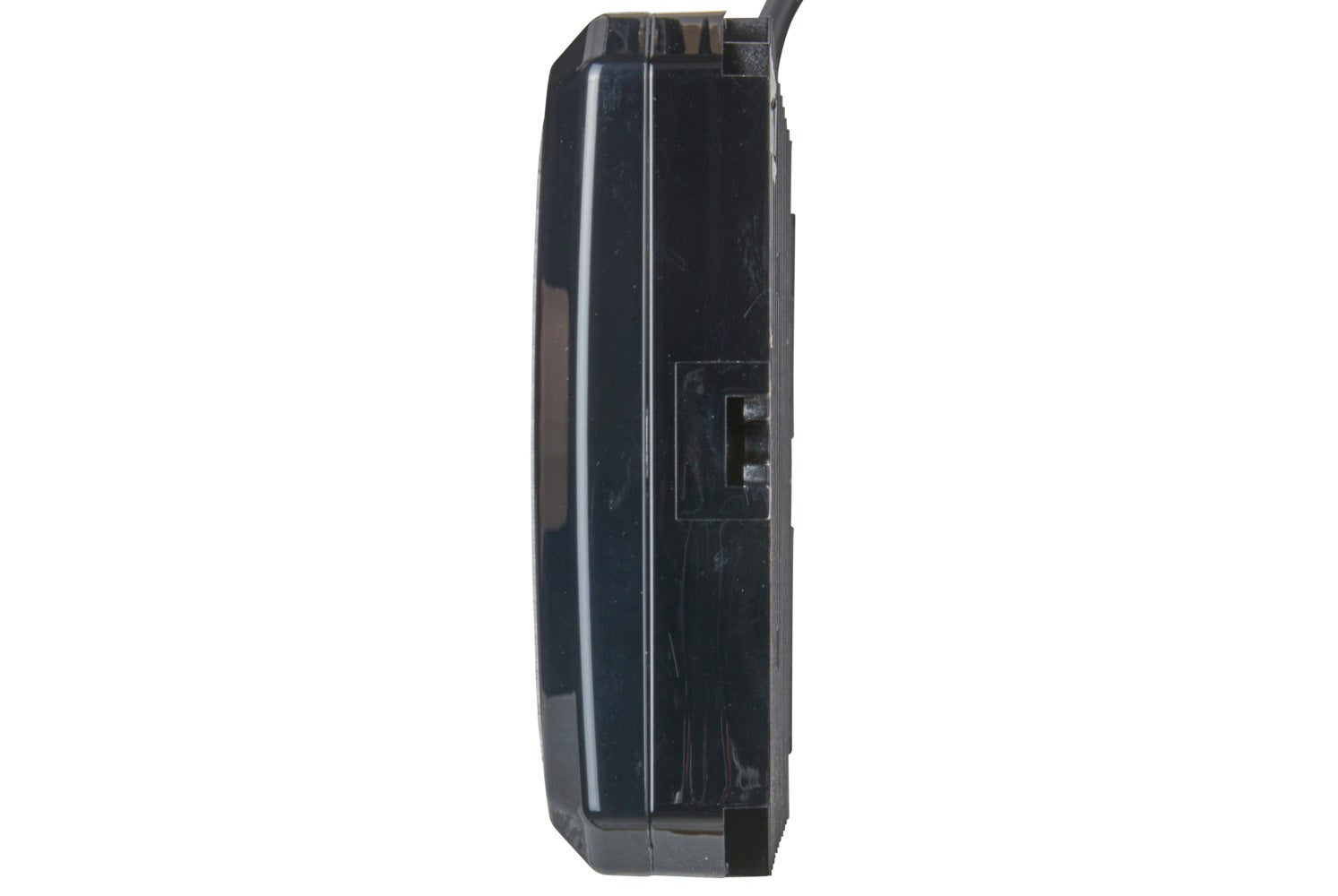

• The extremely flat design allows flexible mounting options, e.g. on the rear wall of trucks.
• The new Flat Beam 1000 with 45° illumination brings the light into the close working area even without tilting the worklight.
• Lamp Type: LED - Number of LEDs: 60 - Power consumption: 11W - Colour Temperature: 6500K
• Patterned diffusing lens

Item Attributes:

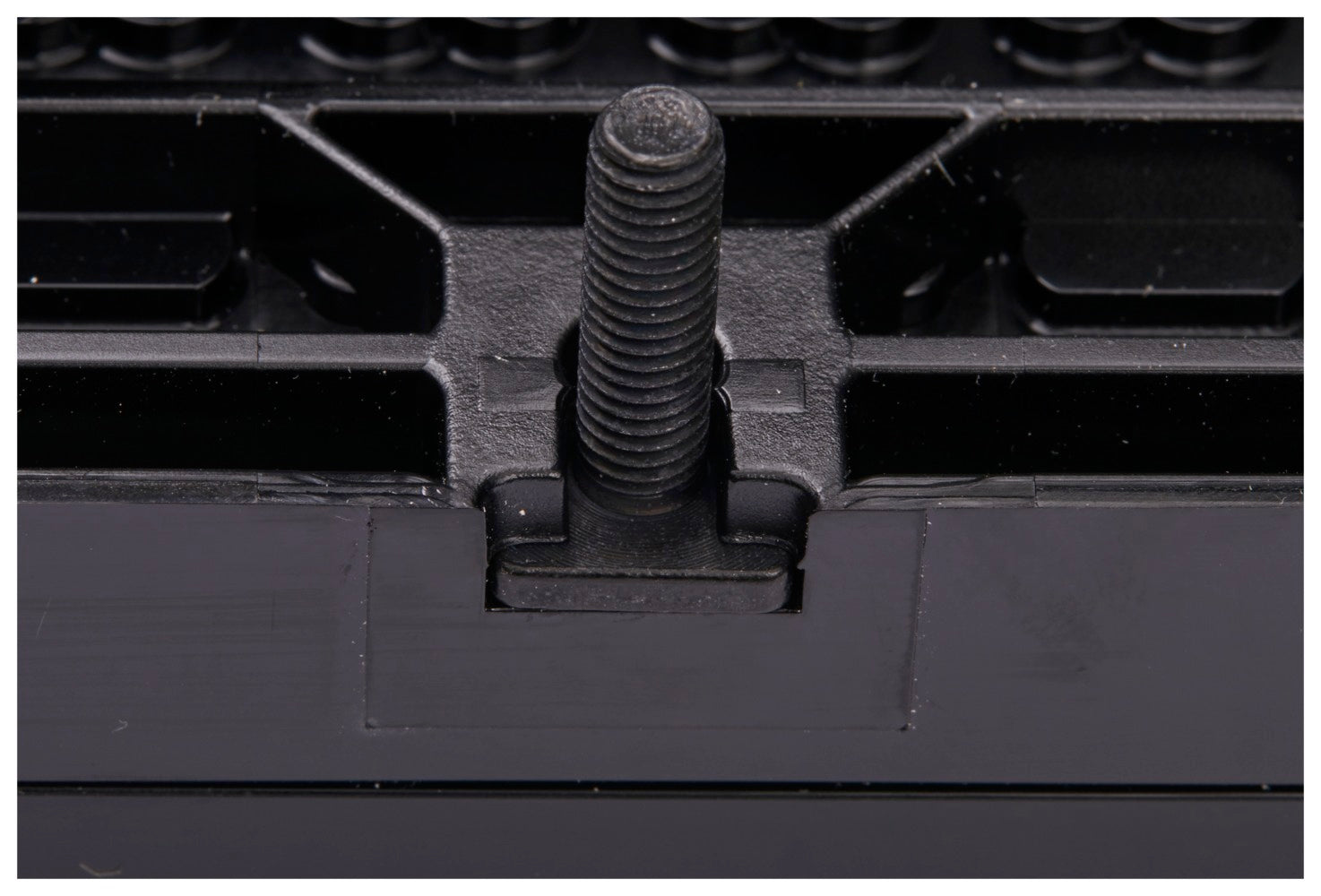

Mounting Type: mounting / Screw Connection
Fastening Type: Vertical
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Height: 113 mm
Width: 190 mm
Depth: 44 mm
Light Distribution: Ground Illumination
fulfils ECE standard: R10
Plug: open cable ends
Prot.type (IP Code): IP6K9K / IP6K7
Luminous Flux: 1100 lm
Colour Temperature: 6500 K
Number of LEDs: 60
Power consumption: 11 W
Cable: 2000 mm
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: PC (Polycarbonate)
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: BOMAG 057 512 84; BUCHER 9999-8367; CLAAS 00172360; IVECO 503240771; ROSENBAUER 865469; VAN HOOL 11511906; VDL 11511906
