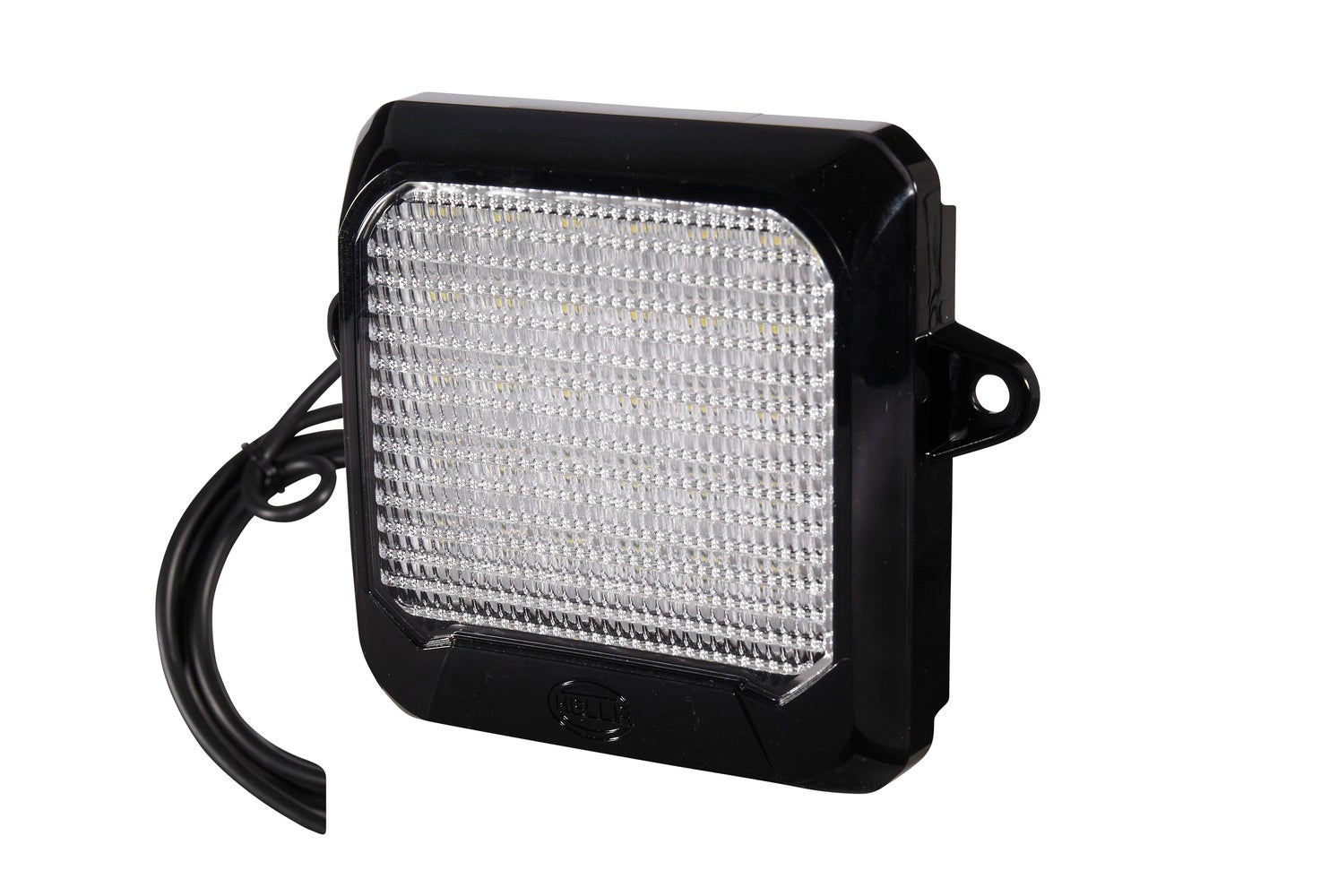

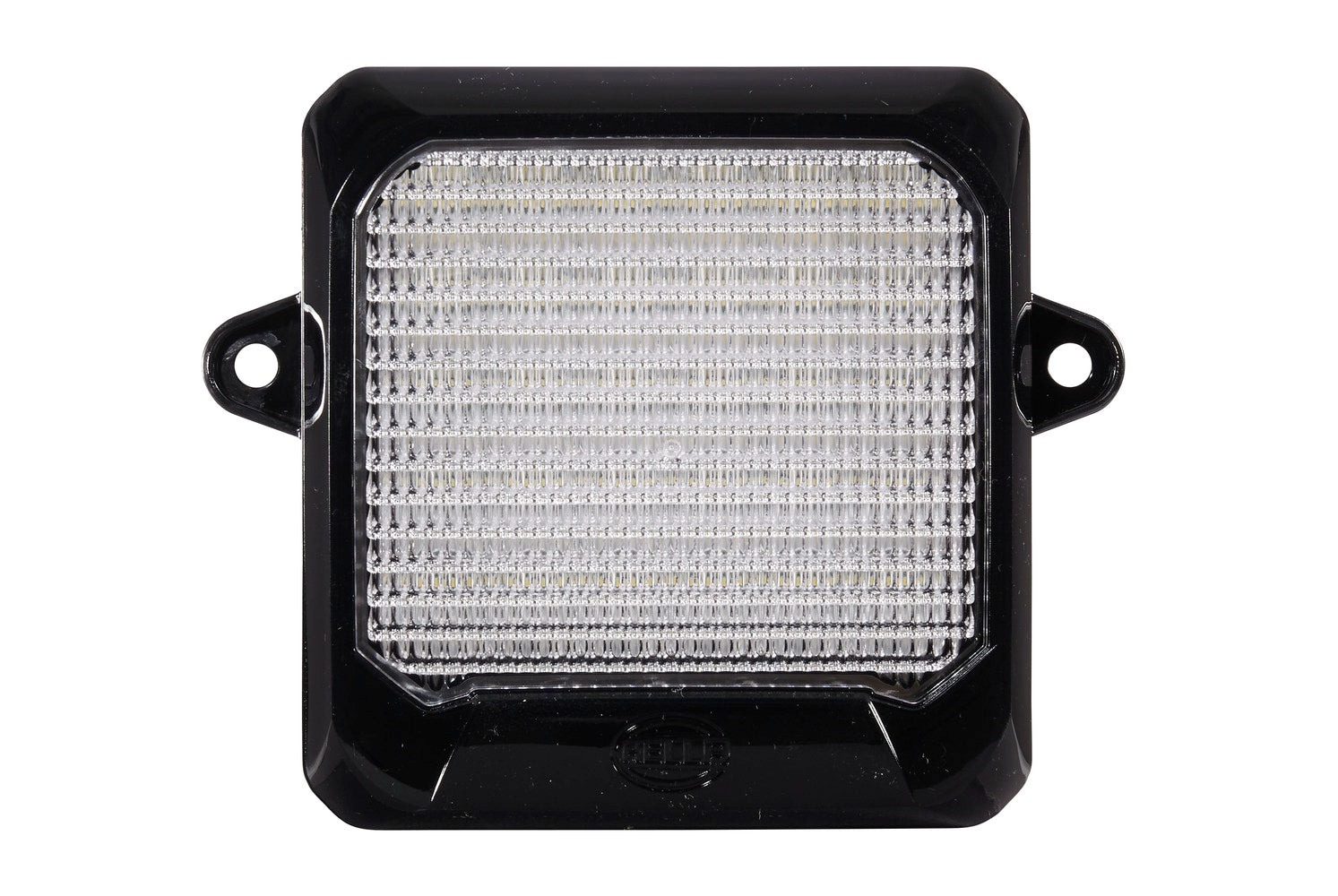

HELLA LED-Worklight - Flat Beam 500 - 12/24V 1GA995193-031

LED-Worklight - Flat Beam 500 - 12/24V - 500lm - Fitting/Screw Connection - 2-point attachment - Short-Range Illumination - Cable: 2000mm - Plug: open cable ends

The Flat Beam 500 LED from HELLA is a compact LED worklight with an elegant design. The housing depth of only 30 mm is ideal for mounting situations with little space. The light disk of the Flat Beam 500 LED was specially developed so that even when mounted on a flat wall, the light beams are directed towards the floor at a 45° angle. This ensures good illumination of the working area even when mounted flat. This highly efficient worklight features 30 energy-efficient LEDs that consume only 7 watts of power. To achieve the same amount of light with a 12 volt halogen headlamp, 55 watts (e.g. H3) are needed. The reduced energy consumption of the vehicle minimises energy costs and protects the environment. The light output of 550 lumens is sufficient to homogeneously illuminate the working environment in the near-field area. This worklight can be operated with either 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensures constant brightness even with a fluctuating operating voltage of 9 to 32 volts. The extremely flat design allows flexible mounting options, e.g. on the rear wall of trucks. Thanks to its plastic housing, the Flat Beam 500 LED is not susceptible to corrosion and is therefore ideal for use under the toughest conditions.

• 30 energy-efficient LEDs are installed in this highly efficient worklight.

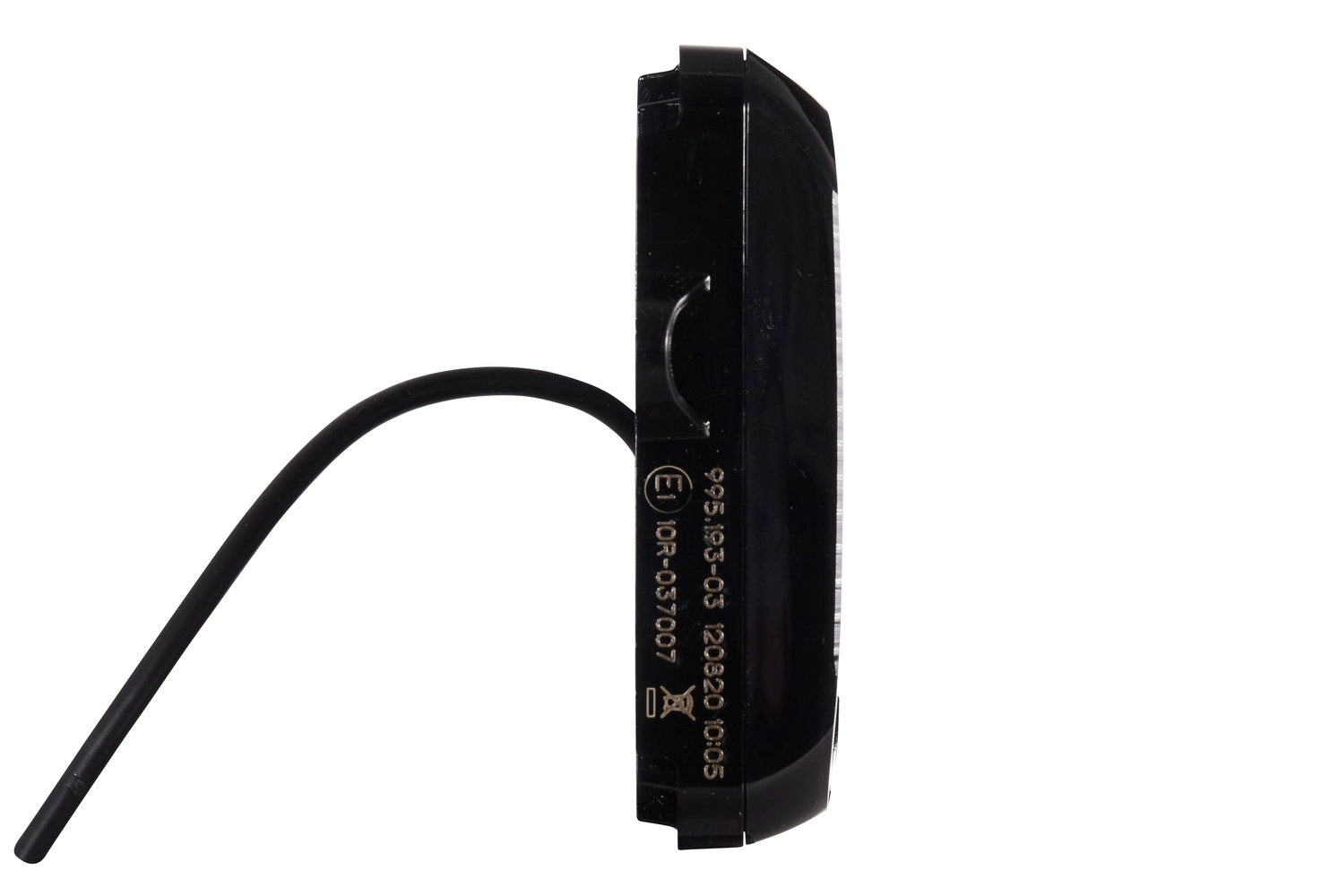

• The housing depth of only 30 mm is ideal for mounting situations with limited space.
• The lens of the Flat Beam 500 has been specially developed so that even when mounted on a flat wall, the light beams are directed towards the floor at an angle of 45°.
• The reduced energy consumption of the vehicle saves a lot of energy costs and at the same time protects the environment.
• This worklight is not susceptible to corrosion due to its plastic housing and is therefore ideal for use under the toughest conditions.
• Lamp Type: LED - Number of LEDs: 30 - Power consumption: 7W - Colour Temperature: 5700K
• Patterned diffusing lens

Item Attributes:
Mounting Type: Screw Connection / Fitting
Fastening Type: 2-point attachment
Light Design: LED
Lamp Type: LED
Voltage: 24 V / 12 V
Height: 117 mm
Width: 145 mm
Depth: 31 mm
Light Distribution: Short-Range Illumination
fulfils ECE standard: R10
Plug: open cable ends
Prot.type (IP Code): IP6K9K / IP6K7
Luminous Flux: 500 lm
Colour Temperature: 5700 K
Number of LEDs: 30
Power consumption: 7 W

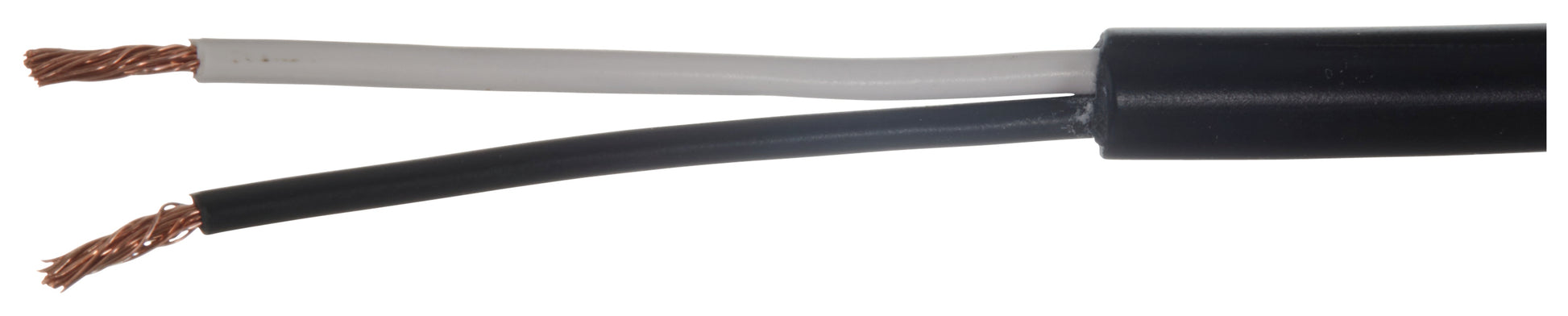

Cable: 2000 mm
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: Glass
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!
