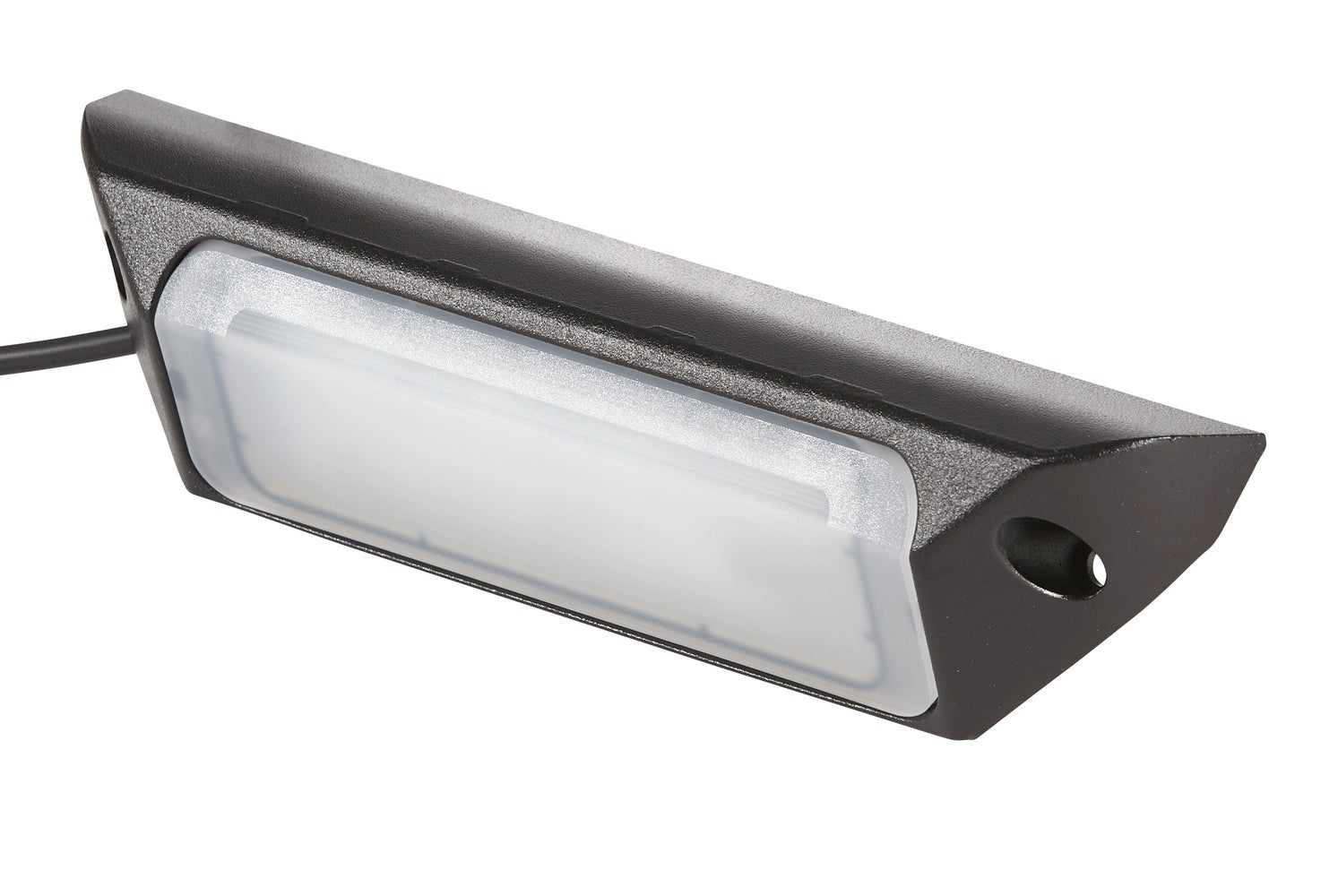

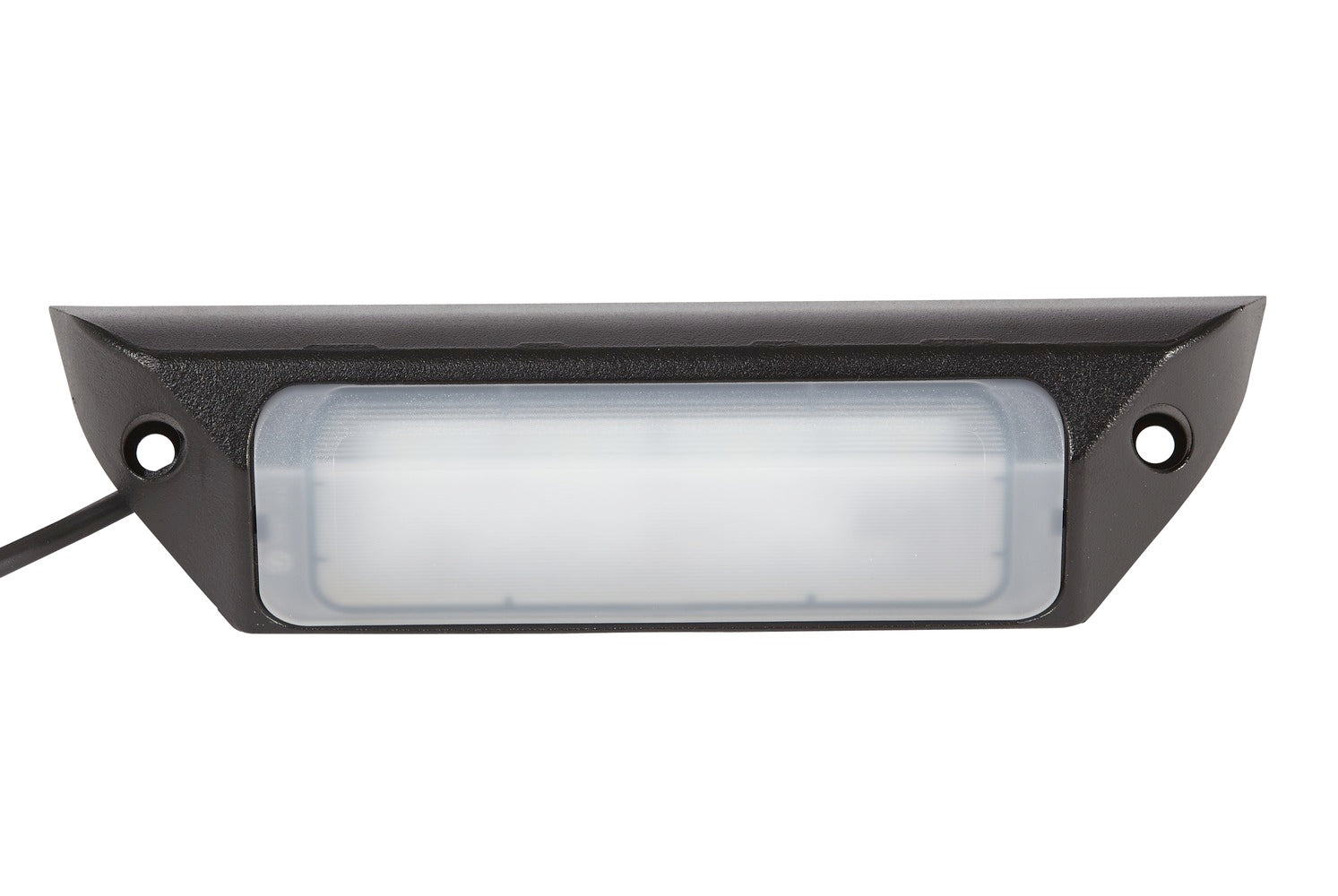

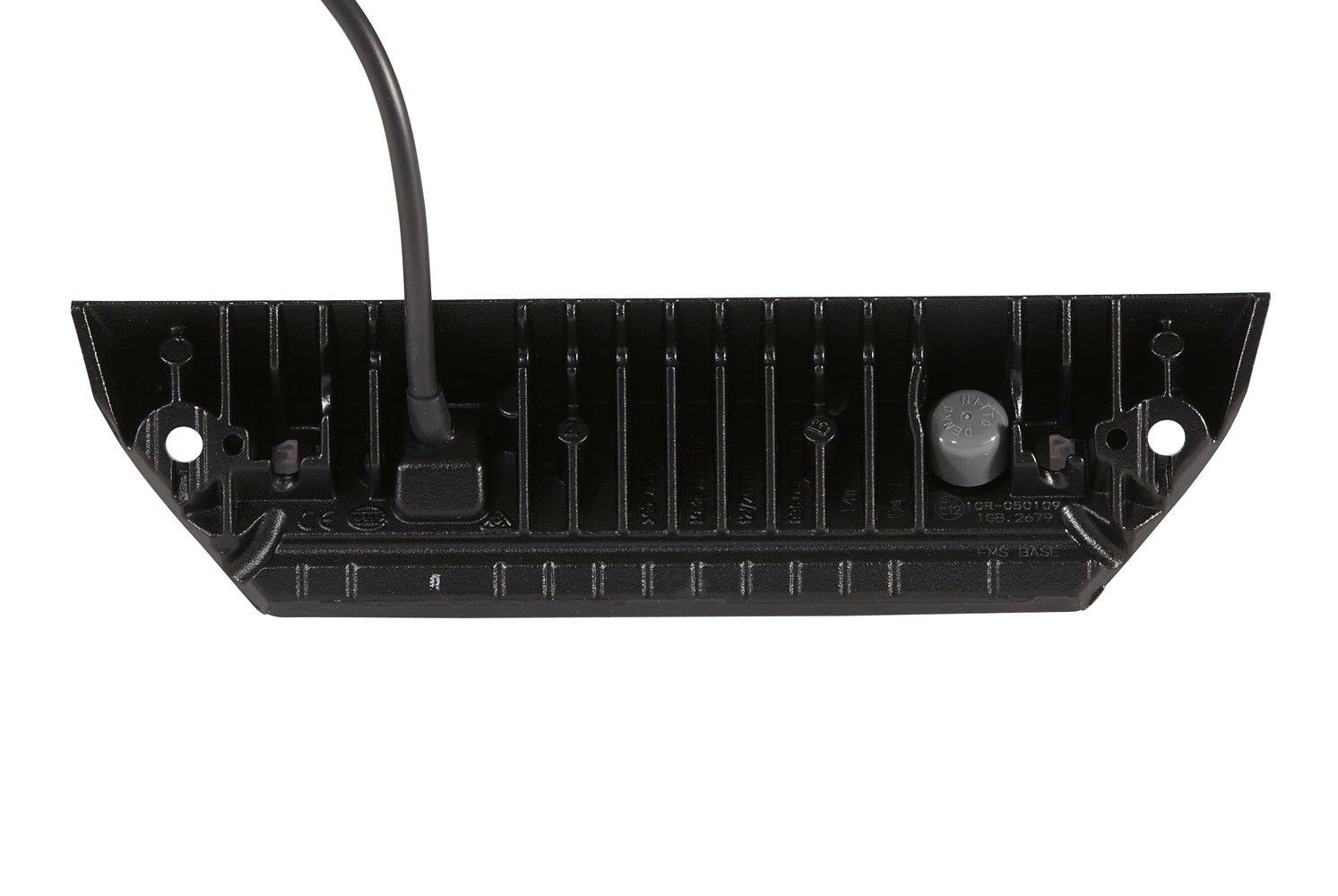

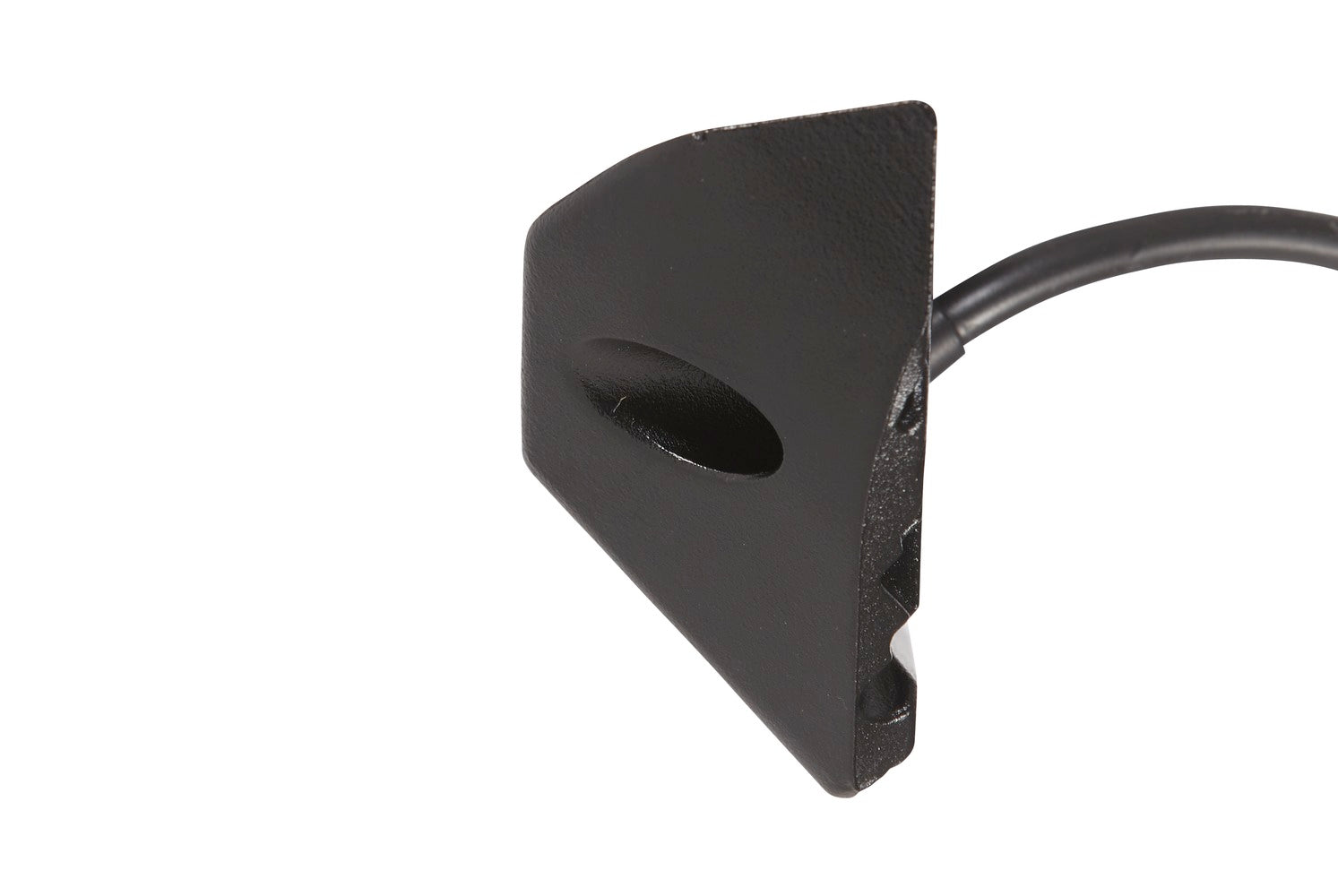

HELLA LED-Worklight - FMS Base - 24/12V 1GB996098-001

LED-Worklight - FMS Base - 24/12V - 1200lm - Bolted - 2-point attachment - Ground Illumination - Cable: 500mm - Plug: open cable ends

The FMS is a flat and compact LED work lamp in a nifty design. The slim build is a perfect fit for applications in tight spaces and integrates perfectly with the appearance of the whole vehicle. The FMS was developed in a way, that ensures a great ground illumination, even with a vertical wall mounting. Thus providing an evenly lighted work area. This feature is highly advantageous for municipal and emergency vehicles, as well as for heavy equipment, where a lot of work is done in the perimeter of the vehicle. The FMS is also a great fit for marine applications as it functions perfectly as a deck lamp. Furthermore, the flat mounting increases the safety of the vehicle, because no components stick out and therefore cannot lead to any injuries to civilians. Additionally the work lamp is therefore well protected to external influences, even at high speeds. The FMS is available as a Base and a Prime model, in the colours black, white and red.

• The FMS (Flat Mounting Solution) worklight is a flat and compact LED worklight with an elegant design.
• Its flat design makes it ideal for mounting situations where space is at a premium and also integrates perfectly into the appearance of the vehicle.
• Even with level wall mounting, the light is directed downwards towards the floor. This ensures good illumination of the working area even when mounted flat.
• The flat mounting method also ensures greater safety, as there are no parts protruding from the vehicle that could endanger people.
• In addition, this design allows no surfaces to be endangered or damaged even at high speeds.
• Lamp Type: LED - Number of LEDs: 4 - Power consumption: 14W - Colour Temperature: 6500K
• Patterned diffusing lens

Item Attributes:
Mounting Type: Bolted
Fastening Type: 2-point attachment
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Height: 38 mm
Width: 243 mm
Depth: 38 mm
Light Distribution: Ground Illumination
Registration Type: ADR/GGVS
fulfils ECE standard: R10
fulfils test standard: RCM
Plug: open cable ends
Prot.type (IP Code): IP6K7 / IP6K9K
Luminous Flux: 1200 lm
Colour Temperature: 6500 K
Number of LEDs: 4
Power consumption: 14 W
Cable: 500 mm
Housing Type: Aluminium Housing
Housing Colour: black
Diffusing Lens Type: Patterned diffusing lens
SVHC: 7439-92-1; Lead / 96-45-7; Imidazolidine-2-thione; (2-imidazoline-2-thiol)
Assembly by qualified personnel required!

OE references: AMMANN 1622544; FAUN 5646192; HIGER 37DV2-15001-B1; ROSENBAUER 93232A
