HELLA LED-Worklight - HypaLUME - 24/48V 1GJ011872-521

LED-Worklight - HypaLUME - 24/48V - 25000lm - mounting/Screw Connection - Swivelling Mounting Bracket - Short-Range Illumination - Cable: 1800mm - Plug: DEUTSCH plug

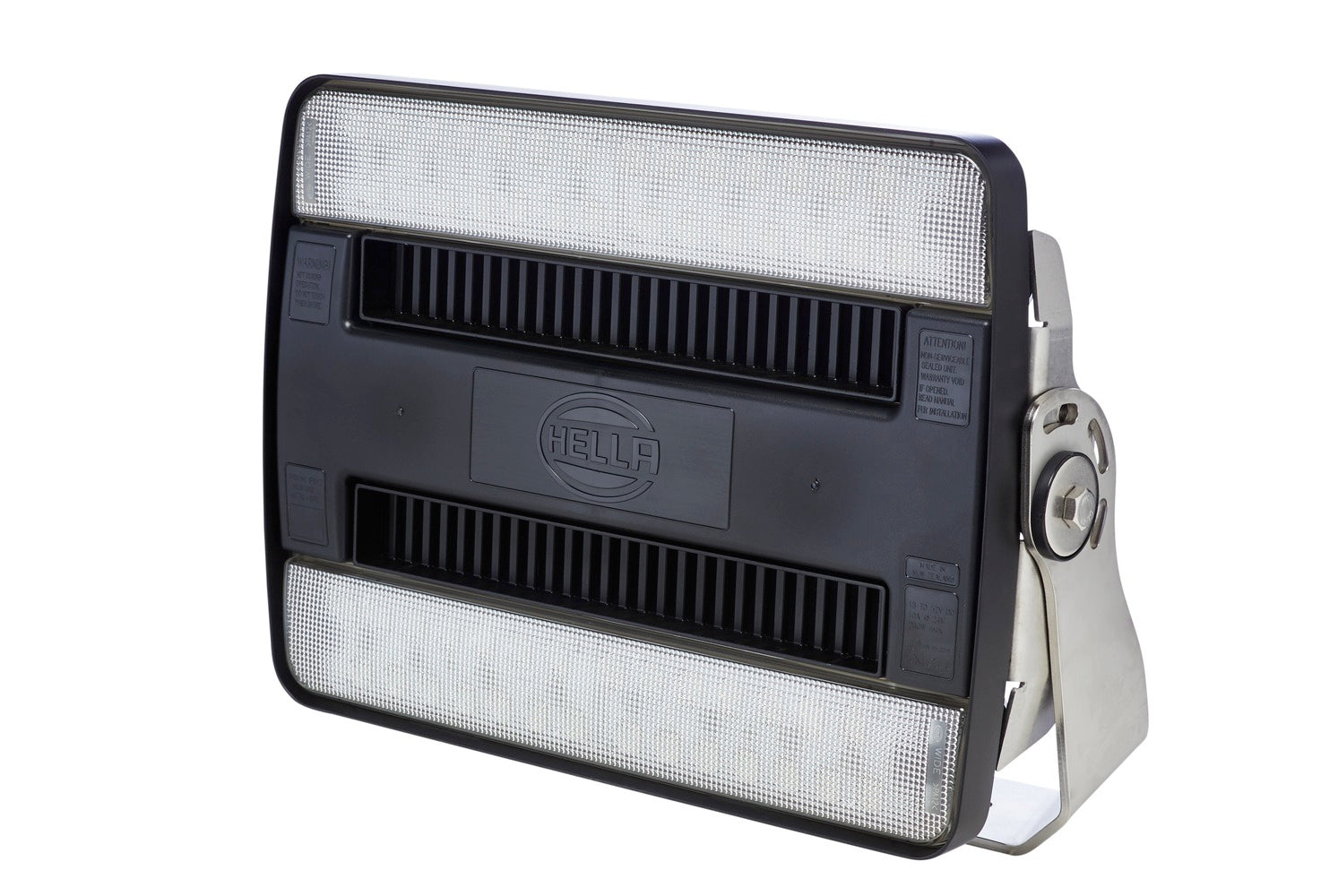

The HypaLUME 24/48V DC is designed for applications that require high light output in extreme environments. The spotlight produces 25,000 lumens at an input voltage of 22-52V DC and consumes less than 260W. Extensive sealing and corrosion protection measures have been taken to ensure that the worklight can withstand the harshest conditions. The high-quality aluminium housing is corrosion-resistant and has a non-stick, easy-to-clean surface. The durable Grilamid® lens provides unmatched resistance to shock and vibration, while ensuring long-term UV stability and resistance to common chemicals throughout the life of the product. The LEDs produce a light colour similar to daylight, which helps prevent fatigue and high alertness. The LED driver electronics ensure stable light output over a wide range of voltage fluctuations. The HypaLUME 24/48V DC is also protected against reverse polarity and short circuit. The HypaLUME 24/48V DC is designed for operation in a temperature range of -40°C to +50°C. Advanced thermal management dissipates heat from the LEDs to ensure optimum light output over the life of the lamp.

• Specially developed for mining applications
• Highly efficient light distribution
• Suitable for energy-saving lighting systems
• Lamp Type: LED - Number of LEDs: 56 - Power consumption: 260W - Colour Temperature: 5700K
• Patterned diffusing lens
• fulfils ECE standard: R10 - Prot.type (IP Code): IP6K9K/IP6K7
• Aluminium Housing - Diffusing Lens Material: PC (Polycarbonate)

Item Attributes:
Mounting Type: mounting / Screw Connection

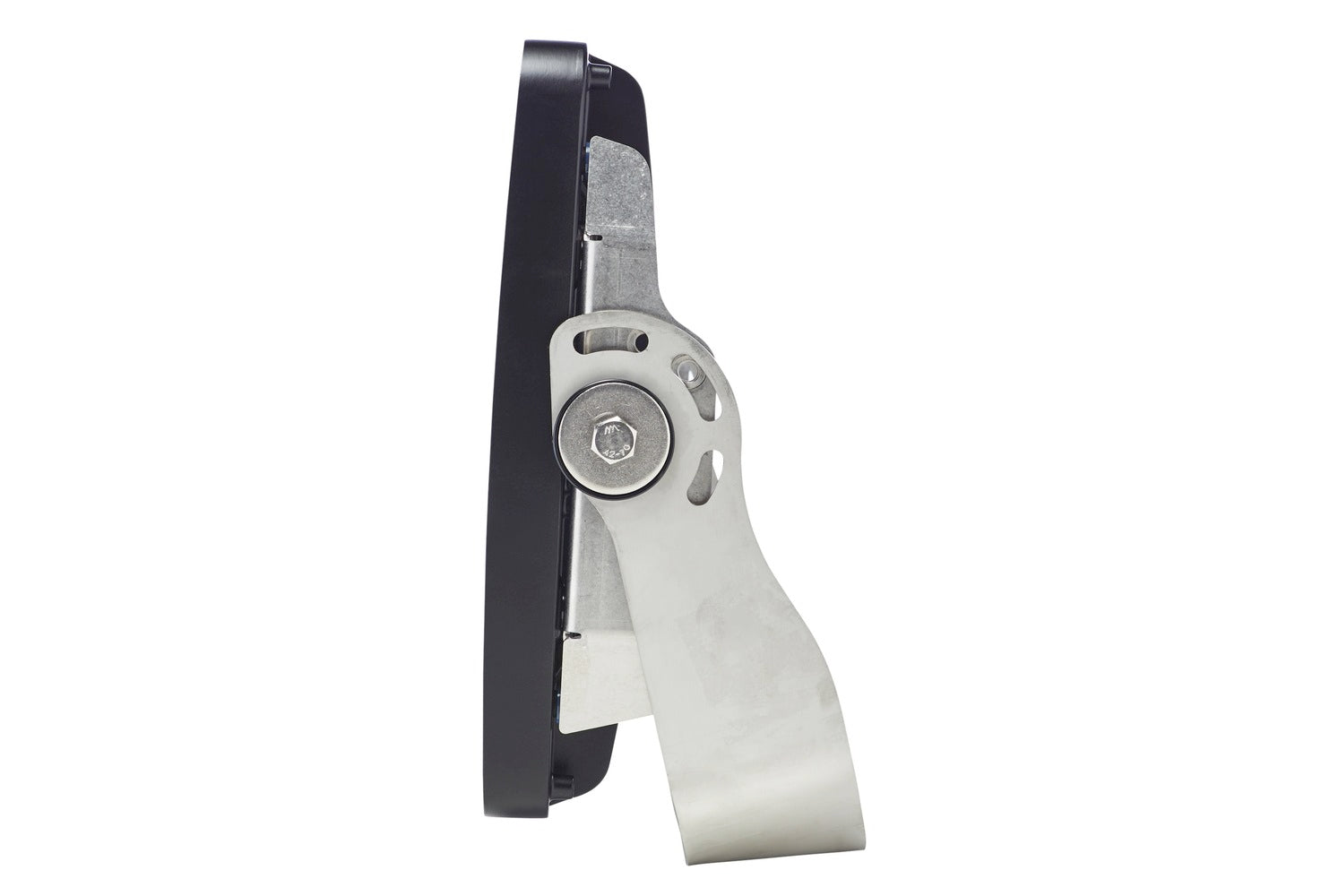

Fastening Type: Swivelling Mounting Bracket
Light Design: LED
Lamp Type: LED
Voltage: 24 V / 48 V
Height: 380 mm
Width: 520 mm
Depth: 166 mm
Light Distribution: Short-Range Illumination
fulfils ECE standard: R10
DIN/ISO: 13766
fulfils test standard: RCM

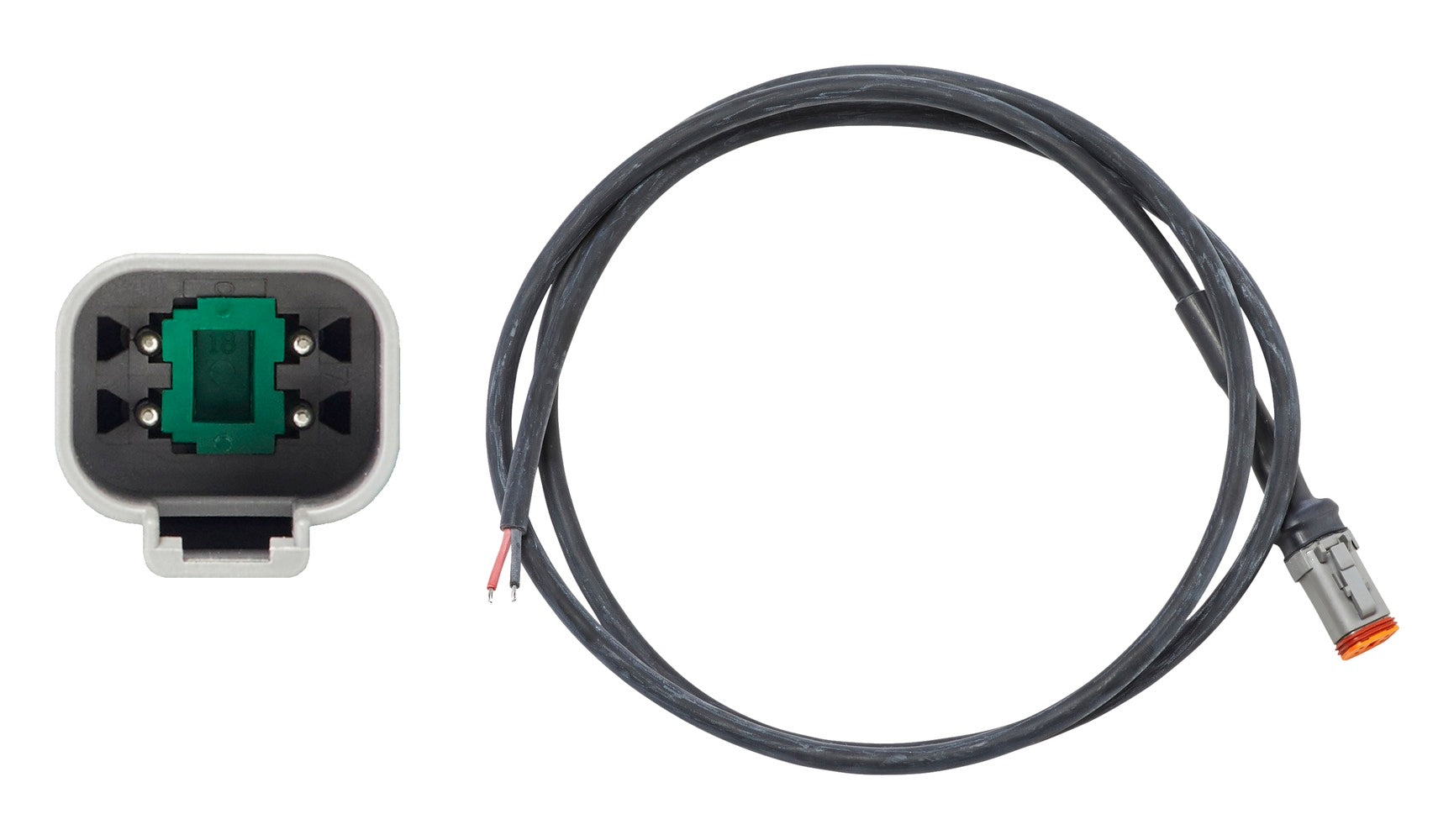

Plug: DEUTSCH plug
Prot.type (IP Code): IP6K7 / IP6K9K
Luminous Flux: 25000 lm
Colour Temperature: 5700 K
Number of LEDs: 56
Power consumption: 260 W
Supplementary Article/Supplementary Info 2: with pipe
Cable: 1800 mm
Housing Type: Aluminium Housing
Diffusing Lens Material: PC (Polycarbonate)
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!
