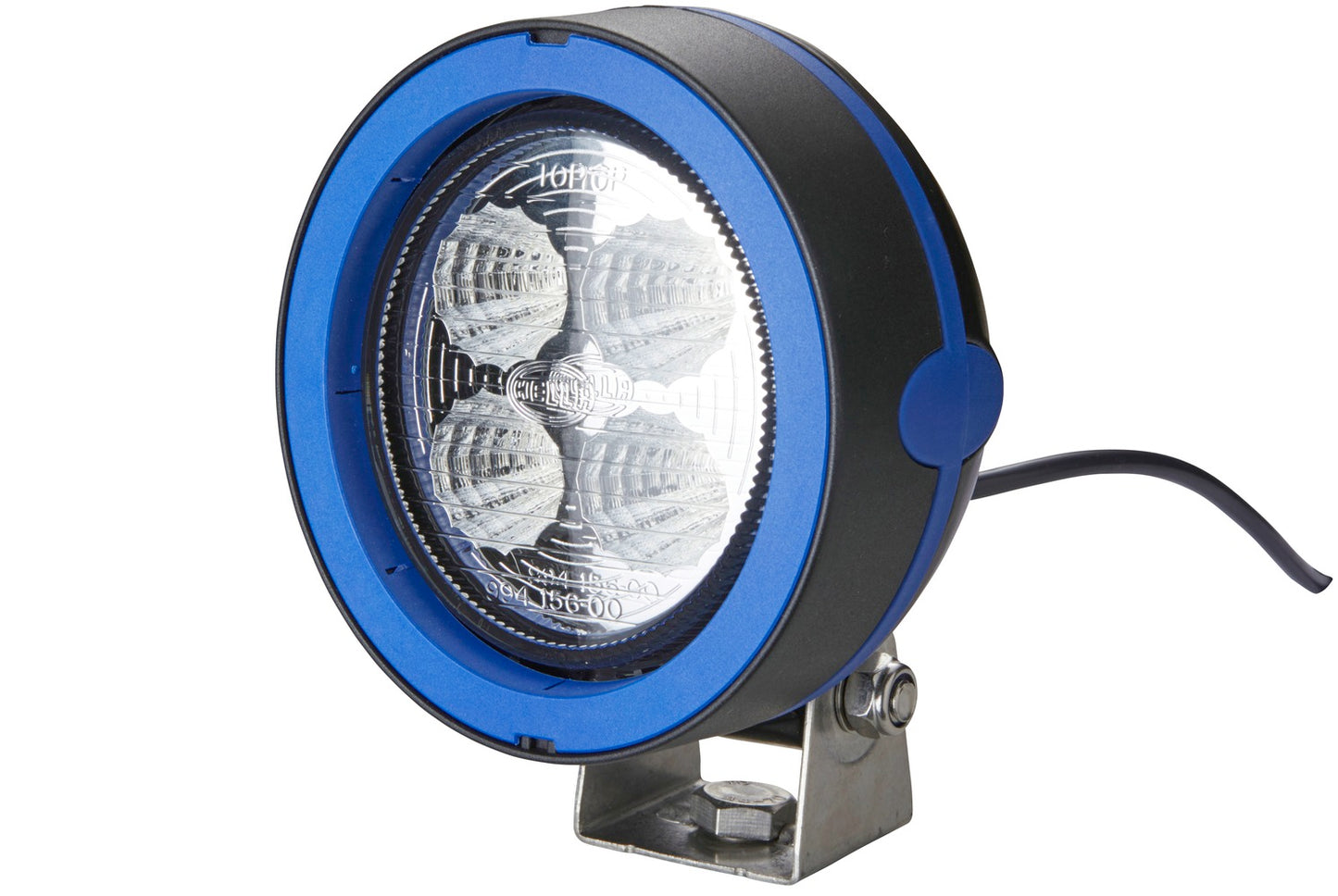

HELLA LED-Worklight - Mega Beam Gen. III - 12/24V 1GM996136-311

LED-Worklight - Mega Beam Gen. III - 12/24V - 800lm - Bolted/mounting - Vertical - Short-Range Illumination - Cable: 2000mm - Plug: open cable ends

This worklight uses four high-power LEDs as its light source. The LEDs are multivolt-compatible (12 and 24 V). Due to its low power consumption, the Mega Beam LED is ideal for use on vehicles with battery operation or whose alternator is already heavily loaded. The Mega Beam LED Generation II is resistant to shocks, vibrations and voltage fluctuations. The worklight does not require any maintenance after installation. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 33 volts. With 6500 Kelvin, the light of the LED worklight is very similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and prevent rapid eye fatigue. The rear of the housing is made of aluminium and has large cooling fins that ensure optimal heat dissipation to ensure a long service life of the LED. Due to its compact dimensions, the worklight can be used universally. The robust worklight is resistant to high-pressure cleaning. To protect the glass pane, the housing has a protruding rim on its front. The power connection is made via a permanently mounted 2-pole cable, 2,000 mm long.

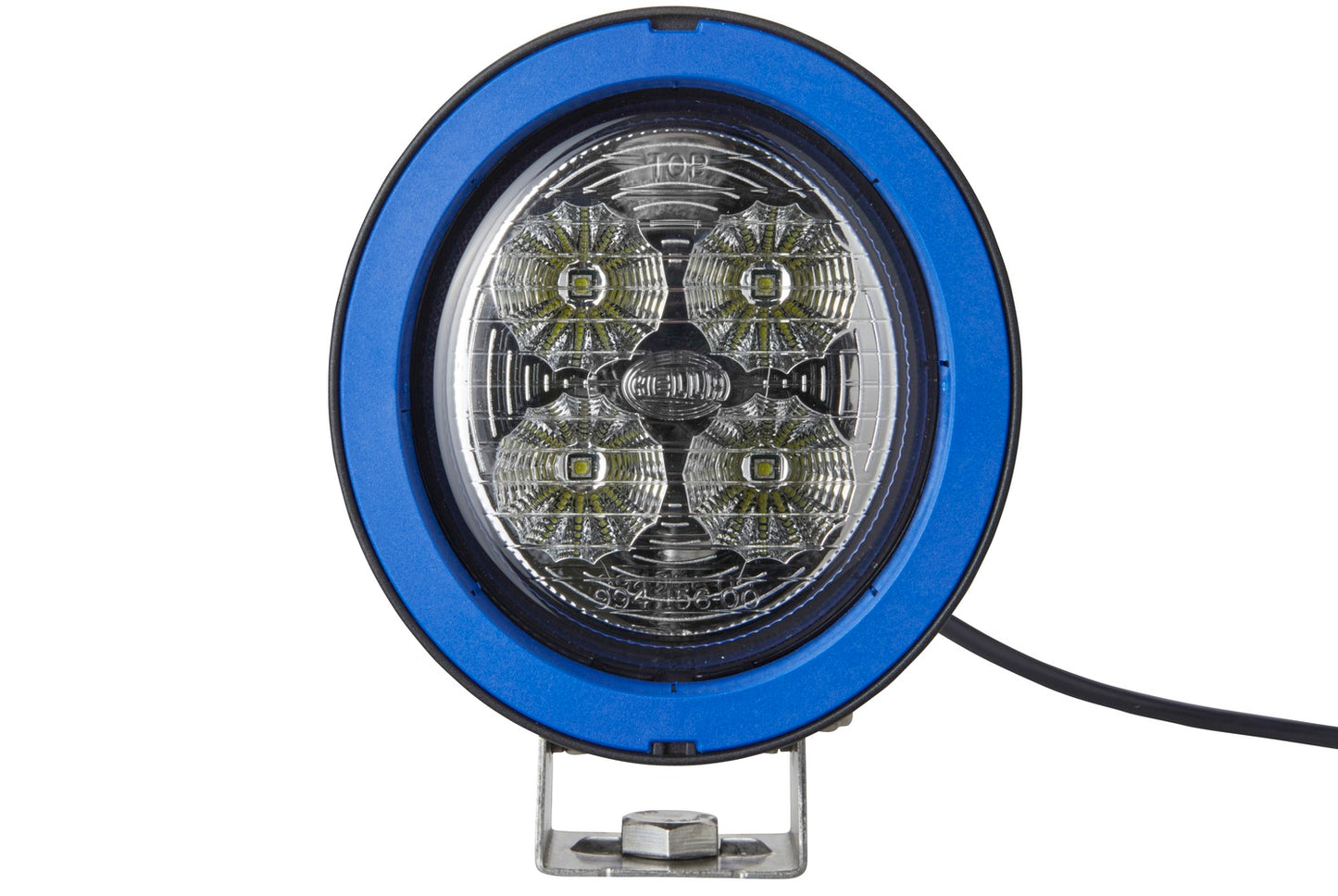

• Compact worklight with 4 high-power LEDs for pendant mounting
• Close-range illumination for 12 and 24V vehicle electrical systems

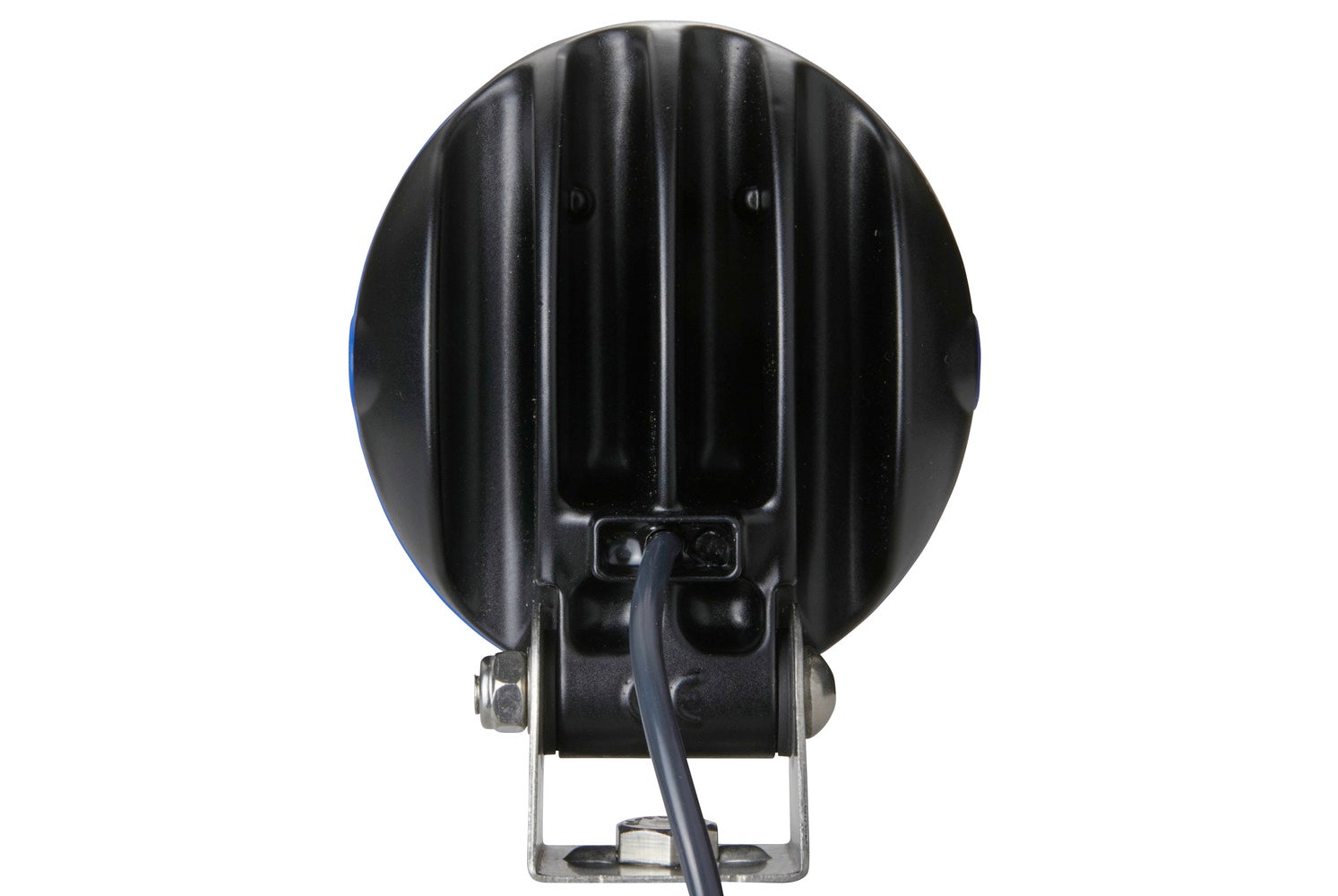

• Black lacquered case with cooling fins
• Innovative LED technology in compact design
• 30 % more light than Generation II, with the same power consumption
• Lamp Type: LED - Number of LEDs: 4 - Power consumption: 13W - Colour Temperature: 6500K
• Patterned diffusing lens

Item Attributes:
Mounting Type: Bolted / mounting
Fastening Type: Vertical
Lamp Type: LED
Light Design: LED
Colour Temperature: 6500 K
Luminous Flux: 800 lm
Voltage: 12 V / 24 V
Power consumption: 13 W
Width: 110 mm
Height: 120 mm
Depth: 84 mm
Diffusing Lens Material: Glass

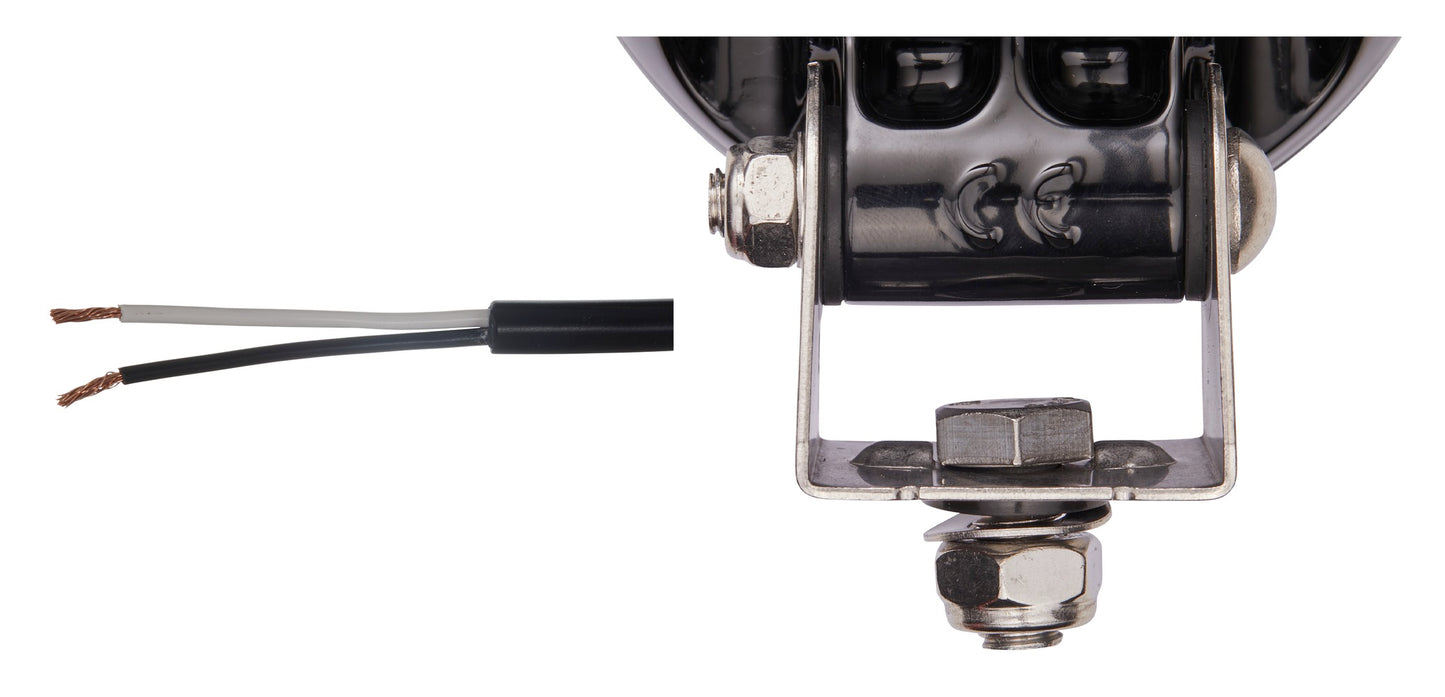

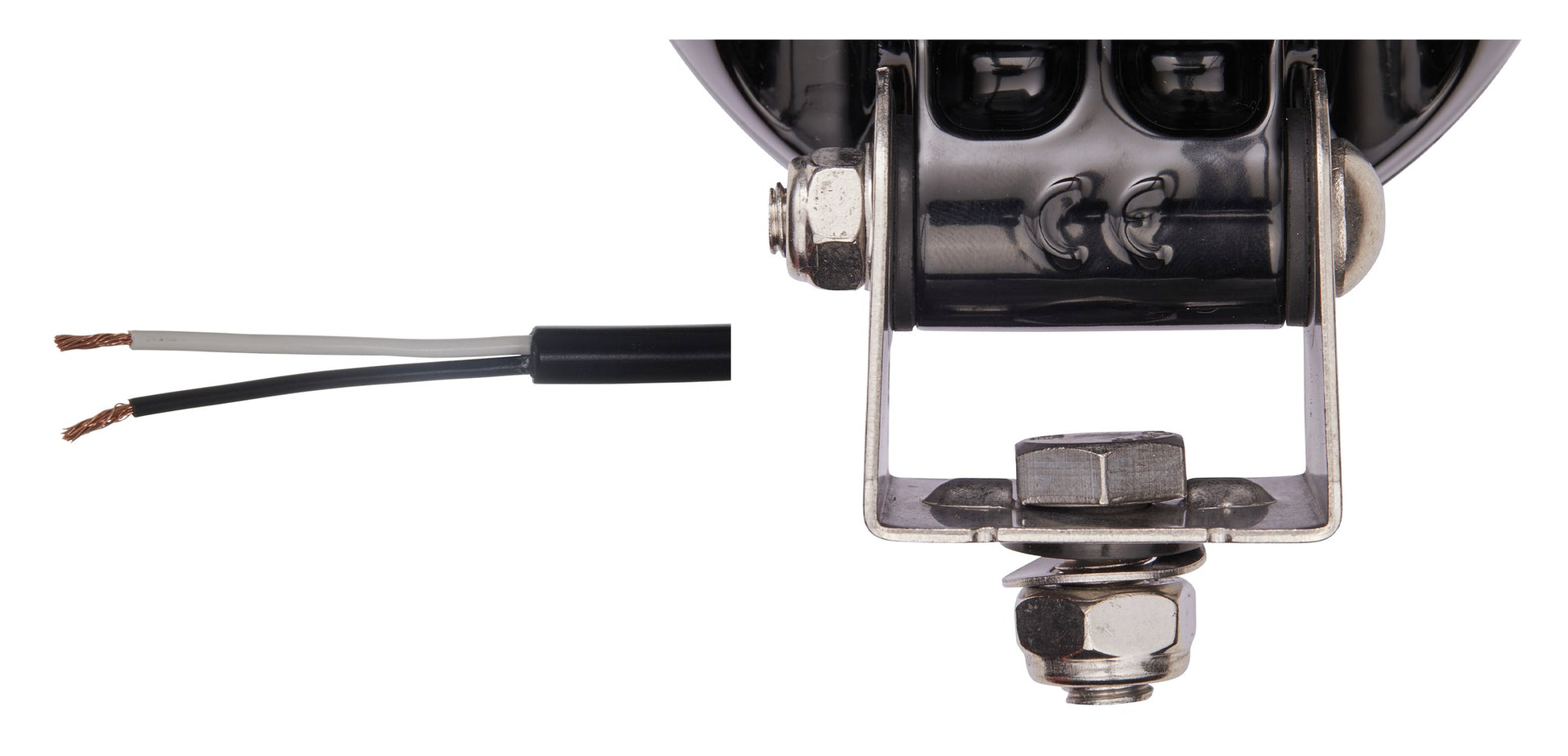

Cable: 2000 mm
Plug: open cable ends
Housing Type: Aluminium Housing
Housing Colour: black/blue
Diffusing Lens Type: Patterned diffusing lens
Prot.type (IP Code): IP6K9K / IP6K7
fulfils ECE standard: R10
Light Distribution: Short-Range Illumination
Number of LEDs: 4
Supplementary Article/Supplementary Info 2: with cable
Assembly by qualified personnel required!

OE references: BROSHUIS 35186269; CATERPILLAR 146-2312; CATERPILLAR 371-2131; CATERPILLAR 5342669; FAUN 5171 547; FAUN 5641 475; FELDBINDER 1075458; HYDREMA 7400917; KRONE 515025952; MANITOU 314124; O&K 1462312; SCHWARZMÜLLER 78360; TOYOTA 0050201; VAN HOOL 11425775; VDL 11425775; YANMAR 5350661300
