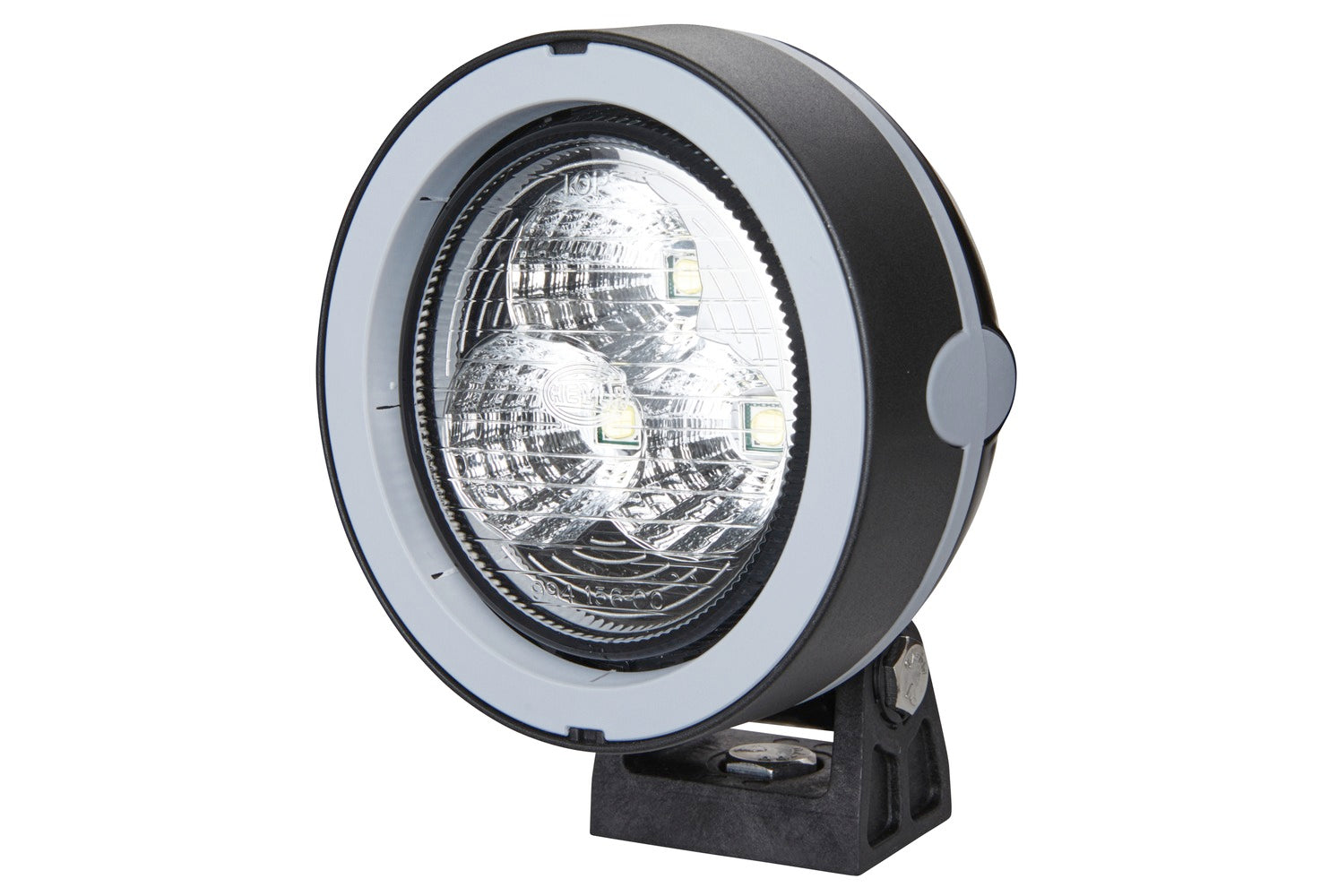

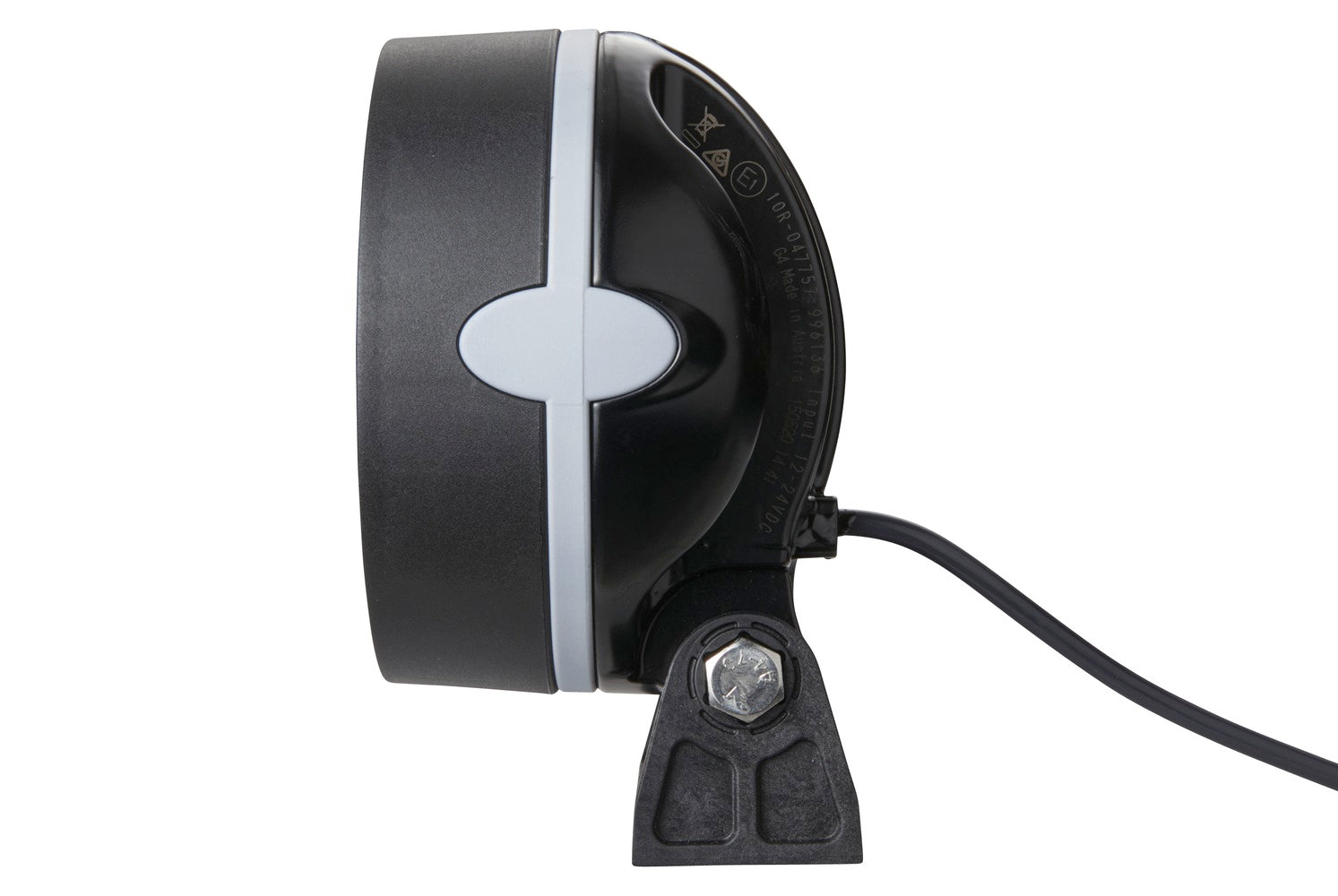

HELLA LED-Worklight - Mega Beam Gen. IV - 12/24V 1GM996136-501

LED-Worklight - Mega Beam Gen. IV - 12/24V - 2500lm - mounting/Bolted - Vertical - Short-Range Illumination - Cable: 2000mm - Plug: open cable ends

With the Mega Beam LED Generation IV, HELLA is launching a compact worklight with very powerful light output. For the first time, LED light output at xenon level could be achieved in this compact design. Equipped with 3 high-performance multi-chip LEDs, the Mega Beam LED produces 2,500 measured lumens with an energy consumption of only 30 watts. The black housing of this worklight is made of aluminium and has cooling fins to ensure the necessary heat dissipation of the high-performance LEDs (comparison: Mega Beam LED Generation 3 had only 800 lumens). Despite its compact form, the Mega Beam LED Generation IV is a robust worklight for various applications. The light beams of the LEDs are emitted homogeneously into the working area thanks to the multifacet reflector and the light disk. With a colour temperature of 6,500 Kelvin, the light of the LED worklight is very similar to daylight. This causes colours to distinguish themselves more clearly in the dark, making it much easier for the human eye to perceive the senses and thus preventing fatigue. The electronics of the Mega Beam LED are multi-voltage compatible and can therefore be operated with 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 33 volts. In addition, temperature sensors protect the worklight from overheating. This is the only way to ensure the long service life of the LEDs and safe working at night.

• For the first time, LED light output at xenon level has been achieved in this compact design.

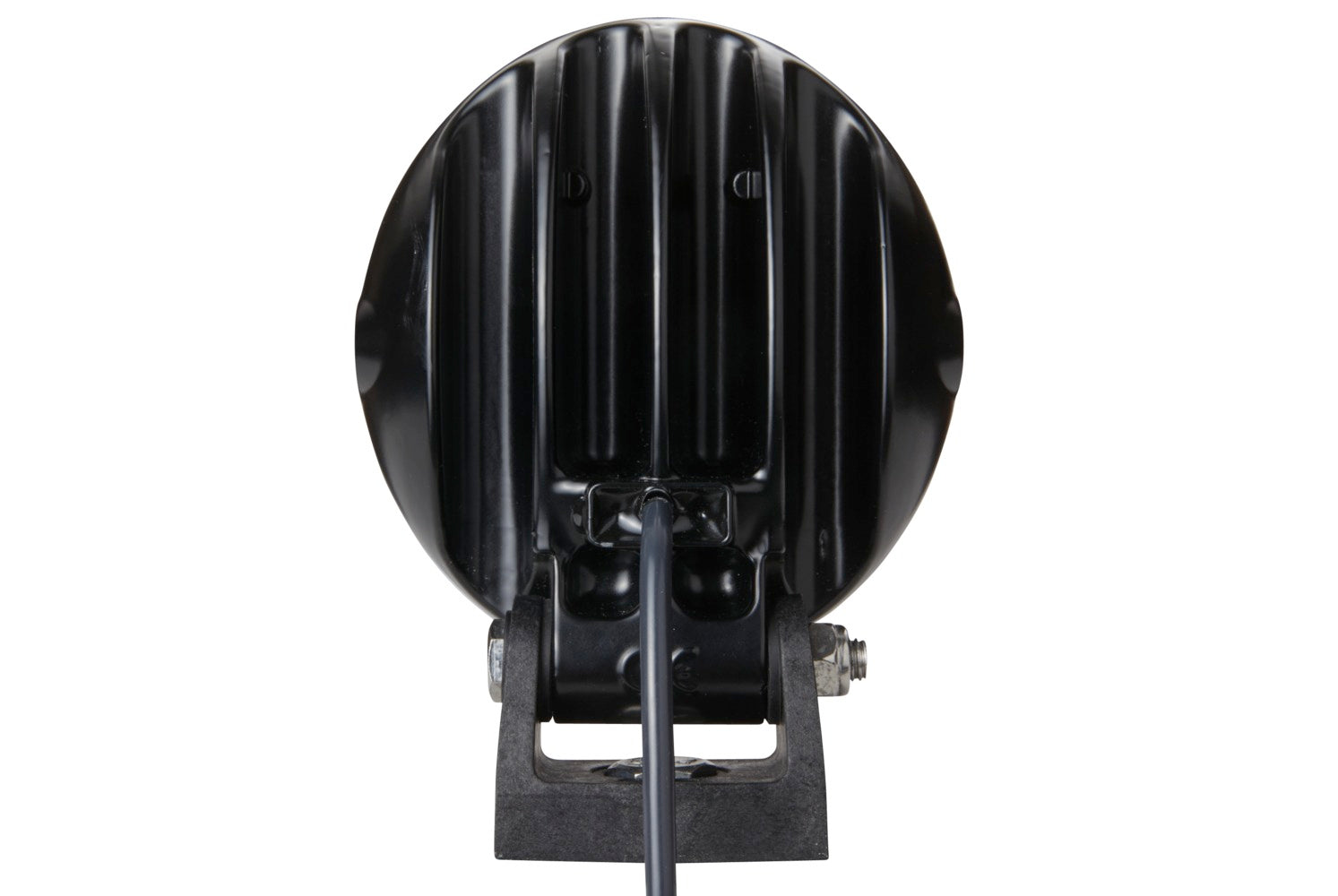

• The black housing of this worklight is made of aluminium and is equipped with cooling fins. These ensure the necessary heat dissipation of the high-power LEDs.

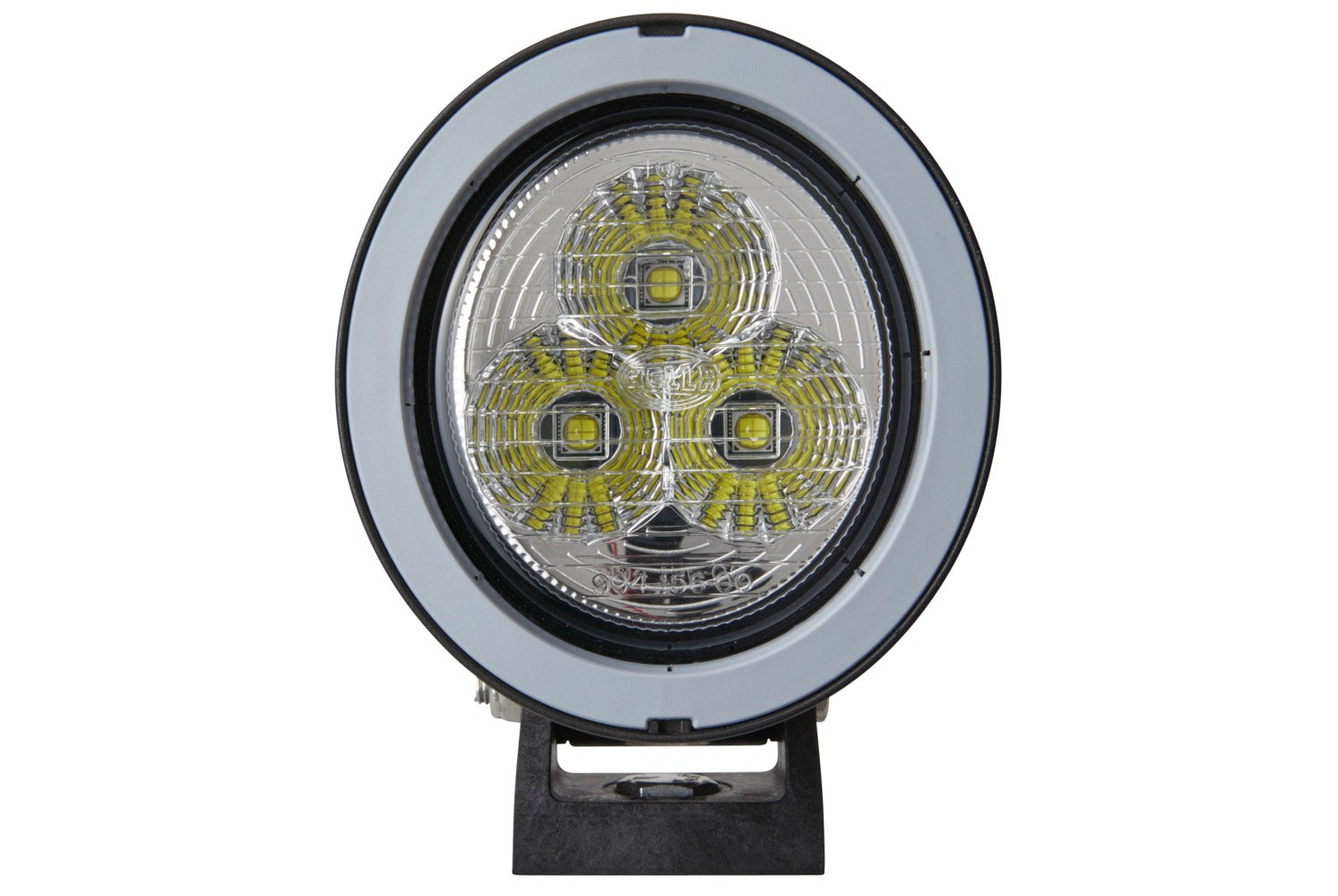

• Thanks to the multi-facetted reflector and the lens, the light beams of the LEDs are homogeneously radiated into the work area.
• The integrated electronics protect the device in case of reverse polarity and guarantee constant brightness even with fluctuating operating voltage.
• In addition, temperature sensors protect the worklight from overheating. Only in this way can the long service life of the LEDs and safe working at night be guaranteed.
• Lamp Type: LED - Number of LEDs: 3 - Power consumption: 30W - Colour Temperature: 6500K
• Patterned diffusing lens

Item Attributes:
Mounting Type: mounting / Bolted
Fastening Type: Vertical
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Height: 147 mm
Width: 110 mm
Depth: 83 mm
Light Distribution: Short-Range Illumination
fulfils ECE standard: R10

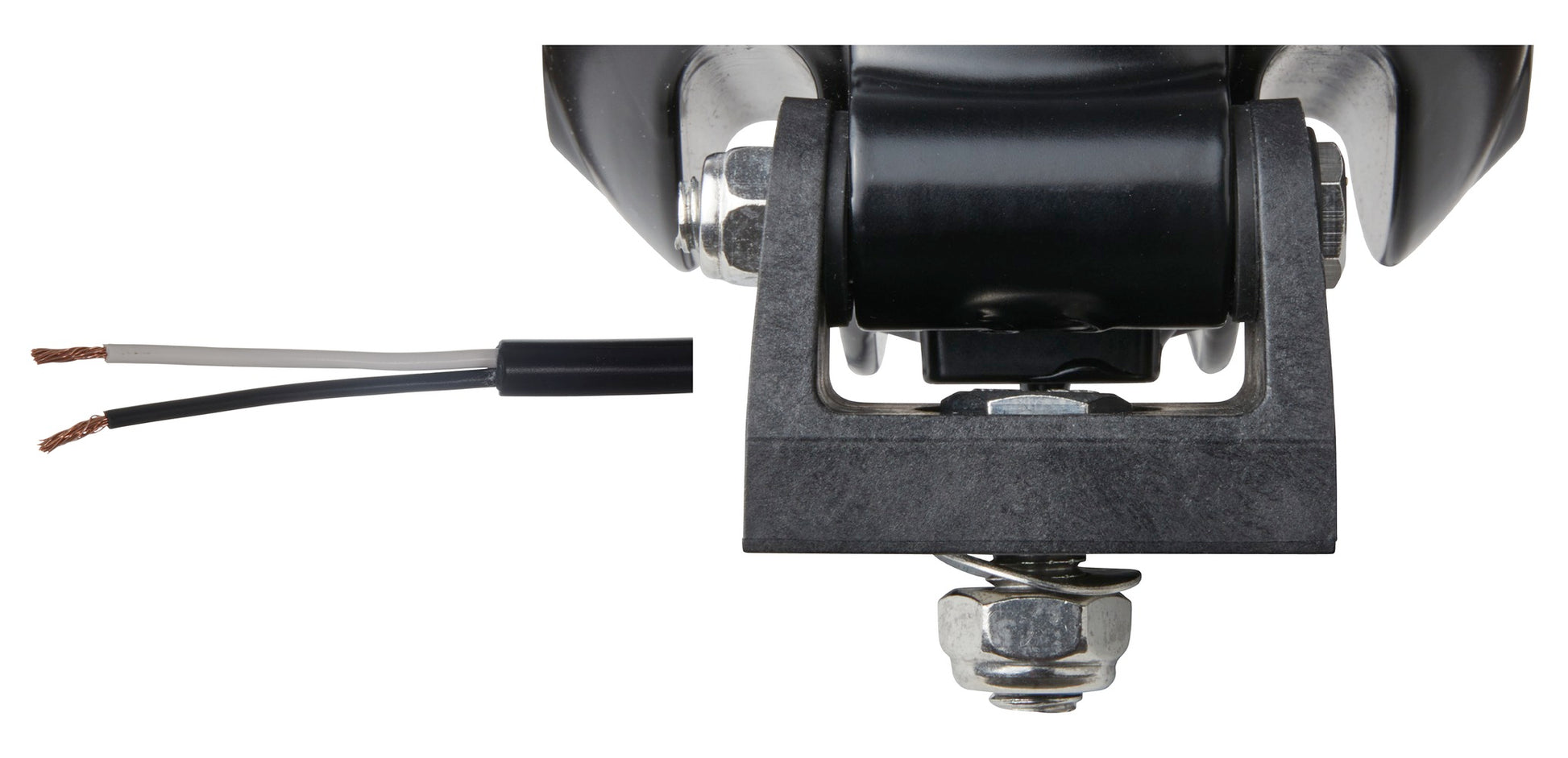

Plug: open cable ends
Prot.type (IP Code): IP6K7 / IP6K9K
Luminous Flux: 2500 lm
Colour Temperature: 6500 K
Number of LEDs: 3
Power consumption: 30 W
Cable: 2000 mm
Housing Type: Aluminium Housing
Housing Colour: black
Diffusing Lens Material: Polyamid 12
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!
