HELLA LED-Worklight - Modul 50 - 24/12/36/48V 1G0995050-081

LED-Worklight - Modul 50 - 24/12/36/48V - mounting/Bolted - Vertical/Swivelling Mounting Bracket - Spot illumination - Light colour: Red - Plug: DEUTSCH plug

The Module 50 LED Spot is a new version of the already well-known Module 50 series from HELLA. The worklight serves as a warning light and is equipped with VISIOTECH projection technology, which makes it possible to visually highlight danger zones and to warn other vehicles or passers-by of an approaching vehicle. This significantly increases occupational safety and prevents accidents. HELLA's lighting engineers have developed a special lens optic, whereby the light beams of the coloured LED are strongly bundled so that a circular warning point is projected onto the ground. This application is suitable for a wide variety of areas. (e.g. forklift trucks). Due to its compact dimensions, the Module 50 LED Spot is particularly suitable for mounting situations with little space. In addition to its compact dimensions, the Module 50 LED Spot also scores with its high energy efficiency. With a power consumption of only 15 watts, this worklight is ideal for use on vehicles with battery operation and where the alternator is already heavily loaded. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 52 volts. This enables use on vehicles with 12, 24 or 48 volts on-board power supply and ensures safe working. The worklight’s black housing is made of aluminium and has cooling fins to ensure the necessary heat dissipation of the high-performance multi-chip LED. In addition, a temperature sensor protects the worklight from overheating.

• By developing a special lens optic, the light rays of the coloured LED are strongly bundled so that a circular warning point is projected onto the floor.
• This application is suitable for a wide variety of areas. (e.g. forklift trucks). Thanks to its compact dimensions, the Modul 50 LED is particularly suitable for installation situations where space is at a premium.
• In addition to its compact dimensions, the Modul 50 LED also scores points for its high energy efficiency.
• Work lamp ideal for use on battery-powered vehicles and vehicles whose alternator is already under heavy load

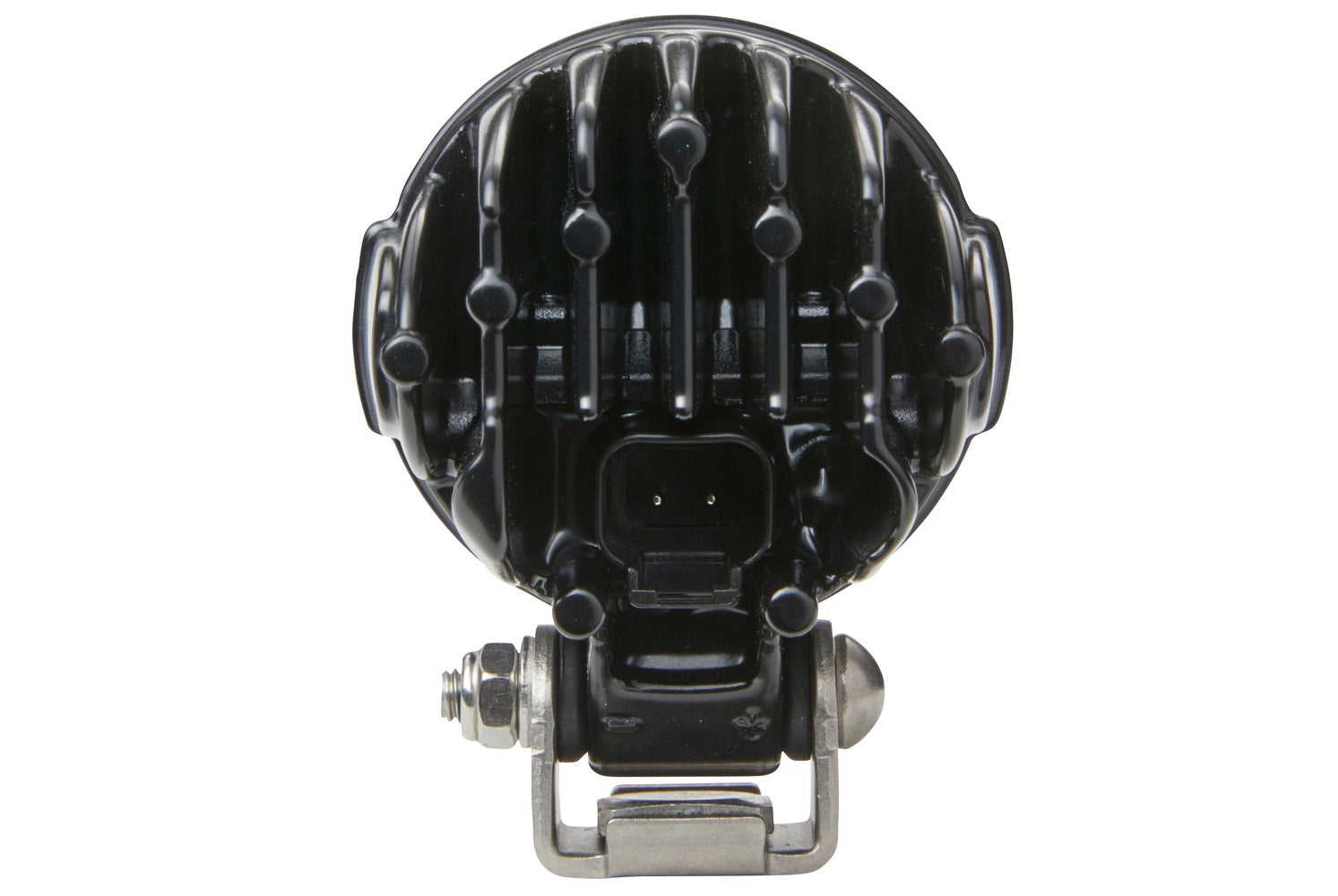

• The black housing of this worklight is made of aluminium and is equipped with cooling fins. These ensure the necessary heat dissipation of the high-power multichip LEDs.
• Lamp Type: LED - Number of LEDs: 1 - Power consumption: 15W - Colour Temperature: 6500K
• Clear diffusing lens

Item Attributes:
Mounting Type: Bolted / mounting
Fastening Type: Vertical / Swivelling Mounting Bracket
Light Design: LED
Lamp Type: LED
Voltage: 36 V / 24 V / 12 V / 48 V
Height: 88 mm
Width: 67 mm
Depth: 82 mm
Light Distribution: Spot Illumination
fulfils test standard: RCM

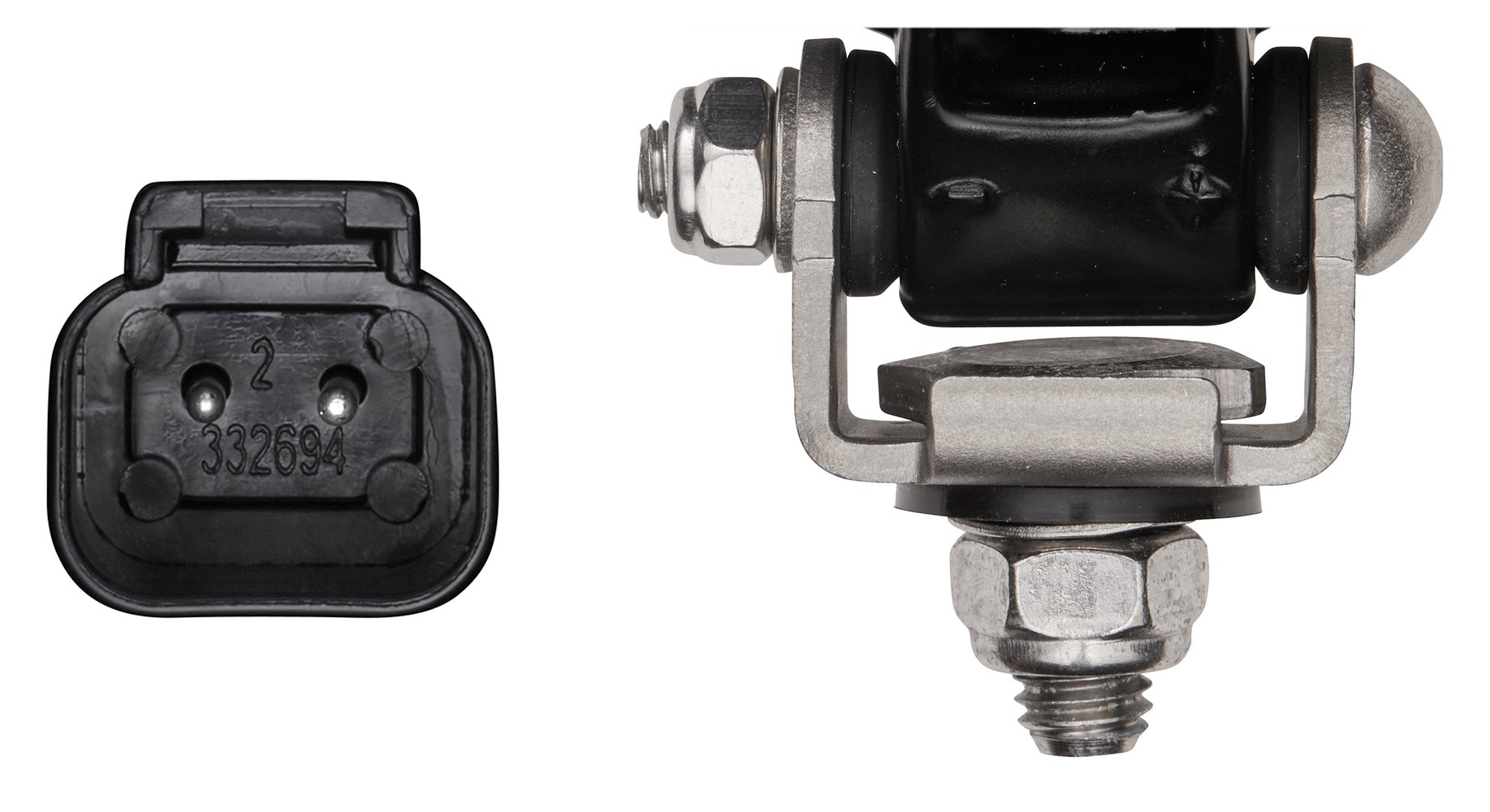

Plug: DEUTSCH plug
Prot.type (IP Code): IP6K9K / IP6K7
Colour Temperature: 6500 K
Number of LEDs: 1
Power consumption: 15 W
Supplementary Article/Supplementary Info 2: without cable
Housing Type: Aluminium Housing
Housing Colour: black
Diffusing Lens Material: Glass
Diffusing Lens Type: Clear diffusing lens
Light colour: red
Assembly by qualified personnel required!

OE references: GOLDHOFER 261326; MANITOU 52643579; ROSENBAUER 42226A
