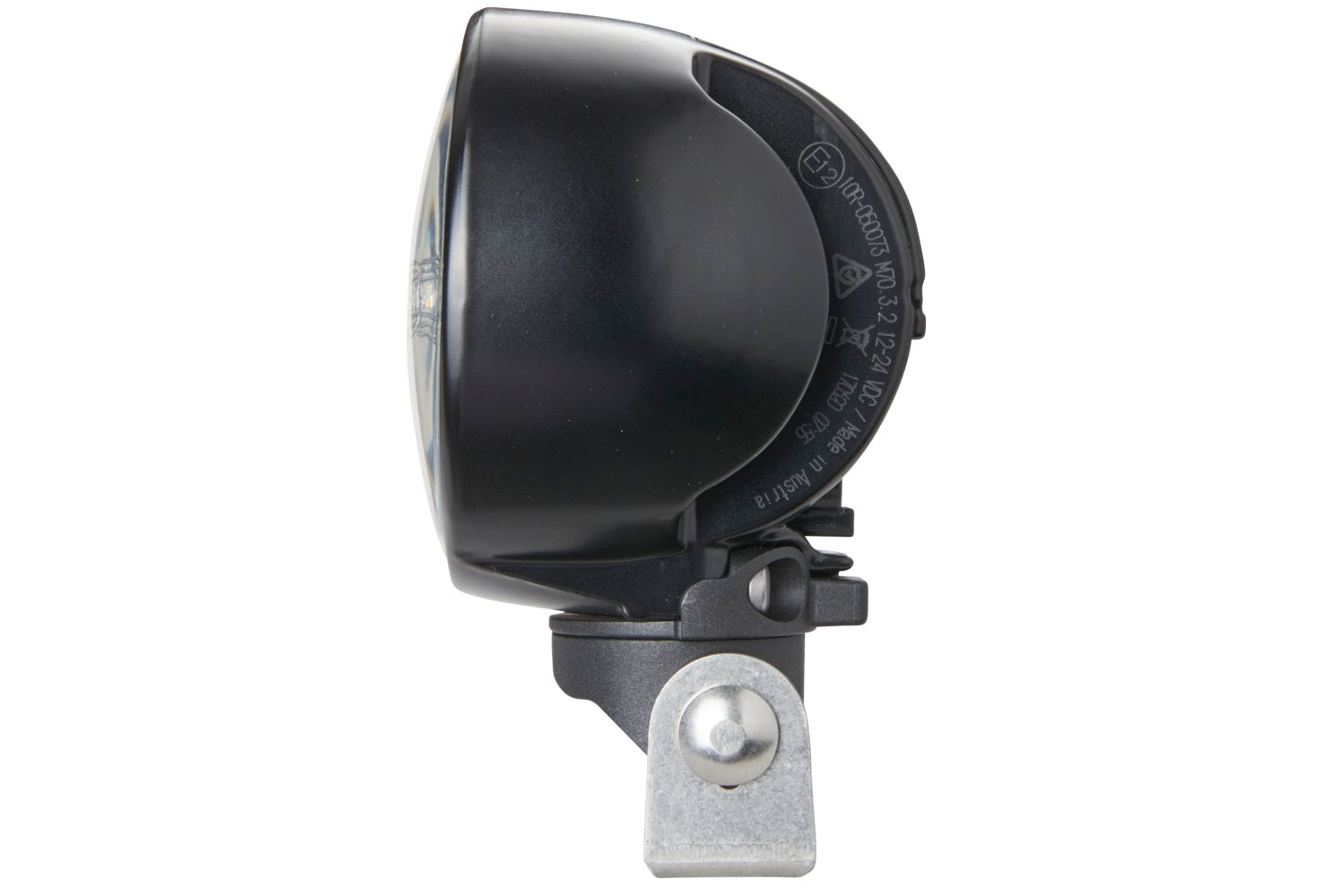

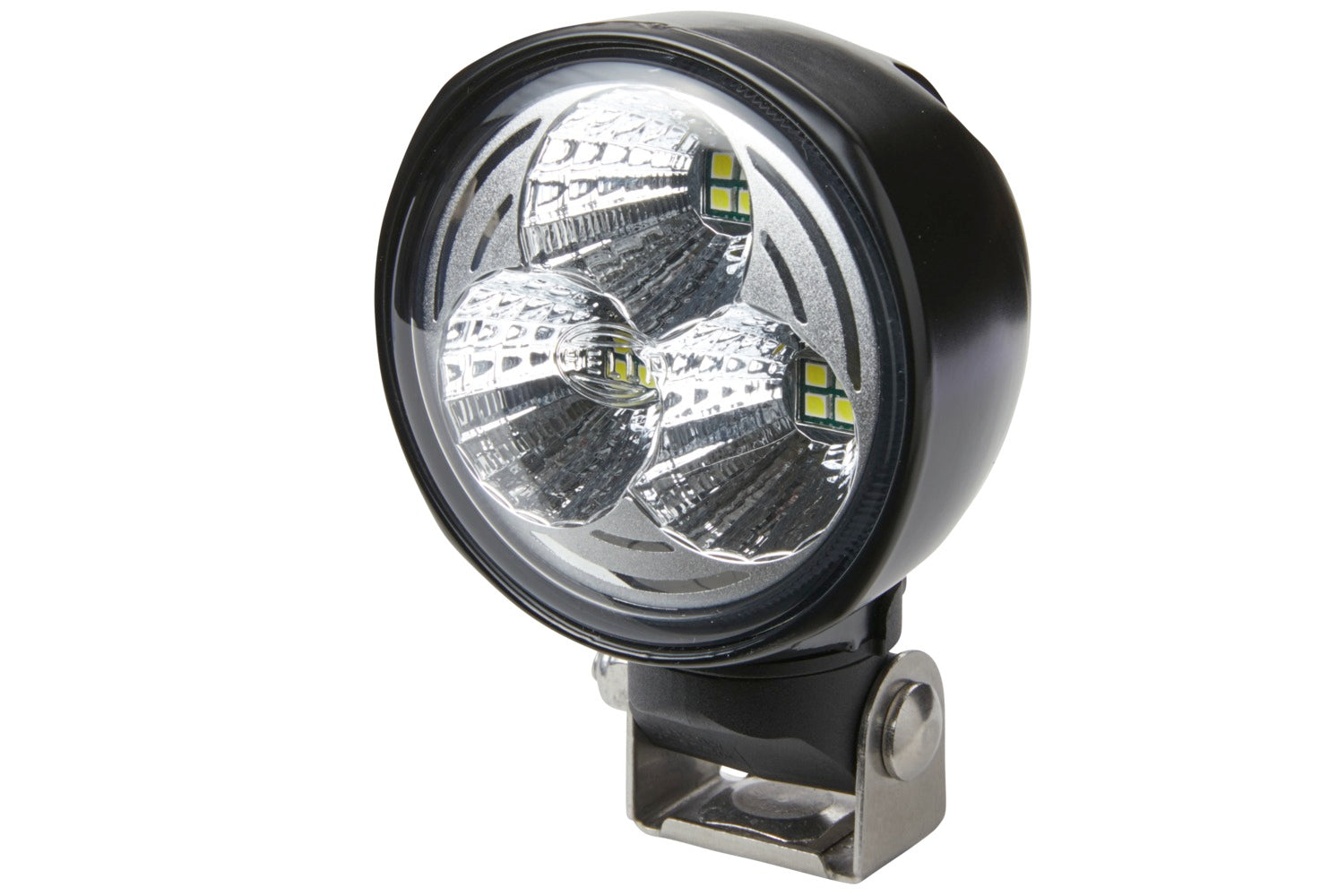

HELLA LED-Worklight - Modul 70 Gen. 3.2 - 24/12V 1G0996576-011

LED-Worklight - Modul 70 Gen. 3.2 - 24/12V - 1800lm - Bolted/mounting - Swivelling Mounting Bracket - Long-range illumination - Plug: DEUTSCH plug

With the Module 70 LED Generation 3.2, HELLA brings a light upgrade of the established Module 70 LED Generation 3. Equipped with 3 high-power multichip LEDs, the module produces 70 LED Generation 3.2 now 1,800 measured lumens with an energy consumption of only 20 watts. (Comparison: Generation 3 only produced 800 lumens). The worklight's black housing is made of aluminium and has cooling fins to ensure the necessary heat dissipation of the high-performance LEDs. In addition to the standard cable version, the compact Module 70 LED Generation 3.2 also comes with an integrated DEUTSCH plug for the first time. The electronics of the worklight are multi-voltage compatible and can therefore be operated with 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. In addition, temperature sensors protect the worklight from overheating. This is the only way to ensure the long service life of the LEDs and safe working at night. The light beams of the LEDs are emitted homogeneously into the working area thanks to the multifacet reflector and the light disk. Despite its compact design, this is a very robust worklight for numerous applications. The light of the LED worklight is very similar to daylight. This has the effect of distinguishing colours more clearly in the dark, making it much easier for the human eye to perceive the senses and preventing fatigue. The Module 70 LED Generation 3.2 is also available as a reversing spotlight.

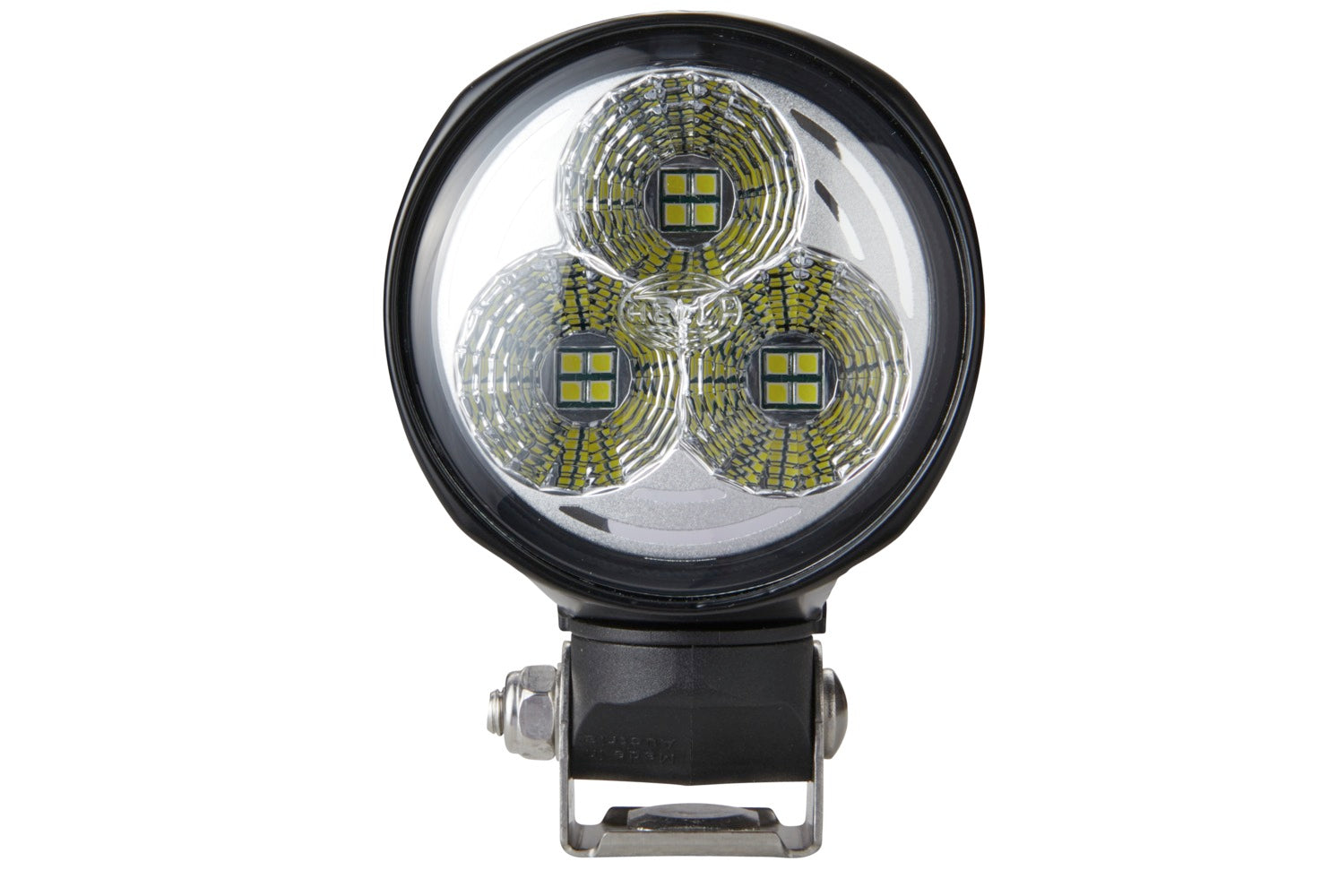

• Equipped with 3 high-performance multichip LEDs, the Modul 70 LED generates a significantly higher lumen output than its predecessor.

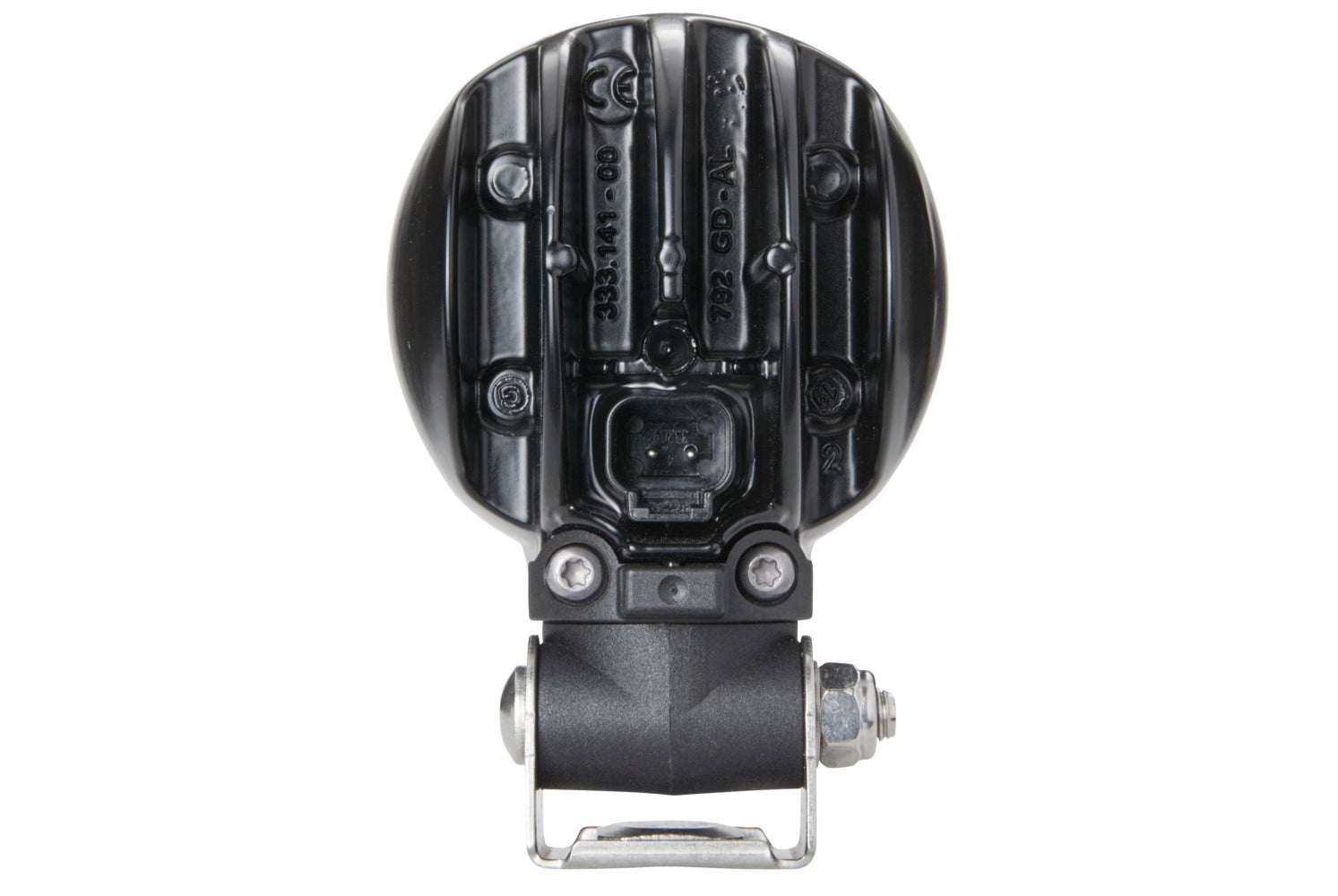

• The black housing of this worklight is made of aluminium and is equipped with cooling fins. These ensure the necessary heat dissipation of the high-power LEDs.
• The integrated electronics protect the device in case of reverse polarity and guarantee constant brightness even with fluctuating operating voltage.
• In addition, temperature sensors protect the worklight from overheating. Only in this way can the long service life of the LEDs and safe working at night be guaranteed.
• Thanks to the multi-facetted reflector and the lens, the light beams of the LEDs are homogeneously radiated into the work area.
• Lamp Type: LED - Number of LEDs: 3 - Power consumption: 20W - Colour Temperature: 6500K
• Clear diffusing lens

Item Attributes:
Mounting Type: mounting / Bolted
Fastening Type: Swivelling Mounting Bracket
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Height: 110 mm
Width: 83 mm
Depth: 74 mm
Light Distribution: Long-range illumination
fulfils ECE standard: R10
fulfils test standard: RCM

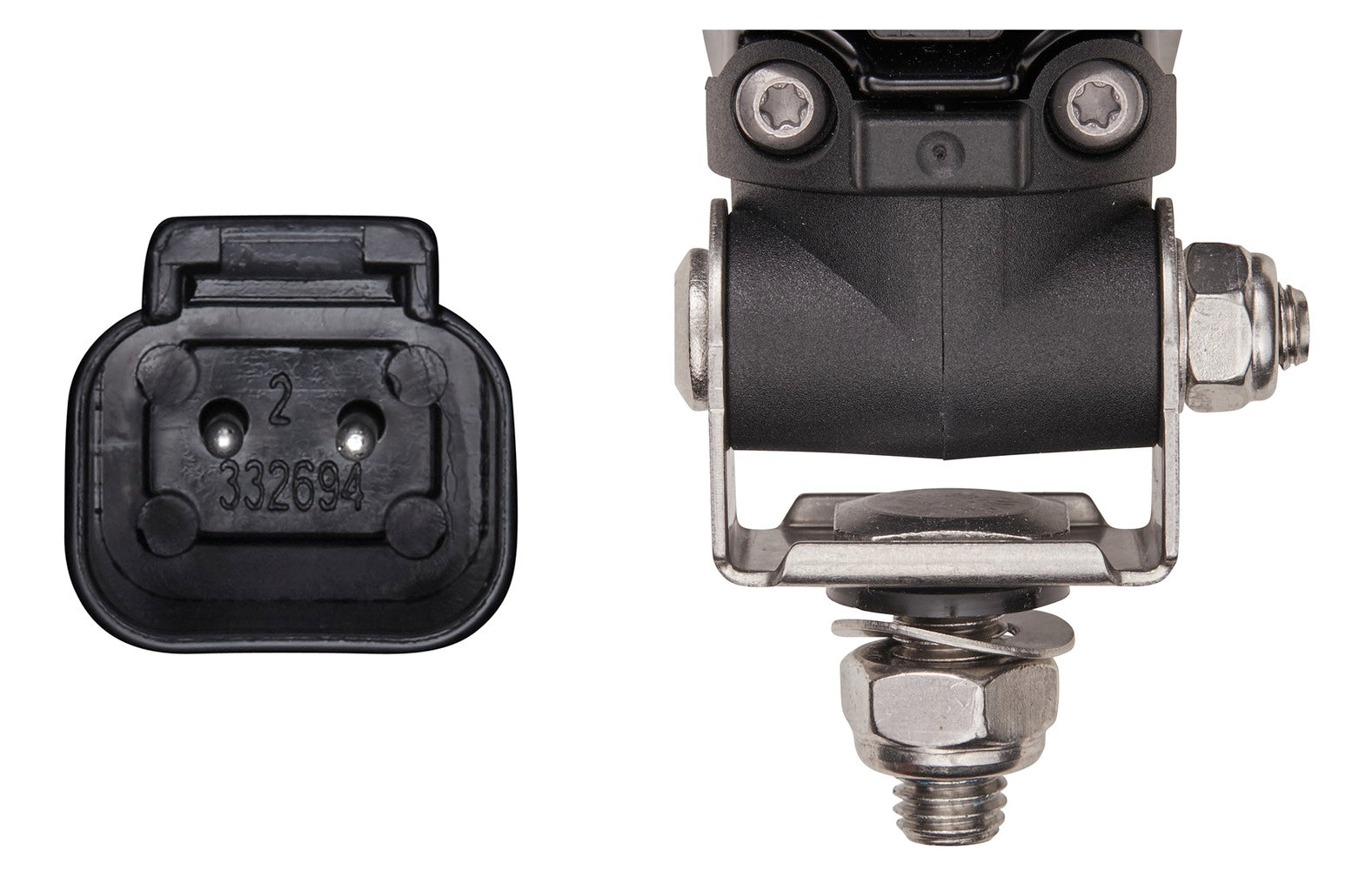

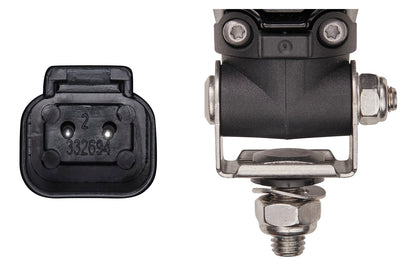

Plug: DEUTSCH plug
Prot.type (IP Code): IP6K7 / IP6K9K
Luminous Flux: 1800 lm
Colour Temperature: 6500 K
Number of LEDs: 3
Power consumption: 20 W
Supplementary Article/Supplementary Info 2: without cable
Housing Type: Aluminium Housing
Housing Colour: black
Diffusing Lens Type: Clear diffusing lens
Assembly by qualified personnel required!
