HELLA LED-Worklight - Modul 70 Gen. IV - 24/12V 1G0996476-131

LED-Worklight - Modul 70 Gen. IV - 24/12V - 2500lm - Fitting/Screw Connection - 3-point attachment - Ground Illumination - Cable: 2000mm - Plug: open cable ends

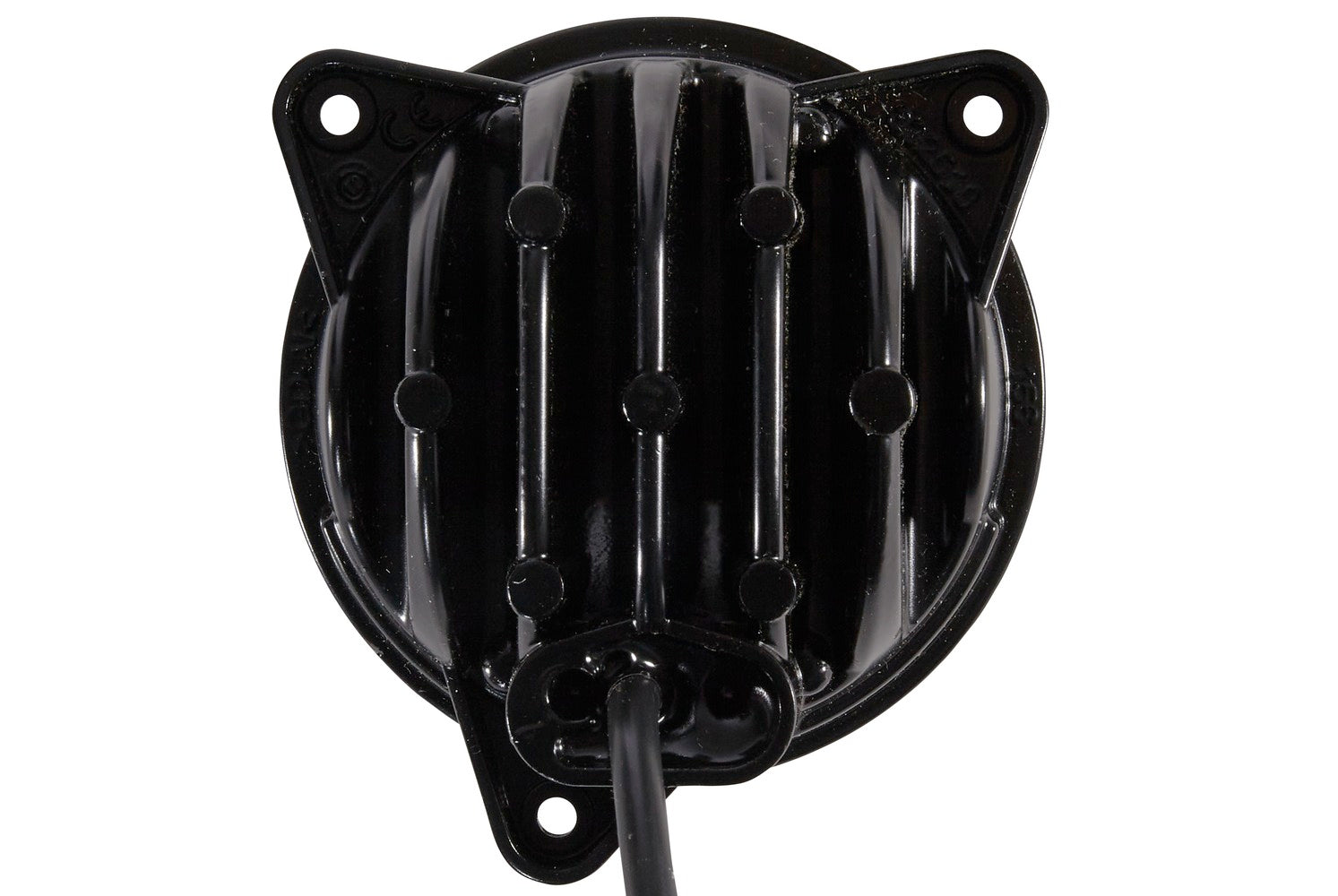

With the Module 70 LED Generation IV, HELLA is launching a compact worklight with very powerful light output. For the first time, LED light output at xenon level can be achieved in this compact design. Equipped with 3 high-performance multi-chip LEDs, this worklight produces 2,500 measured lumens with an energy consumption of only 30 watts. The black housing of the Module 70 LED Gen. IV is made of aluminium and has cooling fins to ensure the necessary heat dissipation of the high-performance LEDs. The Module 70 LED Gen. IV is a robust worklight for various applications despite its compact form. The light beams of the LEDs are emitted homogeneously into the working area thanks to the multifacet reflector and the light disk. In addition to classic close-range and wide-range illumination, there is the Module 70 LED Gen. IV in another extra-wide special illumination. With a colour temperature of 6,500 Kelvin, the light of the LED worklight is very similar to daylight, making it possible to distinguish colours more clearly in the dark. Thus, making it much easier for the human eye to perceive the senses and prevent rapid eye fatigue. The electronics of the Module 70 LED Gen. IV is multi-voltage compatible and can therefore be operated with 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. In addition, temperature sensors protect the worklight from overheating. This is the only way to ensure the long service life of the LEDs and safe working at night.

• Strongest light output in this size
• Ideal for positions with limited space
• Universally applicable
• Lamp Type: LED - Number of LEDs: 3 - Power consumption: 30W - Colour Temperature: 6500K
• Patterned diffusing lens
• fulfils ECE standard: R10 - Prot.type (IP Code): IP6K9K/IP6K7
• Aluminium Housing - Housing Colour: Black - Diffusing Lens Material: PC (Polycarbonate)

Item Attributes:
Mounting Type: Screw Connection / Fitting
Fastening Type: 3-point attachment
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Height: 85 mm
Width: 85 mm
Depth: 73 mm
Light Distribution: Ground Illumination
fulfils ECE standard: R10

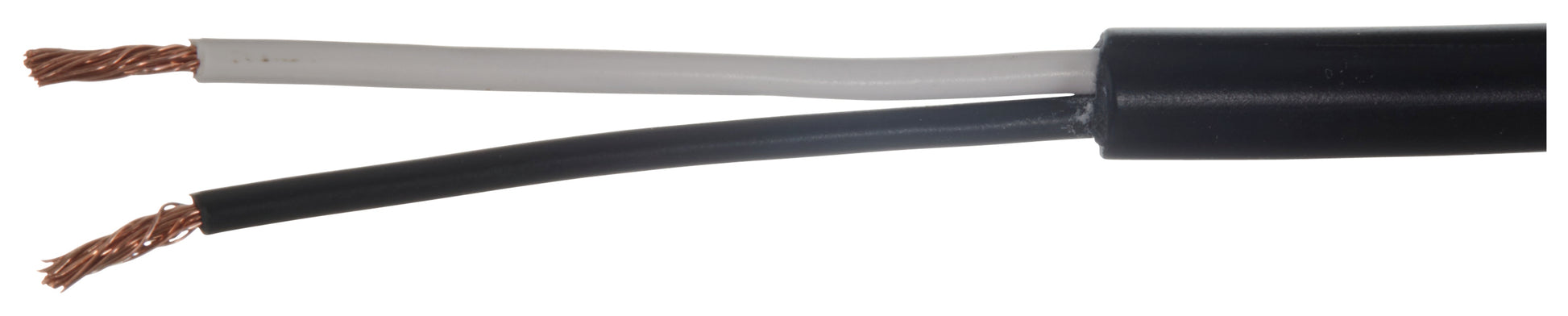

Plug: open cable ends
Prot.type (IP Code): IP6K9K / IP6K7
Luminous Flux: 2500 lm
Colour Temperature: 6500 K
Number of LEDs: 3
Power consumption: 30 W
Cable: 2000 mm
Housing Type: Aluminium Housing
Housing Colour: black
Diffusing Lens Material: PC (Polycarbonate)
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: KUBOTA 3J0366243A
