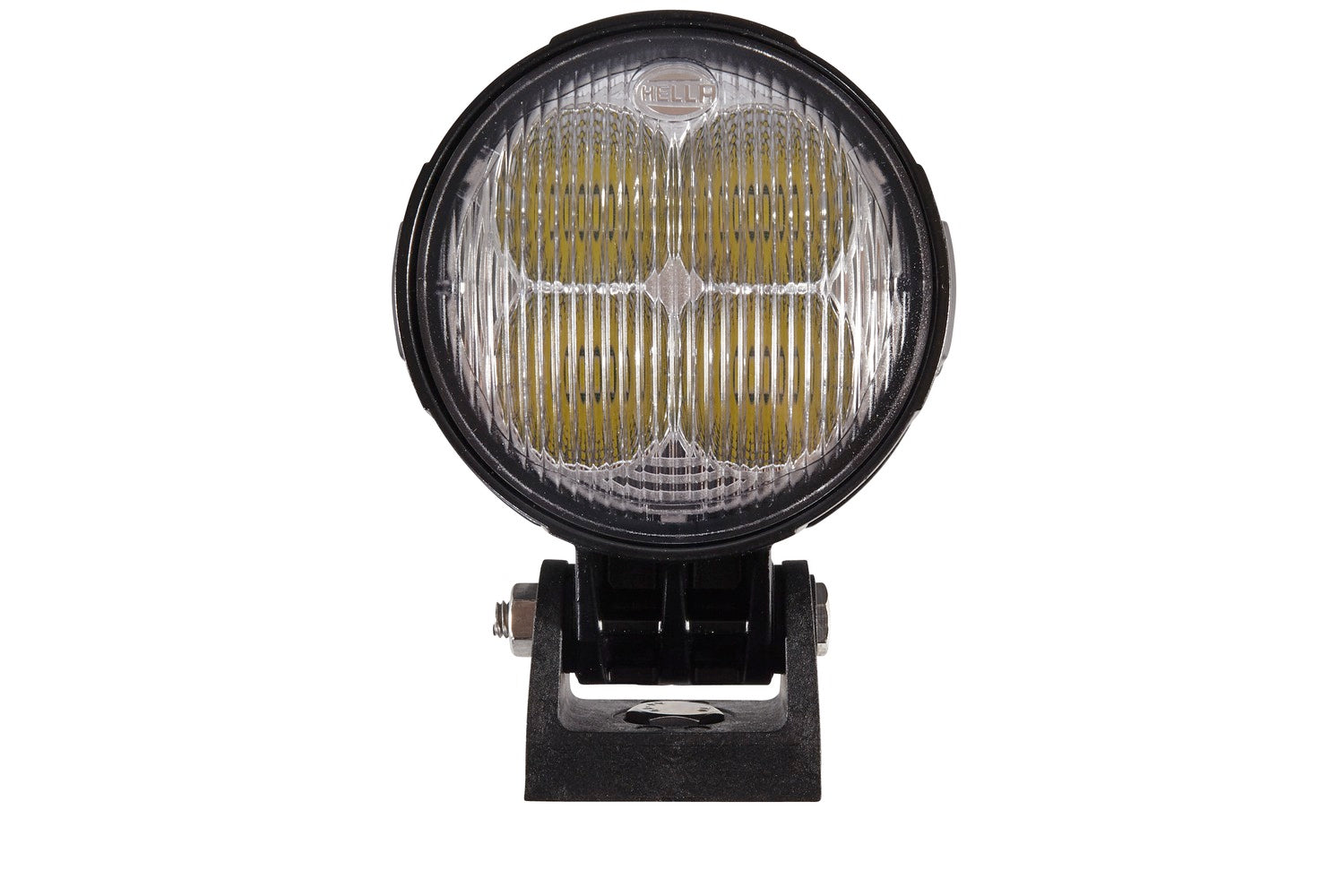

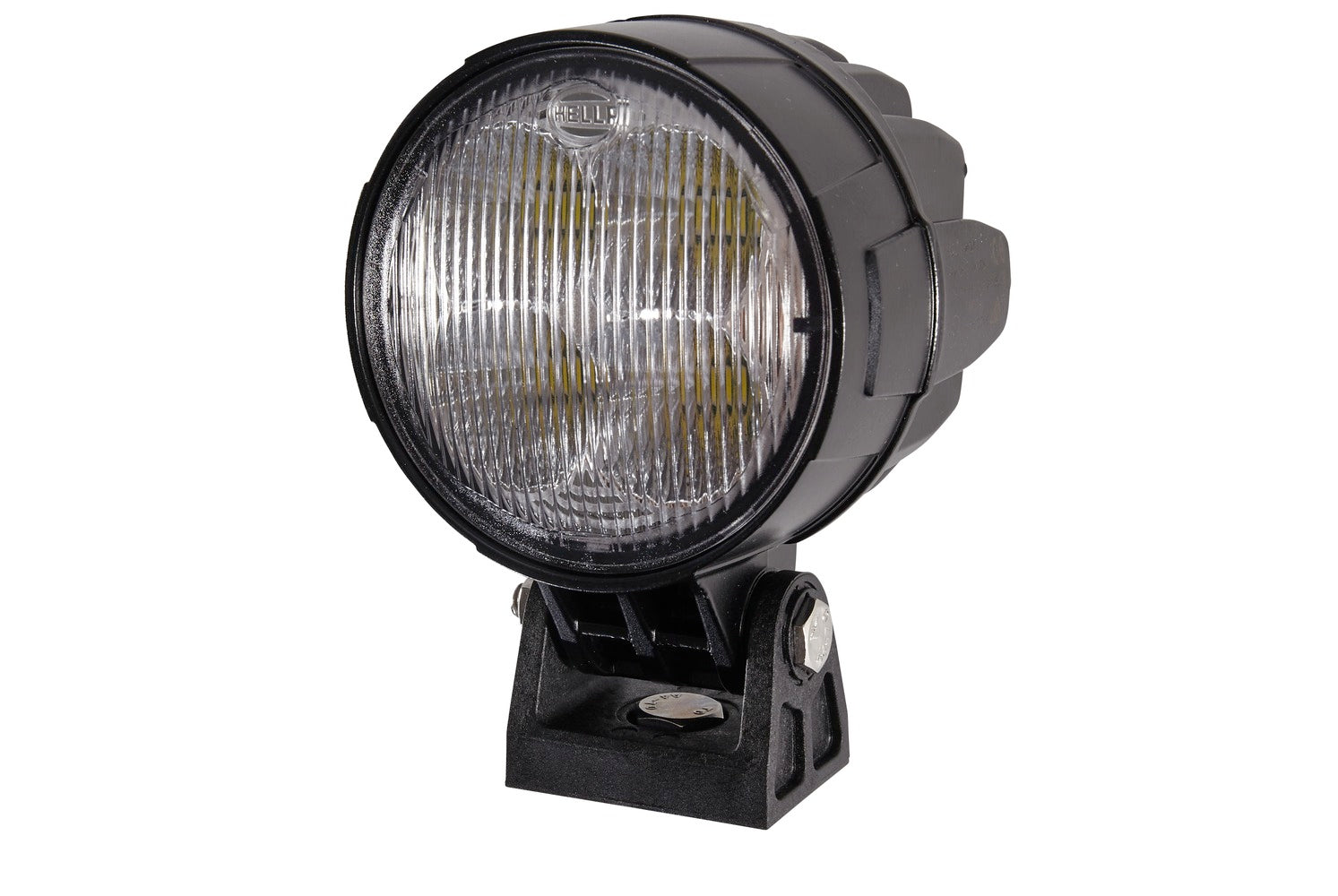

HELLA LED-Worklight - Modul 90 - 12/24V 1G0996263-031

LED-Worklight - Modul 90 - 12/24V - Bolted/mounting - Swivelling Mounting Bracket - Short-Range Illumination - Plug: DEUTSCH plug

The Module 90 LED is a robust worklight with a universal, attractive design. The black aluminium housing has cooling fins that provide the necessary heat dissipation for the four high-performance LEDs. In addition, temperature sensors protect the worklight from overheating. This is the only way to ensure the long service life of the LEDs and safe working at night. Thanks to its powerful light output of 3,800 lumens, the Module 90 LED can replace xenon worklights - with a power consumption of only 36 watts. This makes the worklight ideal for use on vehicles with battery operation as well as vehicles whose alternator is already heavily loaded. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. The spotlight can be operated with either 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensures constant brightness even with a fluctuating operating voltage of 9 to 32 volts. With a colour temperature of 6,500 Kelvin, the light of the LED worklight is similar to daylight. This has the effect of distinguishing colours more clearly in the dark, making sensory perception much easier for the human eye.

• Thanks to its powerful light output of 3,800 lumen, the Modul 90 LED can replace xenon worklights.

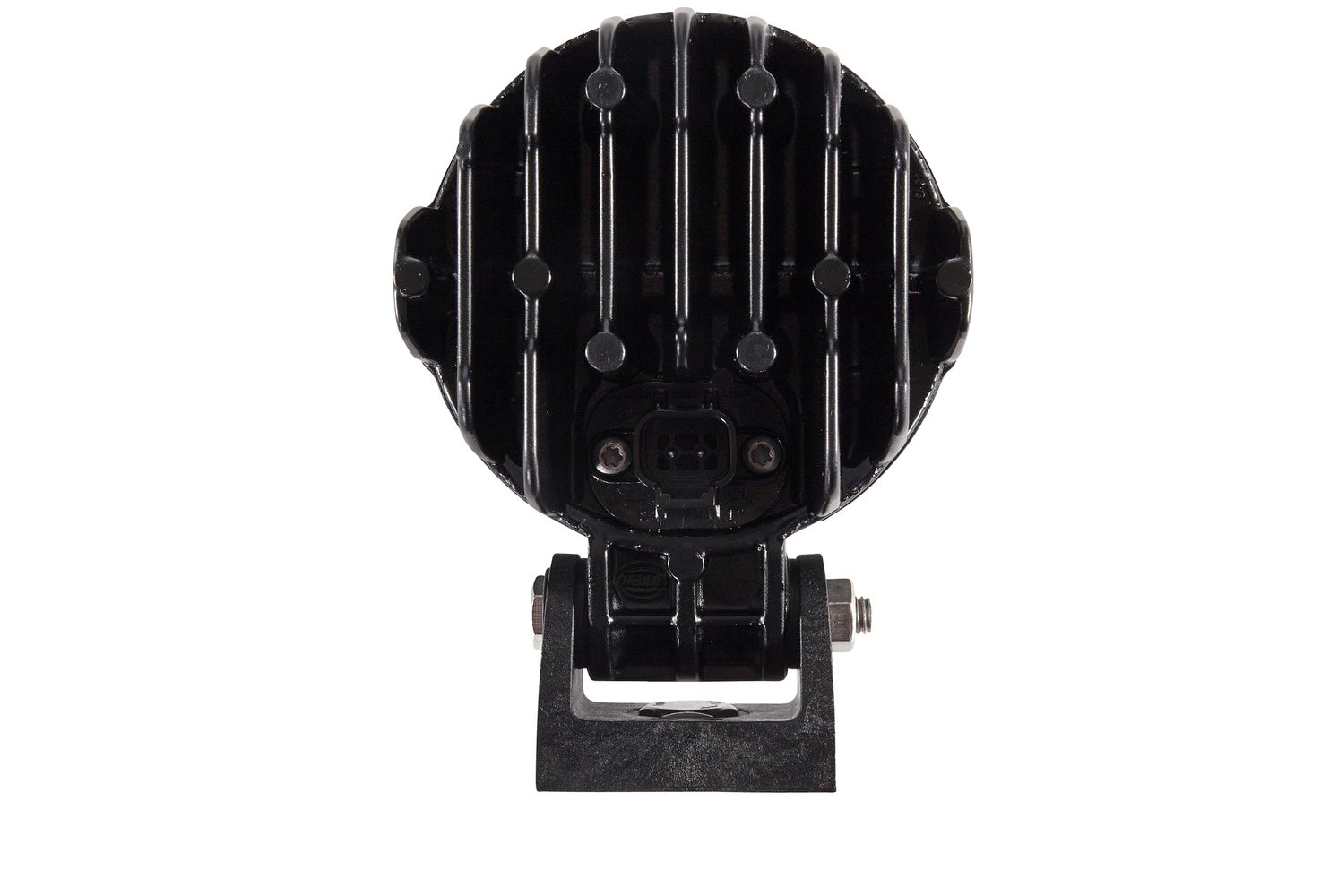

• The black aluminium housing is equipped with cooling fins that provide the necessary heat dissipation for the four high-power LEDs.
• In addition, temperature sensors protect the worklight from overheating. Only in this way can the long service life of the LEDs and safe working at night be guaranteed.
• Due to its low power consumption, it is ideally suited for use on battery-powered vehicles and vehicles whose alternator is already under heavy load.
• The light is distributed by a specially developed multi-facetted reflector and ensures homogeneous illumination.
• Lamp Type: LED - Number of LEDs: 4 - Power consumption: 45W - Colour Temperature: 6500K
• Patterned diffusing lens

Item Attributes:
Mounting Type: mounting / Bolted
Fastening Type: Swivelling Mounting Bracket
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Height: 146 mm
Width: 107 mm
Depth: 98 mm
Light Distribution: Short-Range Illumination
fulfils ECE standard: R10

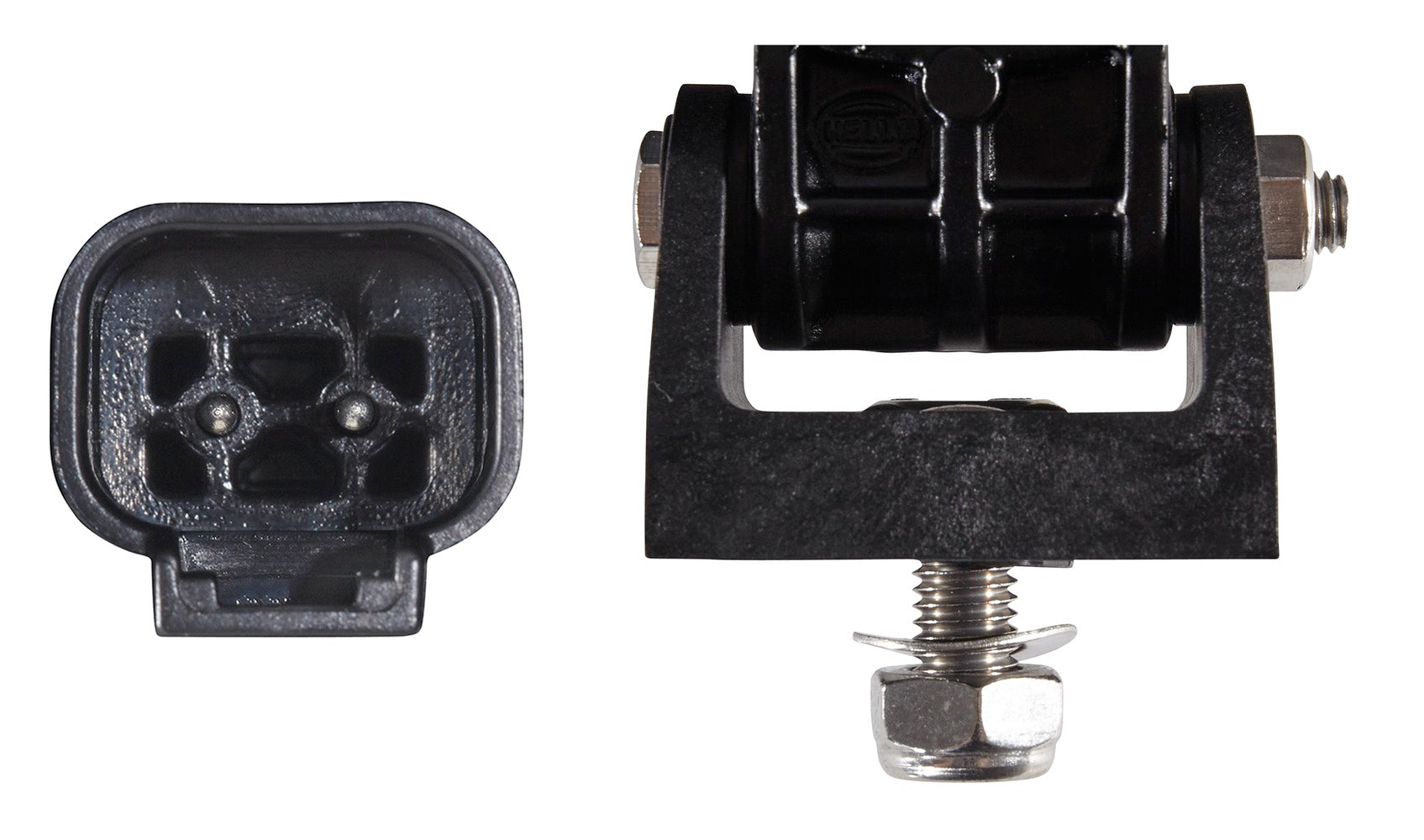

Plug: DEUTSCH plug
Prot.type (IP Code): IP6K9K / IP6K7
Colour Temperature: 6500 K
Number of LEDs: 4
Power consumption: 45 W
Housing Type: Aluminium Housing
Housing Colour: black
Diffusing Lens Material: Glass
Diffusing Lens Type: Patterned diffusing lens
SVHC: 1317-36-8; Lead monoxide (lead oxide) / 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AGCO ACW2243120; AGCO ACW224312A; CASE IH 51678017; FLIEGL ETZXXX911568
