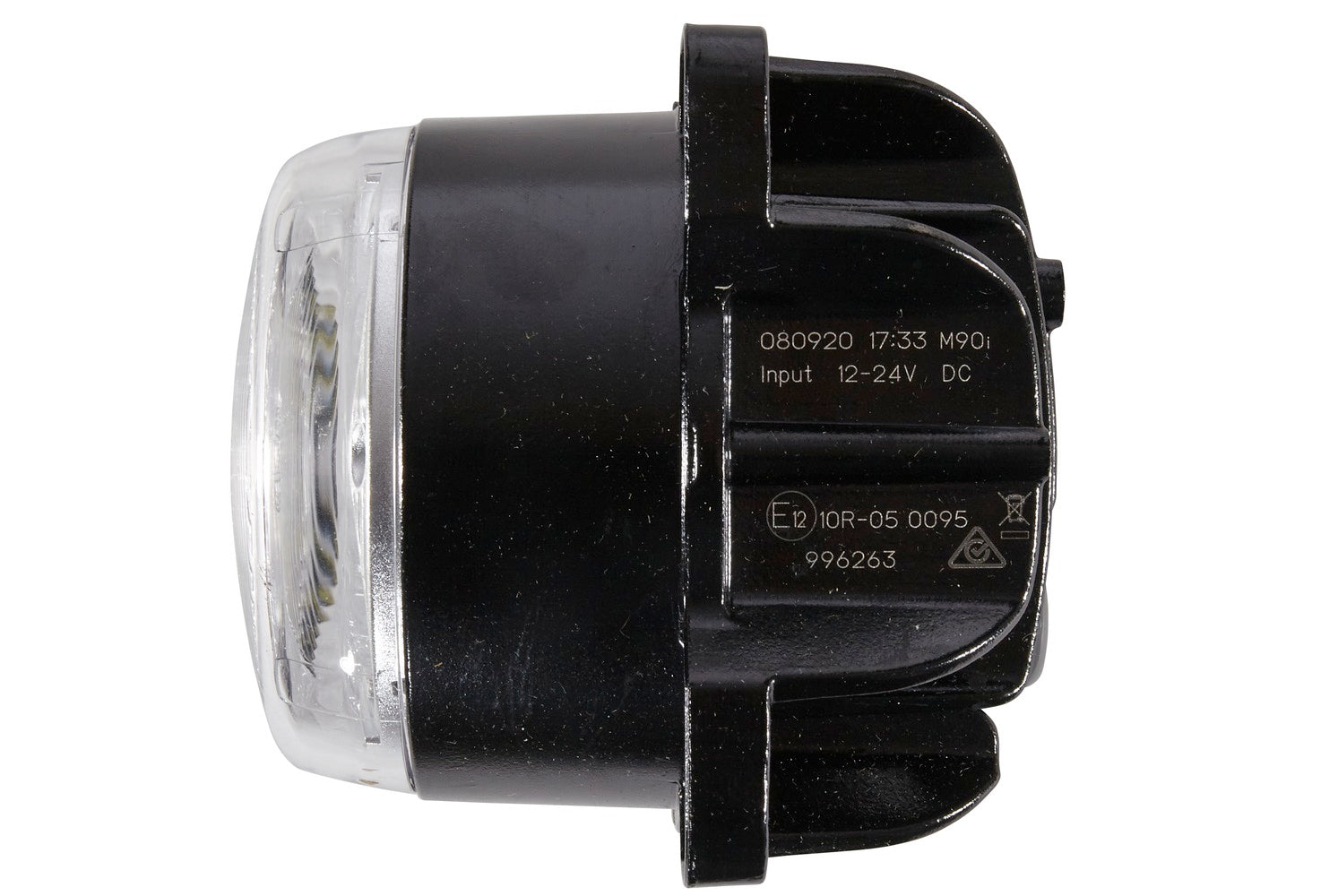

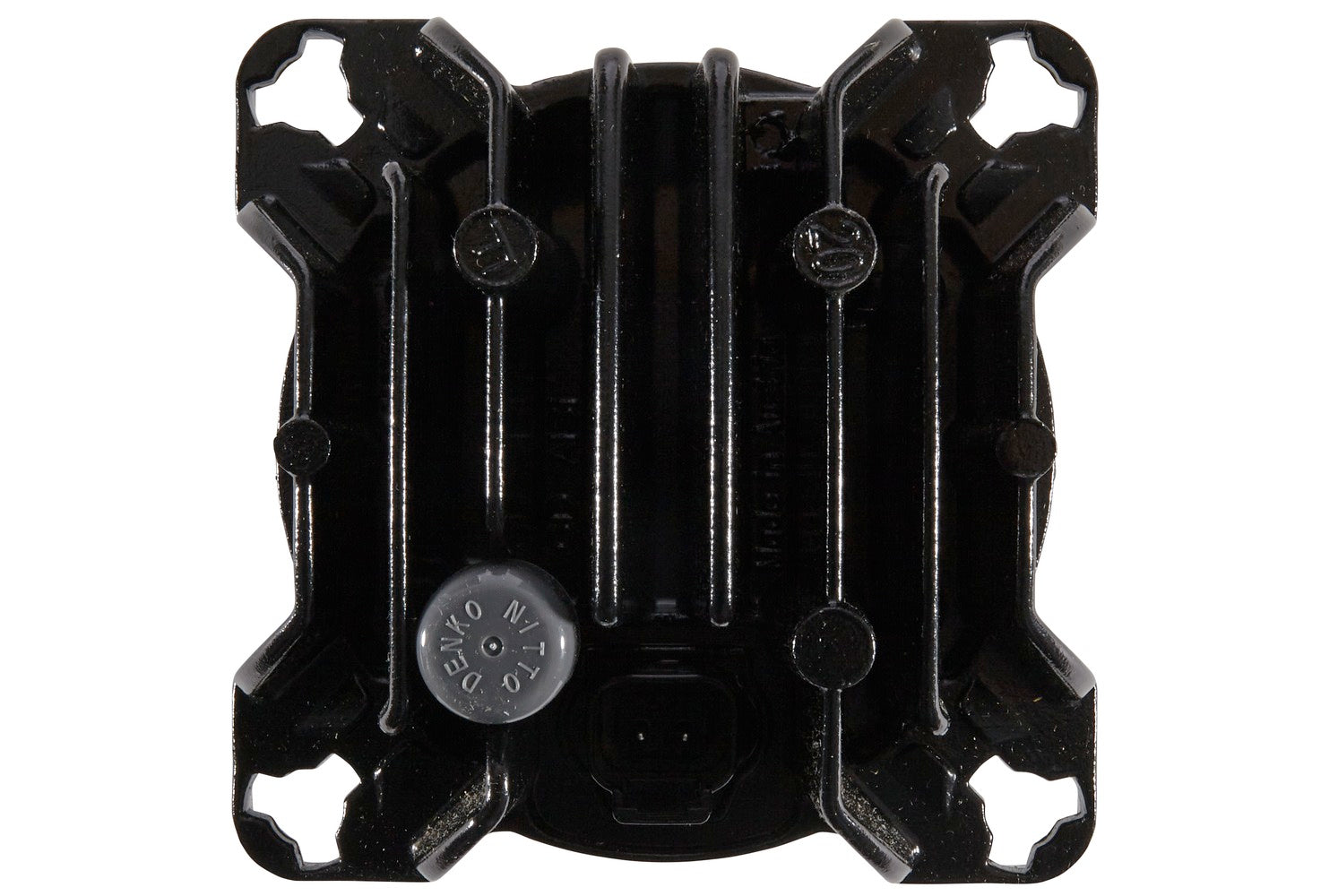

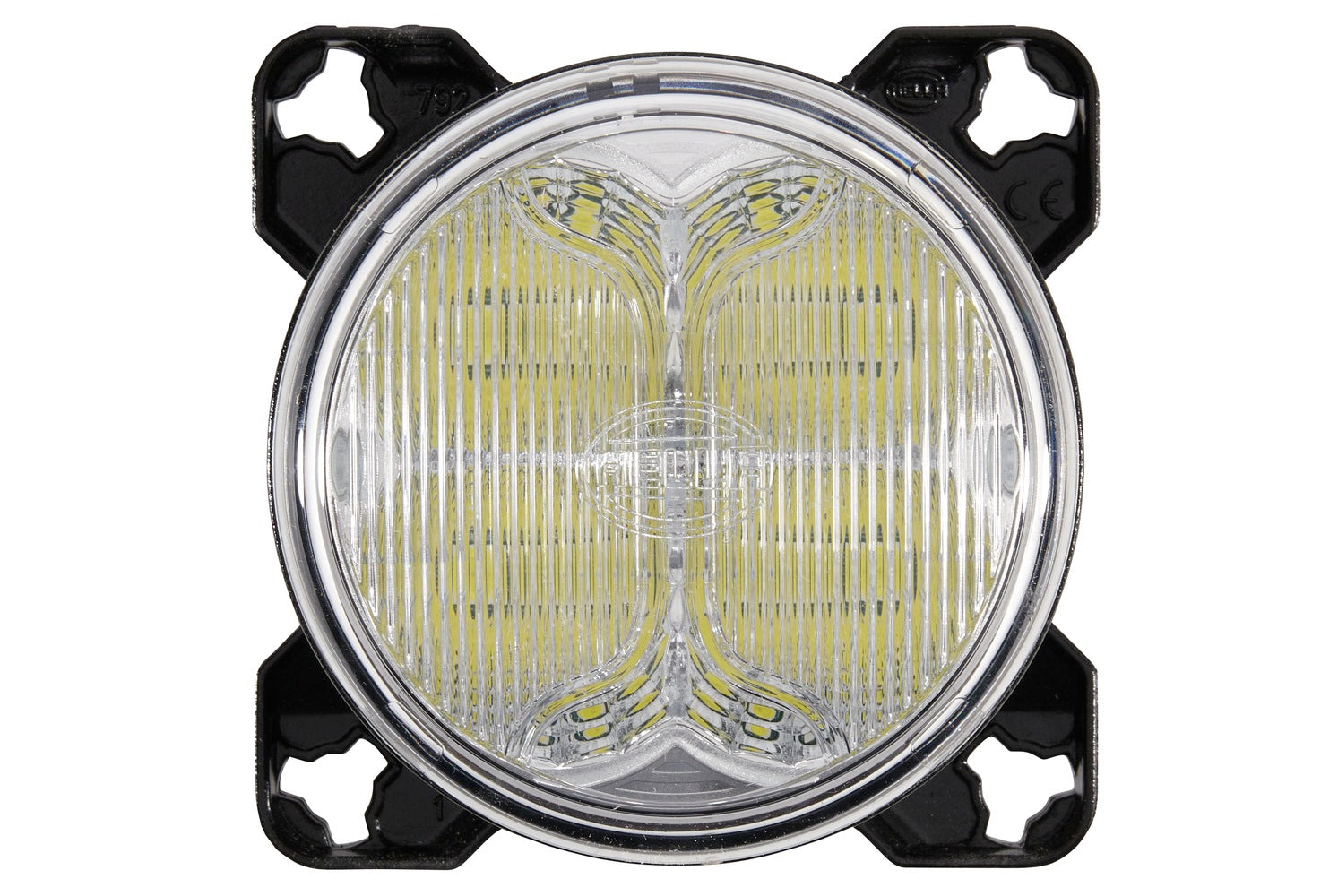

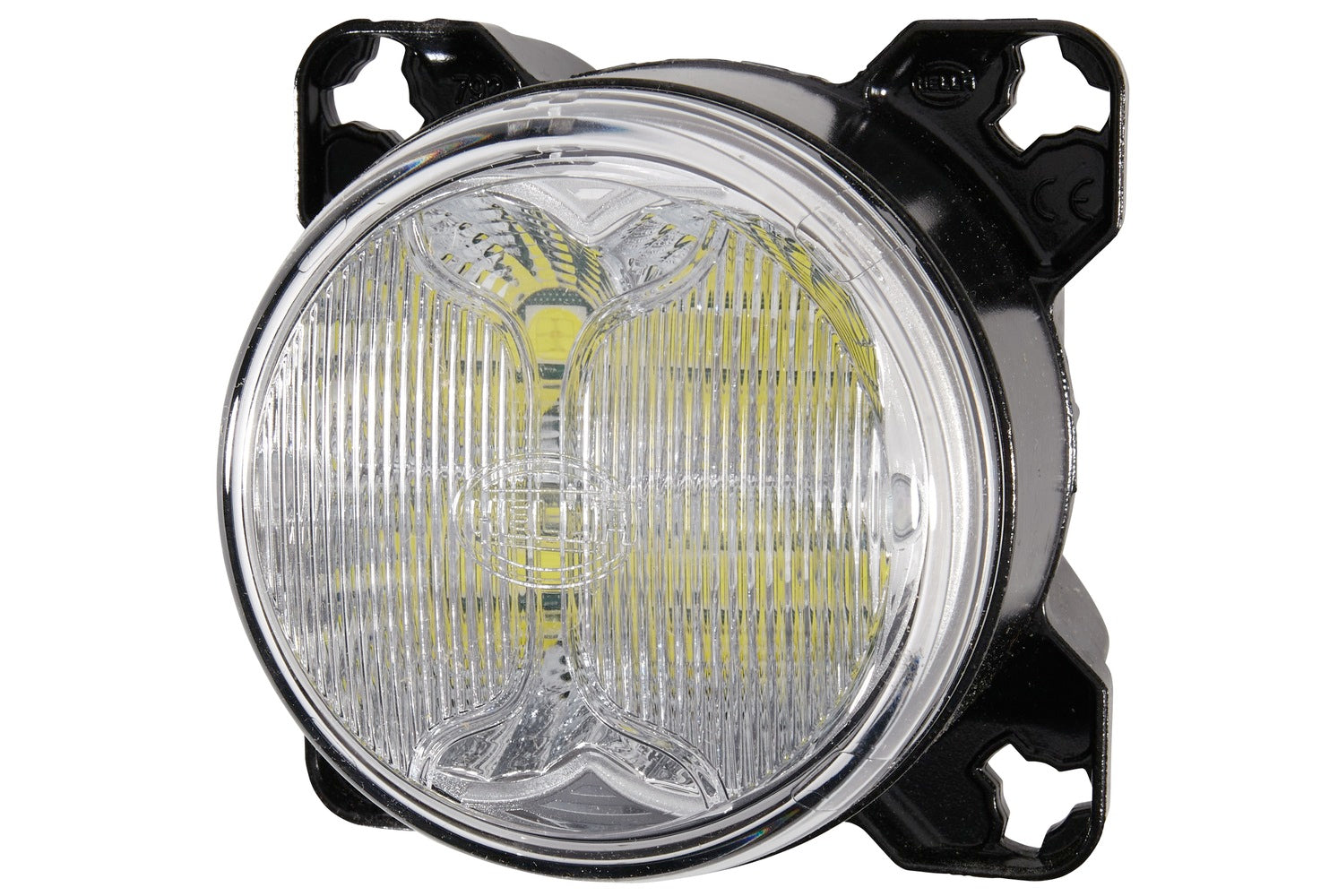

HELLA LED-Worklight - Modul 90i - 12/24V 1G0996263-501

LED-Worklight - Modul 90i - 12/24V - Fitting/Screw Connection - Four-point attachment - Short-Range Illumination - Plug: DEUTSCH plug

The Modul 90i LED is a compact recessed worklight with powerful light output. The installation housing was dimensioned to add an LED worklight to HELLA's existing 90 module series. The black aluminium housing has cooling fins that provide the necessary heat dissipation for the four high-performance multi-chip LEDs. In addition, temperature sensors protect the worklight from overheating. This is the only way to ensure the long service life of the LEDs and safe working at night. Thanks to its powerful light output of 3,800 lumens, the Modul 90i LED can replace xenon worklights - with a power consumption of only 36 watts. This makes the worklight ideal for use on battery-operated vehicles and vehicles whose alternator is already heavily loaded. The light is distributed with a specially developed multi-facet reflector that ensures homogeneous illumination. The spotlight can be operated with either 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. The light of the LED worklight is very similar to daylight. This has the effect of distinguishing colours more clearly in the dark, making sensory perception much easier for the human eye. Thus preventing rapid eye fatigue when working at night.

• Thanks to its powerful light output of 3,800 lumens, the Modul 90i LED can replace xenon worklights.
• The black aluminium housing is equipped with cooling fins which provide the necessary heat dissipation for the four high-power multichip LEDs.
• In addition, temperature sensors protect the worklight from overheating. Only in this way can the long service life of the LEDs and safe working at night be guaranteed.
• The integrated electronics protect the device in case of reverse polarity and guarantee constant brightness even with fluctuating operating voltage.
• The light from the spotlight is very similar to daylight. Therefore colours differ more clearly in the dark. This facilitates the human eye's sensory perception.
• Lamp Type: LED - Number of LEDs: 4 - Power consumption: 42W - Colour Temperature: 6500K
• Patterned diffusing lens

Item Attributes:
Mounting Type: Screw Connection / Fitting
Fastening Type: Four-point attachment
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Height: 103 mm
Width: 103 mm
Depth: 108 mm
Light Distribution: Short-Range Illumination
fulfils ECE standard: R10

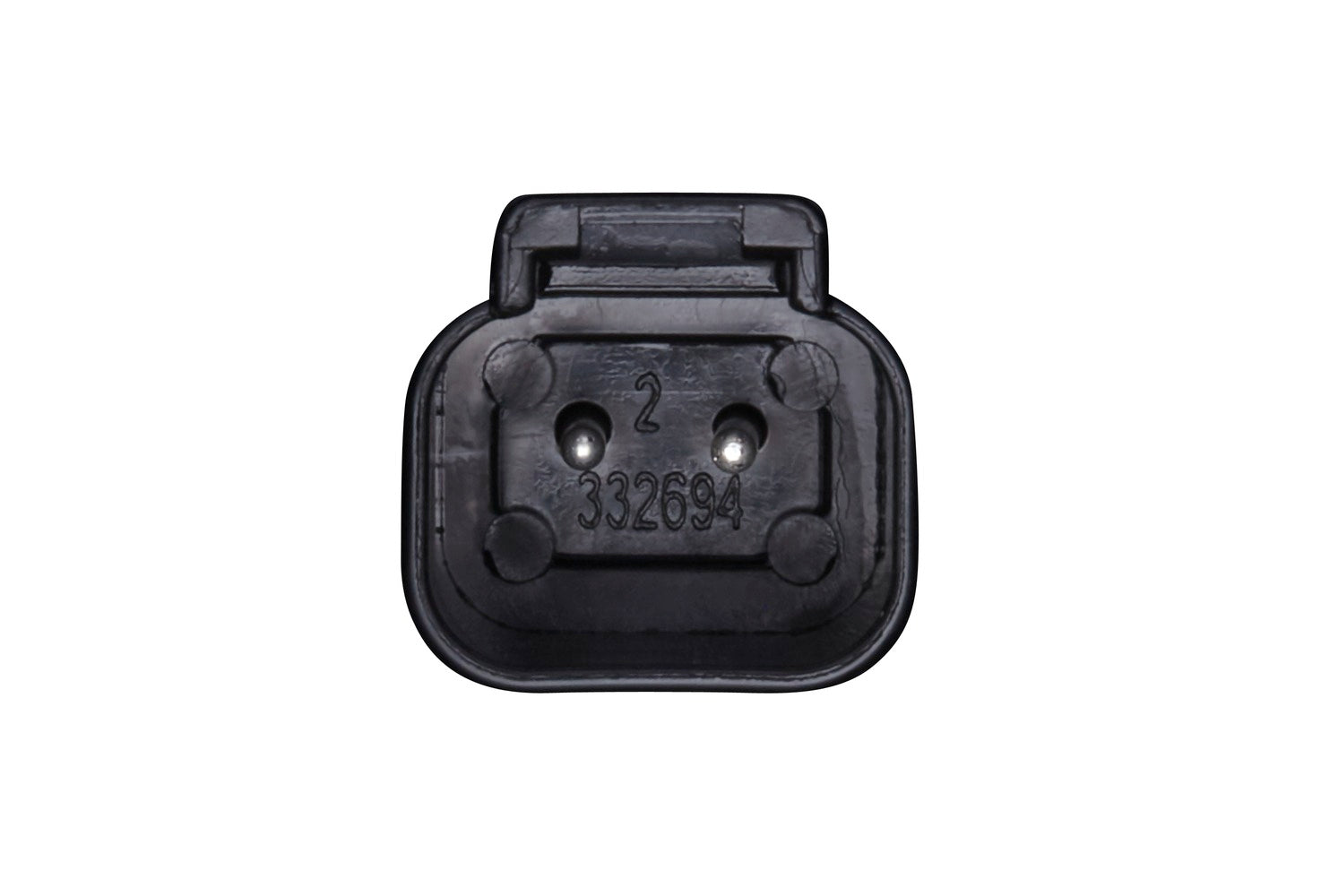

Plug: DEUTSCH plug
Prot.type (IP Code): IP6K7 / IP6K9K
Colour Temperature: 6500 K
Number of LEDs: 4
Power consumption: 42 W
Housing Type: Aluminium Housing
Housing Colour: black
Diffusing Lens Material: Polyamid 12
Diffusing Lens Type: Patterned diffusing lens
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AGCO ACW0511960; AGCO ACW051196A; AGCO G842 900 110 070; AGCO H218PB2526010; CASE IH 47855631; HOLMER 1019055634; KÄSSBOHRER 7.517.168.000.0; LIEBHERR 1 221 194 2; VERSATILE 86066077
