HELLA LED-Worklight - Modular Worklight Base Style - 24/12V 1GE996198-351

LED-Worklight - Modular Worklight Base Style - 24/12V - 1250lm - Fitting/Screw Connection - 2-point attachment - Work light, glare-free - Plug: DEUTSCH plug

Until now, it has often been a challenge for manufacturers to design the light signature consistently from front to rear. This changes with the new LED worklight series "Modular Worklight", whose design has been adapted to the modular luminaire series "Shapeline". By combining these two headlamp series, even low-volume vehicle manufacturers can now give their vehicle series a distinctive and individual appearance. The new worklight series can be fully integrated into the cab roof. This provides more protection and better heat dissipation of the LEDs.

• The new LED worklight series is fully integrated into the cab roof and therefore better protected against external influences.
• The daylight-like light means that colours differ more clearly in the dark, making it much easier for the human eye to perceive.
• This prevents rapid eye fatigue when working at night.
• By combining two headlamp series, vehicle manufacturers can now also give their series with low vehicle numbers an unmistakable and individual appearance.
• With the ZEROGLARE lighting version, light is directed specifically onto the area in front of the vehicle so that drivers of oncoming vehicles are not dazzled.
• Lamp Type: LED - Number of LEDs: 4 - Power consumption: 14W - Colour Temperature: 6500K
• Clear diffusing lens

Item Attributes:
Mounting Type: Fitting / Screw Connection
Fastening Type: 2-point attachment
Light Design: LED
Lamp Type: LED
Voltage: 24 V / 12 V
Height: 56 mm
Width: 245 mm
Depth: 72 mm
Light Distribution: Work Light, glare-free
fulfils ECE standard: R10
fulfils test standard: RCM

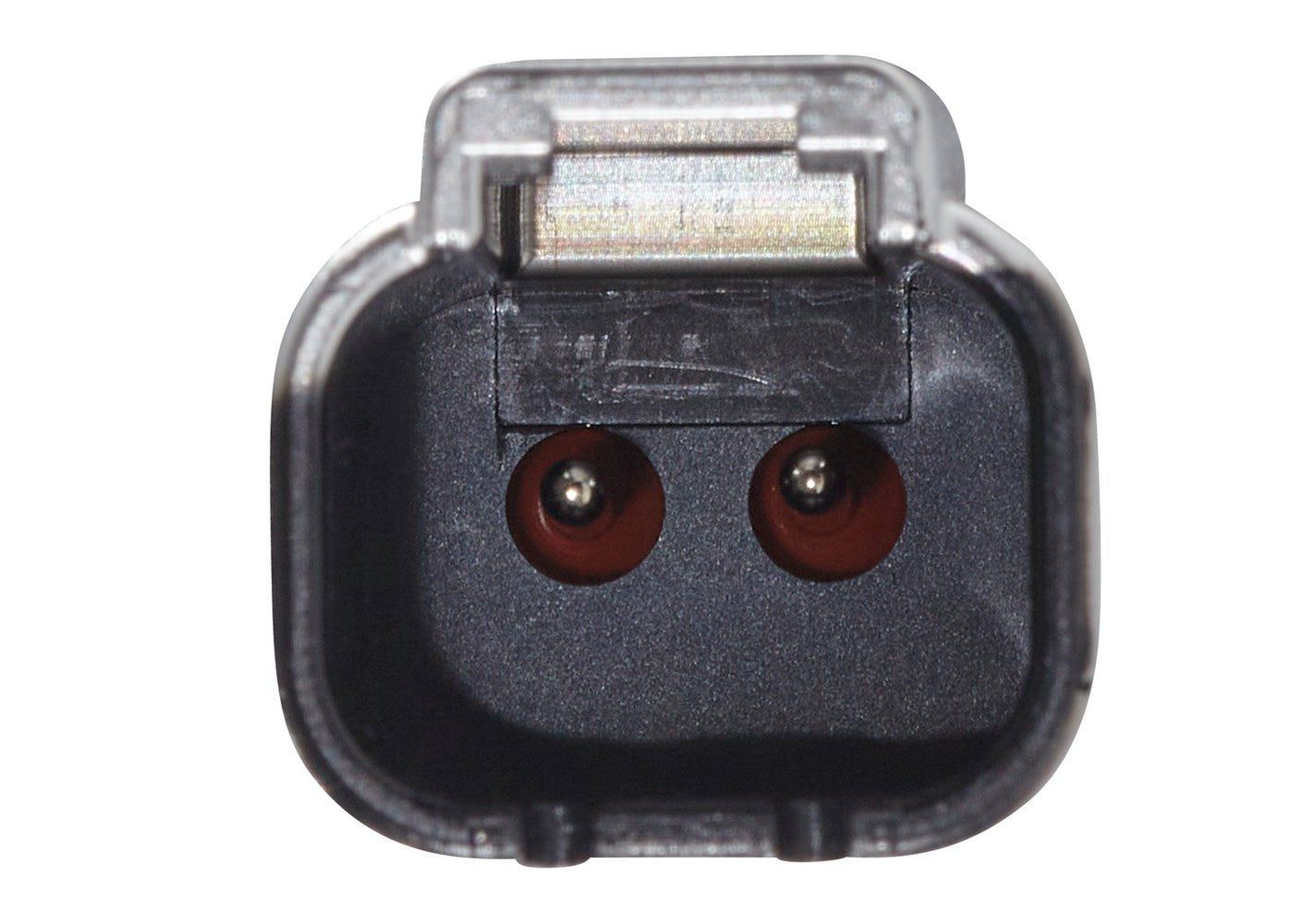

Plug: DEUTSCH plug
Prot.type (IP Code): IP6K9K / IP6K7
Luminous Flux: 1250 lm
Colour Temperature: 6500 K
Number of LEDs: 4
Power consumption: 14 W
Housing Type: without housing
Housing Colour: black
Diffusing Lens Type: Clear diffusing lens
SVHC: 1317-36-8; Lead monoxide (lead oxide) / 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: FARESIN ME11082I21; TEREX 5350661251
