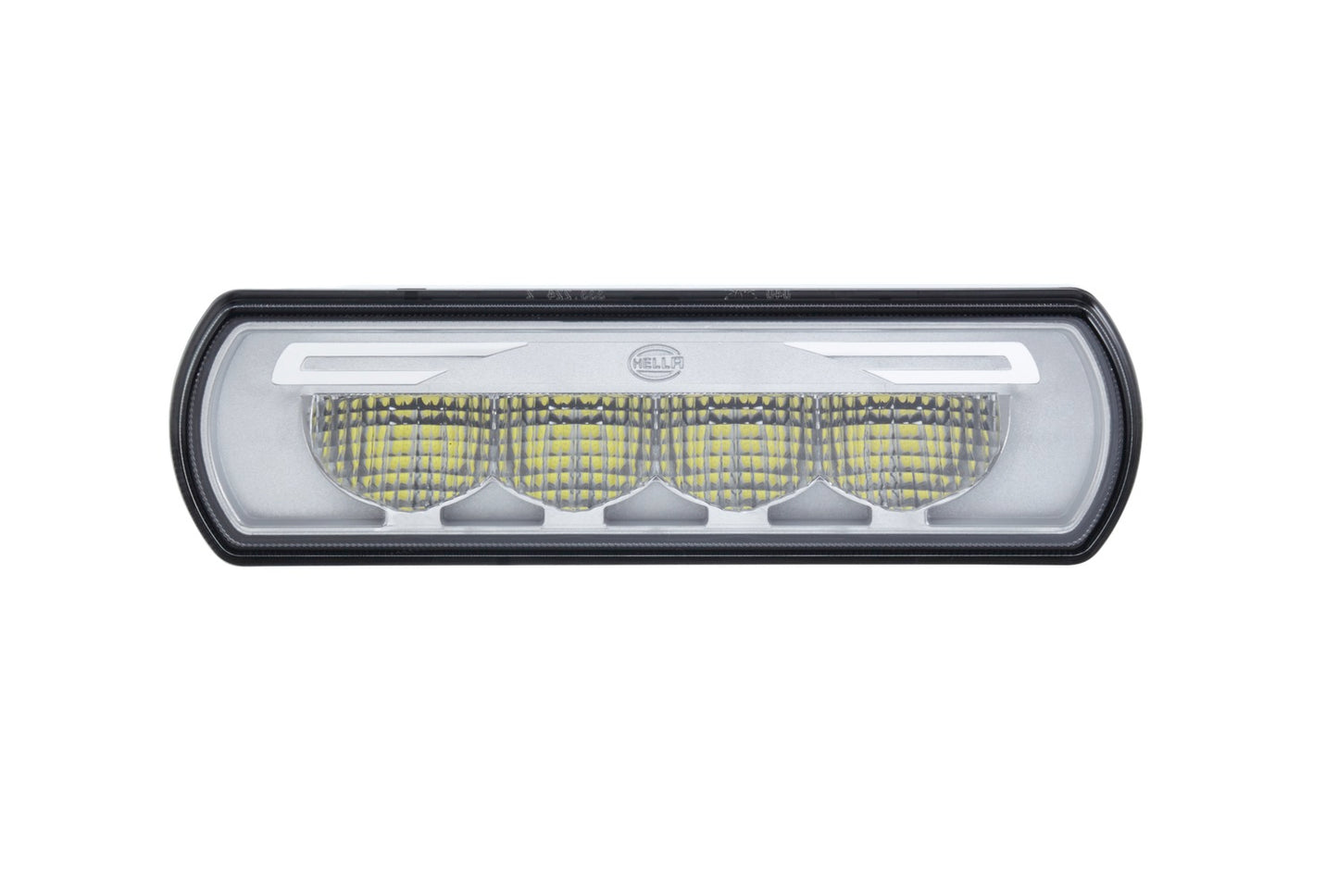

HELLA LED-Worklight - Modular Worklight Prime Tech - 24/12V 1GE996298-001

LED-Worklight - Modular Worklight Prime Tech - 24/12V - 2350lm - Fitting/Screw Connection - 2-point attachment - Short-Range Illumination - Plug: DEUTSCH plug

Until now, it has often been a challenge for manufacturers to design the light signature consistently from front to rear. This changes with the new LED worklight series "Modular Worklight", whose design has been adapted to the modular luminaire series "Shapeline". By combining these two headlamp series, even low-volume vehicle manufacturers can now give their vehicle series a distinctive and individual appearance. The new worklight series can be fully integrated into the cab roof. This provides more protection and better heat dissipation of the LEDs.

• The new LED worklight series is fully integrated into the cab roof and therefore better protected against external influences.
• The daylight-like light means that colours differ more clearly in the dark, making it much easier for the human eye to perceive.
• This prevents rapid eye fatigue when working at night.
• By combining two headlamp series, vehicle manufacturers can now also give their series with low vehicle numbers an unmistakable and individual appearance.
• Lamp Type: LED - Number of LEDs: 4 - Power consumption: 28W - Colour Temperature: 6500K
• Patterned diffusing lens
• Registration Type: ADR/GGVS - fulfils ECE standard: R10 - Prot.type (IP Code): IP6K9K/IP6K7

Item Attributes:
Mounting Type: Fitting / Screw Connection
Fastening Type: 2-point attachment
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Height: 56 mm
Width: 193 mm
Depth: 76 mm
Light Distribution: Short-Range Illumination
Registration Type: ADR/GGVS
fulfils ECE standard: R10

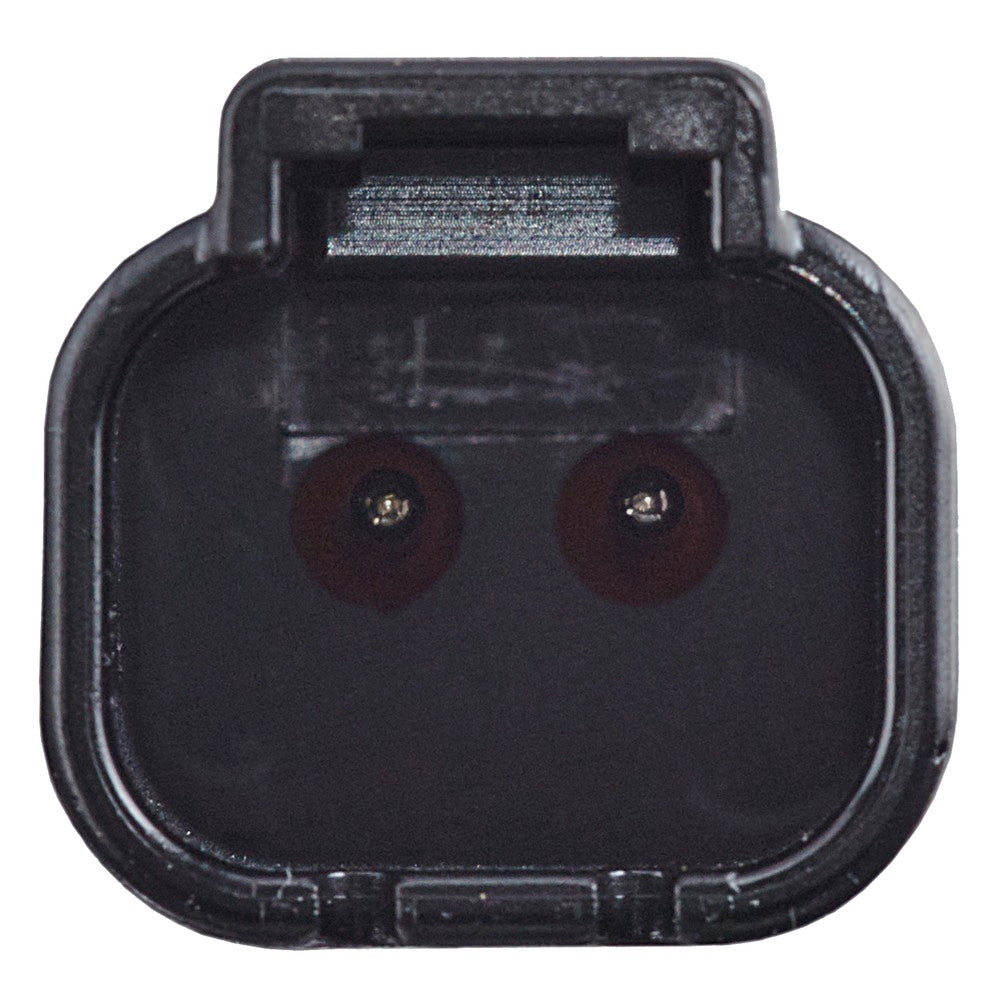

Plug: DEUTSCH plug
Prot.type (IP Code): IP6K7 / IP6K9K
Luminous Flux: 2350 lm
Colour Temperature: 6500 K
Number of LEDs: 4
Power consumption: 28 W
Housing Type: without housing
Housing Colour: black
Diffusing Lens Type: Patterned diffusing lens
SVHC: 7439-92-1; Lead / 1317-36-8; Lead monoxide (lead oxide)
Assembly by qualified personnel required!
