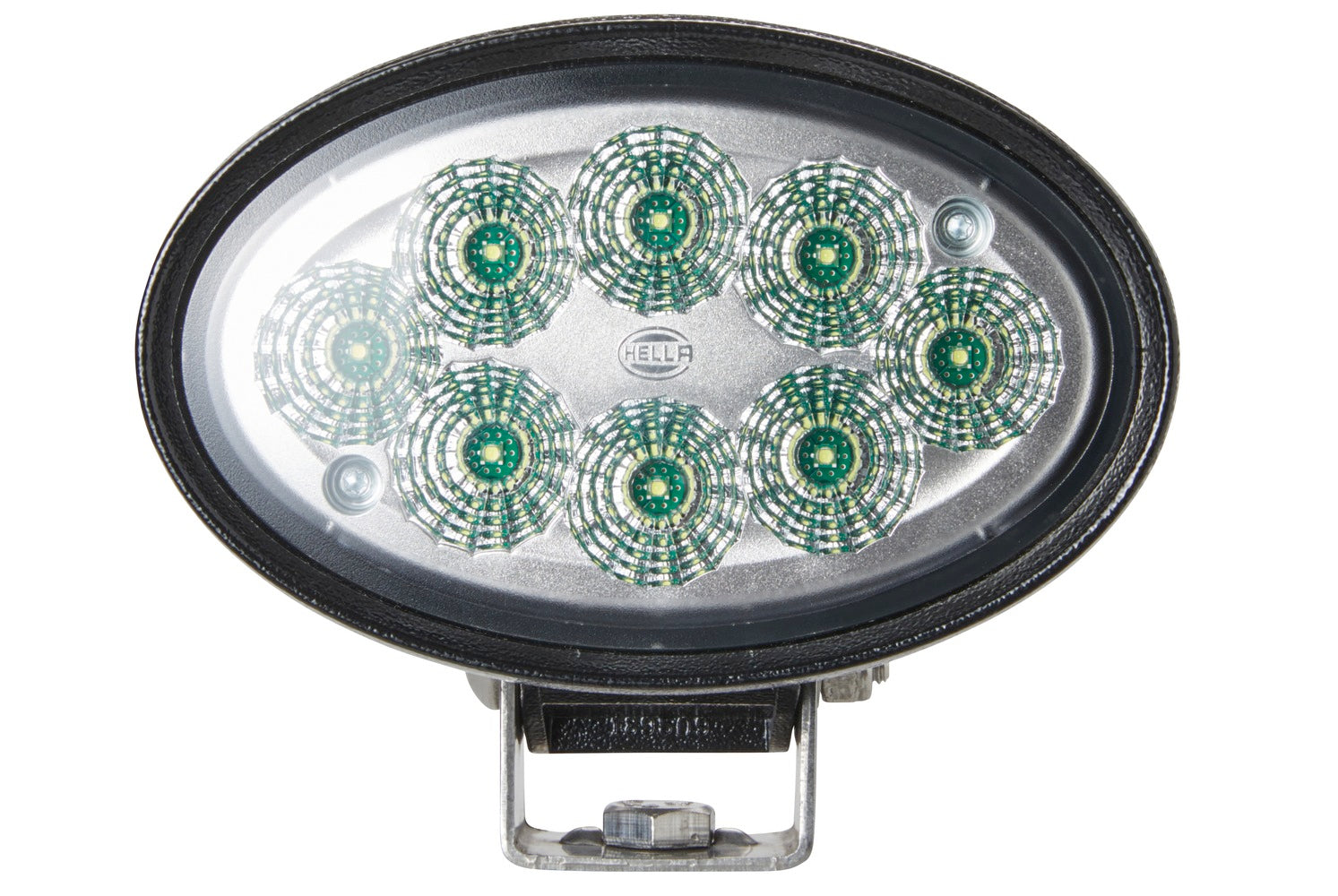

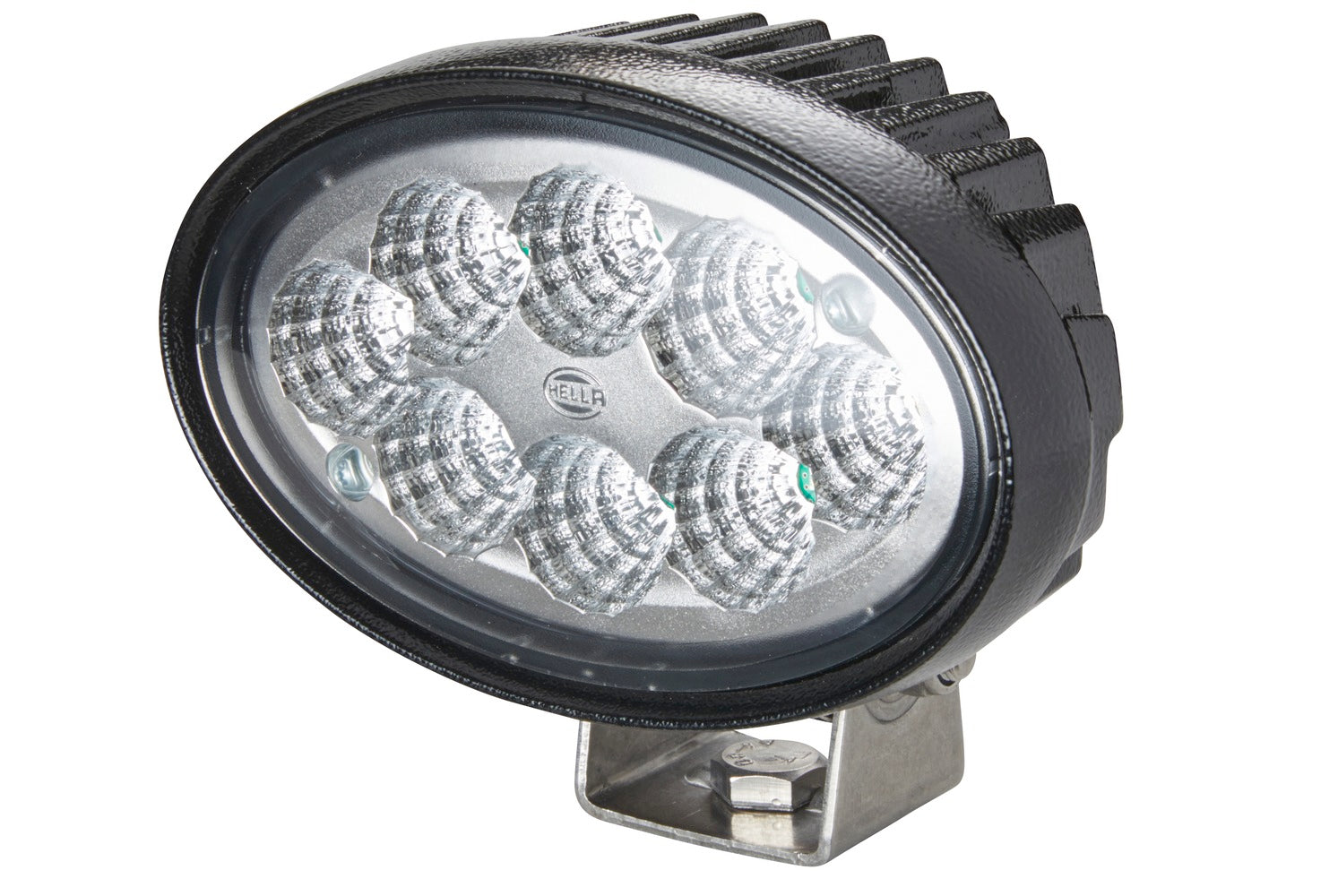

HELLA LED-Worklight - Oval 100 - 12/24V 1GA996661-011

LED-Worklight - Oval 100 - 12/24V - 1700lm - mounting/Bolted - Swivelling Mounting Bracket - Long-range illumination - Plug: DEUTSCH plug

The Oval 100 LED worklight complements the modular series with the halogen and xenon variants with efficient LED technology. The spotlight can be operated with both 12 and 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensures constant brightness even with a fluctuating operating voltage of 9 to 33 volts. Thanks to its powerful light output, the Oval 100 LED can replace standard halogen worklights (e.g. H3 / 55 watts) - with a power consumption of only 25 watts. This makes the worklight ideal for use on vehicles with battery operation, and when the alternator is already heavily loaded. The light output is a powerful 1,700 lumens. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. The Oval 100 LED can be mounted either upright (0°) or suspended (180°). With 6,500 Kelvin, the light of the LED worklight is similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and thus prevent rapid eye fatigue. The worklight's black housing is made of aluminium and has cooling fins to dissipate the heat from the 8 high-performance LEDs. In addition, a sensor protects the worklight from overheating. Only in this way can the long life of the LEDs (up to 130 times the life of a halogen bulb) be fully exploited.

• The light output is a powerful 1,700 lumens. The light is distributed by a specially developed multi-facetted reflector and ensures homogeneous illumination.

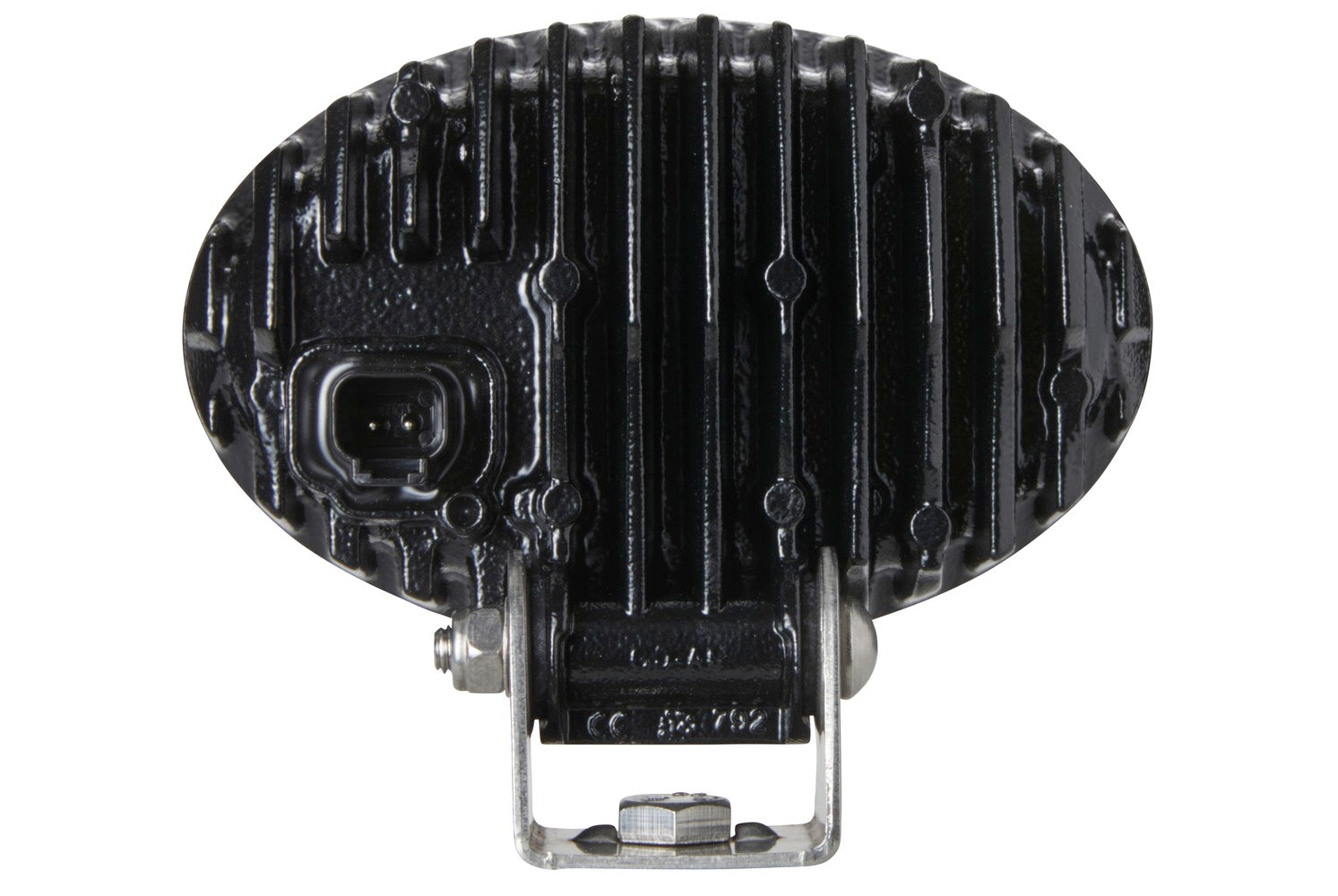

• The black housing of this worklight is made of aluminium and is equipped with cooling fins. These ensure the necessary heat dissipation of the 8 high-power LEDs.
• The integrated electronics protect the device in case of reverse polarity and guarantee constant brightness even with fluctuating operating voltage.
• A sensor also protects the worklight from overheating. Only in this way can the long service life of the LEDs be fully exploited.
• The integrated electronics are protected against polarity reversal and equipped with an LED error bypass.
• Lamp Type: LED - Number of LEDs: 8 - Power consumption: 25W - Colour Temperature: 6500K
• Clear diffusing lens

Item Attributes:
Mounting Type: mounting / Bolted
Fastening Type: Swivelling Mounting Bracket
Light Design: LED
Lamp Type: LED
Voltage: 24 V / 12 V
Height: 129 mm
Width: 153 mm
Depth: 74 mm
Light Distribution: Long-range illumination
Registration Type: ADR/GGVS
fulfils ECE standard: R10

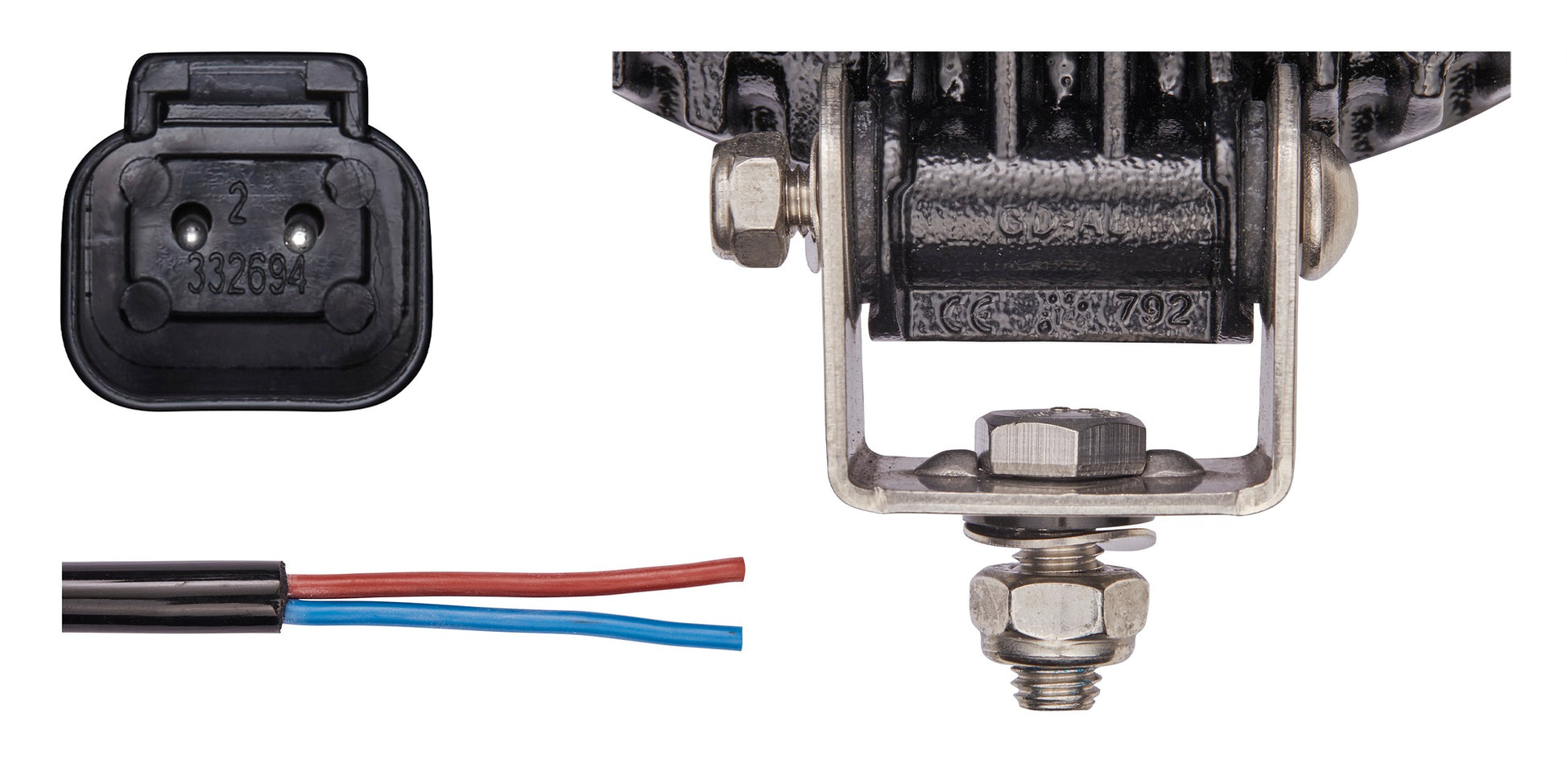

Plug: DEUTSCH plug
Prot.type (IP Code): IP6K9K / IP6K7
Luminous Flux: 1700 lm
Colour Temperature: 6500 K
Number of LEDs: 8
Power consumption: 25 W
Housing Type: Aluminium Housing
Housing Colour: black
Diffusing Lens Material: Plastic
Diffusing Lens Type: Clear diffusing lens
Assembly by qualified personnel required!

OE references: CASE IH 21.62241; GRIMME B94.07179; KRONE 200836530
