HELLA LED-Worklight - Oval 100 Compact - 12/24V 1GA996761-191

LED-Worklight - Oval 100 Compact - 12/24V - 1850lm - Bolted/mounting - for horizontal fastening - Long-range illumination - Plug: DEUTSCH plug

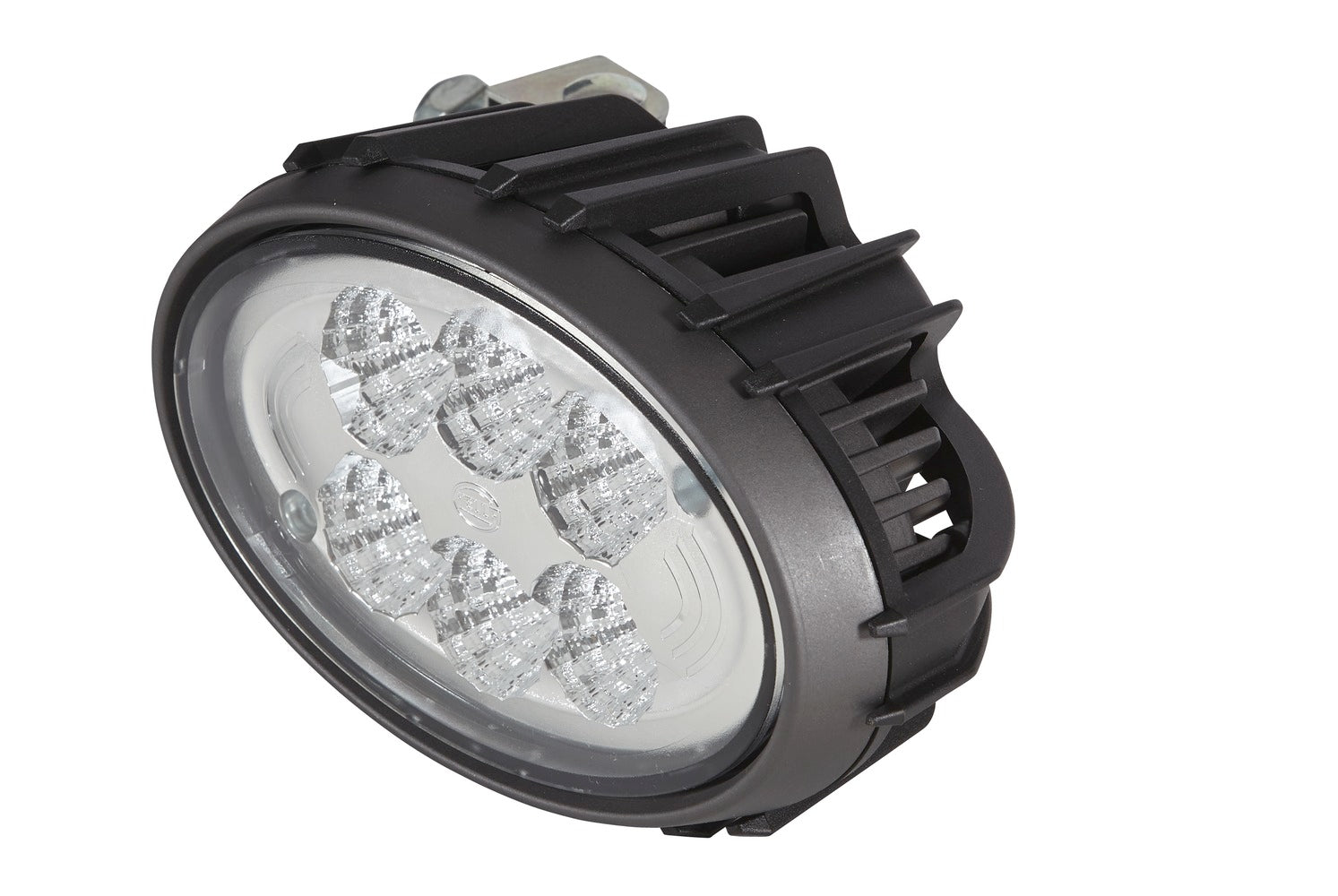

The Oval 100 LED compact is the latest version of the already extensive Oval 100 worklight series. This headlamp comes with the innovative plastic housing, which offers complete corrosion resistance as well as many new mounting options. The heat-conducting plastic housing has cooling fins on the back to provide the necessary heat dissipation for the 6 high-performance LEDs. Thanks to its light output of 1,850 lumens, the Oval 100 LED compact is ideal for replacing old halogen worklights (H3, H9) - with a power consumption of only 26 watts. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. With 6,500 Kelvin, the light of the LED worklight is similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and therefore prevent rapid eye fatigue. The plastic housing is hermetically sealed and thus waterproof, submersible and resistant to high-pressure cleaning. The integrated electronics protect the unit in the event of reverse polarity and ensures constant brightness even with fluctuating operating voltages of 10.5 to 32 volts. Temperature sensors protect the worklight from overheating ensuring the long service life of the LEDs and safe working at night.

• This spotlight comes with the innovative plastic housing, which offers complete corrosion resistance and many new mounting options.

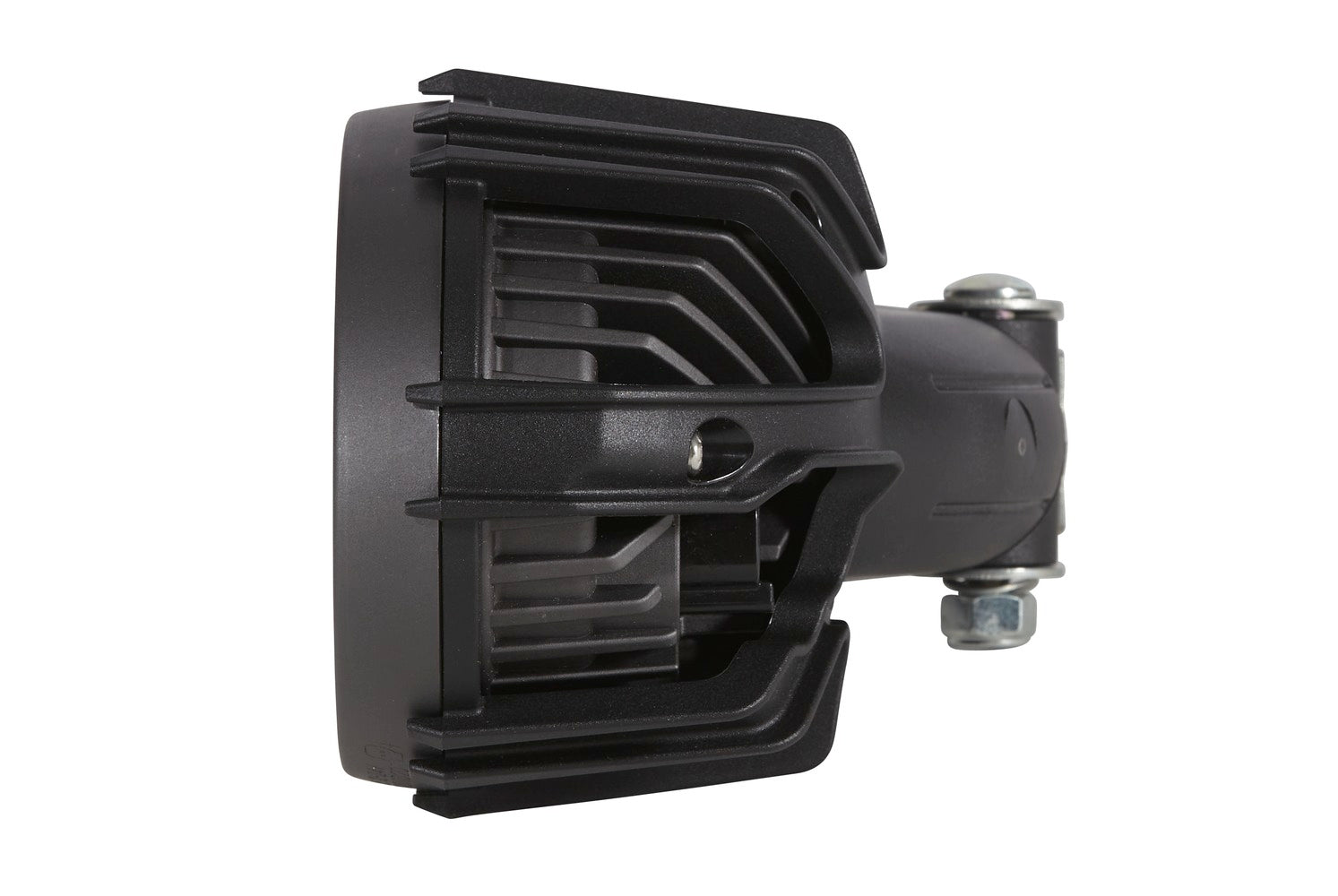

• The heat-conducting plastic housing is equipped with cooling fins on the rear side, which ensure the necessary heat dissipation of the 6 high-power LEDs.
• The light is distributed by a specially developed multi-facetted reflector and ensures homogeneous illumination.
• The plastic housing is hermetically sealed and thus waterproof, submersible and resistant to high-pressure cleaning (IP 6K9K, IP 6K8).
• The integrated electronics protect the device in case of reverse polarity and guarantee constant brightness even with fluctuating operating voltage.
• Lamp Type: LED - Number of LEDs: 6 - Power consumption: 26W - Colour Temperature: 6500K
• Clear diffusing lens

Item Attributes:
Mounting Type: Bolted / mounting
Fastening Type: for horizontal fastening
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Height: 107 mm
Width: 169 mm
Depth: 109 mm
Light Distribution: Long-range illumination
fulfils ECE standard: R10

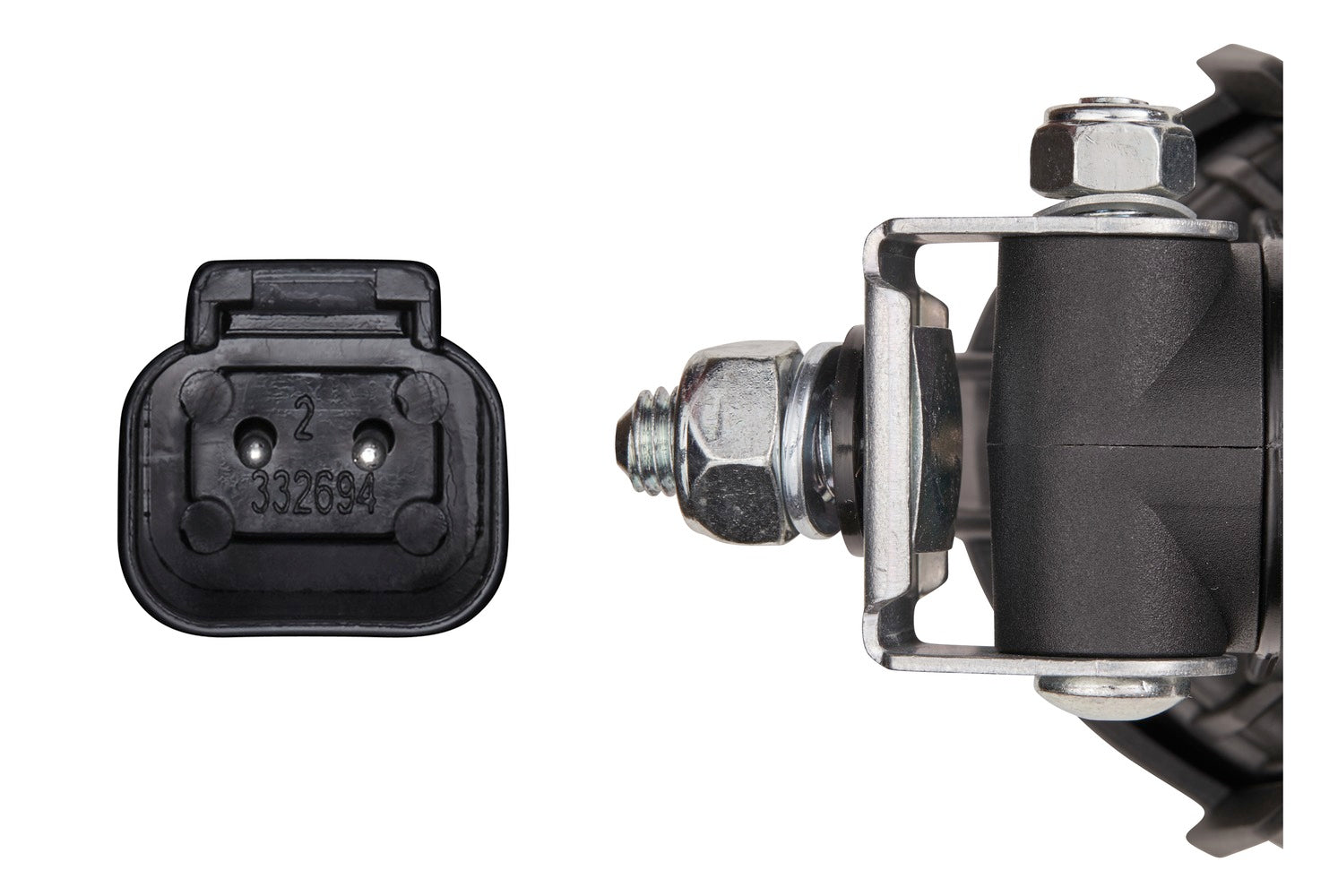

Plug: DEUTSCH plug
Prot.type (IP Code): IP6K7 / IP6K9K
Luminous Flux: 1850 lm
Colour Temperature: 6500 K
Number of LEDs: 6
Power consumption: 26 W
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Type: Clear diffusing lens
Assembly by qualified personnel required!

OE references: GRIMME B94.09204; KUBOTA 3J03662441
