HELLA LED-Worklight - Oval 100 Gen. II - 12/24V 1GA996761-001

LED-Worklight - Oval 100 Gen. II - 12/24V - 4400lm - mounting/Bolted - Swivelling Mounting Bracket - Short-Range Illumination - Plug: DEUTSCH plug

The Oval 100 LED Generation 2 complements the existing halogen and xenon versions of the modular series with an LED option. The spotlight can be operated with both 12 and 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. The light output is a powerful 4,400 lumens, which means the Oval 100 LED Gen. 2 can easily replace xenon worklights. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. The Oval 100 LED Gen. 2 can be mounted either standing or hanging. With 6,500 Kelvin, the light of the LED worklight is very similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and prevent rapid eye fatigue. The worklight's black housing is made of aluminium and has cooling fins, to dissipate the heat of the 8 high-power LEDs. In addition, a sensor protects the worklight from overheating ensuring the long service life of the LEDs (up to 30 times the service life of a xenon gas discharge lamp).

• The light output is a powerful 4,400 lumens, which means the Oval 100 LED Gen. 2 can easily replace Xenon worklights.
• The light is distributed by a specially developed multi-facetted reflector and ensures homogeneous illumination.
• At 6,500 Kelvin, the light of the LED worklight is very similar to daylight.

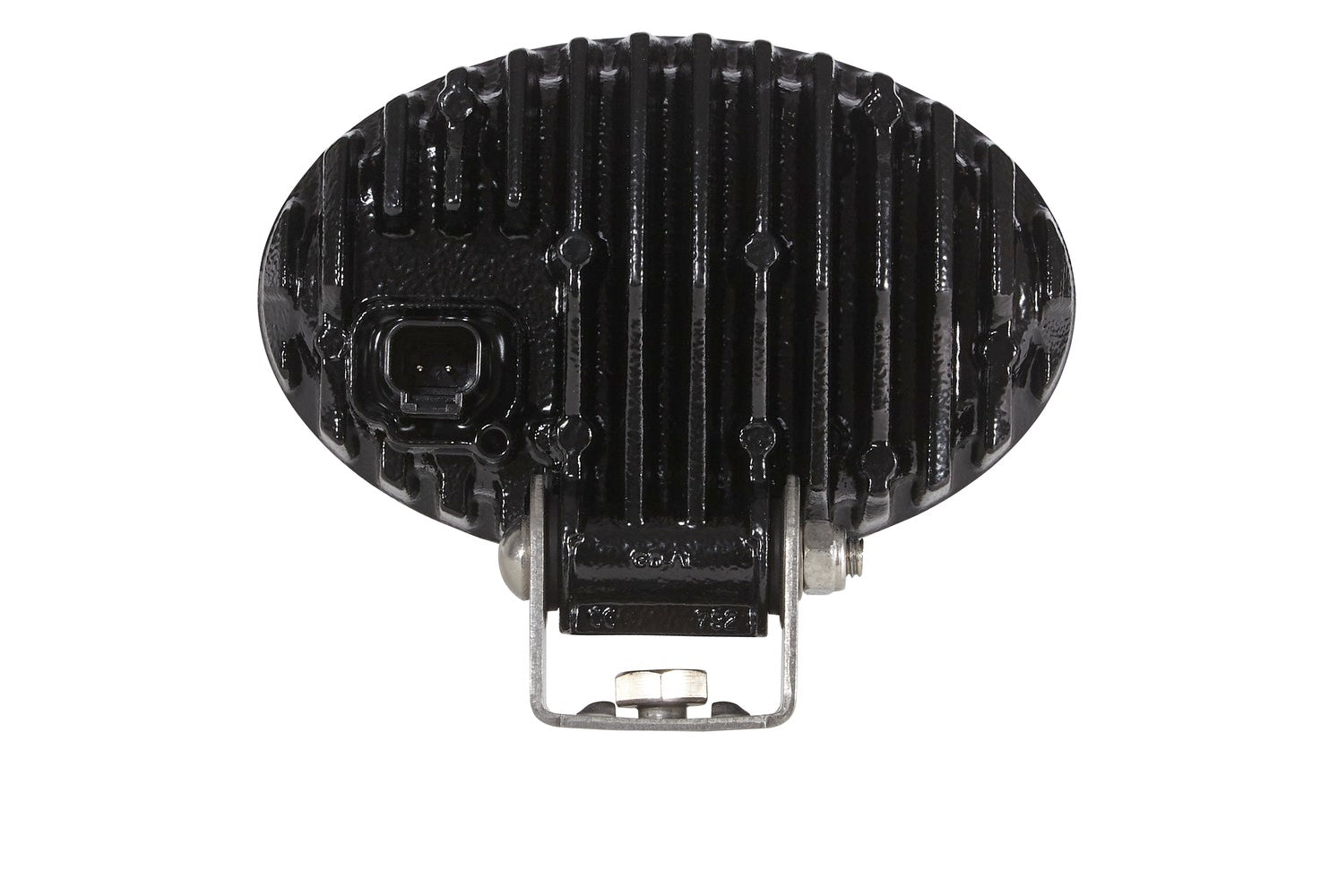

• The black housing of this worklight is made of aluminium and is equipped with cooling fins. These ensure the necessary heat dissipation of the 8 high-power LEDs.
• A sensor also protects the worklight from overheating. Only in this way can the long service life of the LEDs be fully exploited.
• Lamp Type: LED - Number of LEDs: 8 - Power consumption: 56W - Colour Temperature: 6500K
• Patterned diffusing lens

Item Attributes:
Mounting Type: Bolted / mounting
Fastening Type: Swivelling Mounting Bracket
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Height: 129 mm
Width: 153 mm
Depth: 74 mm
Light Distribution: Short-Range Illumination
fulfils ECE standard: R10

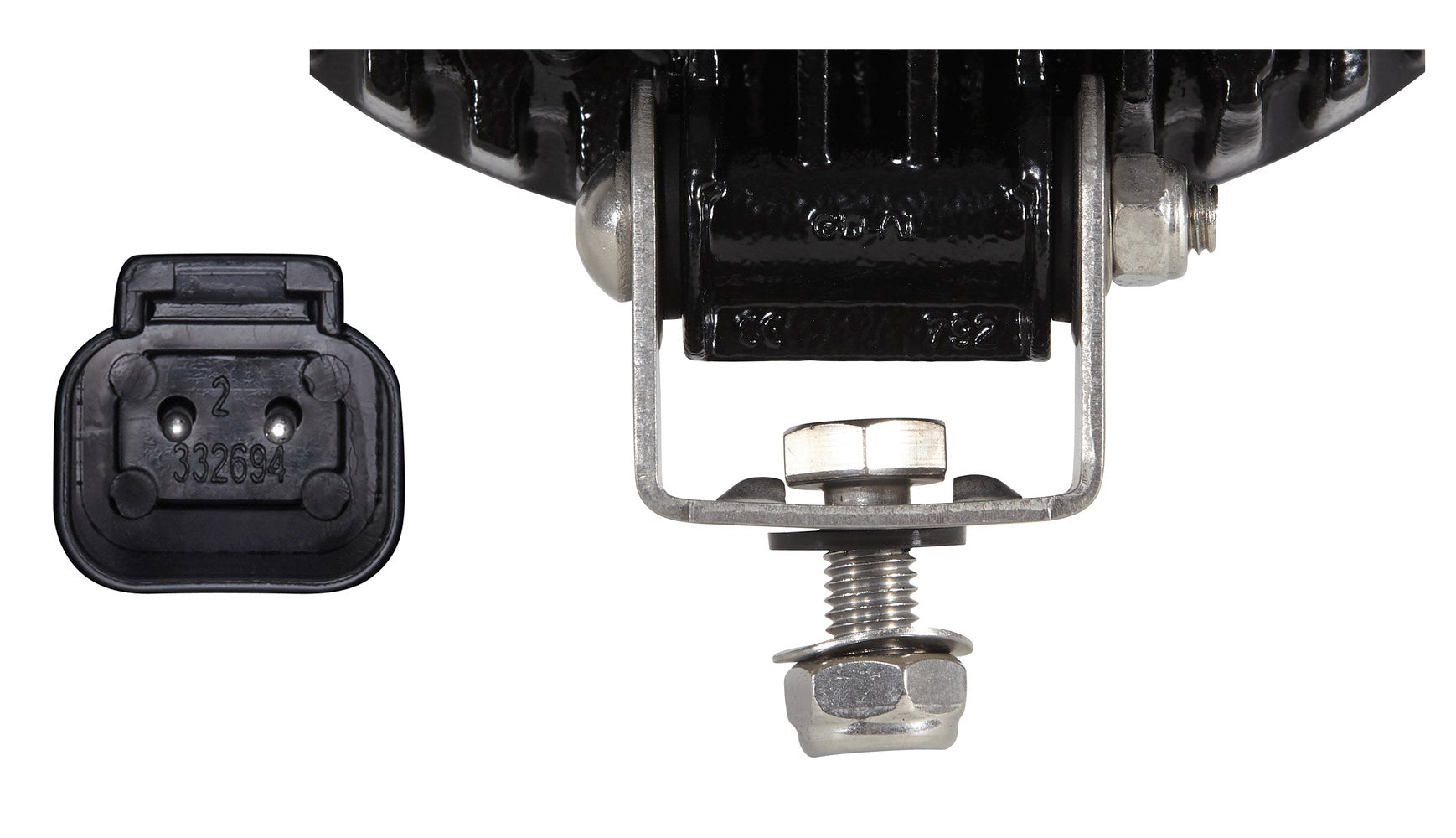

Plug: DEUTSCH plug
Prot.type (IP Code): IP6K7 / IP6K9K
Luminous Flux: 4400 lm
Colour Temperature: 6500 K
Number of LEDs: 8
Power consumption: 56 W
Housing Type: Aluminium Housing
Housing Colour: black
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: AEBI 1239025-4; AGCO 71481421; AGCO ACW1547170; AGCO ACW1655190; AGCO ACW2520710; CLAAS 11717490; KUBOTA 3J0366245A; VÖGELE 2531437
