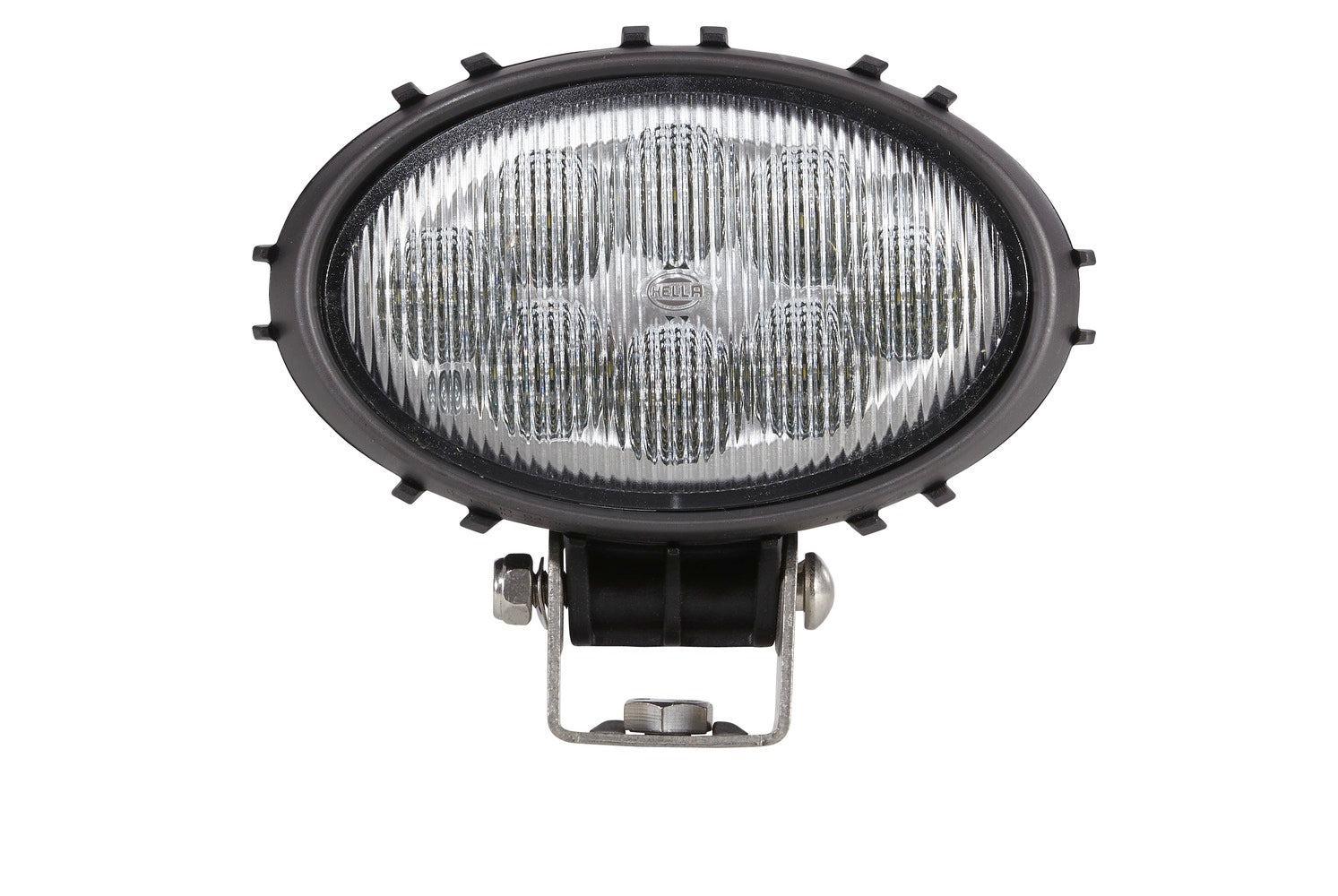

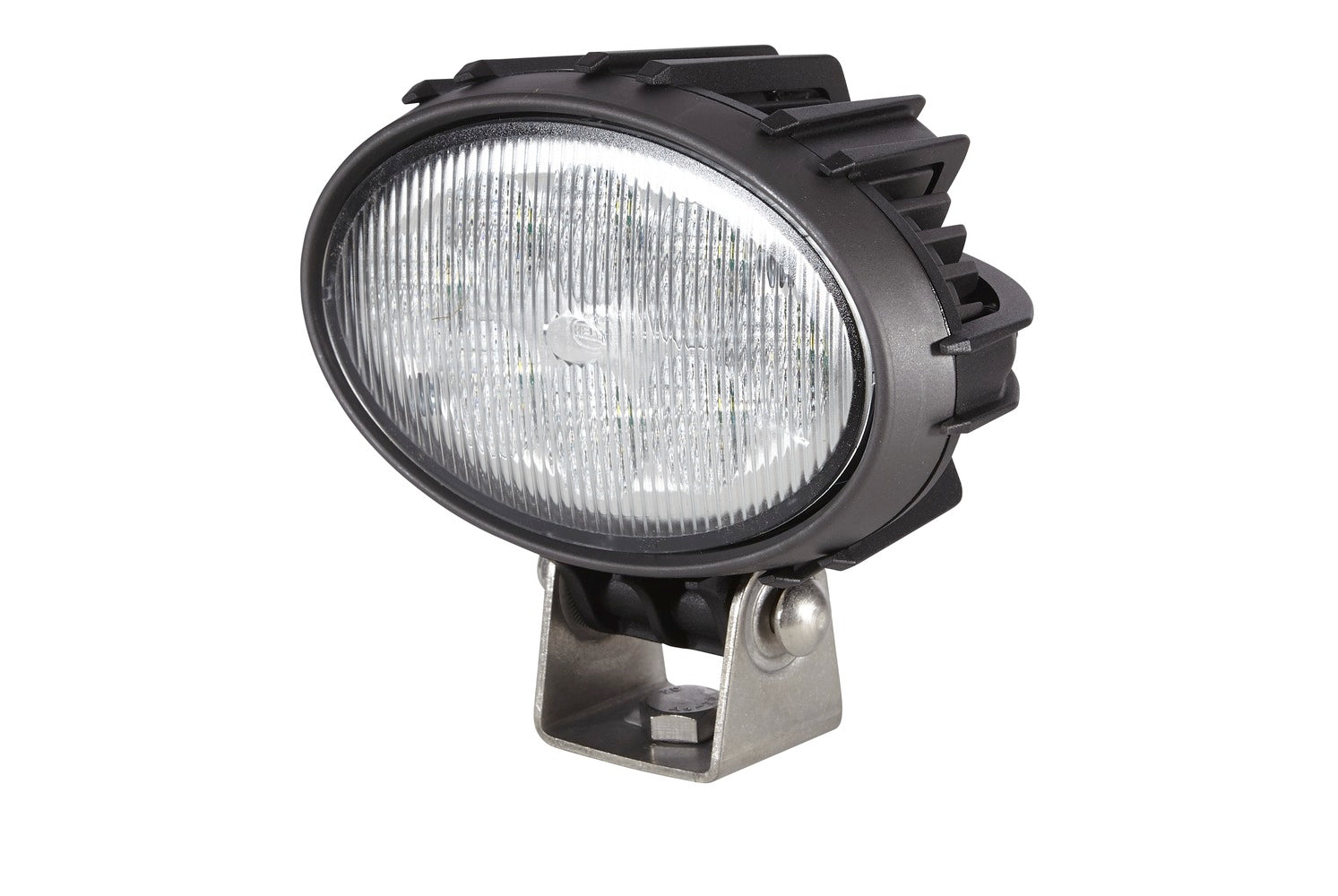

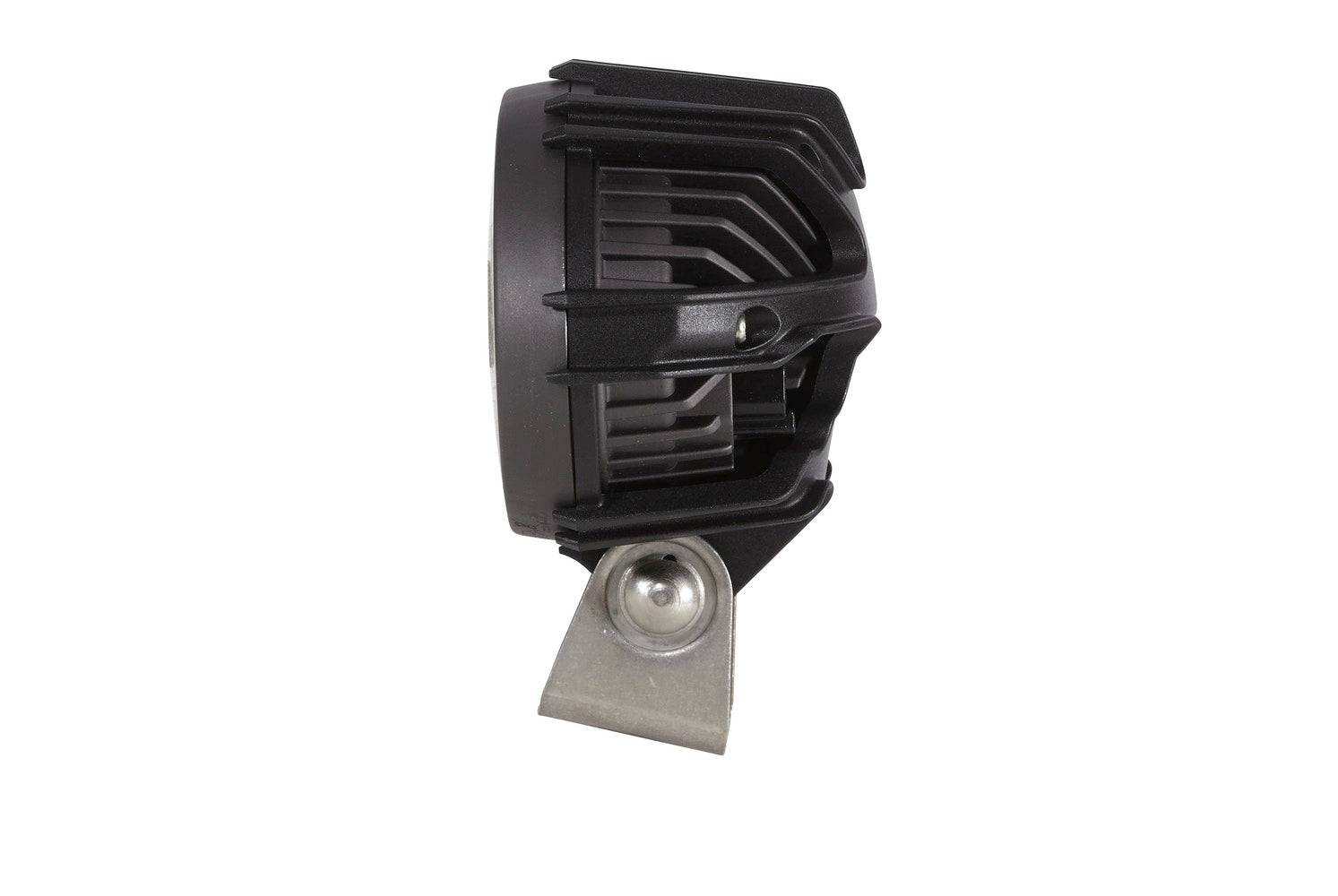

HELLA LED-Worklight - Oval 100 Thermo Pro - 24/12V 1GA996661-041

LED-Worklight - Oval 100 Thermo Pro - 24/12V - 1700lm - mounting/Bolted - Swivelling Mounting Bracket - Short-Range Illumination - Plug: DEUTSCH plug

The Oval 100 LED Thermo Pro is the latest version of the already extensive Oval 100 worklight series. The new innovative plastic housing offers complete corrosion resistance as well as many new mounting options. For the first time, the Oval 100 LED is also available with a lateral swivel joint attachment, which offers additional adjustment options for mounting. The heat-conducting plastic housing has cooling fins on the back to ensure the necessary heat dissipation of the 8 high-power LEDs. Thanks to its light output of 1,700 lumens, the Oval 100 LED is ideal for replacing old halogen worklights (H3, H9) - and that with only 25 watts of energy consumption. The specially developed multi-faceted reflector guarantees homogeneous illumination of the working area. The Oval 100 LED Thermo Pro can be mounted upright (0°), suspended (180°) and in the swivel joint version also sideways (90°). At 6,500 Kelvin, the light is similar to daylight. This causes colours to distinguish themselves more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and prevent eye fatigue. The plastic housing is hermetically sealed and thus watertight, submersible and resistant to high-pressure cleaning (IP6K9K, IP6K8). The integrated electronics protect the unit in case of reverse polarity and ensure constant brightness even with fluctuating operating voltages from 9 to 33 volts. Temperature sensors protect the worklight from overheating to ensure a long service life of the LEDs and safe working at night.

• The new innovative plastic housing not only offers complete corrosion resistance but also many new mounting options.

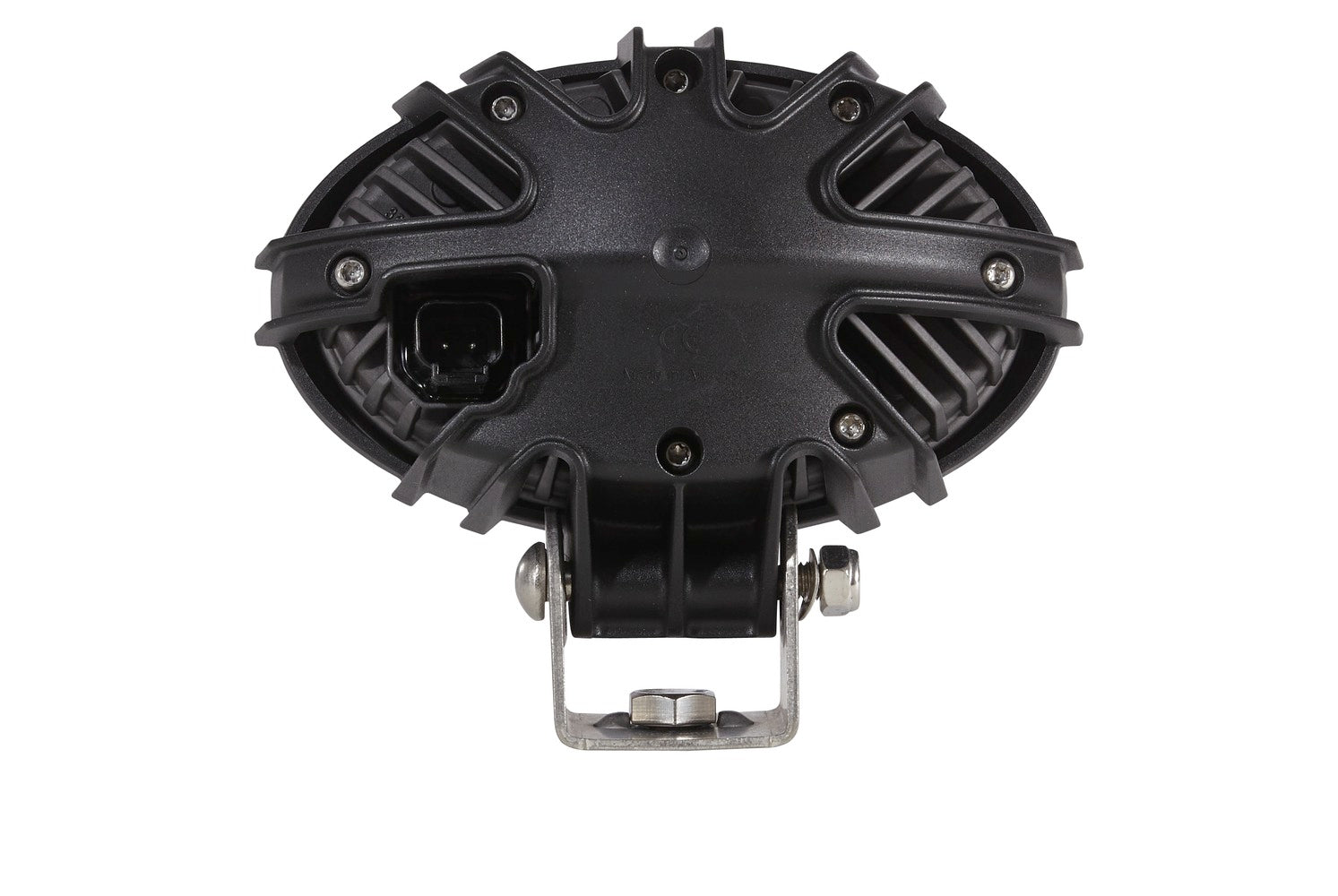

• The heat-conducting plastic housing is equipped with cooling fins on the back, which provide the necessary heat dissipation for the 8 high-power LEDs.
• The specially developed multi-faceted reflector guarantees homogeneous illumination of the work area.
• The plastic housing is hermetically sealed and thus waterproof, submersible and resistant to high-pressure cleaning (IP 6K9K, IP 6K8).
• For the first time, the Oval 100 LED is also available with a lateral swivel joint mounting, which offers additional adjustment options during installation.
• Lamp Type: LED - Number of LEDs: 8 - Power consumption: 25W - Colour Temperature: 6500K
• Patterned diffusing lens

Item Attributes:
Mounting Type: Bolted / mounting
Fastening Type: Swivelling Mounting Bracket
Light Design: LED
Lamp Type: LED
Voltage: 24 V / 12 V
Height: 146 mm
Width: 166 mm
Depth: 83 mm
Light Distribution: Short-Range Illumination
fulfils ECE standard: R10

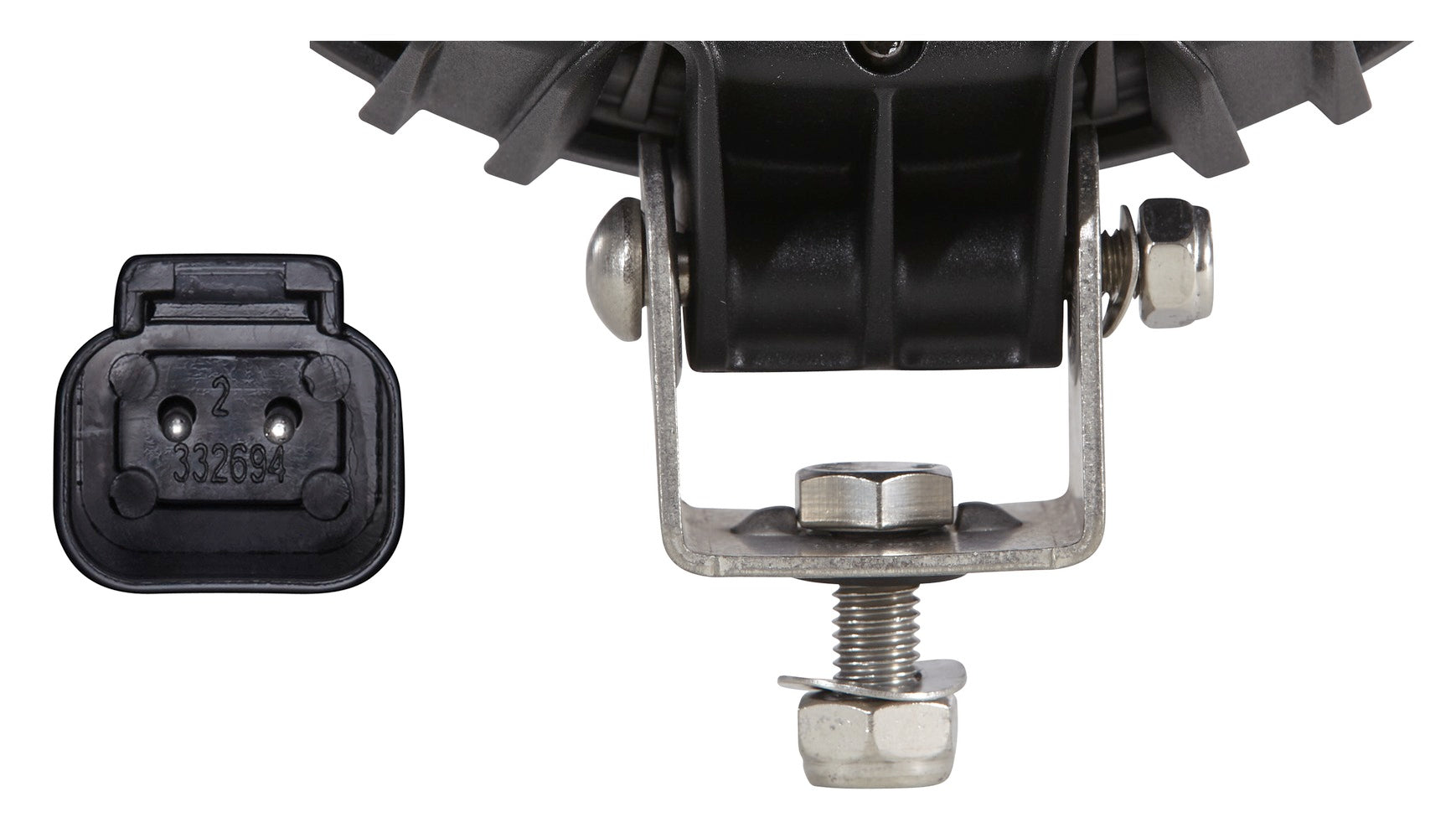

Plug: DEUTSCH plug
Prot.type (IP Code): IP6K9K / IP6K7
Luminous Flux: 1700 lm
Colour Temperature: 6500 K
Number of LEDs: 8
Power consumption: 25 W
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: AGCO ACW1547170
