HELLA LED-Worklight - Oval 90 Gen. II - 24/12V 1GB996486-001

LED-Worklight - Oval 90 Gen. II - 24/12V - 5000lm - mounting/Bolted - Swivelling Mounting Bracket - Short-Range Illumination - Plug: DEUTSCH plug

The Oval 90 LED Gen. 2 from HELLA is a compact worklight with a modern, attractive design. The Oval 90 worklight product range includes halogen, xenon and LED variants. The modular series is completed with the Oval 90 LED Gen. 2 whih has been expanded to include a powerful worklight with LED technology. The spotlight can be operated with either 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. The light output is a powerful 5,000 lumens. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. The Oval 90 LED Gen. 2 can be mounted either upright (0°) or suspended (180°). The light of the LED worklight is very similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it easier for the human eye to perceive the senses and prevent rapid eye fatigue. The worklights' black housing is made of aluminium and has cooling fins ensuring the necessary heat dissipation of the 10 high-performance LEDs. In addition, a sensor protects the worklight from overheating. Only in this way can the long life of the LEDs (up to 130 times the life of a halogen bulb) be fully exploited. The integrated electronics are protected against reverse polarity and equipped with an LED fault bypass.

• The Oval 90 LED Gen. 2 from HELLA is a compact worklight with a modern, stylish design.
• The light output is a powerful 5,000 lumens. The light is distributed by a specially developed multi-facetted reflector and ensures homogeneous illumination.

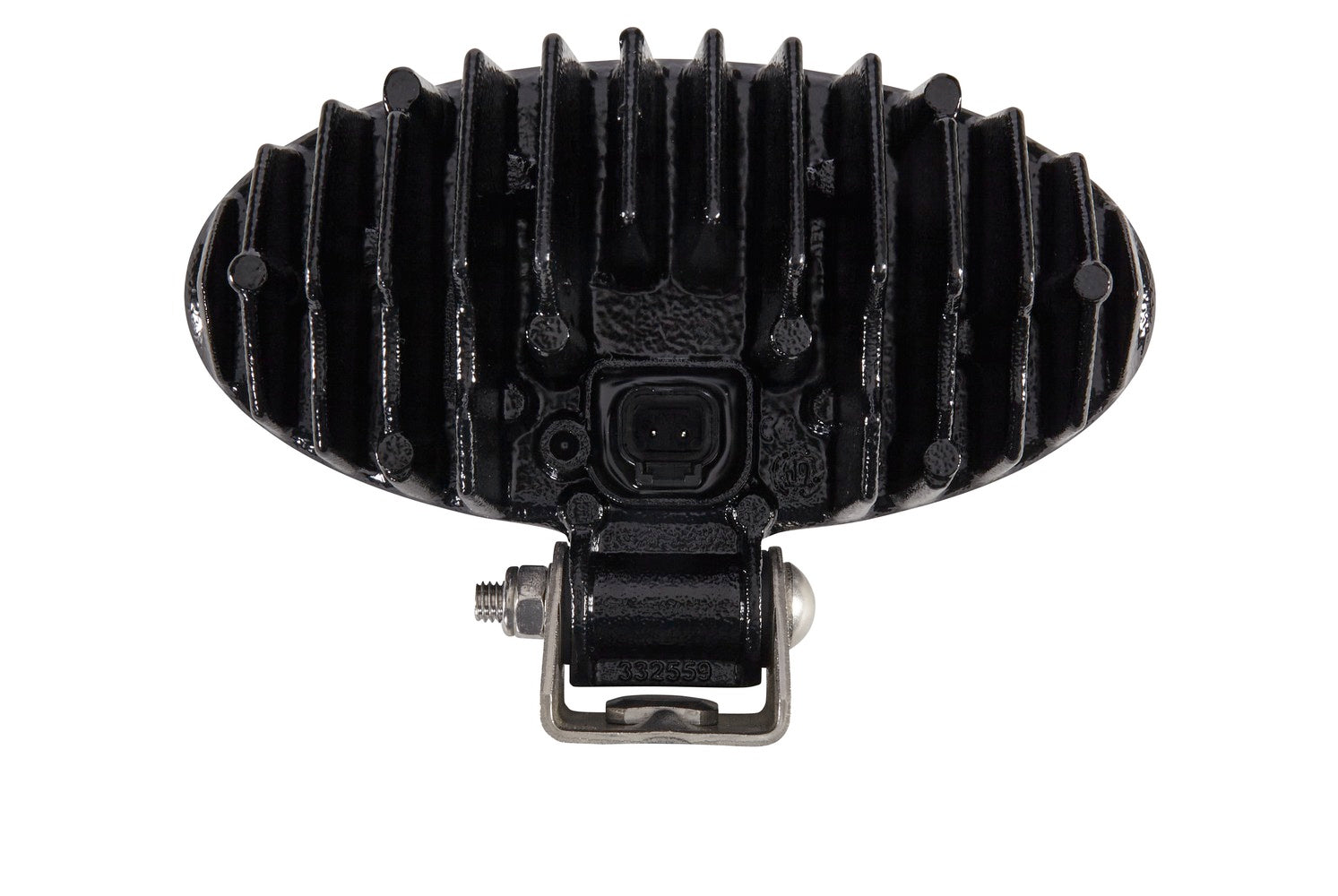

• The black housing of this worklight is made of aluminium and is equipped with cooling fins. These ensure the necessary heat dissipation of the 10 high-power LEDs.
• A sensor also protects the worklight from overheating. Only in this way can the long service life of the LEDs be fully exploited.
• The integrated electronics are protected against polarity reversal and equipped with an LED error bypass.
• Lamp Type: LED - Number of LEDs: 10 - Power consumption: 60W - Colour Temperature: 6500K
• Patterned diffusing lens

Item Attributes:
Mounting Type: mounting / Bolted
Fastening Type: Swivelling Mounting Bracket
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Height: 124 mm
Width: 177 mm
Depth: 104 mm
Light Distribution: Short-Range Illumination
fulfils ECE standard: R10

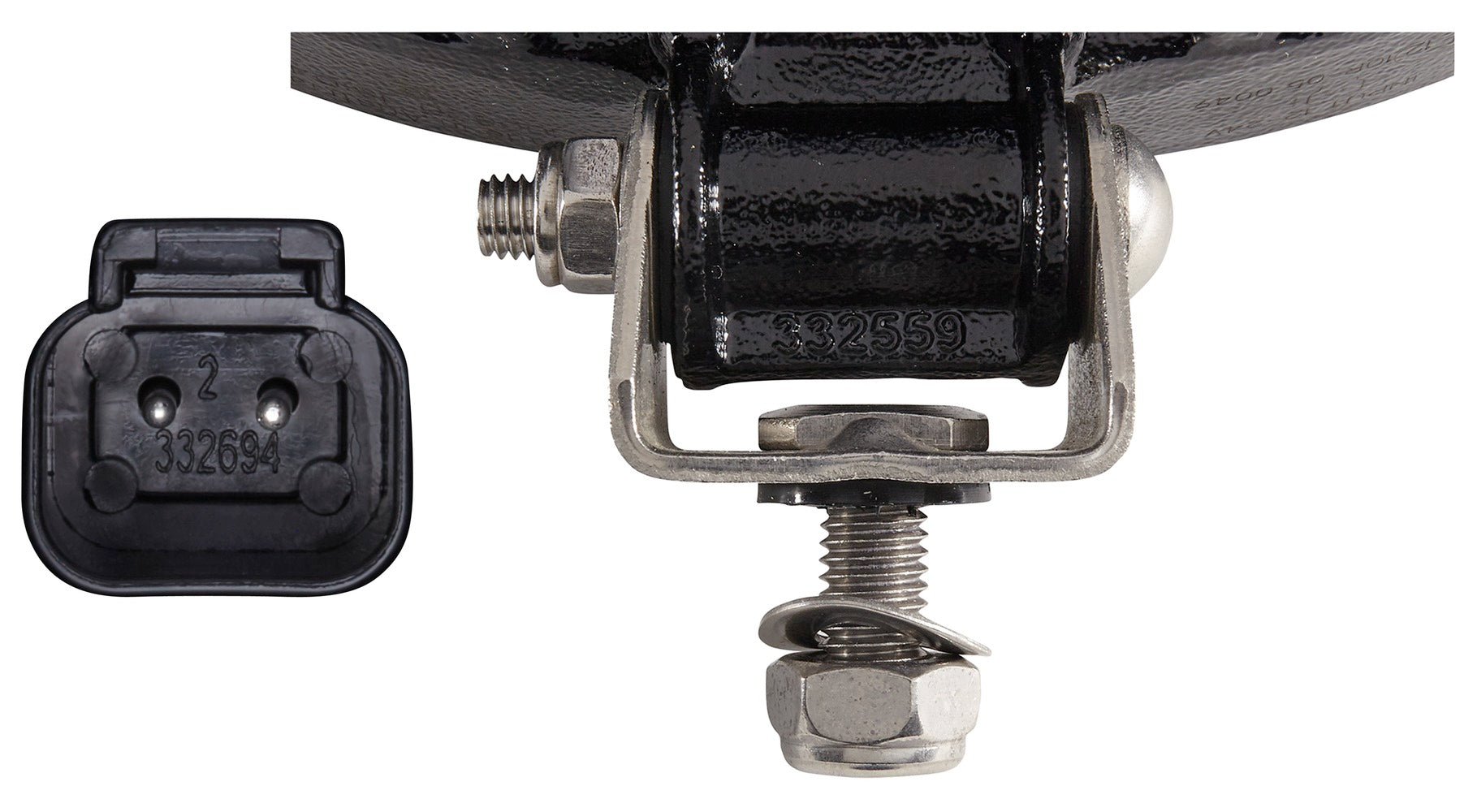

Plug: DEUTSCH plug
Prot.type (IP Code): IP6K9K / IP6K7
Luminous Flux: 5000 lm
Colour Temperature: 6500 K
Number of LEDs: 10
Power consumption: 60 W
Housing Type: Aluminium Housing
Housing Colour: black
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!
