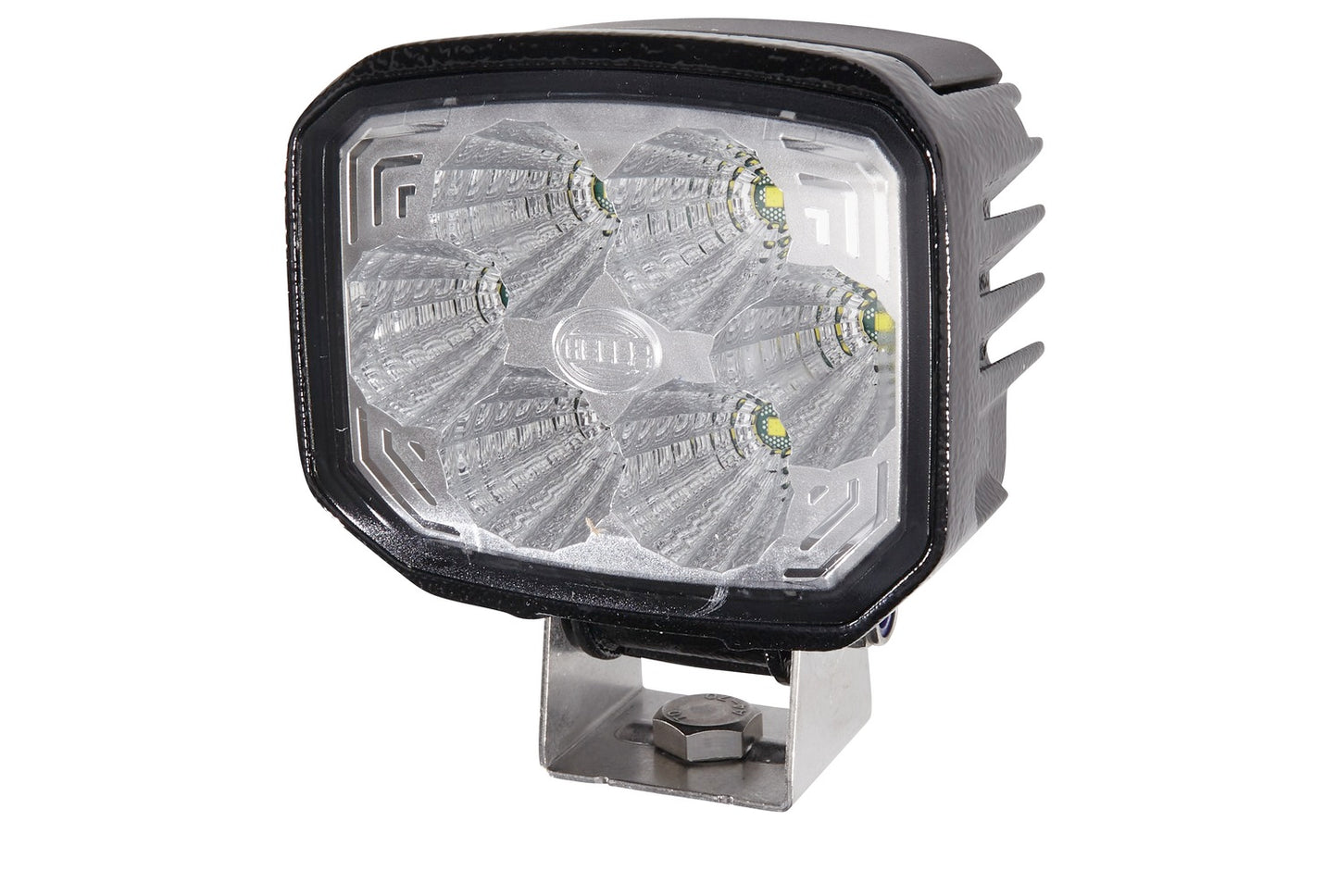

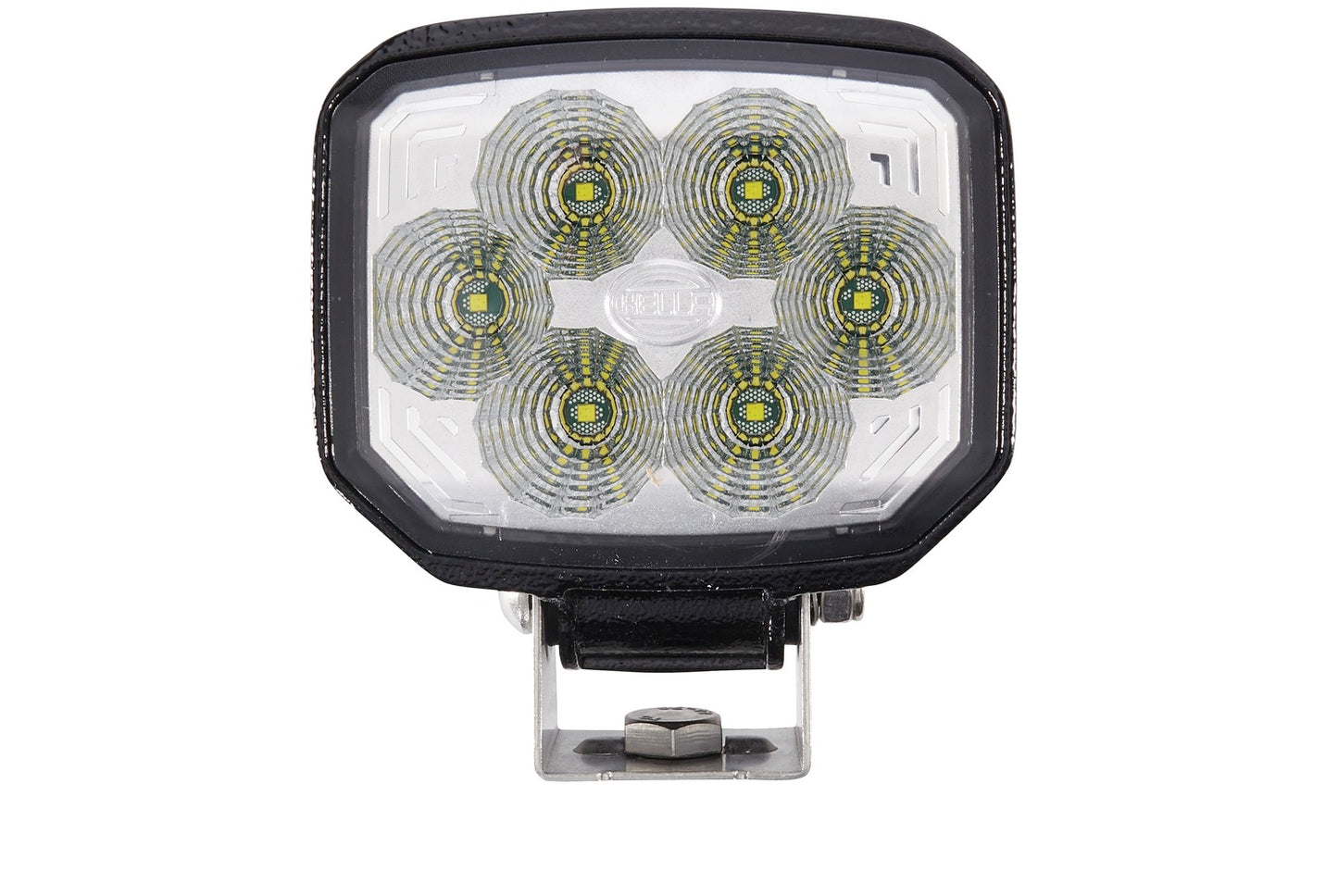

HELLA LED-Worklight - Power Beam 1000 - 12/24V 1GA996188-021

LED-Worklight - Power Beam 1000 - 12/24V - 850lm - mounting/Bolted - Swivelling Mounting Bracket - Short-Range Illumination - Plug: DEUTSCH plug

The Power Beam 1000 is an LED worklight that sets new standards with its powerful light output. The spotlight can be operated with either 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 33 volts. Thanks to its powerful light output, the Power Beam 1000 can replace standard halogen worklights (e.g. H3 / 55 watts) - with a power consumption of only 18 watts. This makes the worklight ideal for use on vehicles with battery operation and where the alternator is already heavily loaded. The light of the 6 high-performance LEDs is distributed in the near working area by a specially developed multi-faceted reflector. The Power Beam 1000 can be mounted either upright (0°) or suspended (180°). With a colour temperature of 6,500 Kelvin, the light of the LED worklight is similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and prevent rapid eye fatigue. The worklight's black housing of is made of aluminium and has cooling fins to ensure the necessary heat dissipation of the 6 high-performance LEDs. In addition, a sensor protects the worklight from overheating. Only in this way can the long life of the LEDs (up to 130 times the life of a halogen bulb) be fully exploited.

• Compact design
• Powerful and maintenance-free
• Universally applicable
• Lamp Type: LED - Number of LEDs: 6 - Power consumption: 13W - Colour Temperature: 6500K
• Patterned diffusing lens
• fulfils ECE standard: R10 - Prot.type (IP Code): IP6K9K/IP6K7
• Aluminium Housing - Housing Colour: Black - Diffusing Lens Material: Glass

Item Attributes:
Mounting Type: Bolted / mounting
Fastening Type: Swivelling Mounting Bracket
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Height: 129 mm
Width: 112 mm
Depth: 62 mm
Light Distribution: Short-Range Illumination
fulfils ECE standard: R10
fulfils test standard: RCM

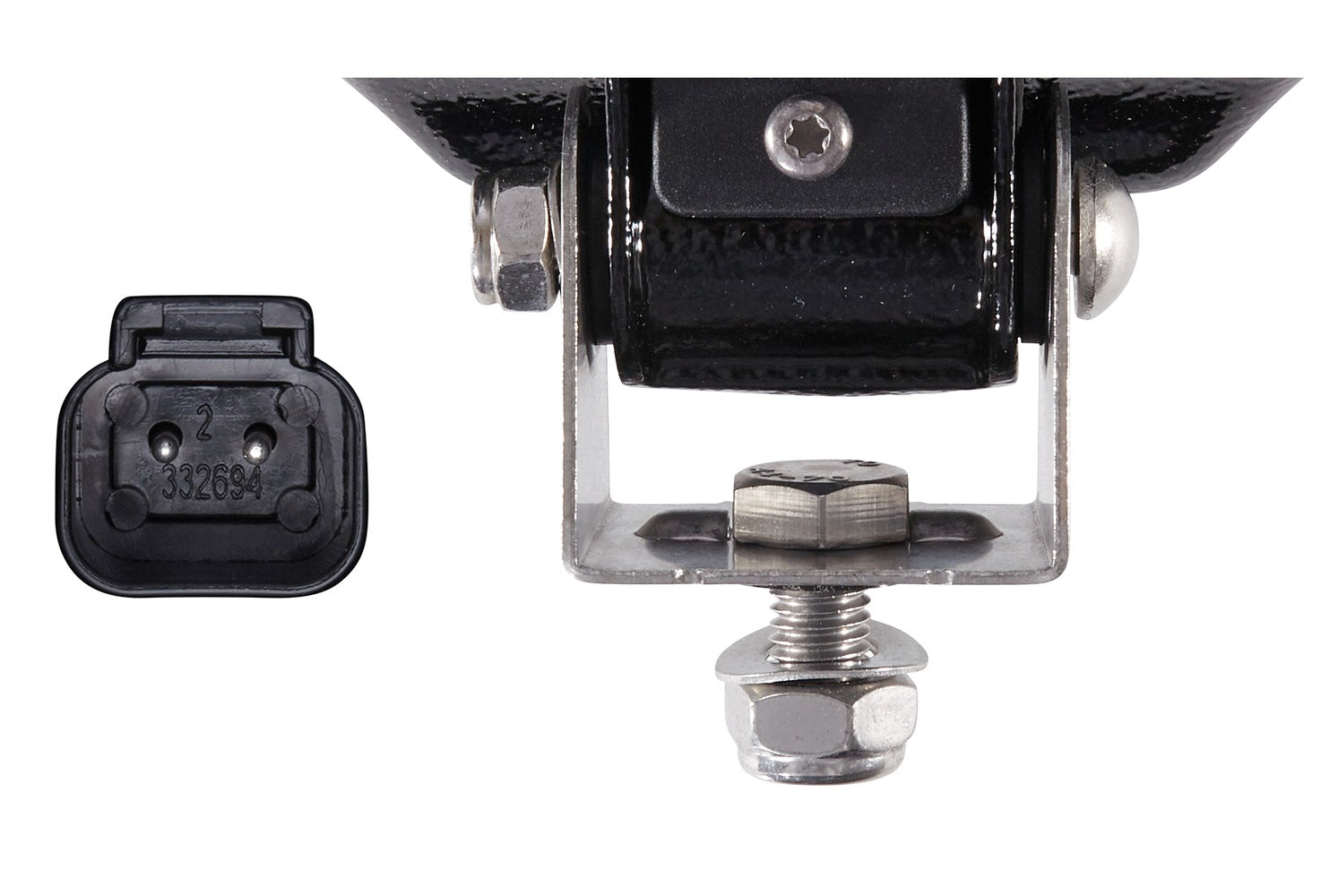

Plug: DEUTSCH plug
Prot.type (IP Code): IP6K7 / IP6K9K
Luminous Flux: 850 lm
Colour Temperature: 6500 K
Number of LEDs: 6
Power consumption: 13 W
Supplementary Article/Supplementary Info 2: without pipe
Housing Type: Aluminium Housing
Housing Colour: black
Diffusing Lens Material: Glass
Diffusing Lens Type: Patterned diffusing lens
SVHC: 7439-92-1; Lead / 127-19-5; N,N-dimethylacetamide
Reverse polarity protection: Yes
Assembly by qualified personnel required!

OE references: CARNEHL 39109; CASE IH 8 455576 3; DAF 1527449; DEMAG 59914012; FAUN 5642-480; IVECO 503292359; KAMAG 61106542; KEMPF 102391; KÖGEL 61106542; LIEBHERR 1 134 192 9; ROSENBAUER 568852; SPERRY NEW HOLLAND 84555763; TEREX 59914012; TEREX 94759914012; VAN HOOL 11345830; VDL 11345830
