HELLA LED-Worklight - Power Beam 1800 - 24V 1GA996388-011

LED-Worklight - Power Beam 1800 - 24V - 1850lm - mounting/Bolted - Short-Range Illumination - Plug: DEUTSCH plug

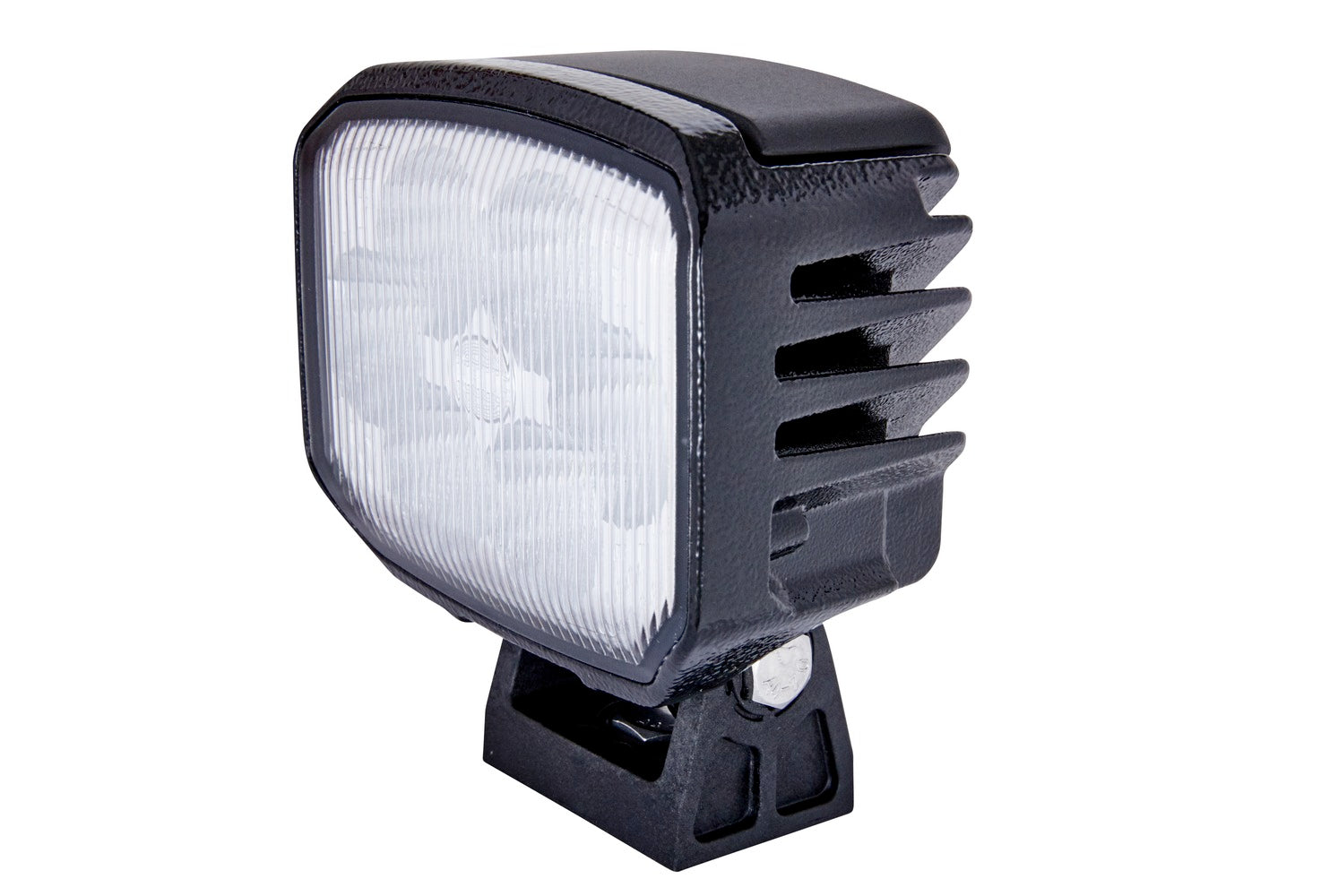

The Power Beam 1800 is an ideal LED worklight that combines powerful light output in a practical design. The worklight is designed to be universally applicable due to its compact dimensions. The light output of the six high-performance LEDs is a powerful 1,850 lumens. The light is distributed with a specially developed multi-facet reflector that ensures homogeneous illumination. Thanks to different diffusing lenses, this worklight can be used for both close-range and long-range illumination. The energy consumption is only 36 watts. With a colour temperature of 6,500 Kelvin, the light of the LED worklight is very similar to daylight. This has the effect of distinguishing colours more clearly in the dark, making sensory perception much easier for the human eye and preventing rapid eye fatigue when working at night. The Power Beam 1800 is equipped with an additional dimming function which can be realised through the adjustable duty cycle of the pulse width modulated signal (PWM). This can be made possible by interposing a conventional LED PWM dimmer in the supply line. (max. input current of the spotlight 1.5 A ; frequency 100 - 1,000 Hz).

• The light output of the six high-performance LEDs is a powerful 1,850 lumens.
• The light is distributed by a specially developed multi-facetted reflector and ensures homogeneous illumination.
• Due to different diffusing lenses, this worklight can be used for both close-range and long-range illumination.
• The Power Beam 1800 is equipped with an additional dimming function. This dimming can be realised by the adjustable duty cycle of the pulse width modulated signal (PWM).
• This can be achieved by interposing a conventional LED PWM dimmer in the supply line.
• Lamp Type: LED - Number of LEDs: 6 - Power consumption: 28W - Colour Temperature: 6500K
• Patterned diffusing lens

Item Attributes:
Mounting Type: Bolted / mounting
Light Design: LED
Lamp Type: LED
Voltage: 24 V
Height: 129 mm
Width: 112 mm
Depth: 63 mm
Light Distribution: Short-Range Illumination
fulfils ECE standard: R10

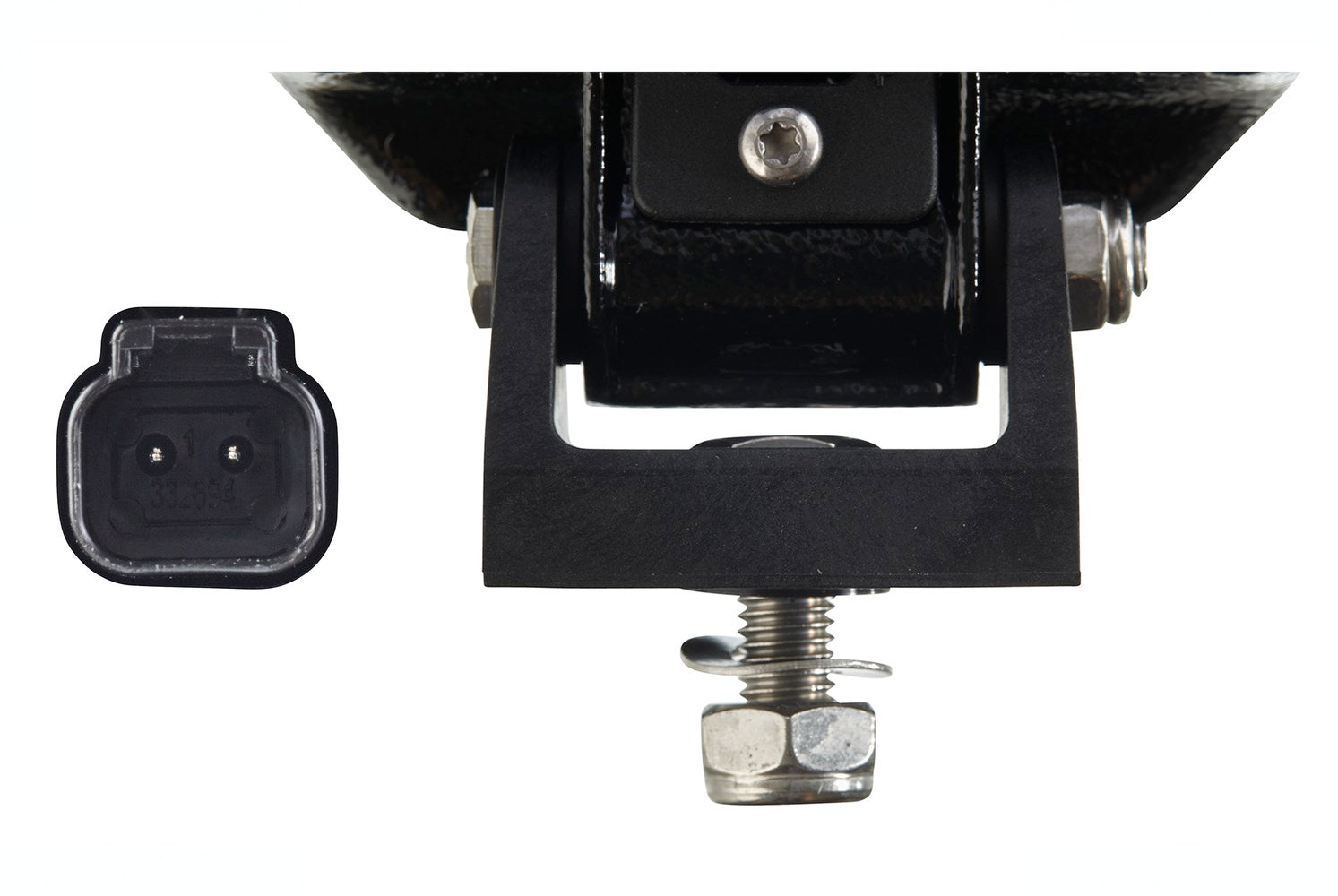

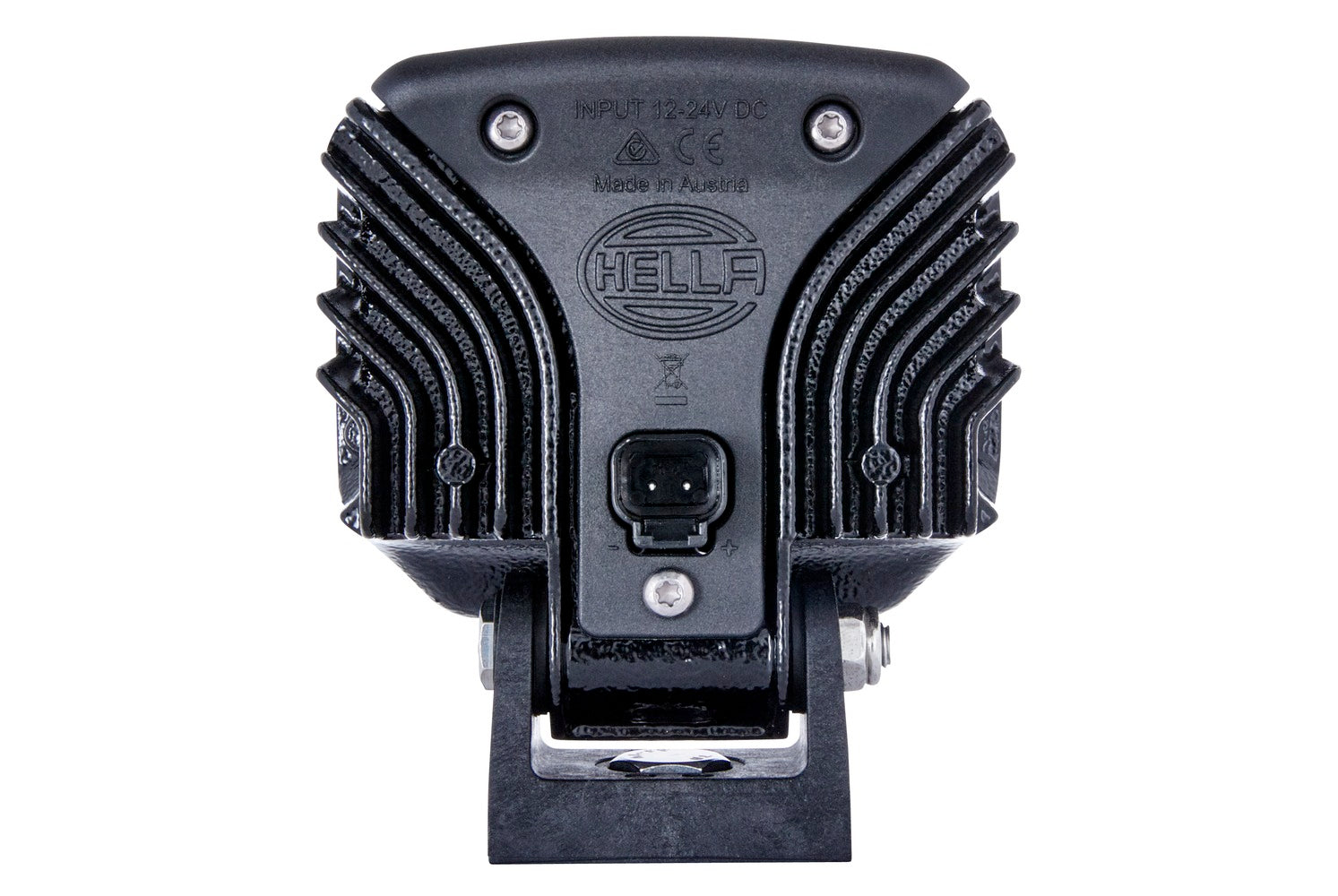

Plug: DEUTSCH plug
Prot.type (IP Code): IP6K9K / IP6K7
Luminous Flux: 1850 lm
Colour Temperature: 6500 K
Number of LEDs: 6
Power consumption: 28 W
Housing Type: Aluminium Housing
Housing Colour: black
Diffusing Lens Material: PC (Polycarbonate)
Diffusing Lens Type: Patterned diffusing lens
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: IVECO 503240772; MAN U1.25103-6006; MERCEDES-BENZ 663 544 00 47; MERCEDES-BENZ A 663 544 00 47; MERLO 107212; SCANIA 2570004
