HELLA LED-Worklight - Power Beam 1800 Compact - 24/12V 1GA996488-001

LED-Worklight - Power Beam 1800 Compact - 24/12V - 1850lm - mounting/Bolted - Swivelling Mounting Bracket - Short-Range Illumination - Plug: DEUTSCH plug

The Power Beam 1800 LED compact is an ideal LED worklight that combines powerful light output in a practical design. The worklight is designed to be universally applicable due to its compact dimensions. The innovative heat-conducting plastic housing is additionally equipped with cooling fins that ensure the necessary heat dissipation of the high-performance LEDs. In addition to weight savings, the new material offers the advantage of complete corrosion resistance. The light output of the six high-performance LEDs is a powerful 1,850 lumens. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. Versions with different diffuser lens variants are suitable for either close-range or wide-range illumination. The energy consumption is only 26 watts making it ideal for use on vehicles with battery operation and where the alternator is already heavily loaded. The multivolt electronics of this headlamp are designed for vehicles with 12 and 24 volts on-board voltage. With a colour temperature of 6,500 Kelvin, the light of the LED worklight is similar to daylight. This has the effect of distinguishing colours more clearly in the dark, making sensory perception much easier for the human eye and preventing rapid eye fatigue when working at night. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 10.5 to 32 volts. In addition, temperature sensors protect the worklight from overheating.

• The Power Beam 1800 compact is an ideal LED worklight that combines powerful light output with a practical design.
• The worklight is designed in such a way that it can be used universally due to its compact dimensions.

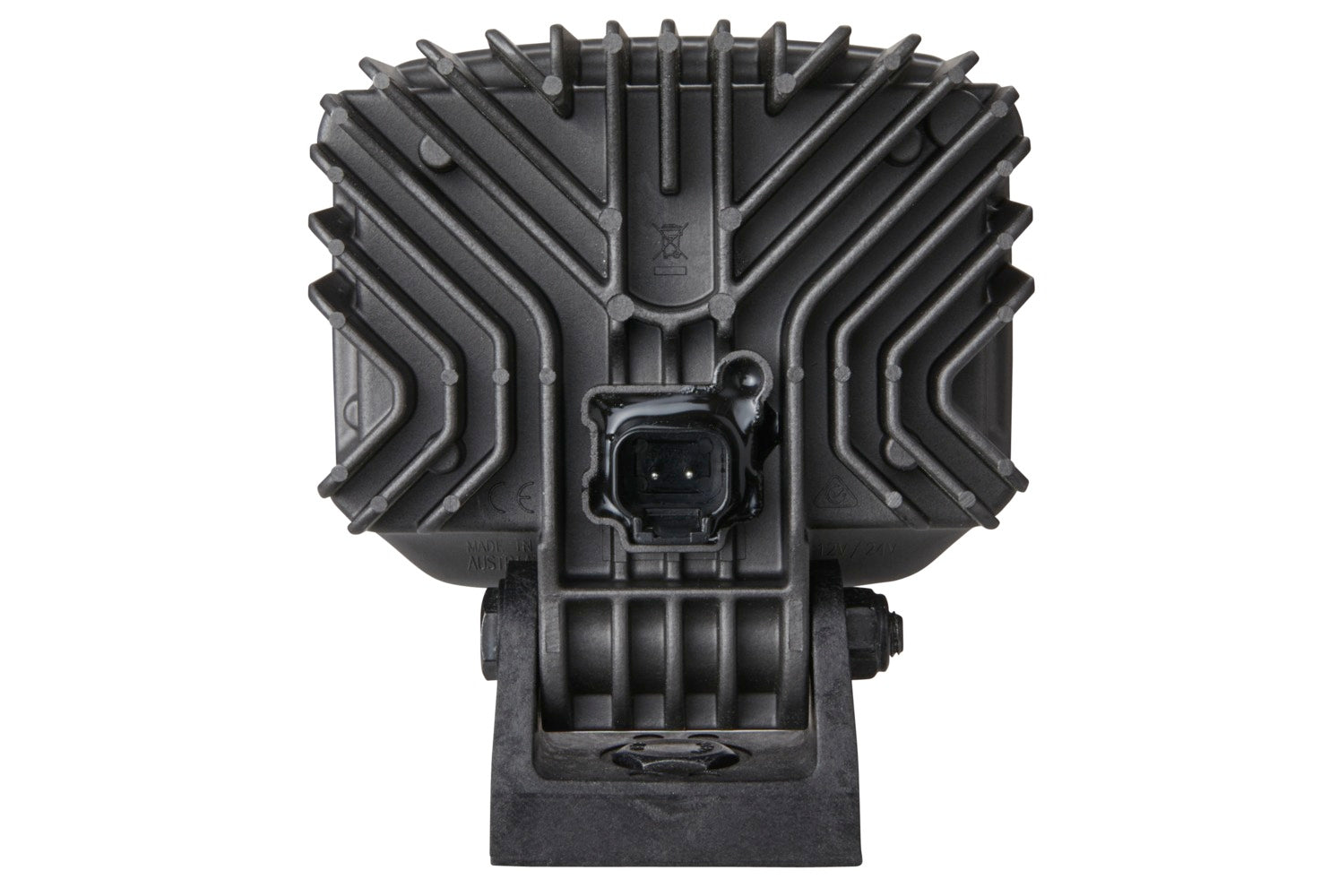

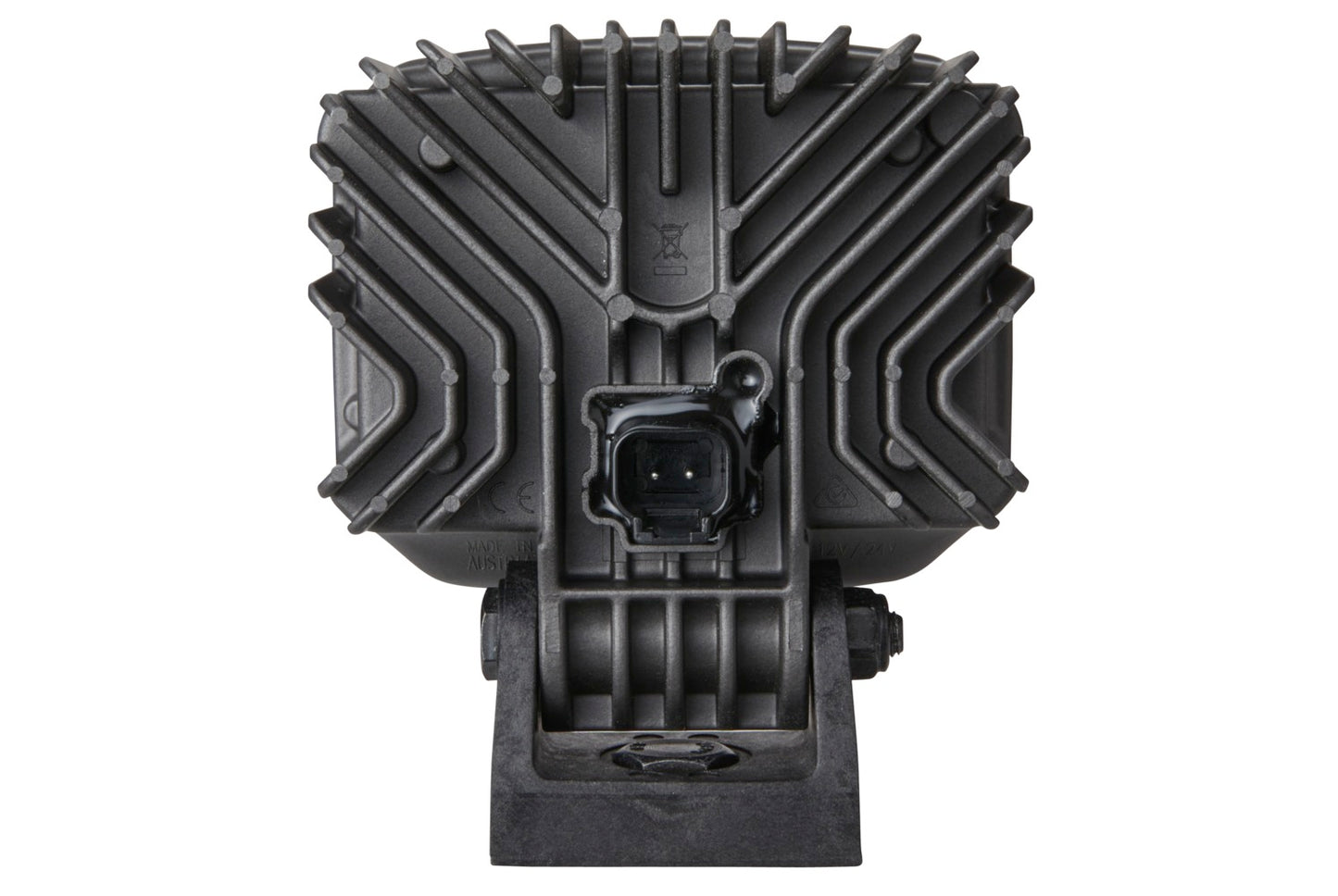

• The innovative heat-conducting plastic housing is additionally equipped with cooling fins, which ensure the necessary heat dissipation of the high-power LEDs.
• The new material offers the advantage of complete corrosion resistance in addition to weight savings.
• The light is distributed by a specially developed multi-facetted reflector and ensures homogeneous illumination.
• Lamp Type: LED - Number of LEDs: 6 - Power consumption: 26W - Colour Temperature: 6500K
• Patterned diffusing lens

Item Attributes:
Mounting Type: mounting / Bolted
Fastening Type: Swivelling Mounting Bracket
Light Design: LED
Lamp Type: LED
Voltage: 12 V / 24 V
Height: 128 mm
Width: 111 mm
Depth: 68 mm
Light Distribution: Short-Range Illumination
Registration Type: ADR/GGVS
fulfils ECE standard: R10

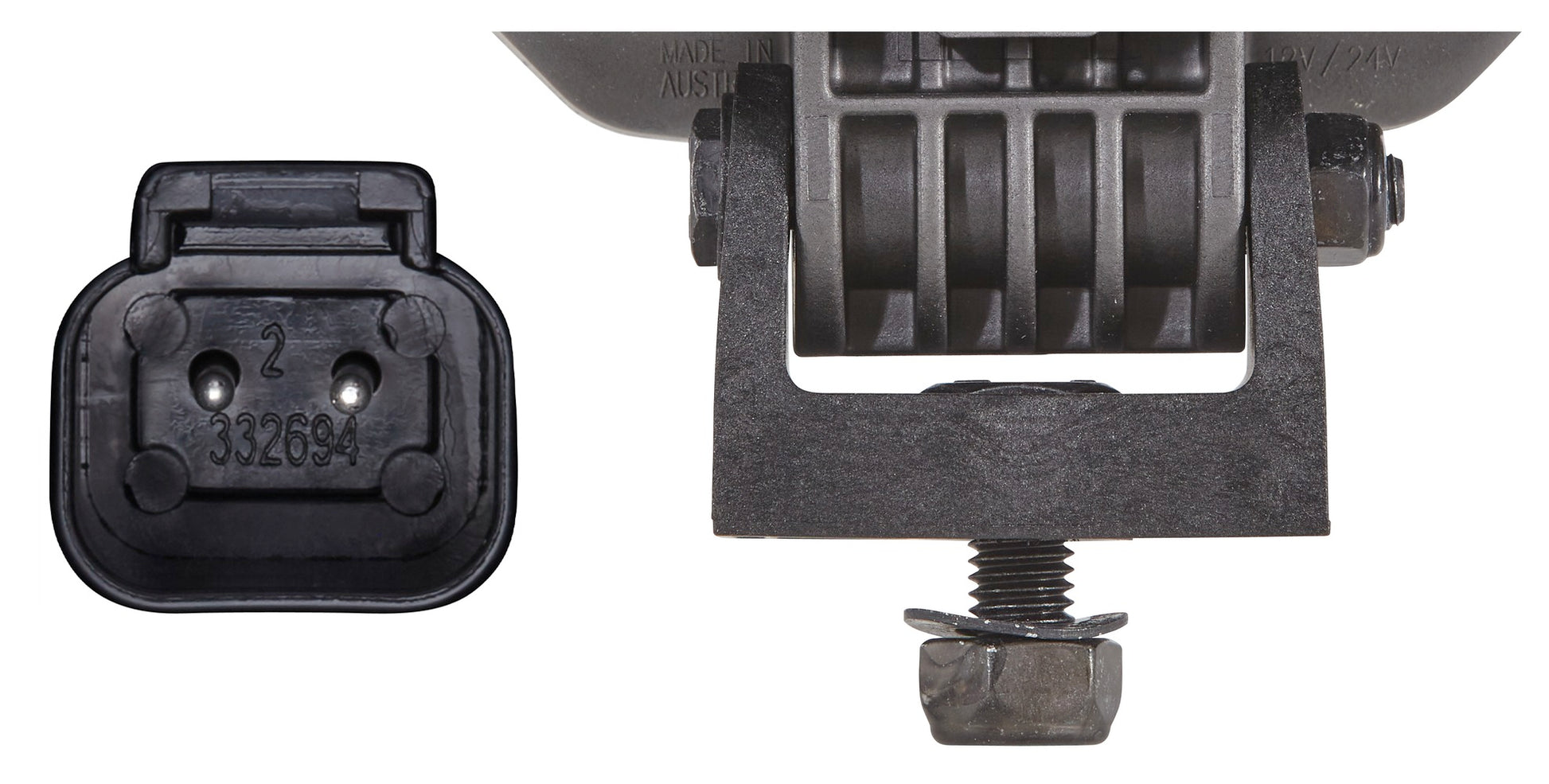

Plug: DEUTSCH plug
Prot.type (IP Code): IP6K9K / IP6K7
Luminous Flux: 1850 lm
Colour Temperature: 6500 K
Number of LEDs: 6
Power consumption: 26 W
Housing Type: Synthetic Material Housing
Housing Colour: black
Diffusing Lens Material: Plastic
Diffusing Lens Type: Patterned diffusing lens
Assembly by qualified personnel required!

OE references: DIECI BEM2138; DOOSAN 301005-02050
