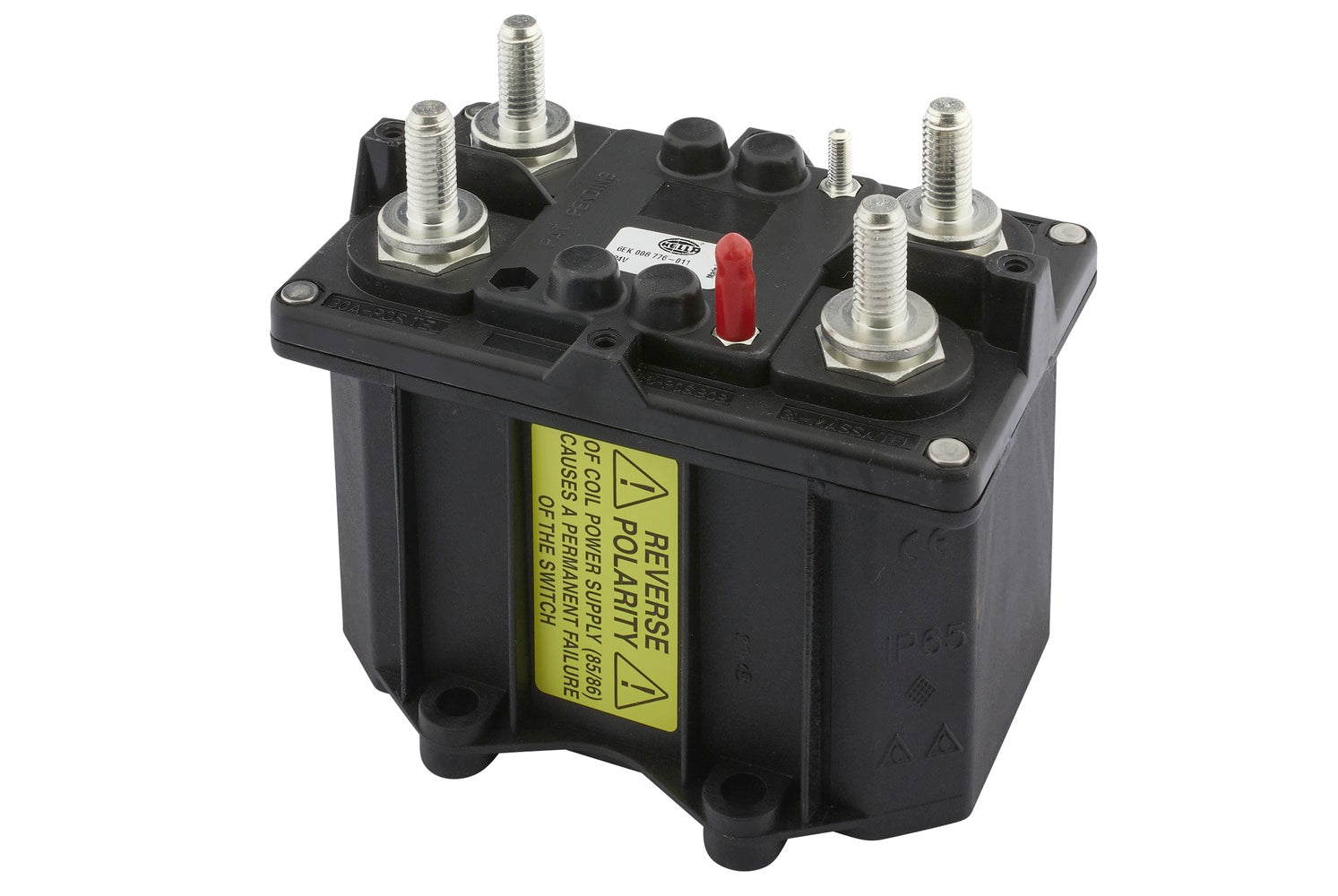

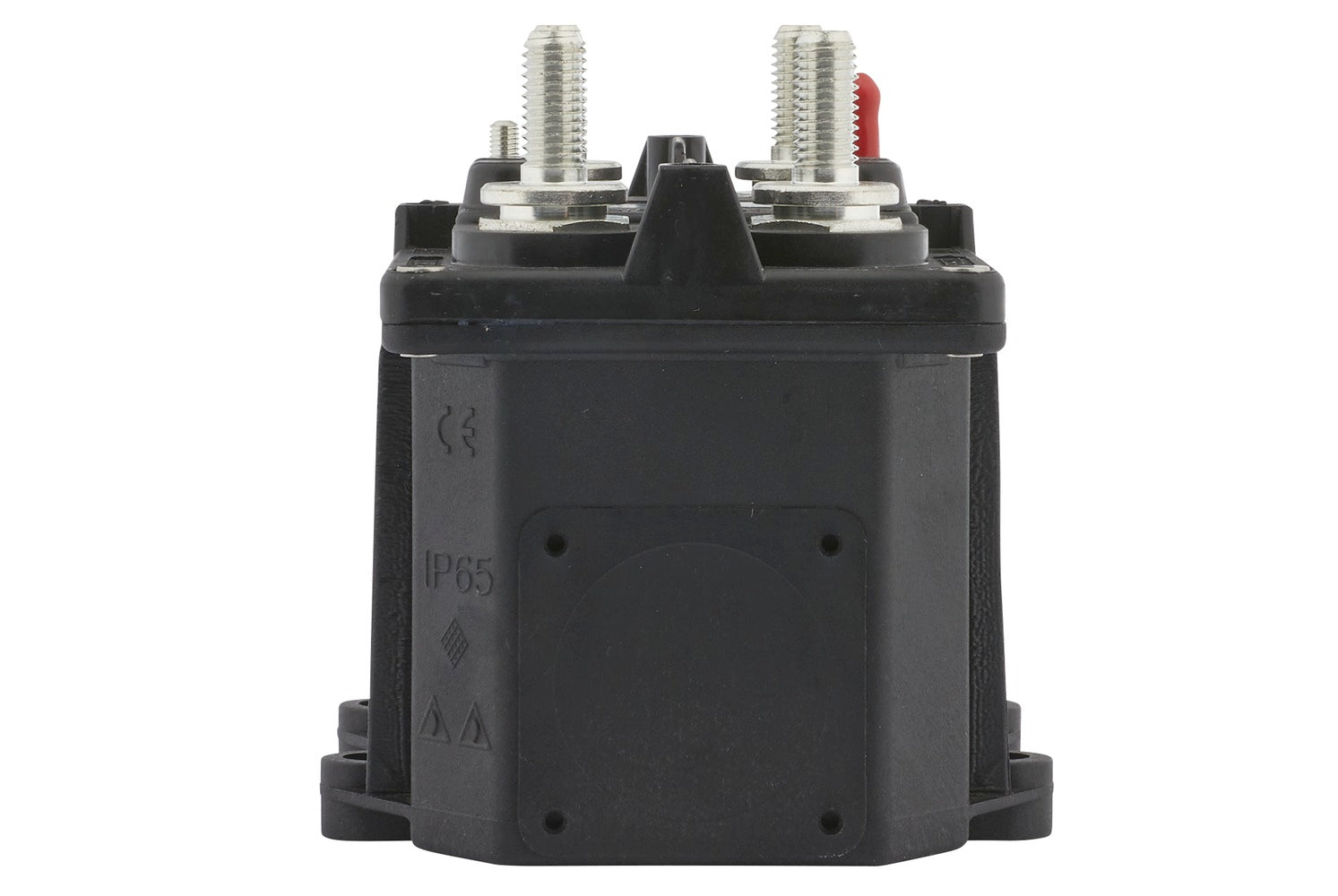

HELLA Main Switch, battery - 24V - 2-pin connector 6EK008776-011

Main Switch, battery - 24V - 2-pin connector - Bolted

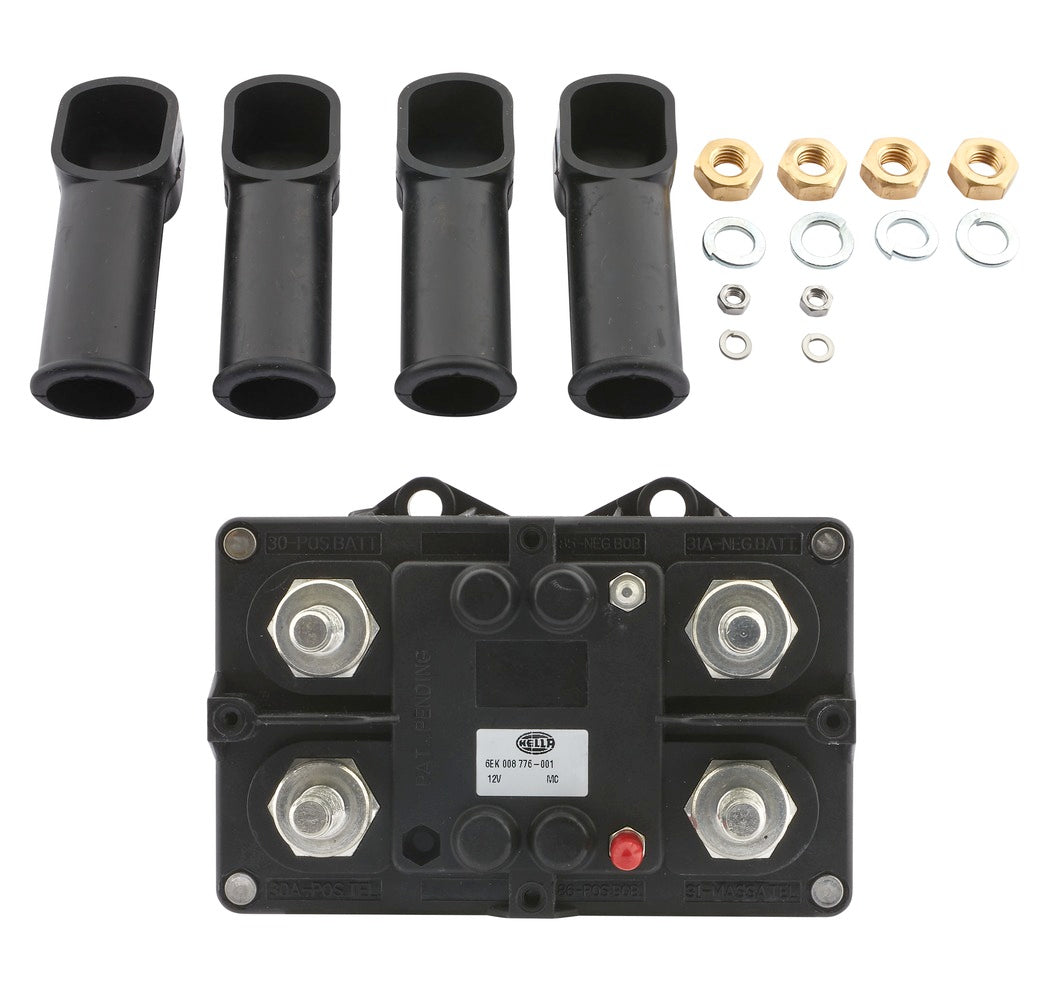

• With 2 protective caps
• Key-controlled switch for disconnecting and protecting the battery and all circuits of a vehicle
• The versions with separate coil supply enable the disconnection of any other circuits, e.g. dropside hoist
• The switches can also be used to protect cables with a large current capacity, e.g. cables for starters, electromagnetic retarders, etc.
• Connection bolt M10 (galvanised brass), nuts for contacts brass.
• Temperature range from: -30°C - Temperature range to: +60°C
• Capacity at 24V: 2500 A max 5 sek./Dauerbelastung 250A

Item Attributes:
for manufacturer: mit sep.Spule
Mounting Type: Bolted
Connecting thread: 2 x M5 Spule / 4 x M10 Batterie
Voltage: 24 V
Temperature range from: -30 °C
Temperature range to: +60 °C
Capacity at 24V: 2500 A max 5 sek. / Dauerbelastung 250A
DIN/ISO: 40050-IP65
Number of pins: 2 -pin connector
Assembly by qualified personnel required!
