Description

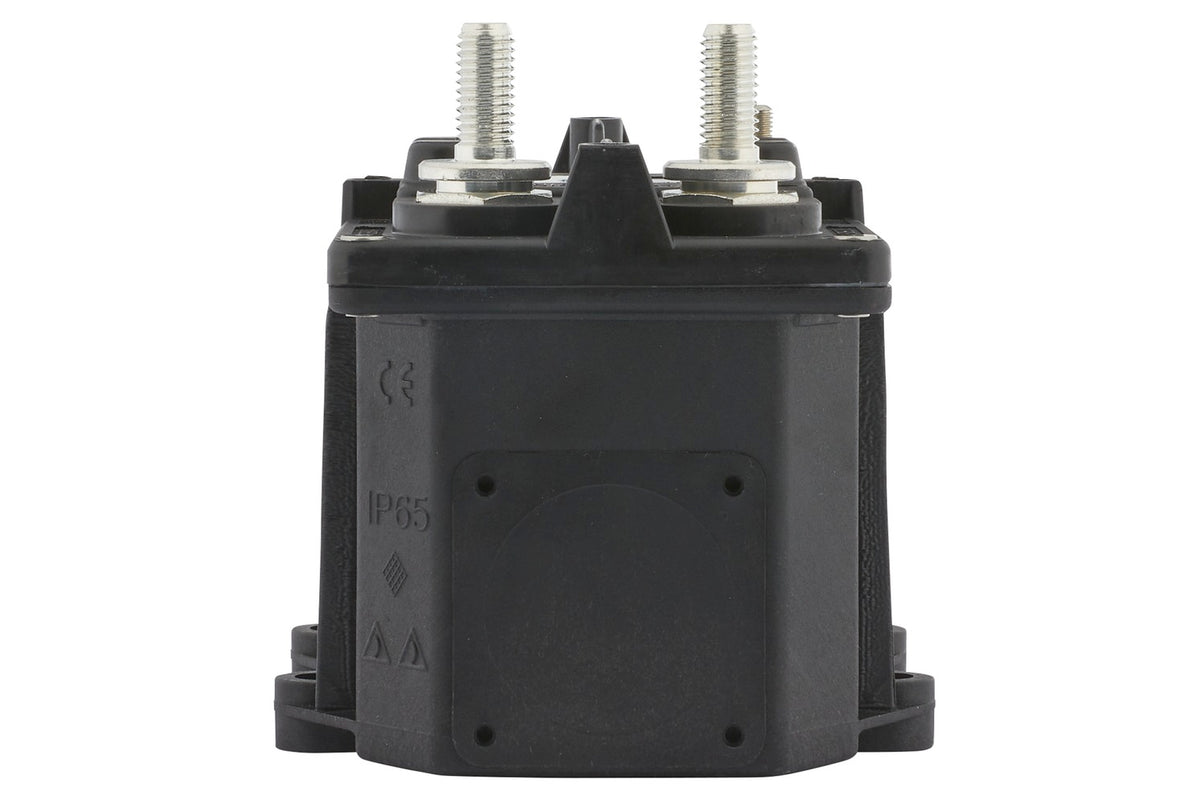

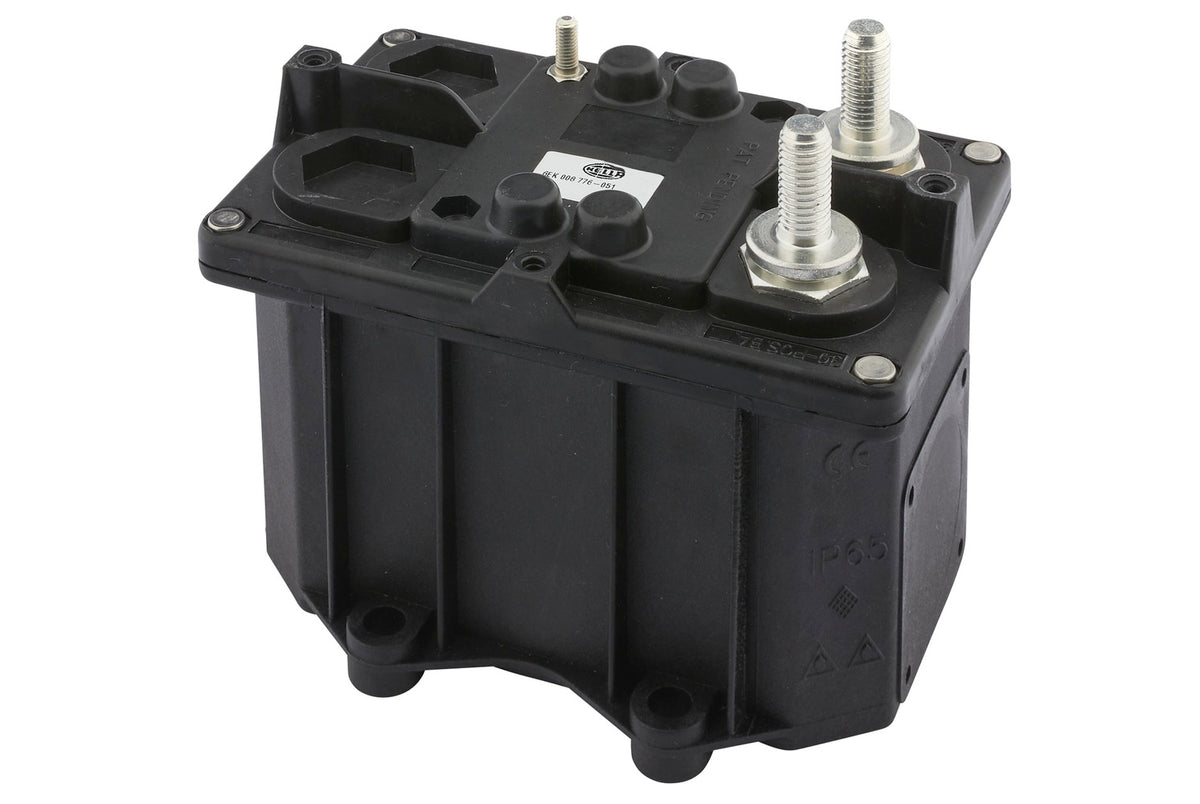

Main Switch, battery - 24V - Bolted

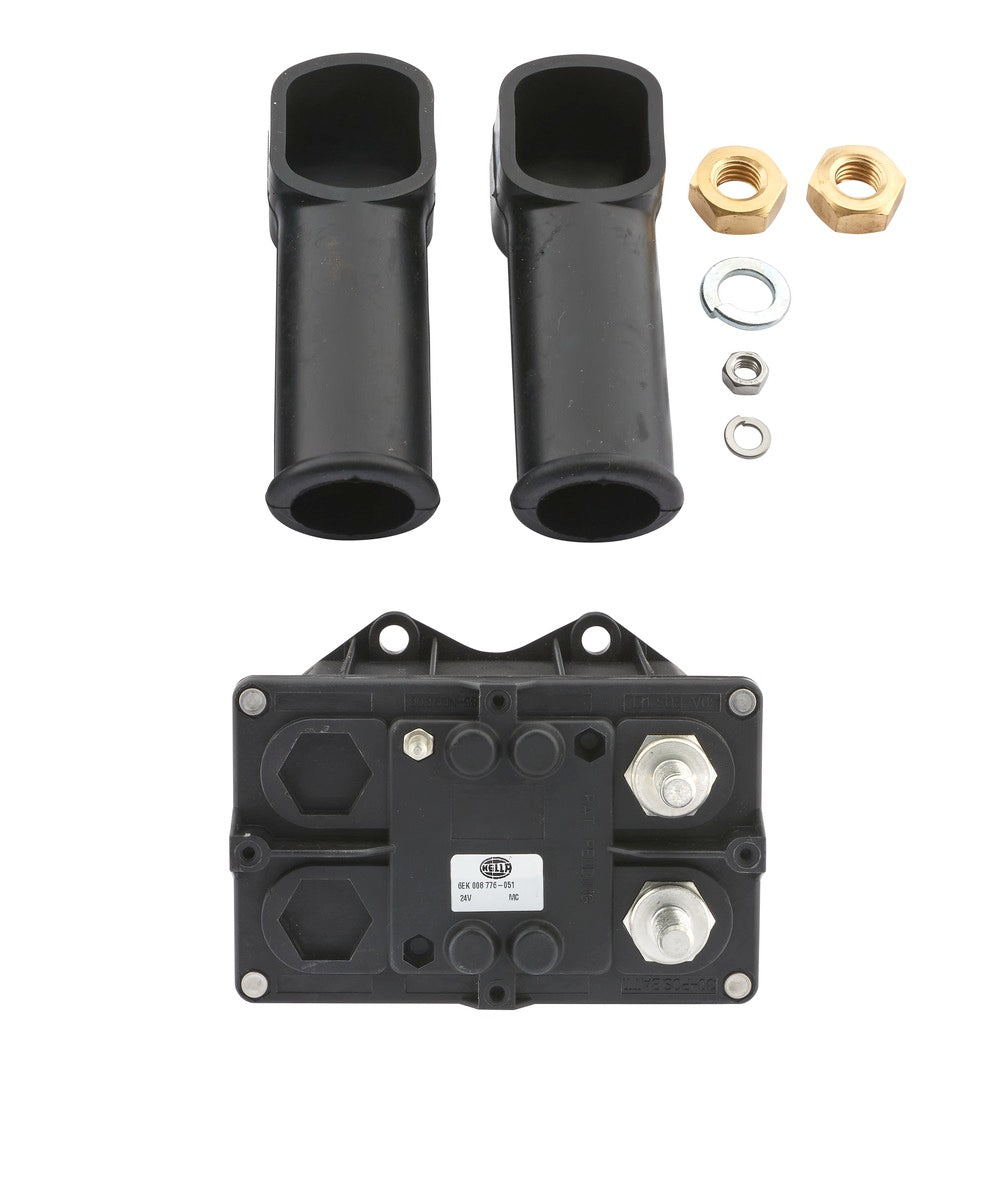

- With 2 protective caps
- Key-controlled switch for disconnecting and protecting the battery and all circuits of a vehicle
- The versions with separate coil supply enable the disconnection of any other circuits, e.g. dropside hoist
- The switches can also be used to protect cables with a large current capacity, e.g. cables for starters, electromagnetic retarders, etc.
- Connection bolt M10 (galvanised brass), nuts for contacts brass.
- Temperature range from: -30°C - Temperature range to: +60°C
- Capacity at 24V: Dauerbelastung 250A
Item Attributes:
for manufacturer: 2500 A max 5 sek. / trennt + Pol
Mounting Type: Bolted
Connecting thread: 2 x M10 Batterie / 1 x M5 Spule
Voltage: 24 V
Temperature range from: -30 °C
Temperature range to: +60 °C
Capacity at 24V: Dauerbelastung 250A
DIN/ISO: 40050-IP65
Assembly by qualified personnel required!
OE references: MASSEY FERGUSON 080945 00; SCANIA 2303111; TATRA 443 400 399; TATRA 443400399000
