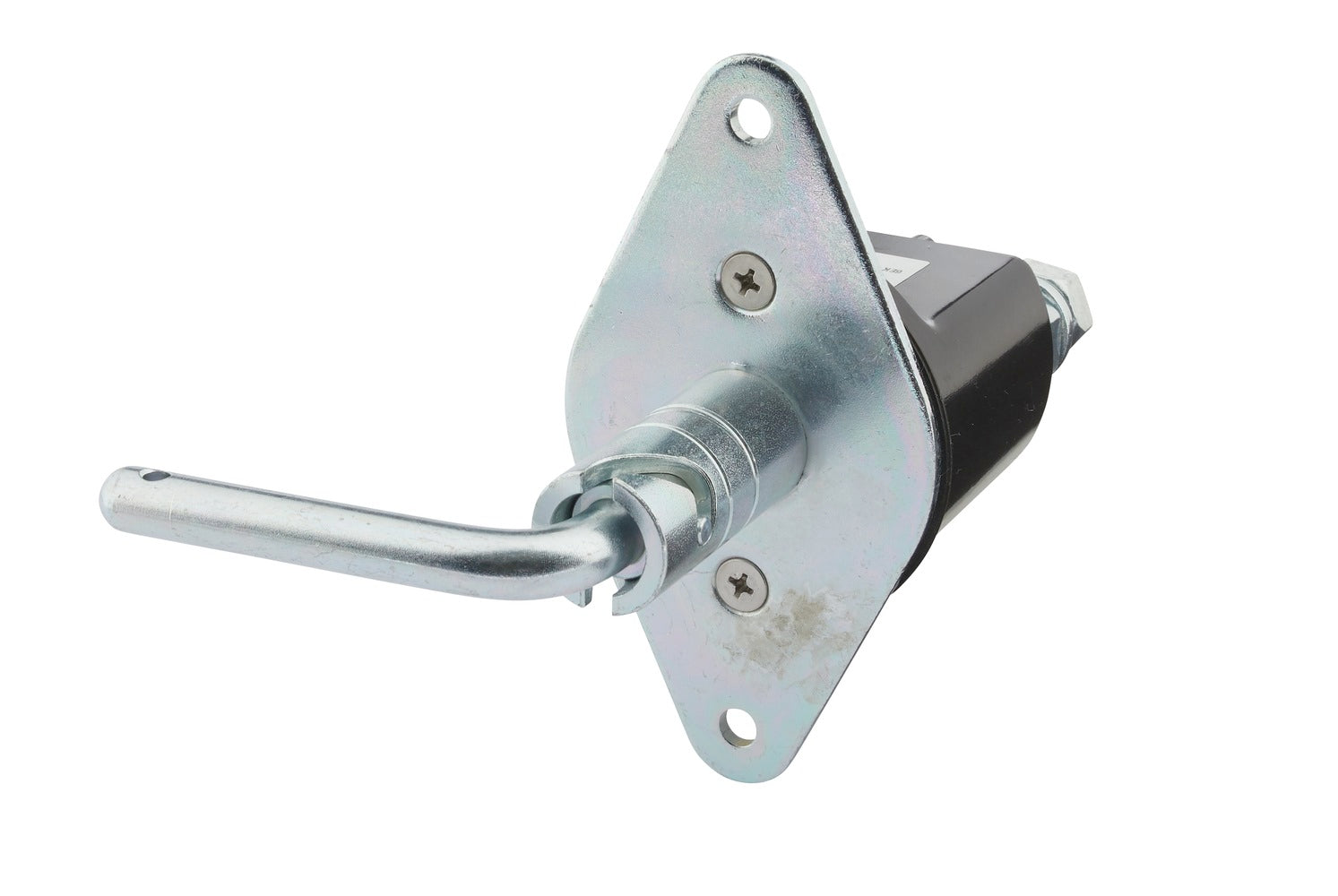

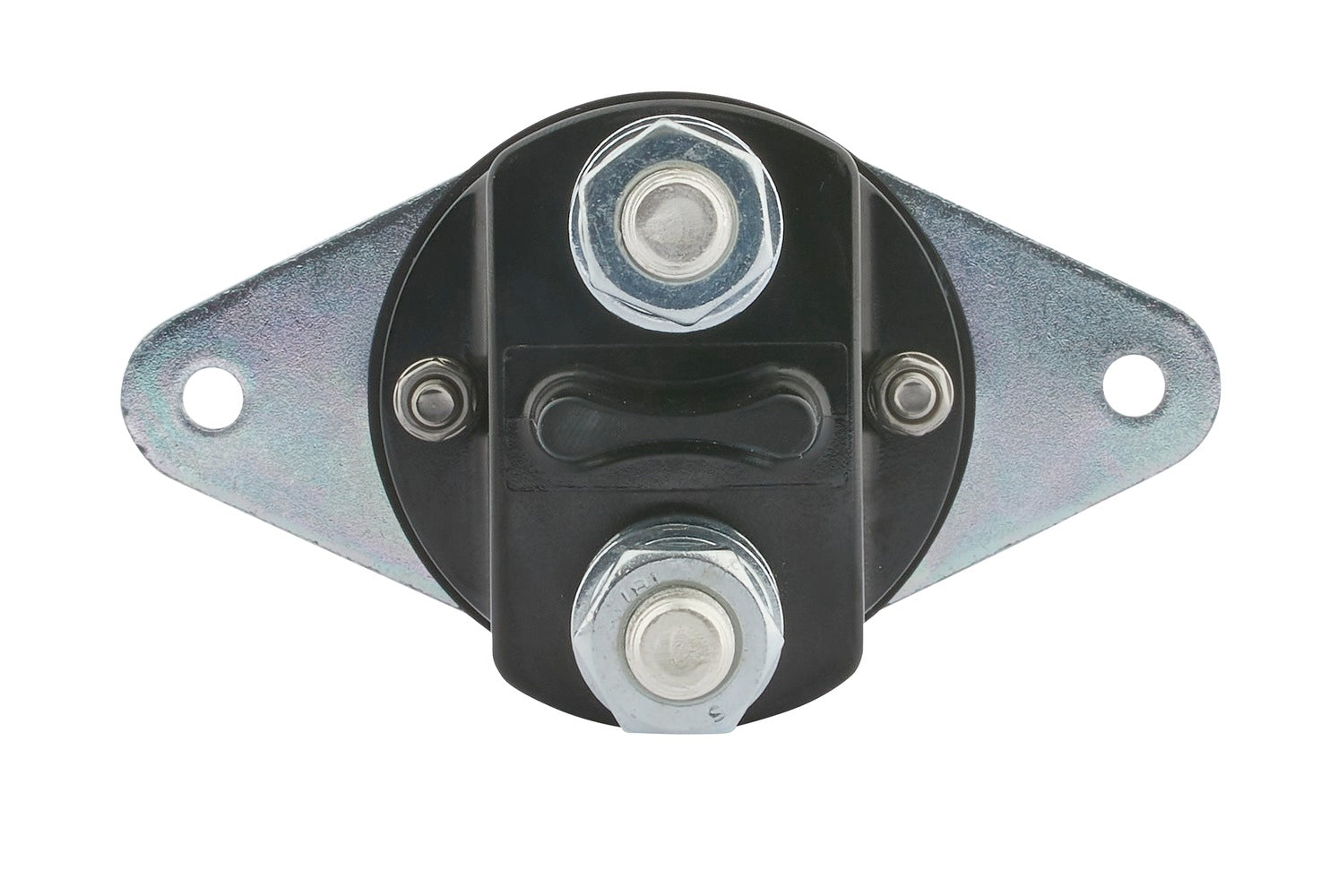

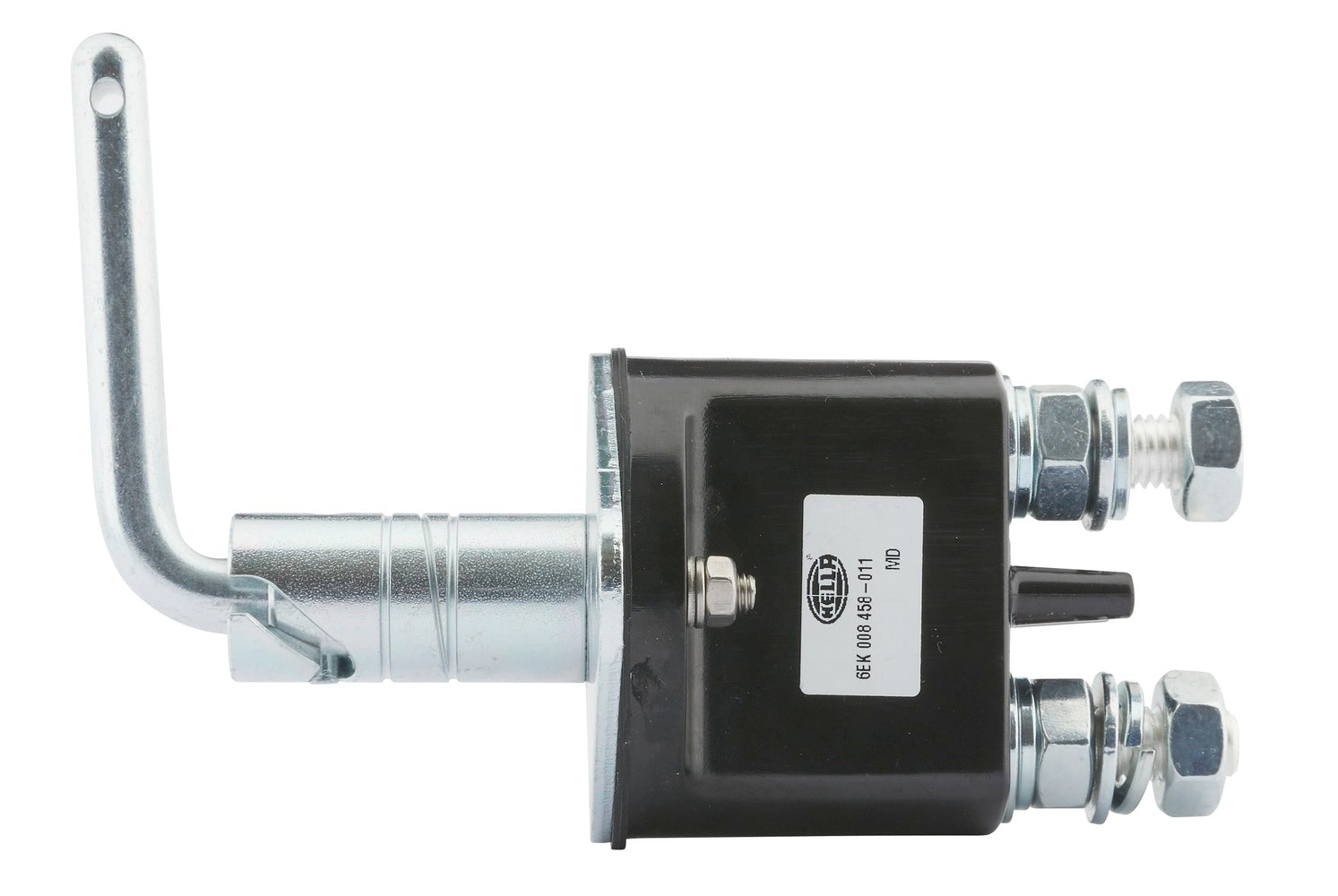

HELLA Main Switch, battery - Rotary Operation - 12V - Number of connectors: 2 6EK008458-011

Main Switch, battery - Rotary Operation - 12V - Number of connectors: 2 - Bolted - Normally Open Contact - Thread Pitch: 1.5mm - with nuts

At HELLA we offer you a wide range of different switches for every function. Whether rotary switches, indicator switches, alarm switches, glow and starter switches, ignition starter switches, multi-function switches, isolators, dimmer foot switches or pushbutton and plunger switches - we have an extensive range for everything that needs to be switched on or off in vehicles. Our counters have one thing in common: The high quality! HELLA's battery disconnectors provide effective safety against theft and fire hazards in the event of accidents in the agricultural and construction machinery industry, for example. Simply pressing the key forcibly closes the vehicle's circuit between the battery, starter and other consumers. Opening (separation) is effected by a return spring. An indispensable safety factor.

• Battery switch for battery main line, with switch key - key without loss protection
• Optionally plus or minus line can be switched off, key can be removed in "Off" position
• 2 screw connections, contains 2 screw nuts per bolt
• Capacity at 24V: max2500 A/10 sek/24V
• DIN/ISO: 40050

Item Attributes:
Mounting Type: Bolted
Connecting thread: M10
Number of connectors: 2
Capacity at 24V: max2500 A/10 sek/24V
Actuation Type: Rotary Operation
DIN/ISO: 40050
Thread Pitch: 1.5 mm
Switch Function: Normally Open Contact
Voltage: 12 V
Rated Current: 250 A
Supplementary Article/Supplementary Info: with nuts
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AMAZONE NG084; BARKAS EP-0003130; FORD V1C4414526A; HITACHI YA0000584500; JOHN DEERE YA00005845; KRONE 200817450; SANY 21027129; SCANIA SP1068262; TEREX 20028109; VDL 30016214; ZOOMLION 1020511111
