Description

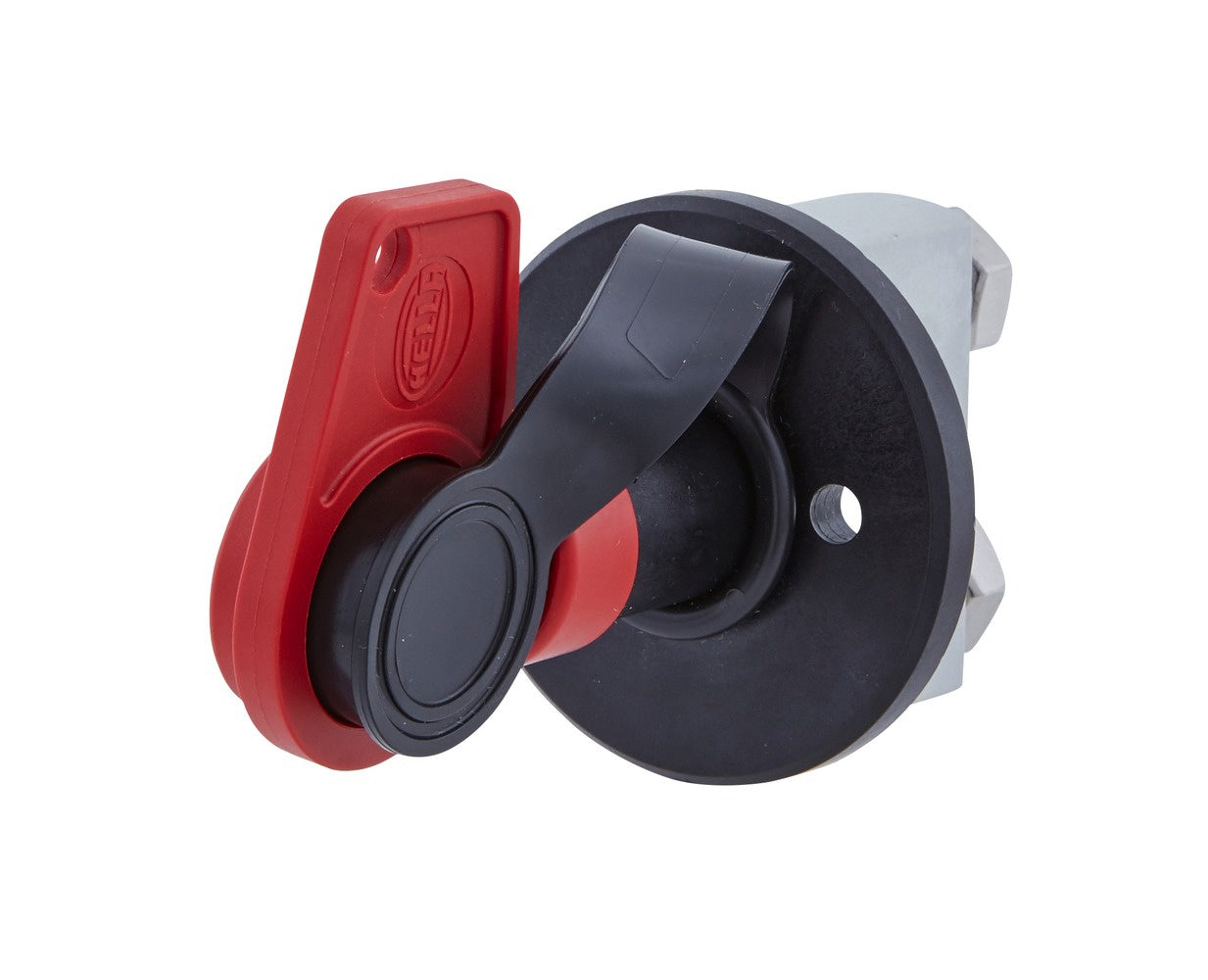

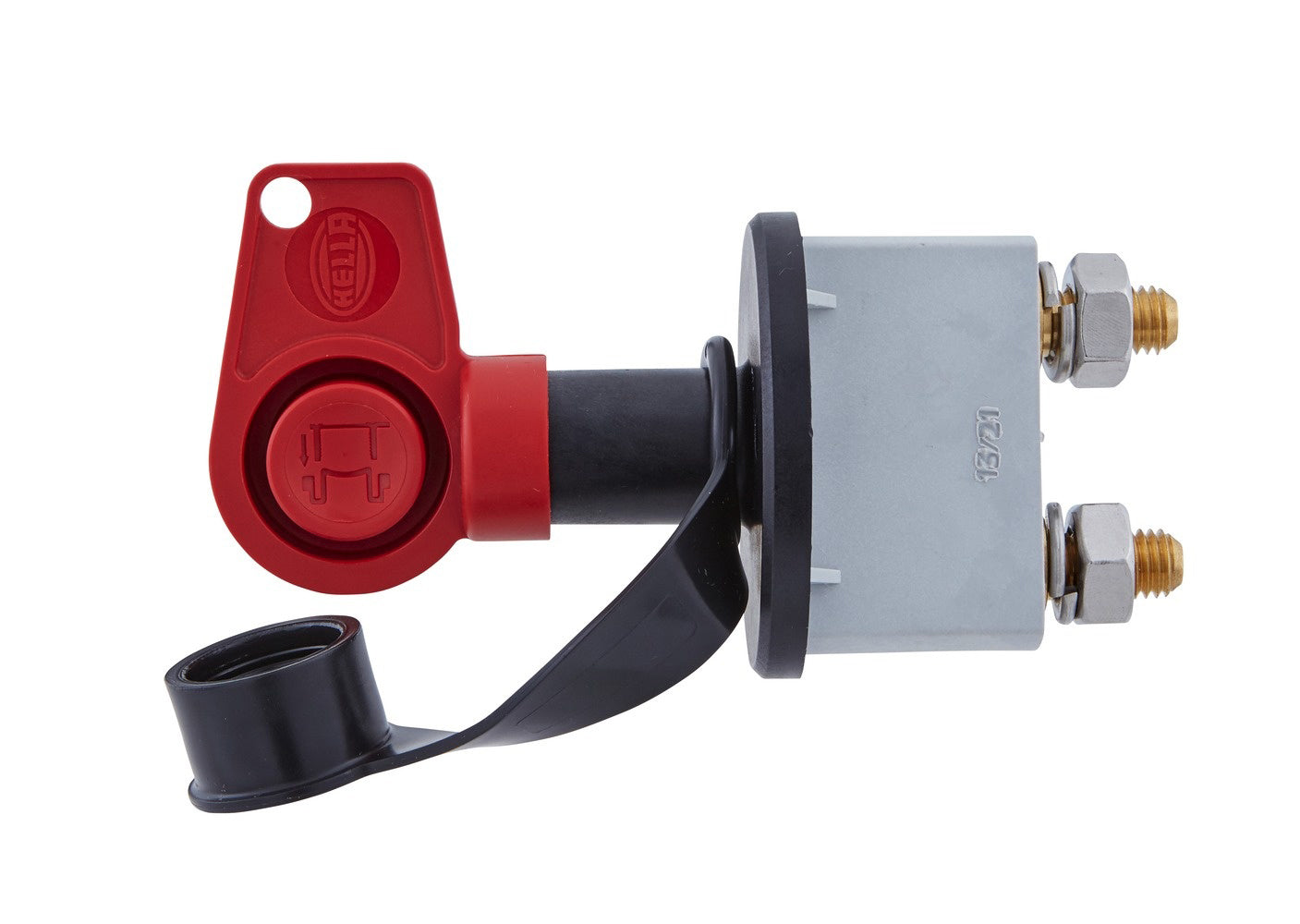

Main Switch, battery - Rotary Operation - 24V - Bolted - Normally Open Contact - round - Brass
- For battery and ignition current, switching key red.
- Plastic housing and switch button

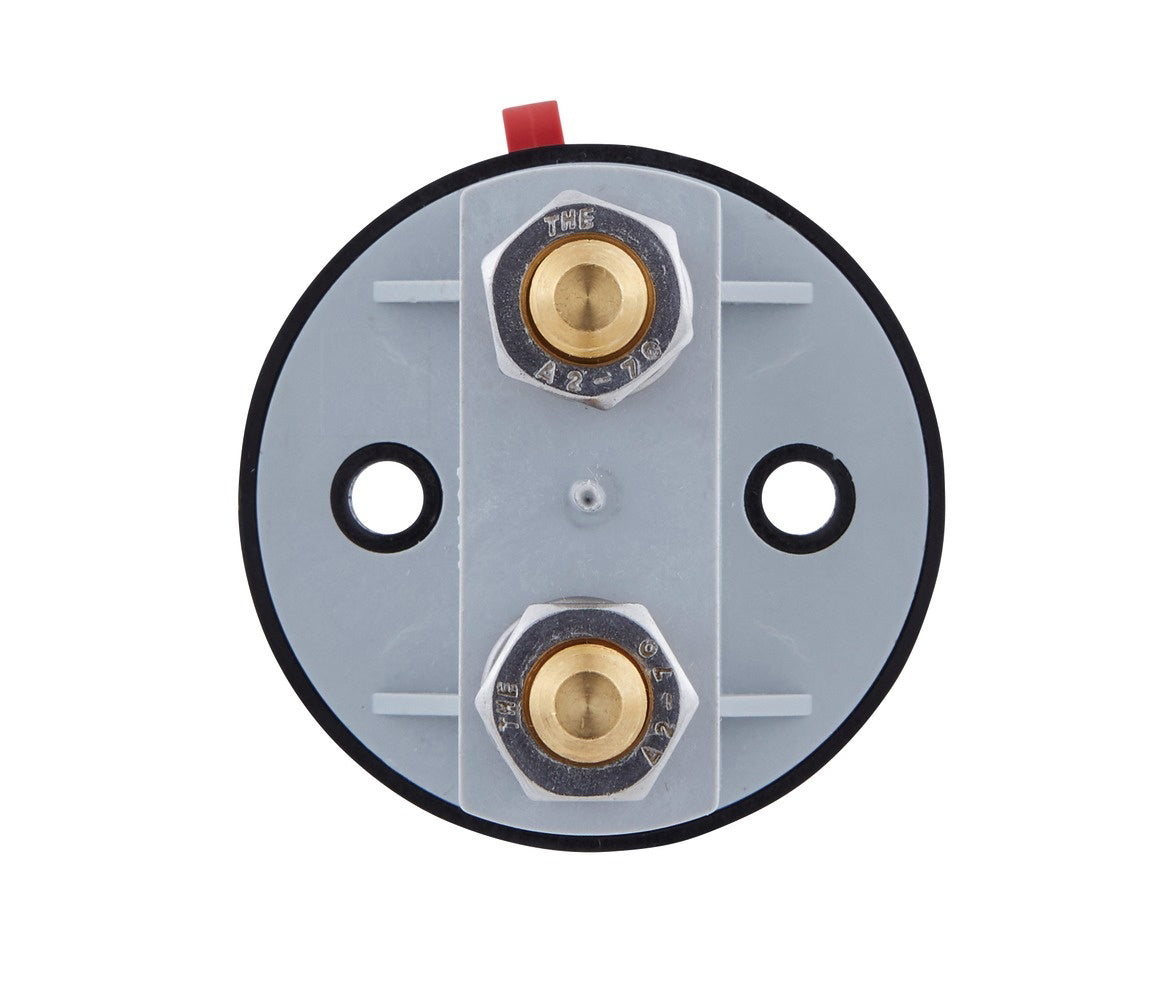

- Screw fixing. 2 screw connections M10 x 1.5. 2 switching positions: 0 = off, 1 = on
- Starting cross-sections of the supply lines at continuous current: 35 mm² at 100A, 70 mm² at 250A, 250 mm² at 500A.
- Replacement key: 9SL 706 729-031
- Capacity at 24V: 2000A/5 sek.
- Prot.type (IP Code): IP69K - DIN/ISO: 40050
Item Attributes:
Mounting Type: Bolted
Connecting thread: M10x1,5
Voltage: 24 V
Capacity at 24V: 2000A/5 sek.
Actuation Type: Rotary Operation
DIN/ISO: 40050
Prot.type (IP Code): IP69K
Shape: round
Material: Brass
Switch Function: Normally Open Contact
Rated Current: 250 A
Assembly by qualified personnel required!
OE references: HOLDER 138306; KRAMER 1000358583; KRONE 515077994; LANGENDORF 1334563; LIEBHERR 9 000 021 99
