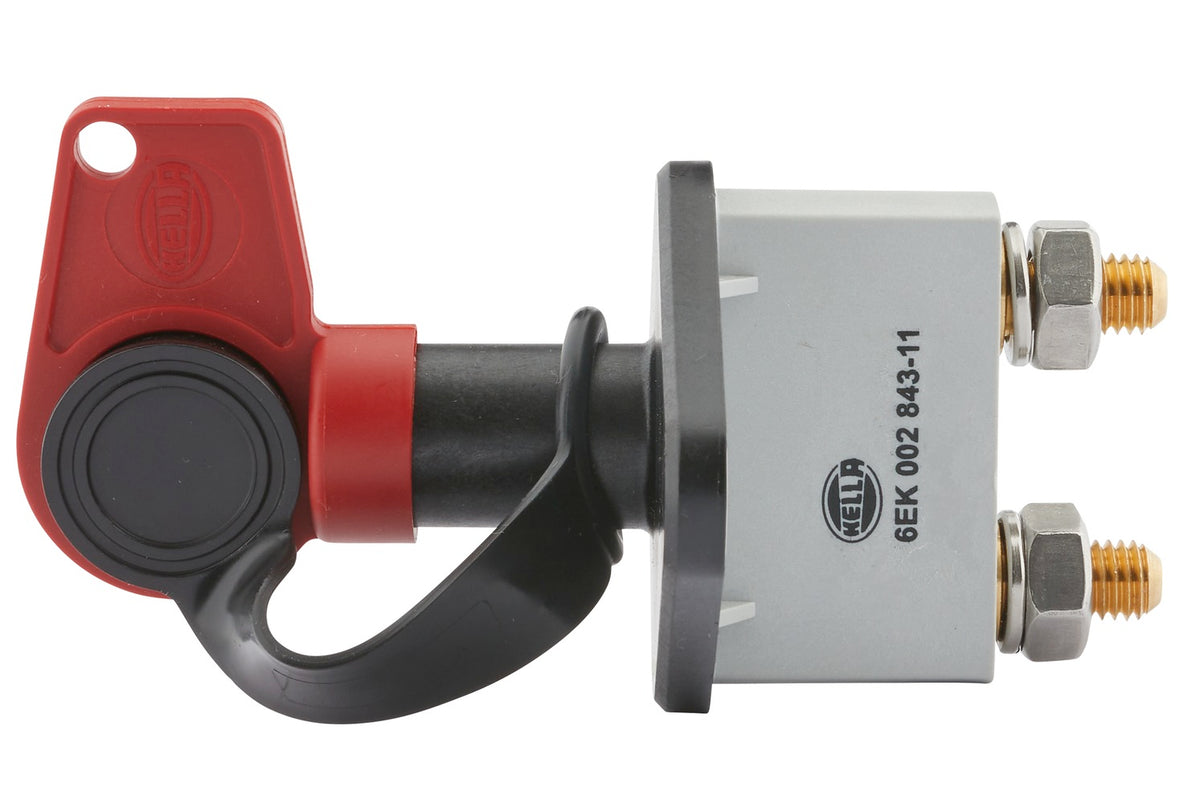

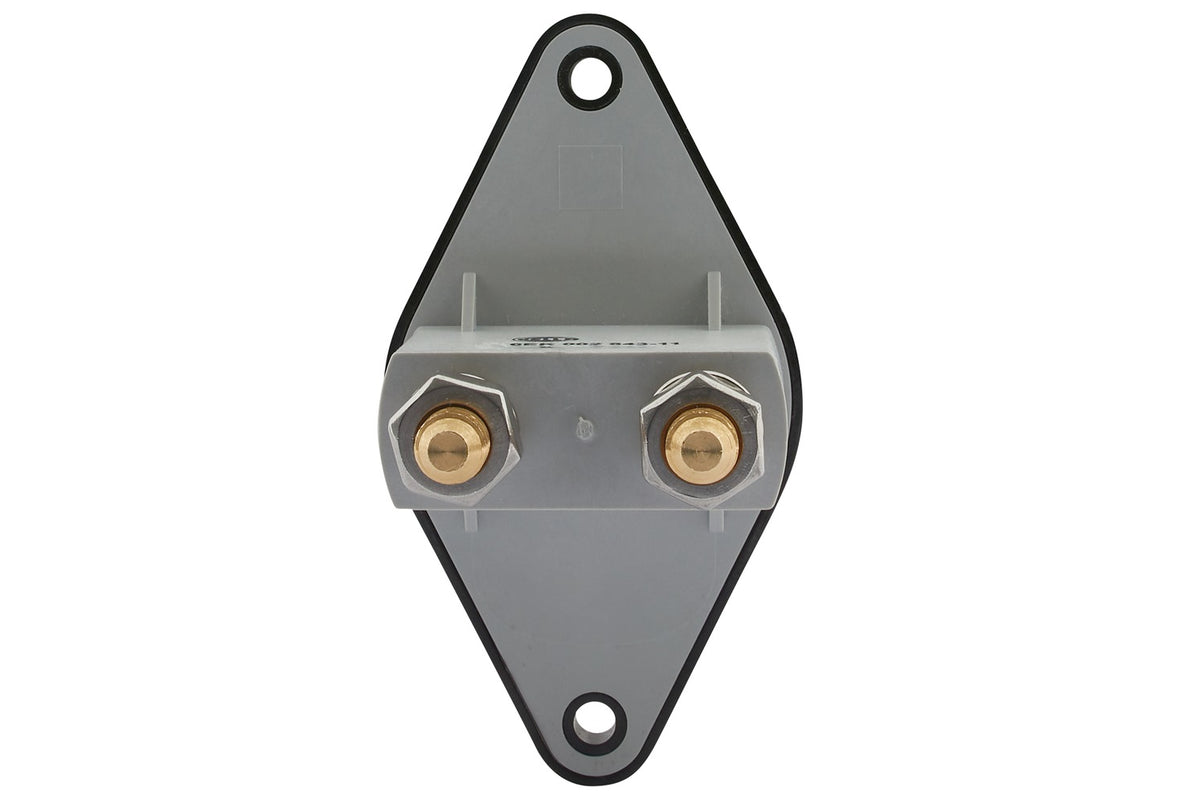

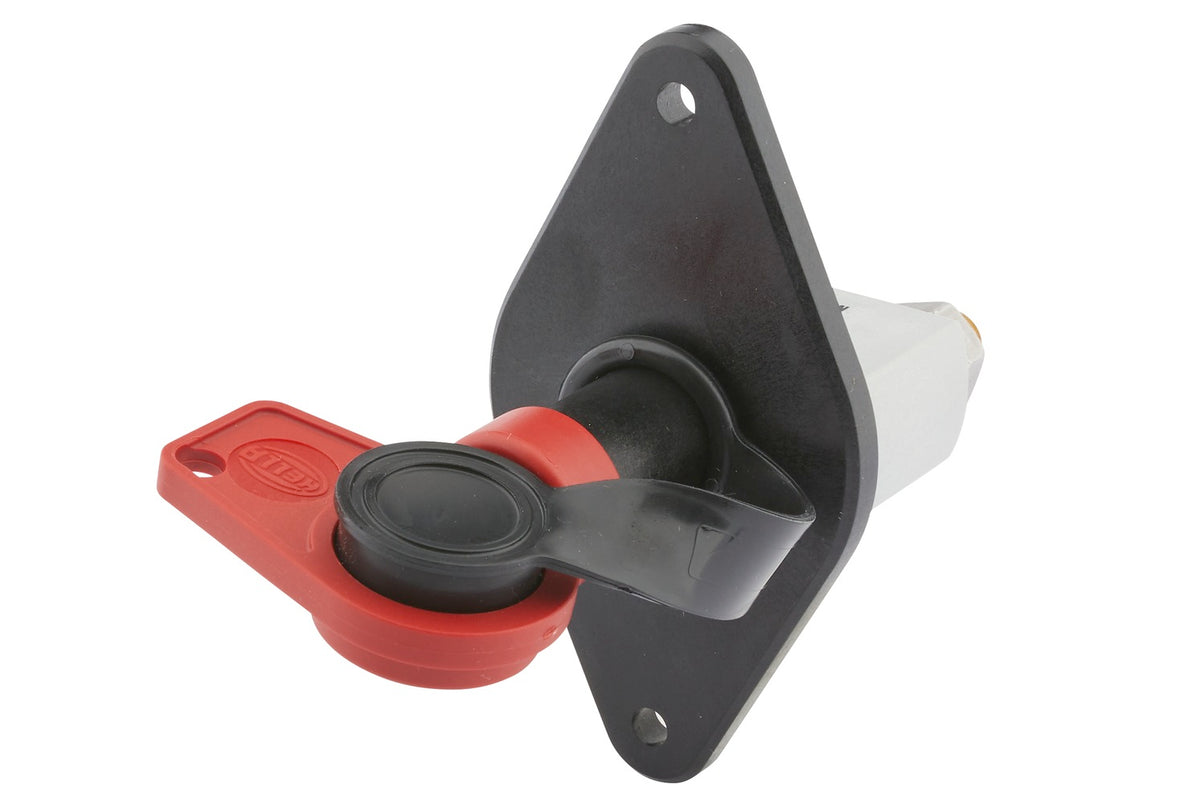

HELLA Main Switch, battery - Rotary Operation - 24V - Number of connectors: 2 6EK002843-111

Main Switch, battery - Rotary Operation - 24V - Number of connectors: 2 - Bolted - Normally Open Contact - oval - Brass

• For battery and ignition current, switching key red.
• Plastic housing and switch button
• Screw fixing. 2 screw connections M10 x 1.5. 2 switching positions: 0 = off, 1 = on
• Starting cross-sections of the supply lines at continuous current: 35 mm² at 100A, 70 mm² at 250A, 250 mm² at 500A.
• Replacement key: 9SL 706 729-031
• Capacity at 24V: 2000A/5 sek.
• Prot.type (IP Code): IP69K - DIN/ISO: 40050

Item Attributes:
Mounting Type: Bolted
Connecting thread: M10x1,5
Voltage: 24 V
Number of connectors: 2
Capacity at 24V: 2000A/5 sek.
Actuation Type: Rotary Operation
DIN/ISO: 40050
Prot.type (IP Code): IP69K
Shape: oval
Material: Brass
Switch Function: Normally Open Contact
Rated Current: 250 A
Assembly by qualified personnel required!

OE references: SOLARIS BX0202750500
