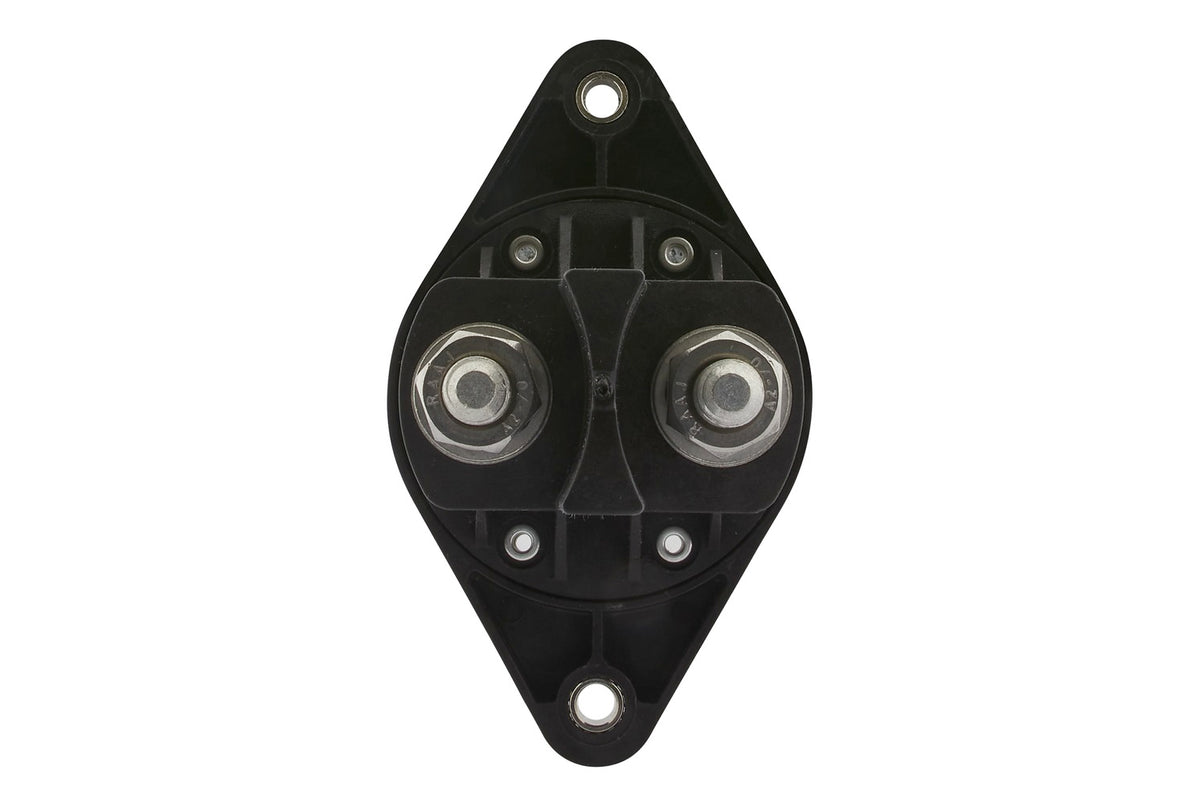

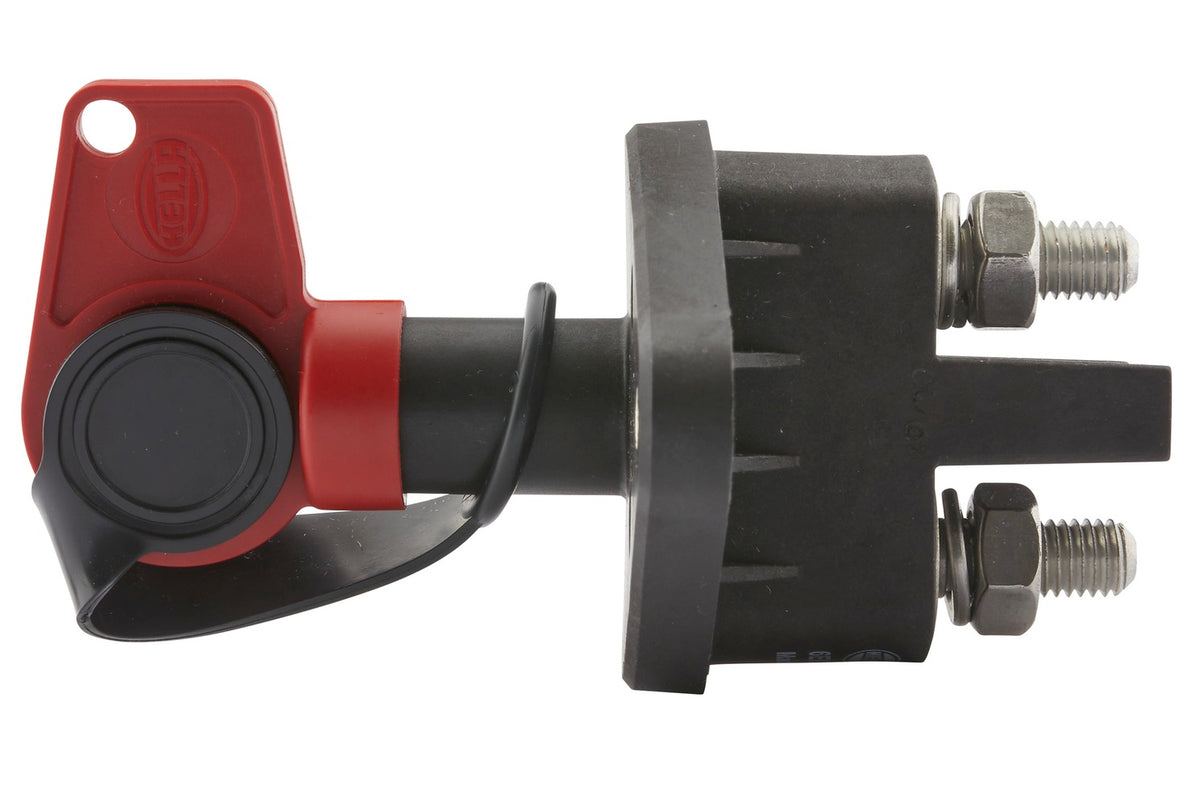

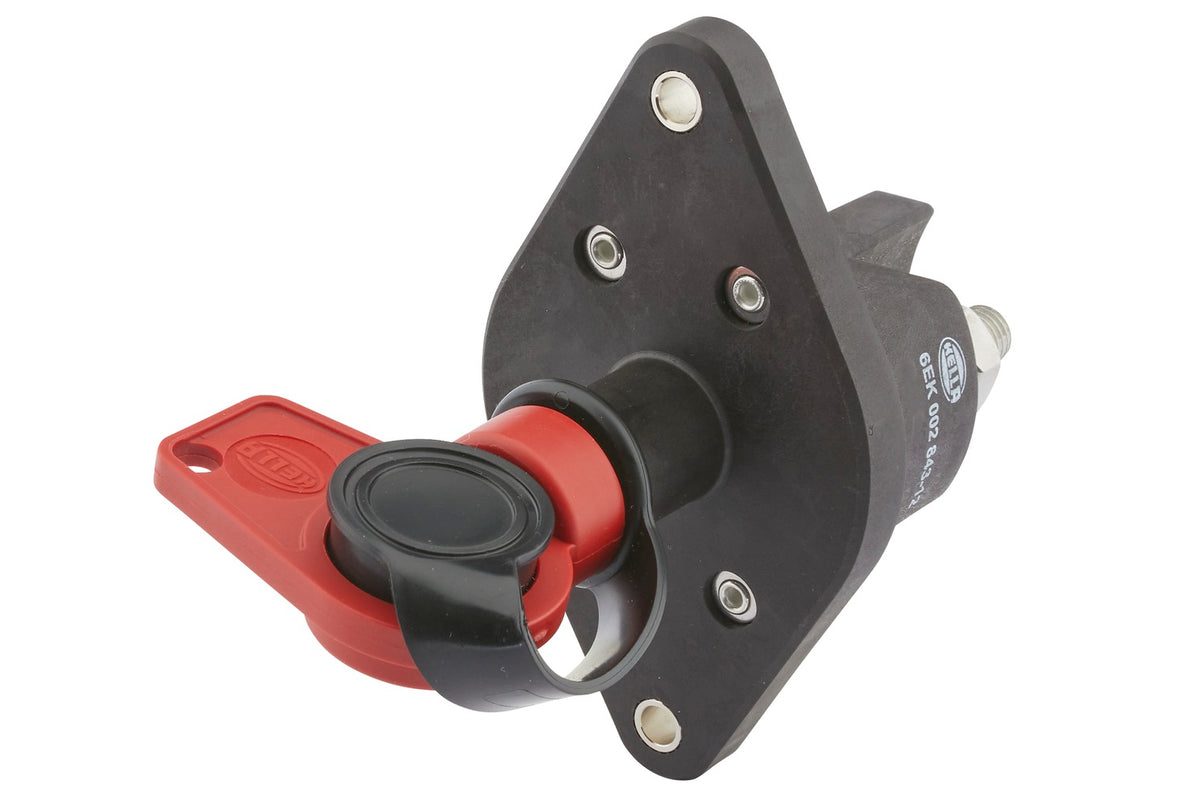

HELLA Main Switch, battery - Rotary Operation - 24V - Number of connectors: 2 6EK002843-121

Main Switch, battery - Rotary Operation - 24V - Number of connectors: 2 - Bolted - Normally Open Contact - oval

• For battery and ignition current, switching key red.
• Plastic housing and switch button
• Screw fixing. 2 screw connections M10 x 1.5. 2 switching positions: 0 = off, 1 = on
• Starting cross-sections of the supply lines at continuous current: 35 mm² at 100A, 70 mm² at 250A, 250 mm² at 500A.
• Replacement key: 9SL 706 729-031
• Capacity at 24V: 1500A/4 min./2000A/1,5 min./2500A/10 sek.
• Prot.type (IP Code): IP65 - DIN/ISO: IEC 529

Item Attributes:
for manufacturer: CuZn39 F44, gal Sn
Mounting Type: Bolted
Connecting thread: M10x1,5
Voltage: 24 V
Number of connectors: 2
Capacity at 24V: 2000A/1,5 min. / 2500A/10 sek. / 1500A/4 min.
Actuation Type: Rotary Operation
DIN/ISO: IEC 529
Prot.type (IP Code): IP65
Shape: oval
Switch Function: Normally Open Contact
Rated Current: 500 A
Assembly by qualified personnel required!
