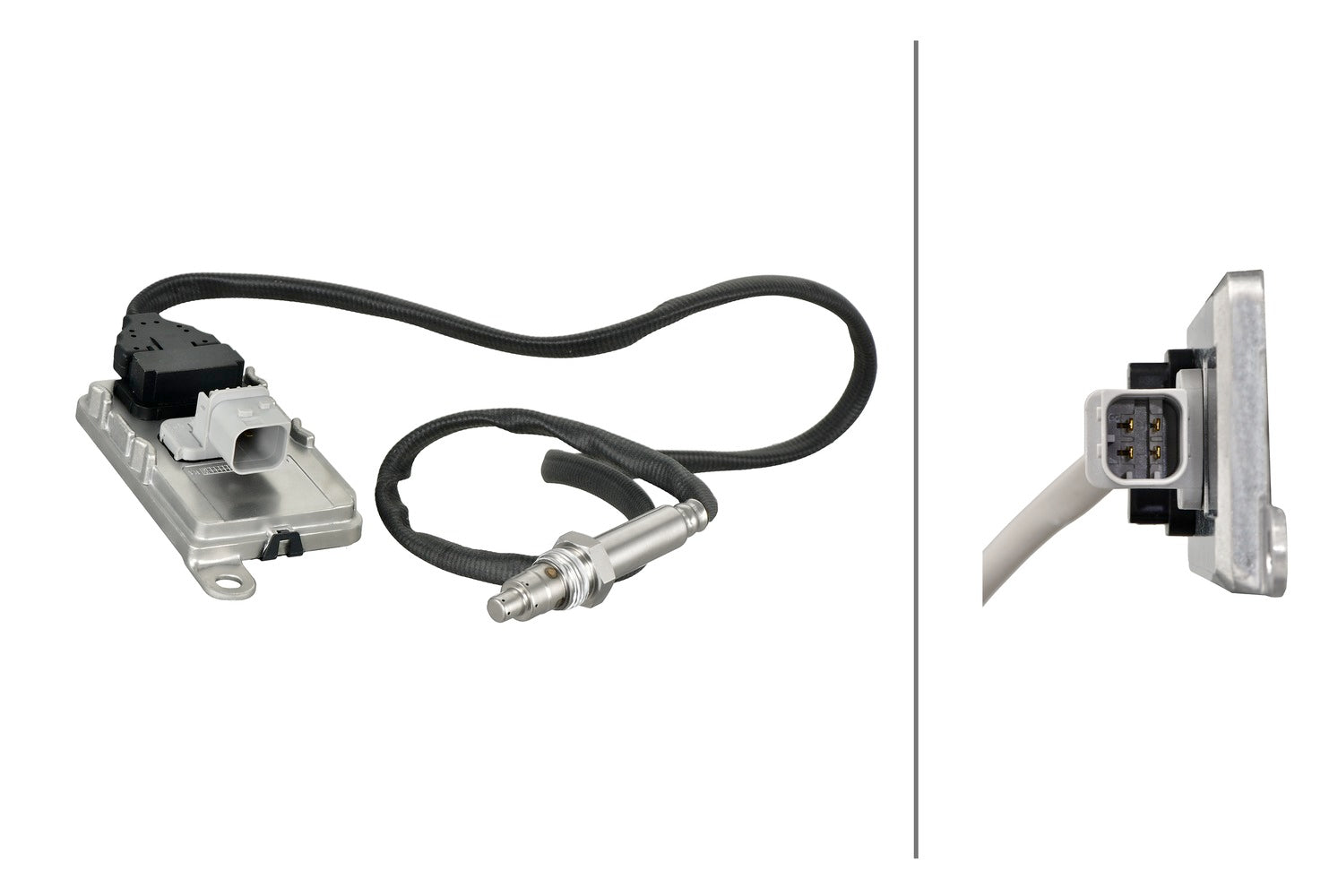

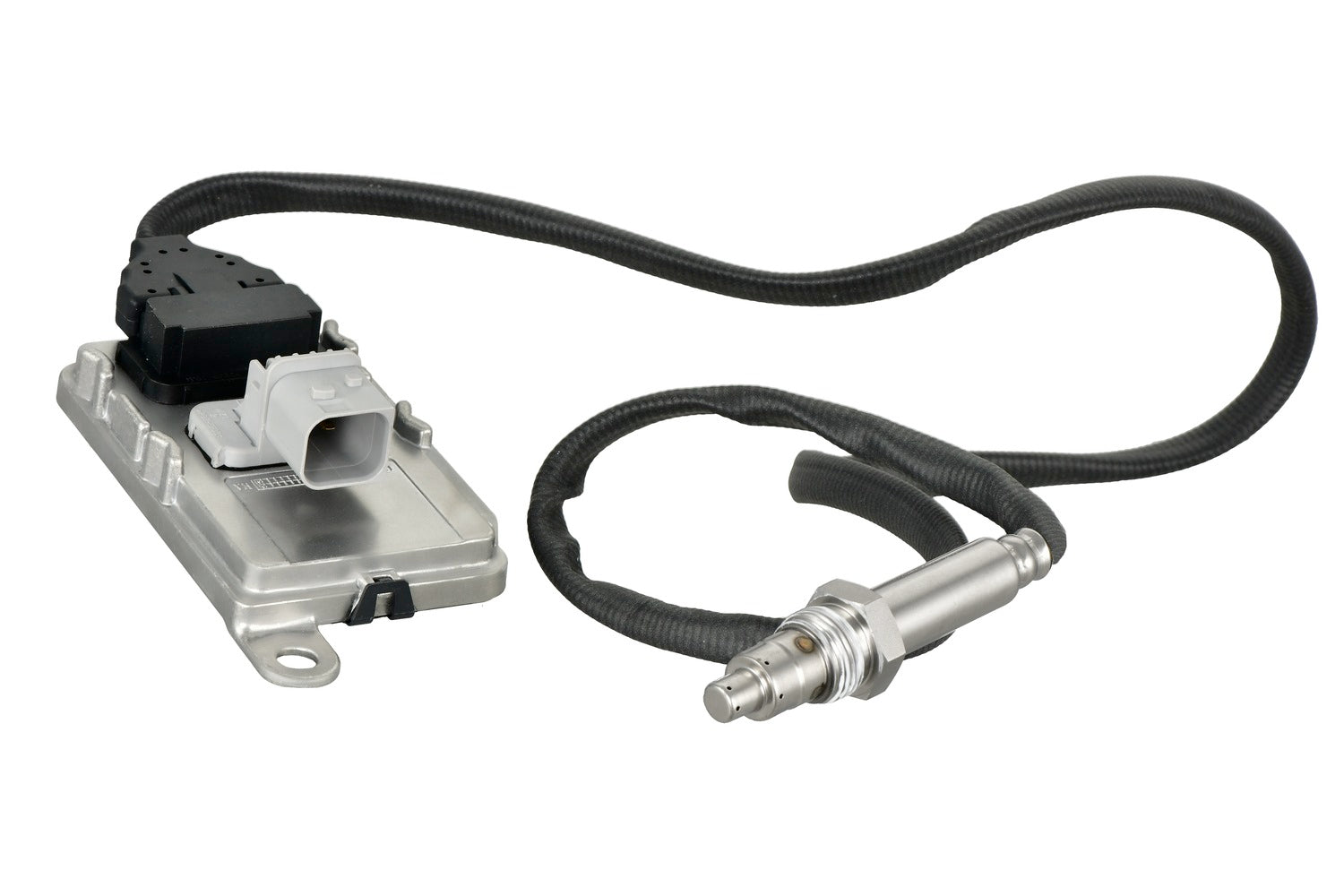

HELLA NOx Sensor, NOx catalytic converter - 24V - 4-pin connector 6PN358186-751

NOx Sensor, NOx catalytic converter - 24V - 4-pin connector

Application: Wide range available for commercial vehicles with different part numbers and suitable for the most common 24 V applications: DAF, Mercedes-Benz, MAN, Scania, Volvo, Renault, Iveco. Design and function: The NOx sensor comprises a probe and a control unit. Via a cable harness these are firmly connected with each other to form a unit. This sensor unit is installed in the exhaust gas system and is used to recognise nitrogen oxides in the flow of exhaust gas. The NOx sensor is an important component in the posttreatment system to reduce NOx, which is used in diesel vehicles with urea-based SCR systems (selective catalytic reduction). The sensor enables compliance with the stringent emission values starting from Euro 5 norm onwards. Consequently the NOx sensor guarantees an optimal dosage of AdBlue by the engine system, thus bringing about an effective reduction of nitrogen oxides which are harmful to the environment. If the SCR system has an upstream and a downstream NOx sensor, the downstream one has the task of monitoring the effect of the SCR catalytic converter. Mounting: Easy to mount because of 1:1 replacements in OE quality. Installation instructions are supplied with the product.

• fits e.g. MERCEDES-BENZ ACTROS MP4 / MP5 1848 L (please check exact vehicle application)
• Length: 1134mm
• Tested in accordance with HELLA quality standards
• Complies with OEM specifications
• The product has been developed with particular attention being given to resistance to engine vibrations and also to increased temperatures
• NOx sensors are part of the standard equipment of commercial vehicles starting from Euro 5 norm onwards

Item Attributes:
Voltage: 24 V

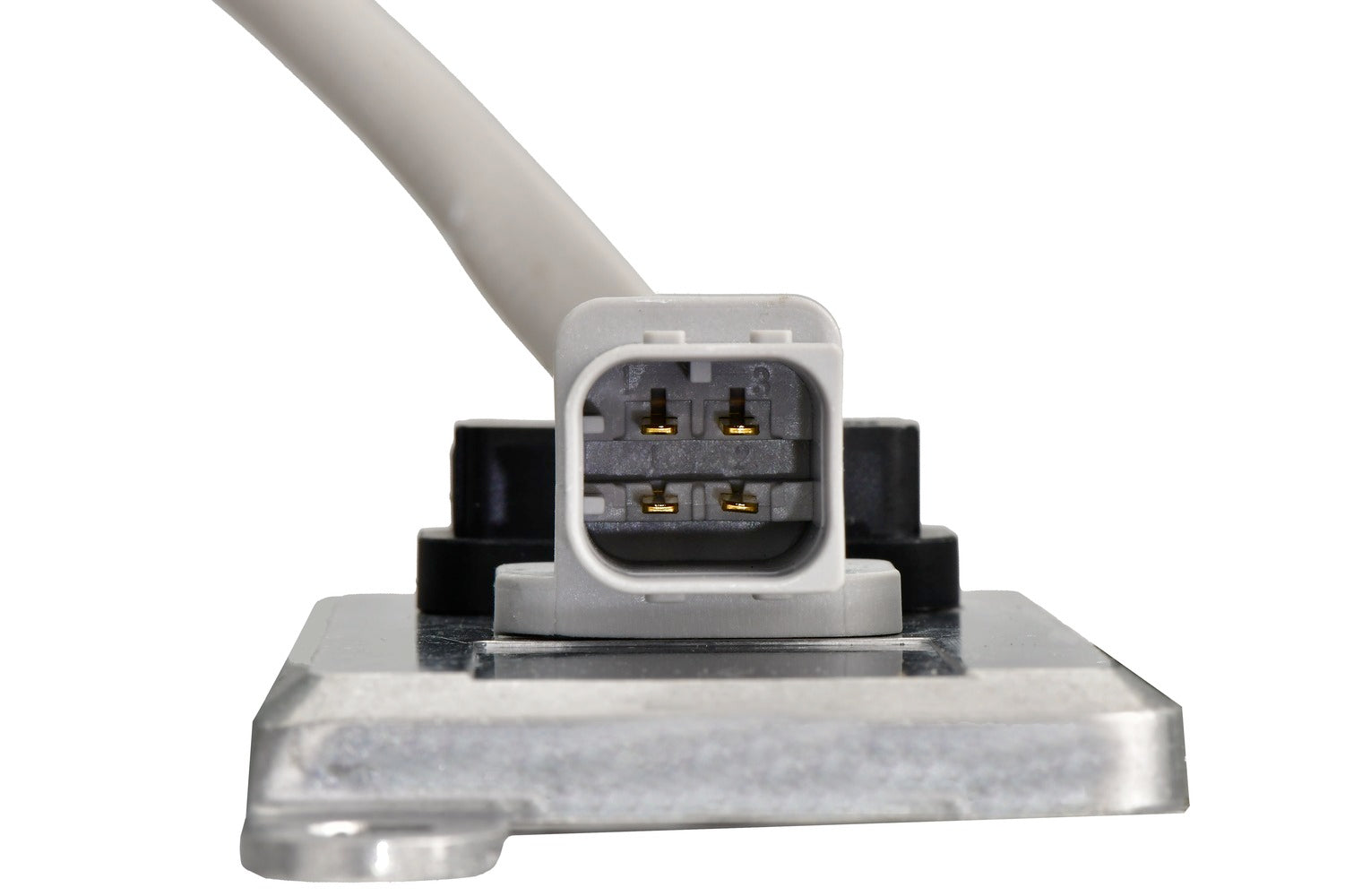

Number of pins: 4 -pin connector
Length: 1134 mm
Fitting Position: after catalytic converter

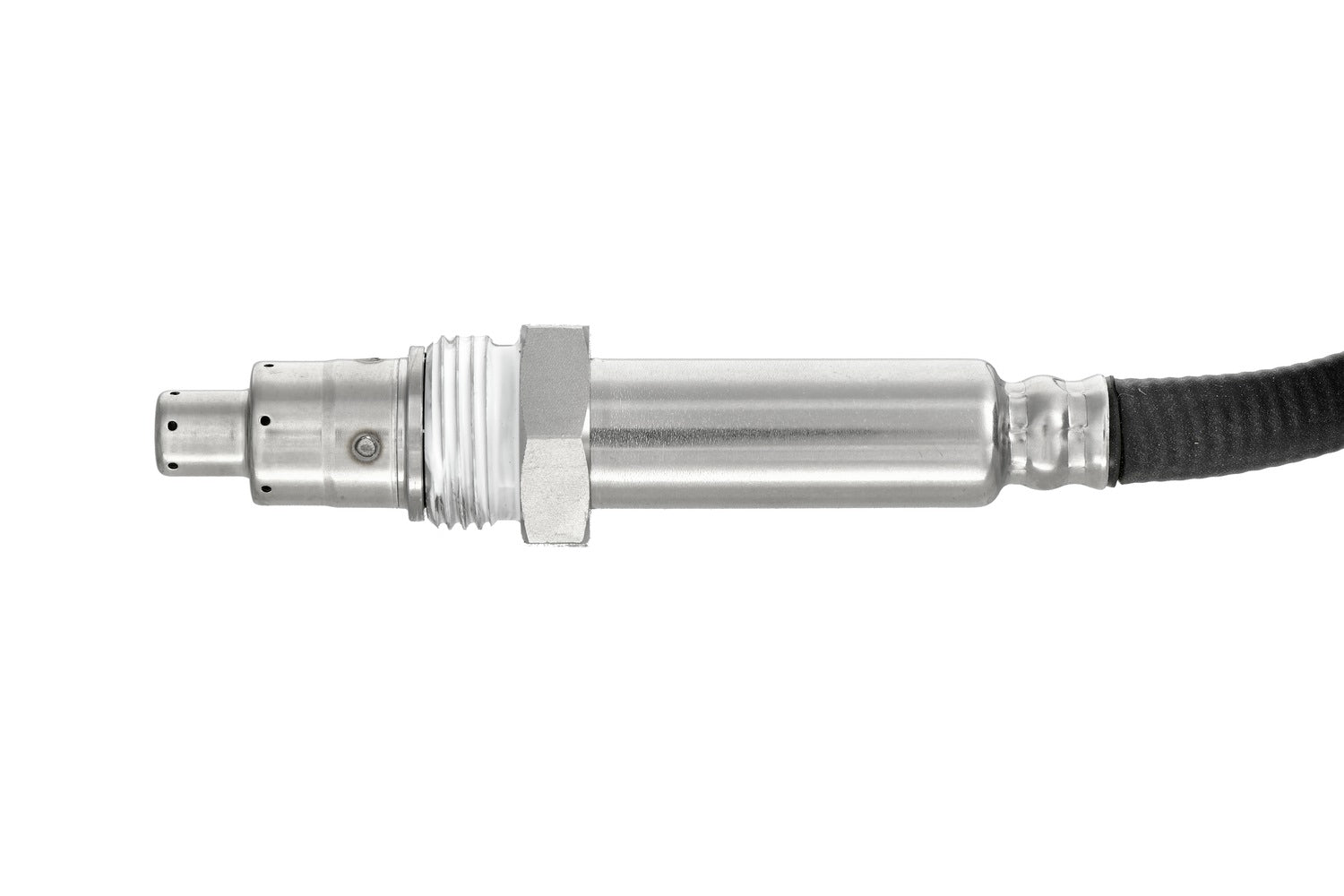

Thread Size: M20X1.5
Spanner size: 22
Quantity: 1
Assembly by qualified personnel required!

OE references: MERCEDES-BENZ 010 153 17 28 ; MERCEDES-BENZ A 010 153 17 28
