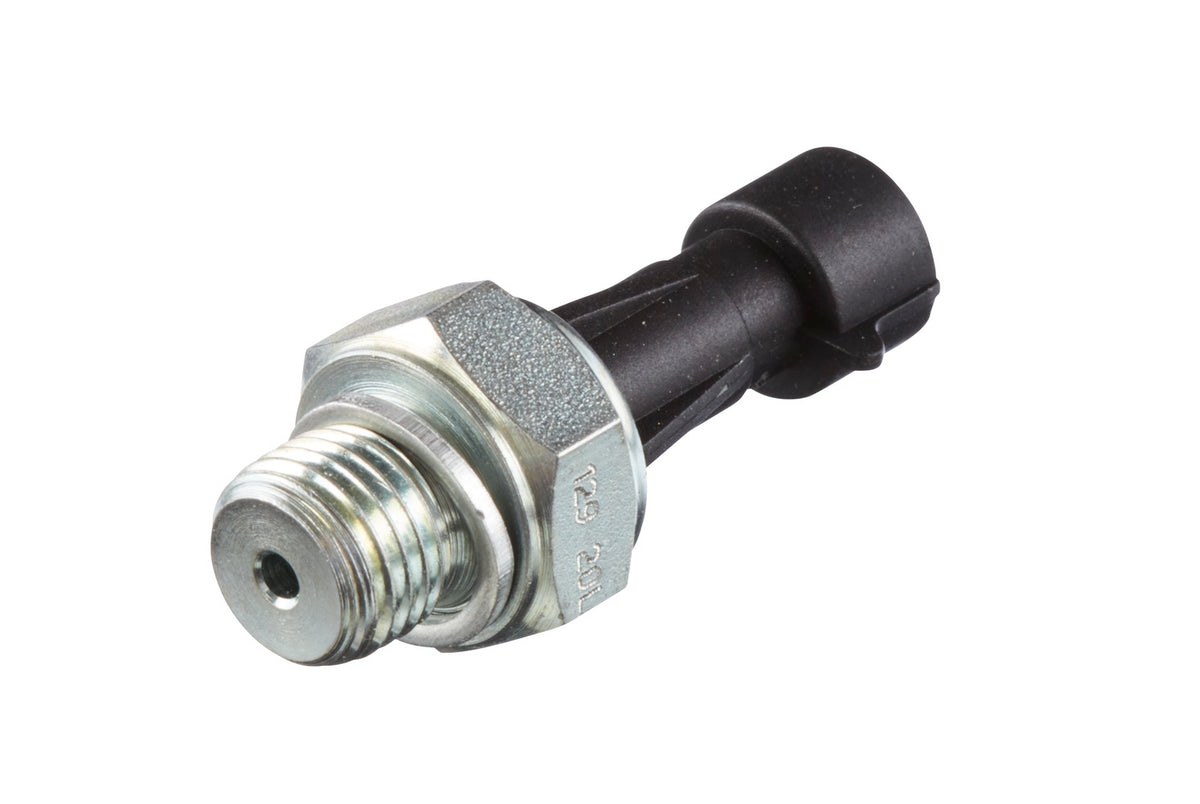

HELLA Oil Pressure Switch - 1-pin connector 6ZL009600-171

Oil Pressure Switch - 1-pin connector - Normally Open Contact

At HELLA we offer you a wide range of different switches for every function. Whether screwed, clipped or with rotary actuation, in black, silver, smooth or grained, we have an extensive range for everything that needs to be switched on or off in vehicles - and yet all our switches have one thing in common: The high quality of HELLA.

• Spanner size: 21
• Thread size M14x1.5
• Width across flats 21
• Pressure 0.6 bar
• The oil pressure switch is installed in the oil circuit of the engine and controls the oil pressure in the engine block

Item Attributes:
Pressure [bar]: 0.60 bar
Switch Function: Normally Open Contact
Thread Size: M14x1,5
Spanner Size: 21
Number of pins: 1 -pin connector
Assembly by qualified personnel required!

OE references: FERRARI 504 0267 06; FERRARI 504 3102 54; FERRARI 5801891612; FERRARI 984 4287 9; FIAT 504026706; FIAT 504310254; FIAT 5801891612; FIAT 98442879; IVECO 5001858179; IVECO 500356061; IVECO 504026706; IVECO 504071557; IVECO 504310254; IVECO 5801891612; IVECO 98442879; IVECO 98445111
