Description

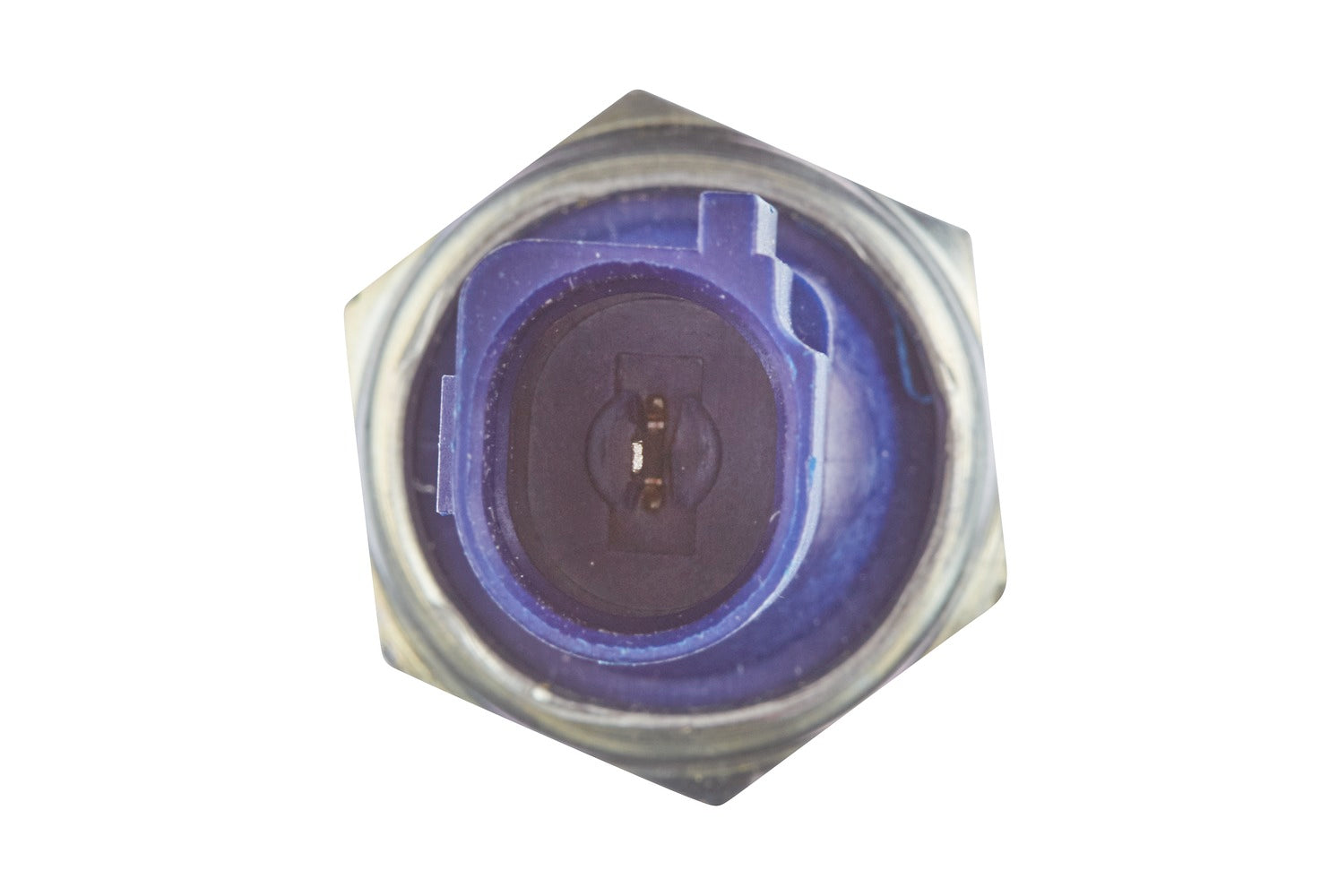

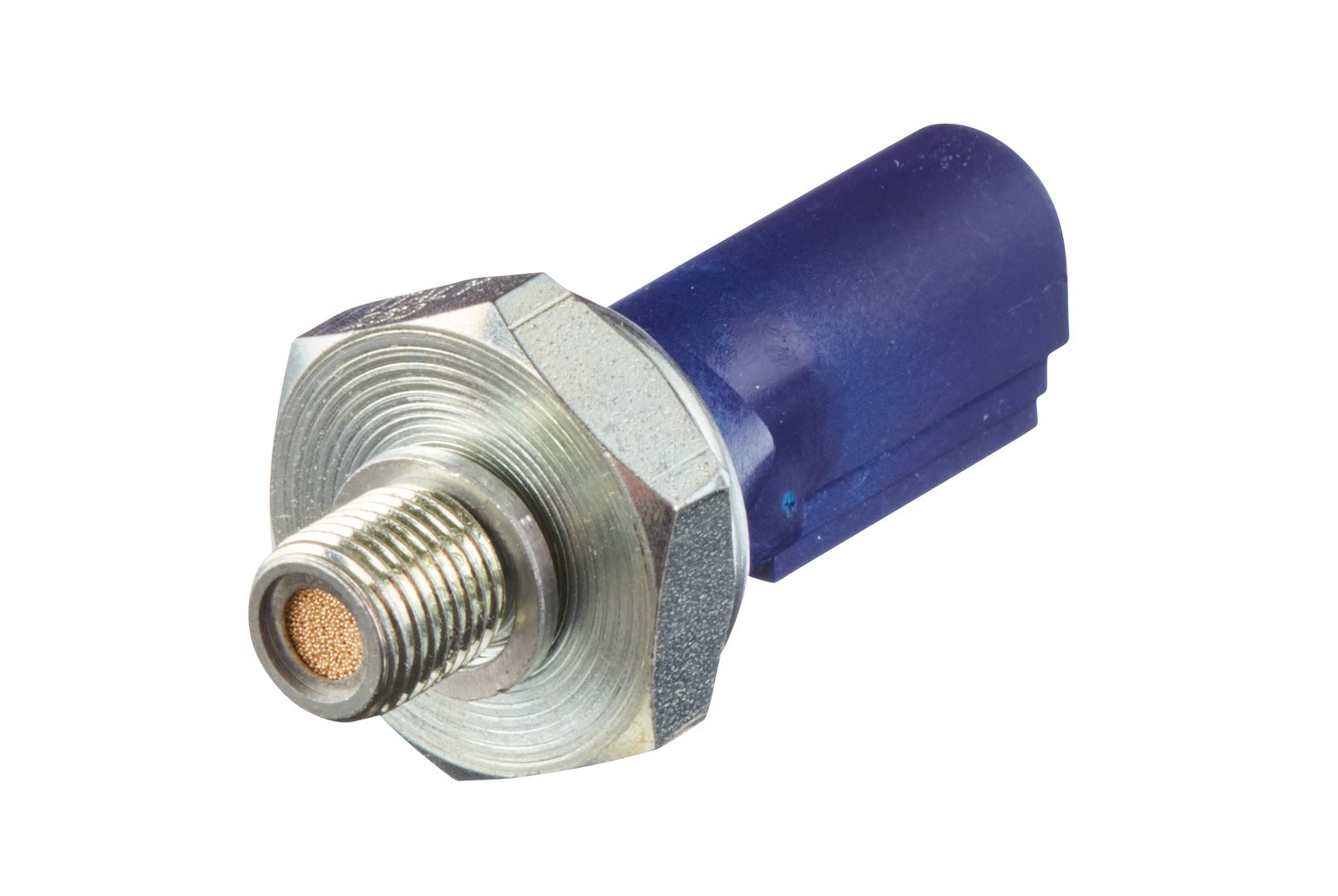

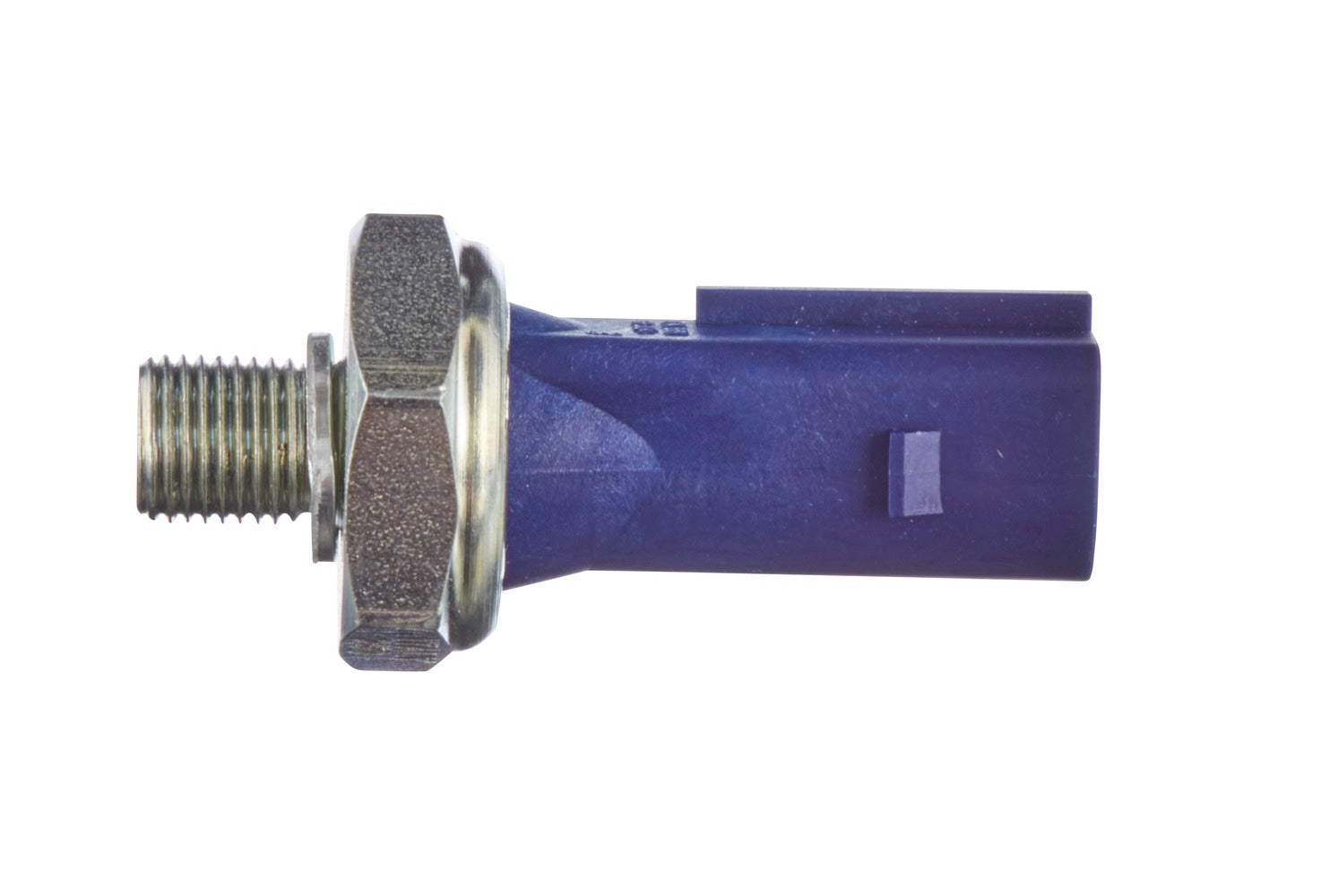

Oil Pressure Switch - 1-pin connector - Normally Closed Contact
At HELLA we offer you a wide range of different switches for every function. Whether screwed, clipped or with rotary actuation, in black, silver, smooth or grained, we have an extensive range for everything that needs to be switched on or off in vehicles - and yet all our switches have one thing in common: The high quality of HELLA.
- Spanner size: 24
- Thread size M10x1
- Width across flats 24
- Pressure 2.5 bar
- The oil pressure switch is installed in the oil circuit of the engine and controls the oil pressure in the engine block
Item Attributes:
Pressure [bar]: 2.5 bar
Switch Function: Normally Closed Contact
Thread Size: M10x1
Spanner Size: 24
Number of pins: 1 -pin connector
Assembly by qualified personnel required!
OE references: AUDI 04E 919 081 A; AUDI 06E 919 081 E ; AUDI 06E 919 081 F; AUDI 06H 919 081; AUDI 06H 919 081 A; AUDI 06K 919 081; PORSCHE 958.919.081.10; SEAT 04E 919 081 A; SEAT 06E 919 081 F; SEAT 06H 919 081; SEAT 06H 919 081 A; SEAT 06K 919 081; SKODA 04E 919 081 A; SKODA 06E 919 081 F; SKODA 06H 919 081; SKODA 06H 919 081 A; SKODA 06K 919 081; VW 04E 919 081 A; VW 06E 919 081 F; VW 06H 919 081; VW 06H 919 081 A; VW 06K 919 081
