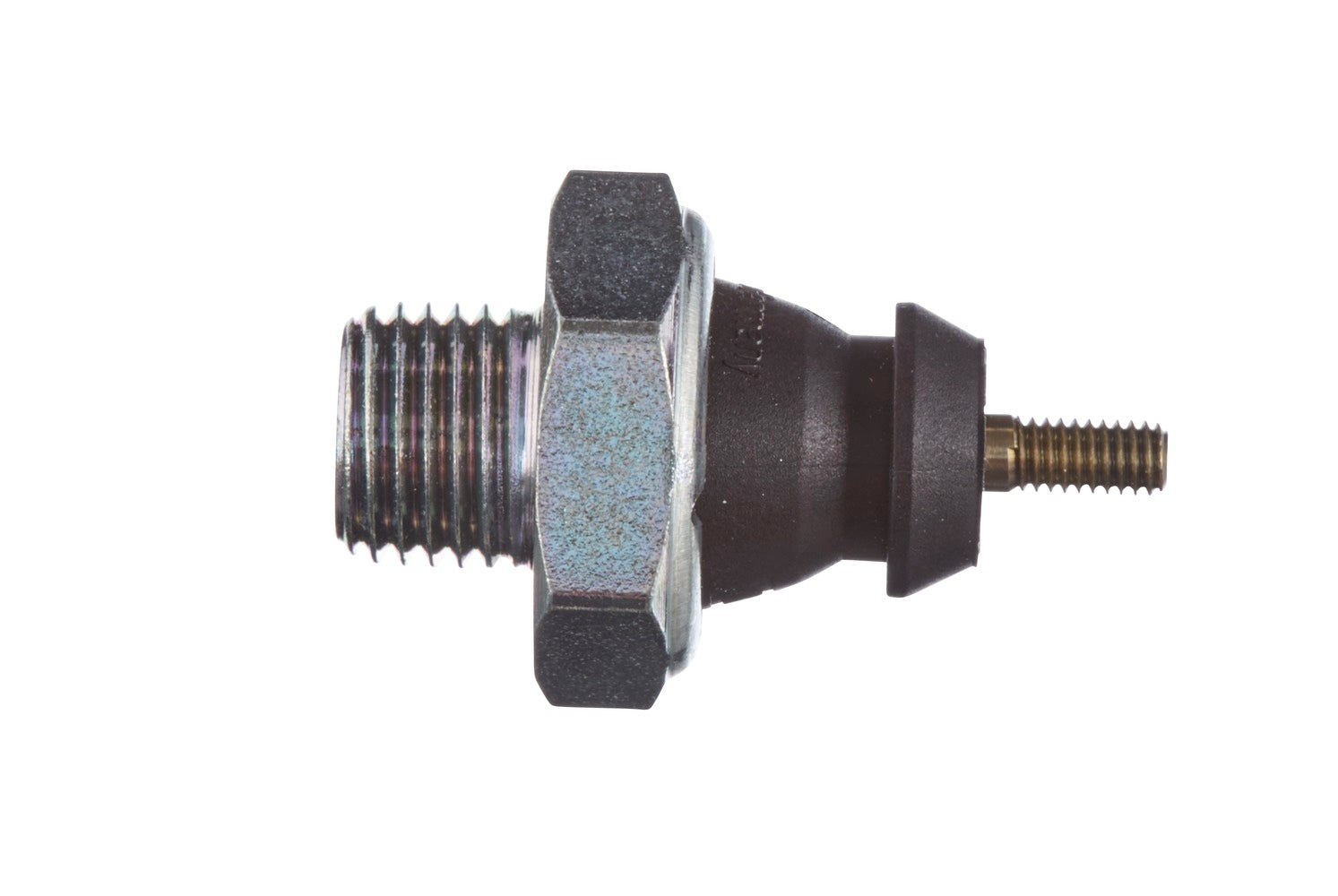

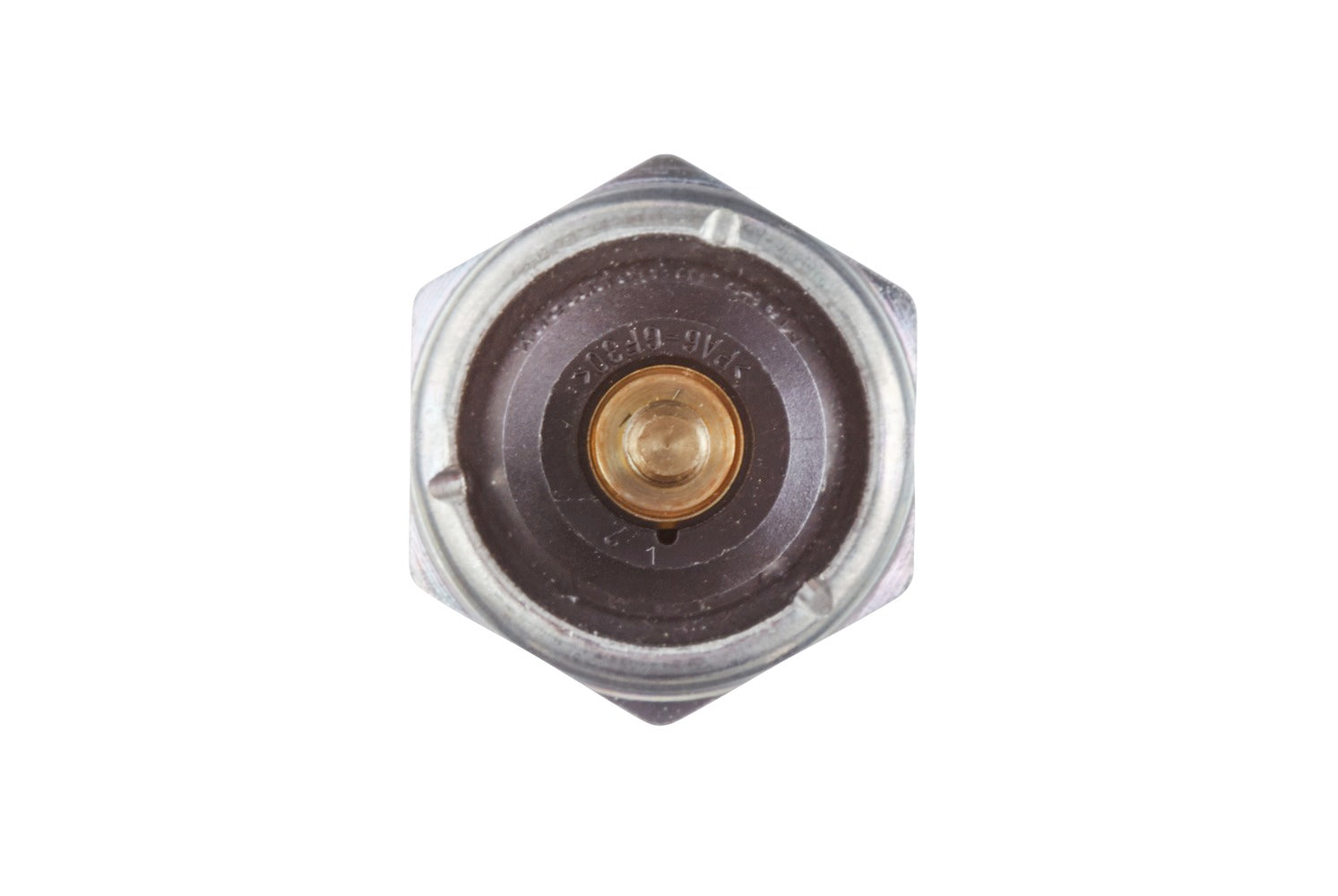

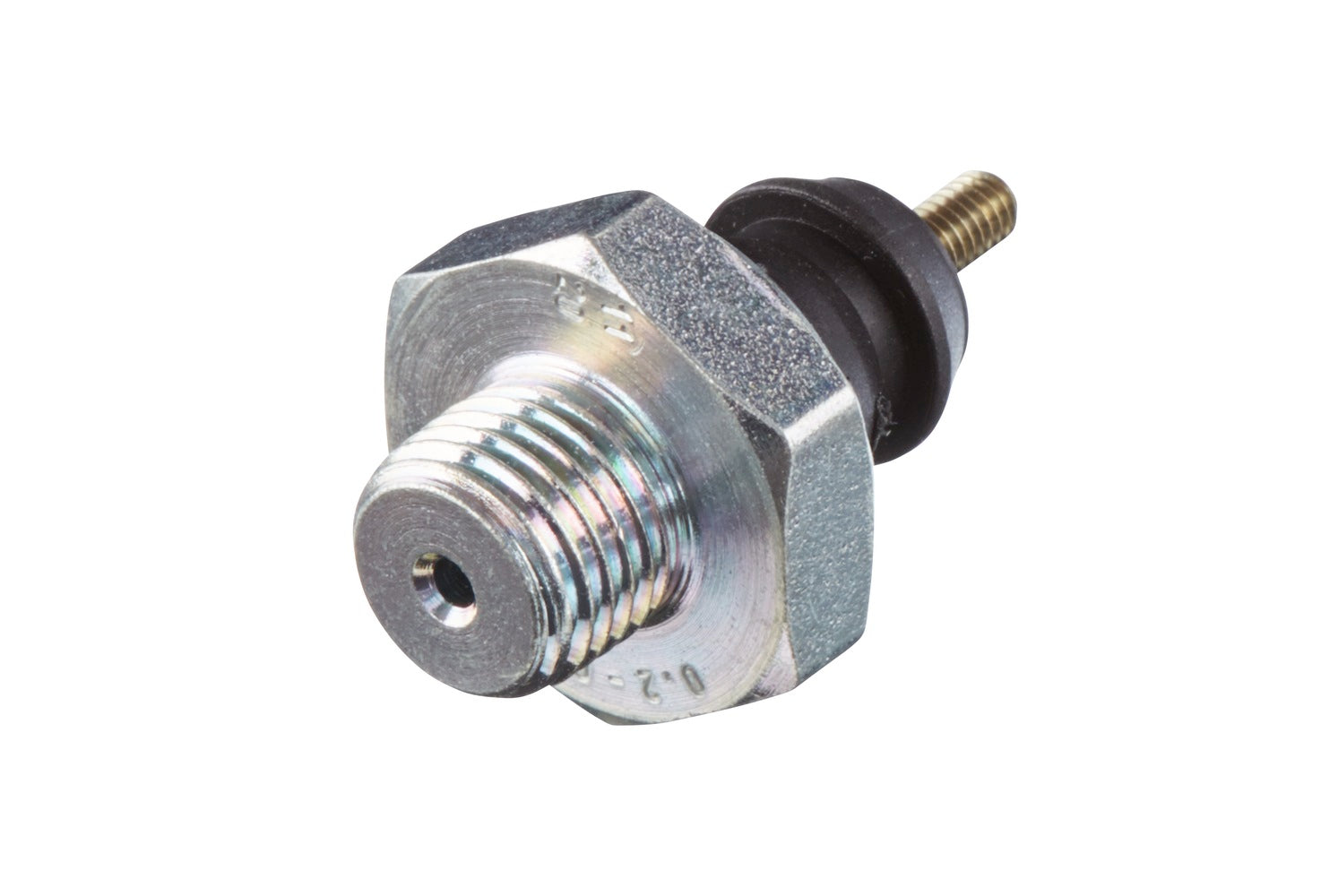

HELLA Oil Pressure Switch - 12V - 1-pin connector 6ZL003259-421

Oil Pressure Switch - 12V - 1-pin connector - Normally Closed Contact - Colour: Black

At HELLA we offer you a wide range of different switches for every function. Whether screwed, clipped or with rotary actuation, in black, silver, smooth or grained, we have an extensive range for everything that needs to be switched on or off in vehicles - and yet all our switches have one thing in common: The high quality of HELLA.

• from: 0.200bar - to: 0.50bar
• Spanner size: 24
• Thread size 1/4-18-NPT
• Width across flats 24
• Rated current 0.25 A
• From 0.2 bar to 0.5 bar
• The oil pressure switch is installed in the oil circuit of the engine and controls the oil pressure in the engine block

Item Attributes:
Voltage: 12 V
Switch Function: Normally Closed Contact
Rated Current: 0.25 A
Thread Size: 1/4-18-NPT
Colour: black
Spanner Size: 24
from: 0.200 bar
to: 0.50 bar
Number of pins: 1 -pin connector
Assembly by qualified personnel required!

OE references: FORD 1 027 970; FORD 98FB 9278 AA
