Description

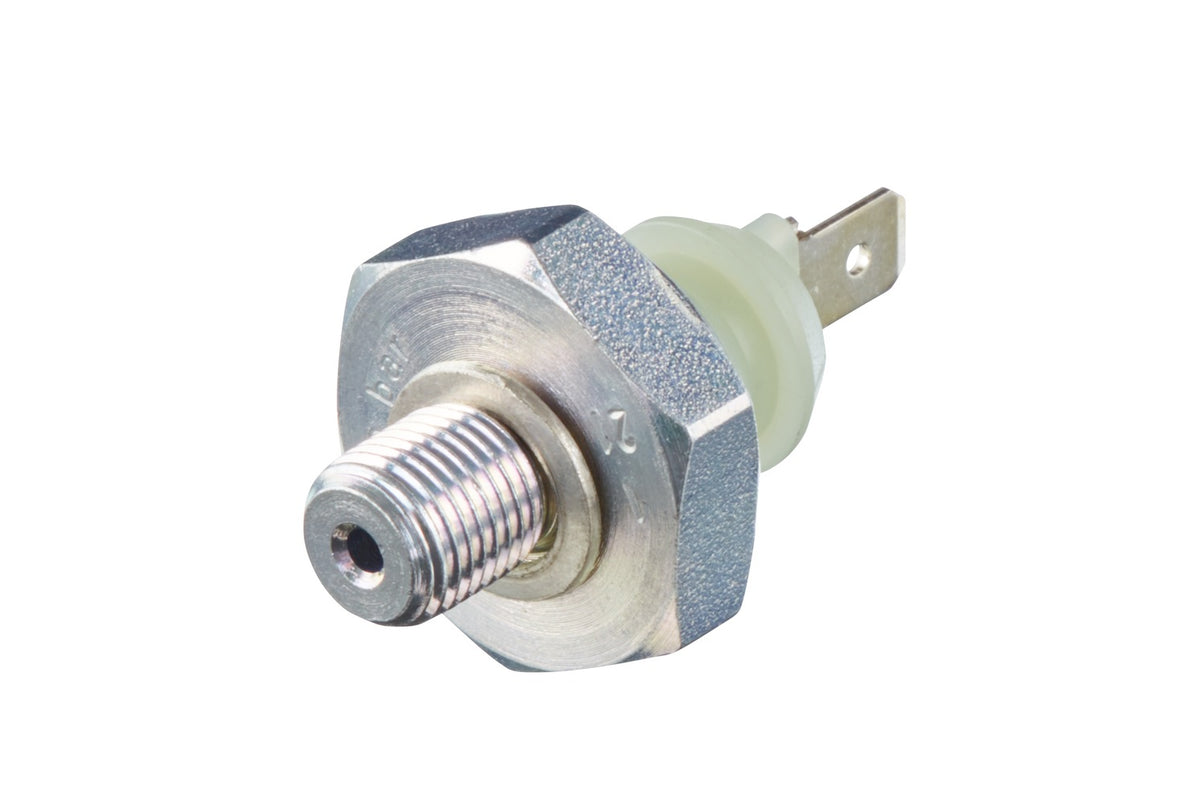

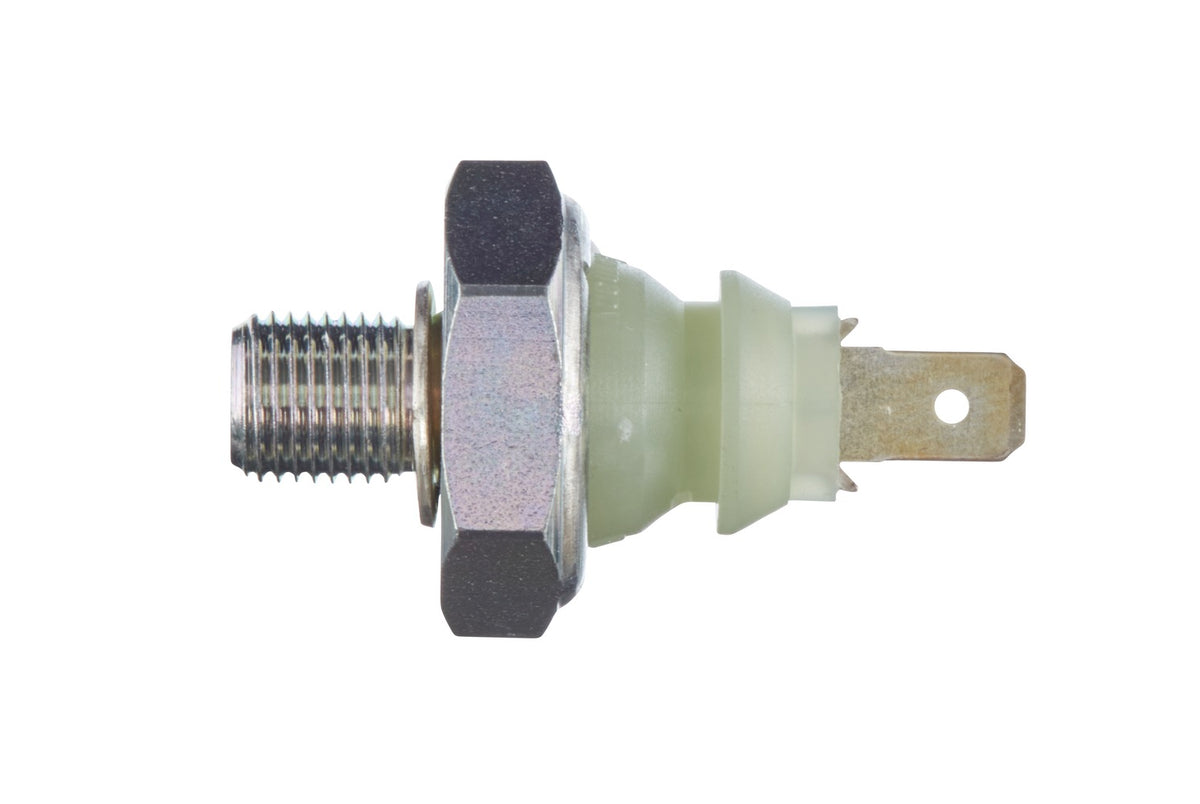

Oil Pressure Switch - 12V - 1-pin connector - Normally Open Contact
At HELLA we offer you a wide range of different switches for every function. Whether screwed, clipped or with rotary actuation, in black, silver, smooth or grained, we have an extensive range for everything that needs to be switched on or off in vehicles - and yet all our switches have one thing in common: The high quality of HELLA.
- from: 1.6bar - to: 2.0bar
- Tightening torque from: 20Nm
- Tolerance: 15%
- Spanner size: 24
- Corresponds to the original part in colour: Milk White
- Thread size M10x1, spanner size 24
- Tightening torque of 20 Nm
Item Attributes:
Tightening torque from: 20 Nm
Voltage: 12 V
Switch Function: Normally Open Contact
Rated Current: 0.250 A
Tolerance: 15 %
Thread Size: M10x1
Spanner Size: 24
from: 1.6 bar
to: 2.0 bar
Number of pins: 1 -pin connector
Corresponds to the original part in colour: Milk White
Assembly by qualified personnel required!
OE references: AUDI 056 919 081; AUDI 056 919 081 E; AUDI 059 919 081 E; MACK 4381 66341; SEAT 056 919 081 E; SEAT 059 919 081 E; SEAT 569 190 81; SKODA 056 919 081 E; SKODA 569 190 81; VW 056 919 081; VW 056 919 081 E; VW 059 919 081 E
