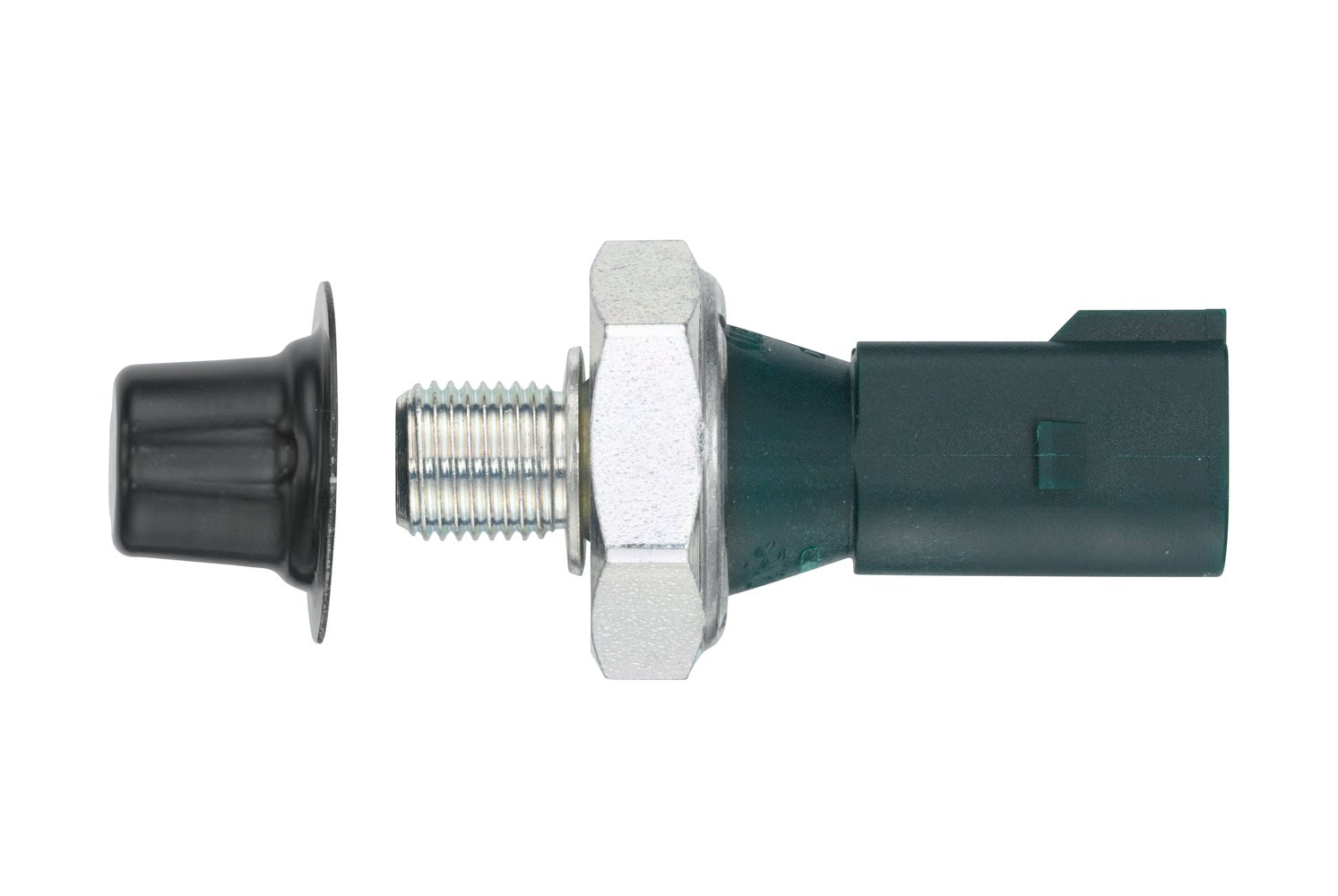

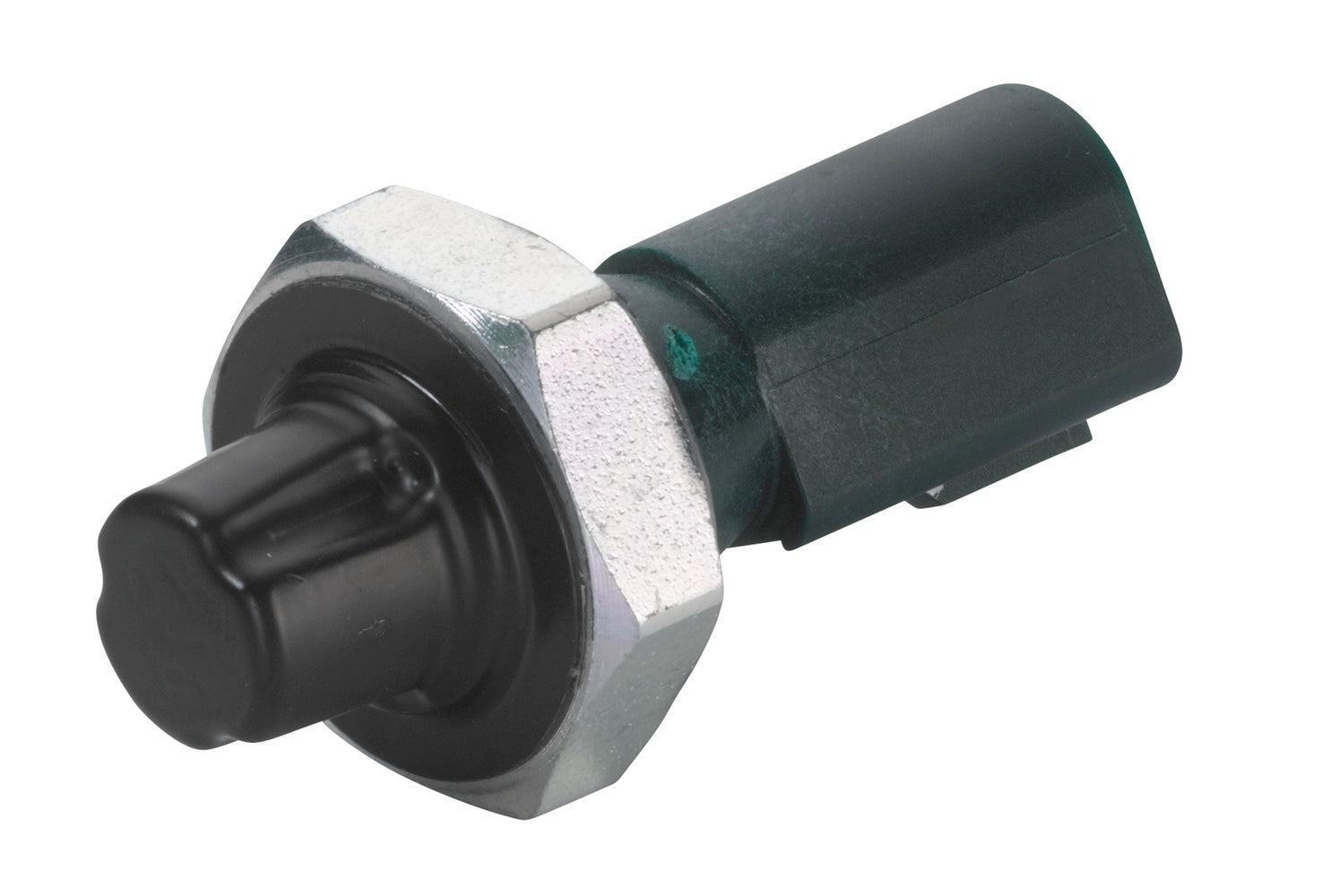

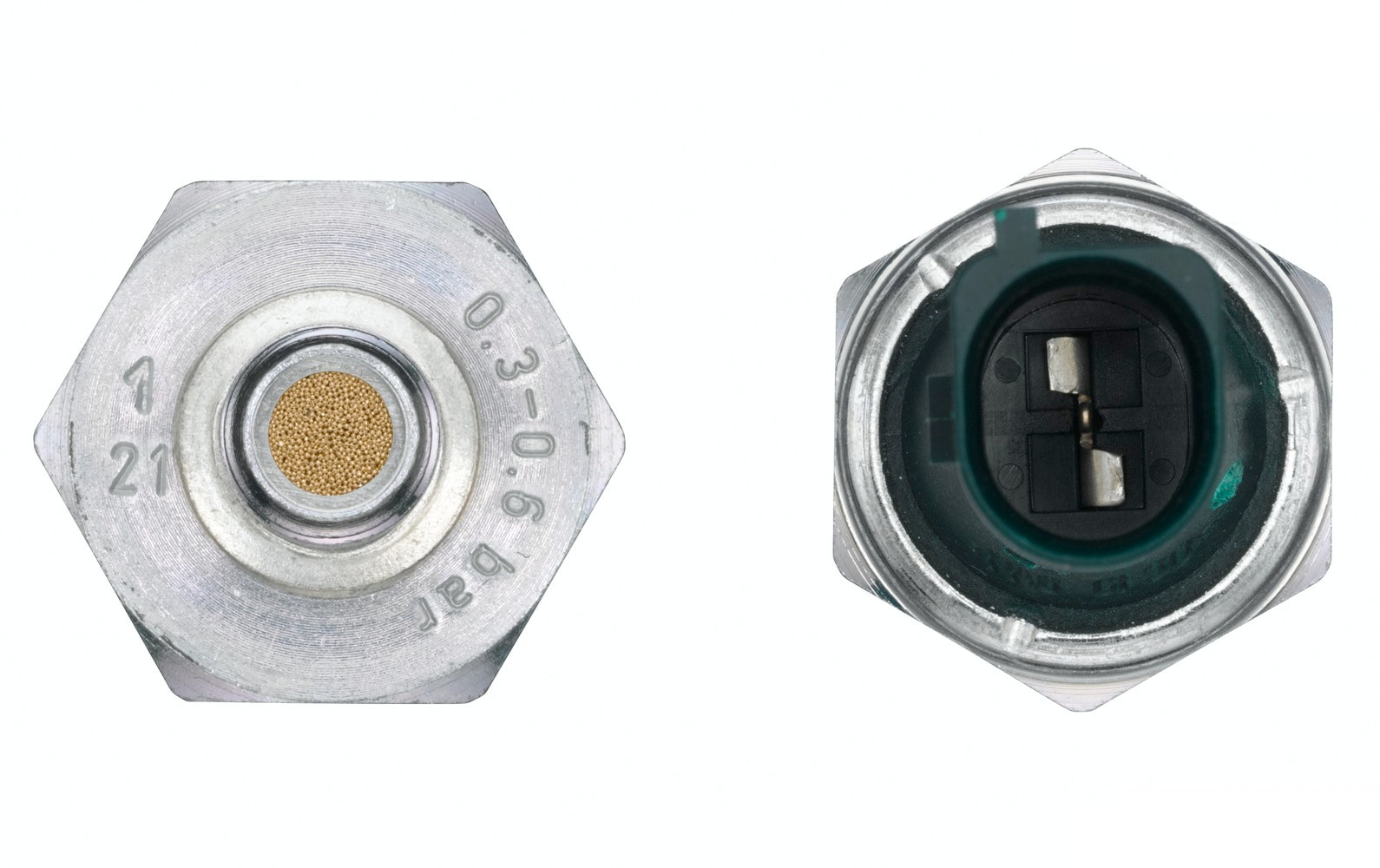

HELLA Oil Pressure Switch - 12V - 1-pin connector 6ZL003259-971

Oil Pressure Switch - 12V - 1-pin connector - Normally Open Contact

At HELLA we offer you a wide range of different switches for every function. Whether screwed, clipped or with rotary actuation, in black, silver, smooth or grained, we have an extensive range for everything that needs to be switched on or off in vehicles - and yet all our switches have one thing in common: The high quality of HELLA.

• from: 0.30bar - to: 0.60bar
• Spanner size: 24
• Corresponds to the original part in colour: Green
• Thread size M10x1
• Width across flats 24
• From 0.3 bar to 0.6 bar
• The oil pressure switch is installed in the oil circuit of the engine and controls the oil pressure in the engine block

Item Attributes:
Voltage: 12 V
Switch Function: Normally Open Contact
Thread Size: M 10x1
Spanner Size: 24
from: 0.30 bar
to: 0.60 bar
Number of pins: 1 -pin connector
Corresponds to the original part in colour: green
Assembly by qualified personnel required!

OE references: AUDI 03C 919 081; BENTLEY 03C 919 081; SEAT 03C 919 081; SKODA 03C 919 081; VW 03C 919 081
