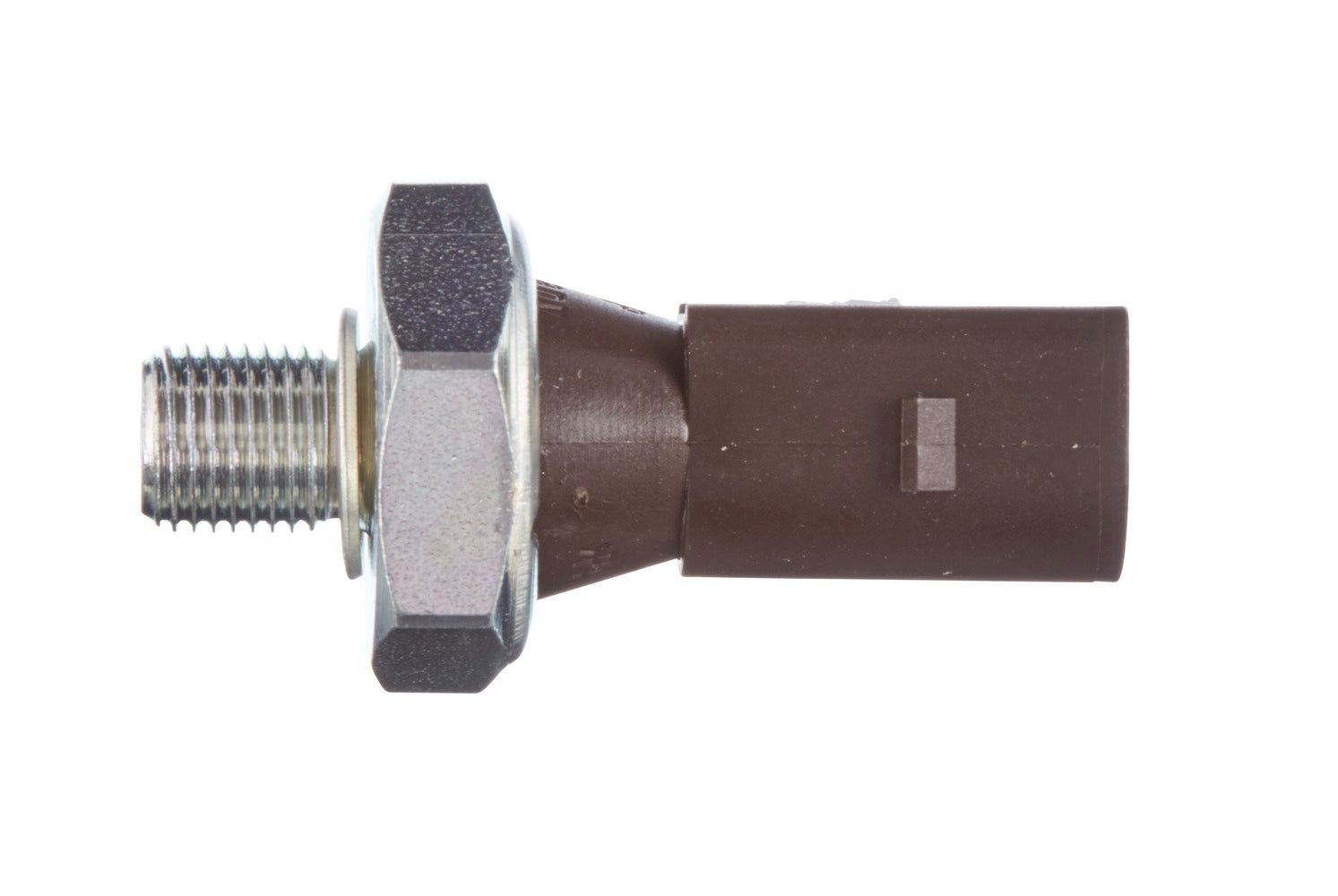

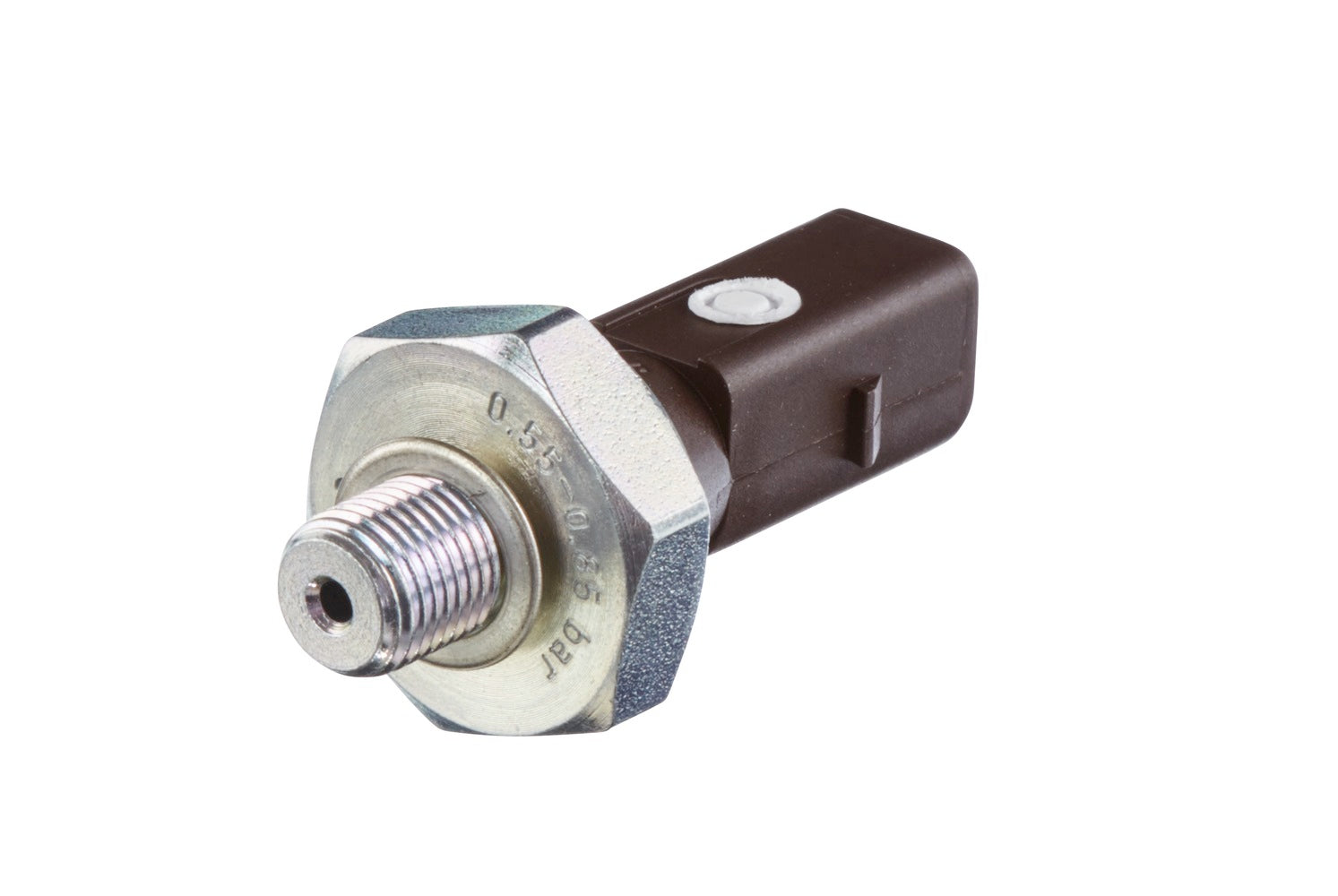

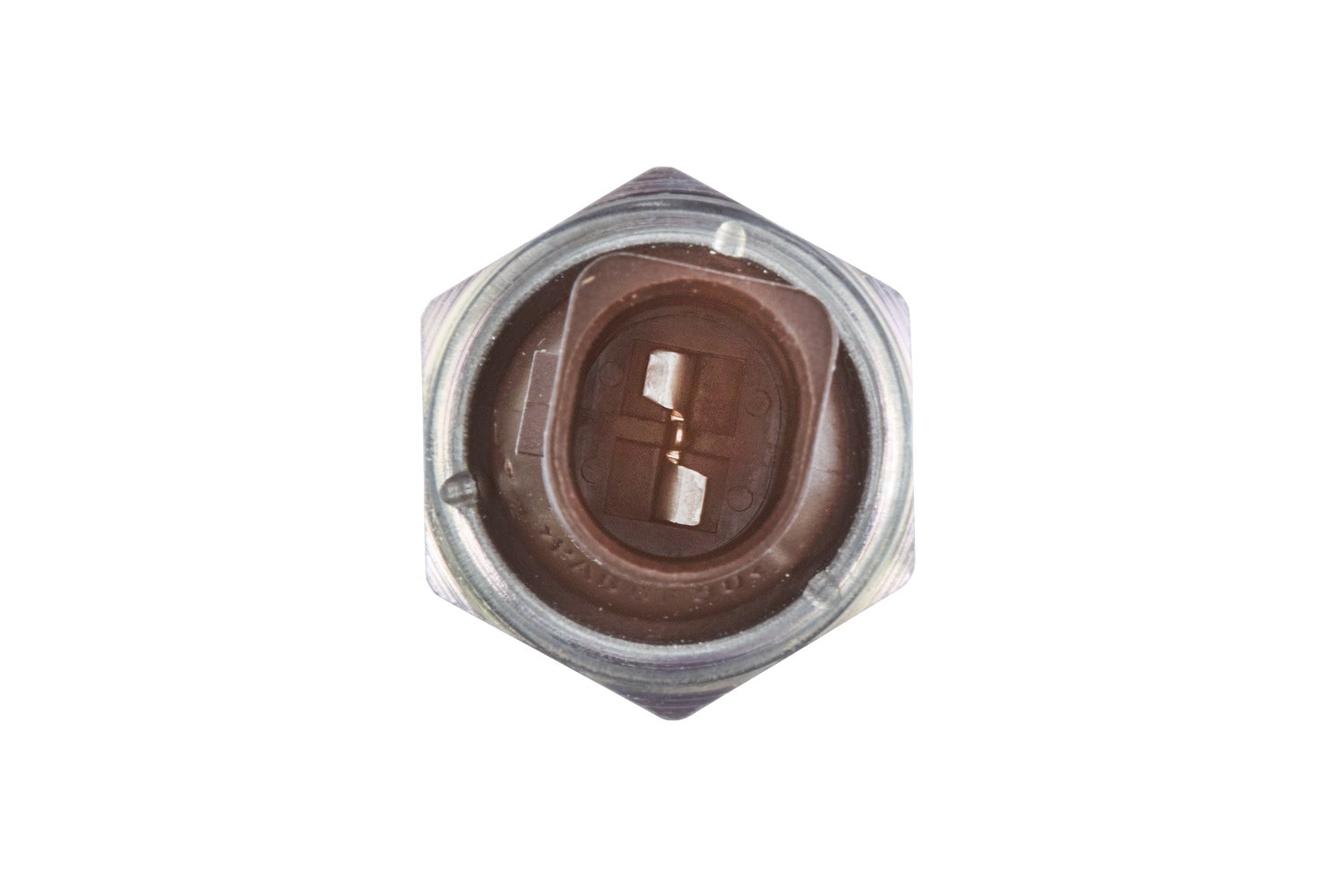

HELLA Oil Pressure Switch - 12V - 1-pin connector 6ZL008280-031

Oil Pressure Switch - 12V - 1-pin connector - Normally Open Contact

At HELLA we offer you a wide range of different switches for every function. Whether screwed, clipped or with rotary actuation, in black, silver, smooth or grained, we have an extensive range for everything that needs to be switched on or off in vehicles - and yet all our switches have one thing in common: The high quality of HELLA.

• from: 0.555bar - to: 0.85bar
• Tightening torque from: 20Nm
• Tolerance: 15%
• Spanner size: 24
• Corresponds to the original part in colour: Brown
• Thread size M10x1, spanner size 24
• Tightening torque of 20 Nm

Item Attributes:
Tightening torque from: 20 Nm
Voltage: 12 V
Switch Function: Normally Open Contact
Rated Current: 0.150 A
Tolerance: 15 %
Thread Size: M10x1
Spanner Size: 24
from: 0.555 bar
to: 0.85 bar
Number of pins: 1 -pin connector
Corresponds to the original part in colour: brown
Assembly by qualified personnel required!

OE references: AUDI 038 919 081; AUDI 038 919 081 C; AUDI 038 919 081 D; AUDI 038 919 081 H; AUDI 038 919 081 K; PORSCHE 948.606.203.00; PORSCHE 948.606.203.01; SEAT 038 919 081 C; SEAT 038 919 081 D; SEAT 038 919 081 H; SEAT 038 919 081 K; SEAT 389 190 81; SKODA 038 919 081 C; SKODA 038 919 081 D; SKODA 038 919 081 H; SKODA 038 919 081 K; SKODA 389 190 81; VW 038 919 081; VW 038 919 081 C; VW 038 919 081 D; VW 038 919 081 H; VW 038 919 081 K
