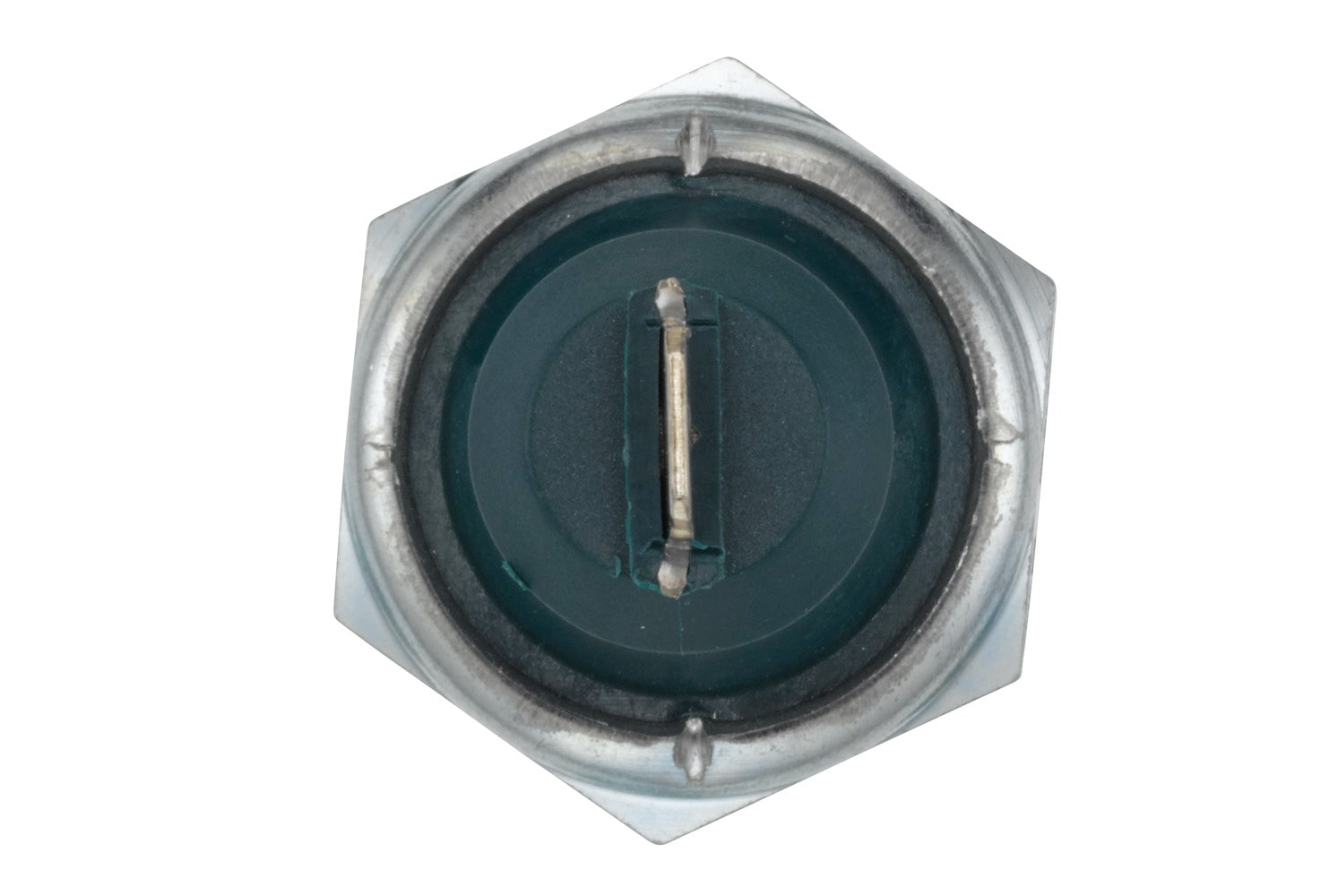

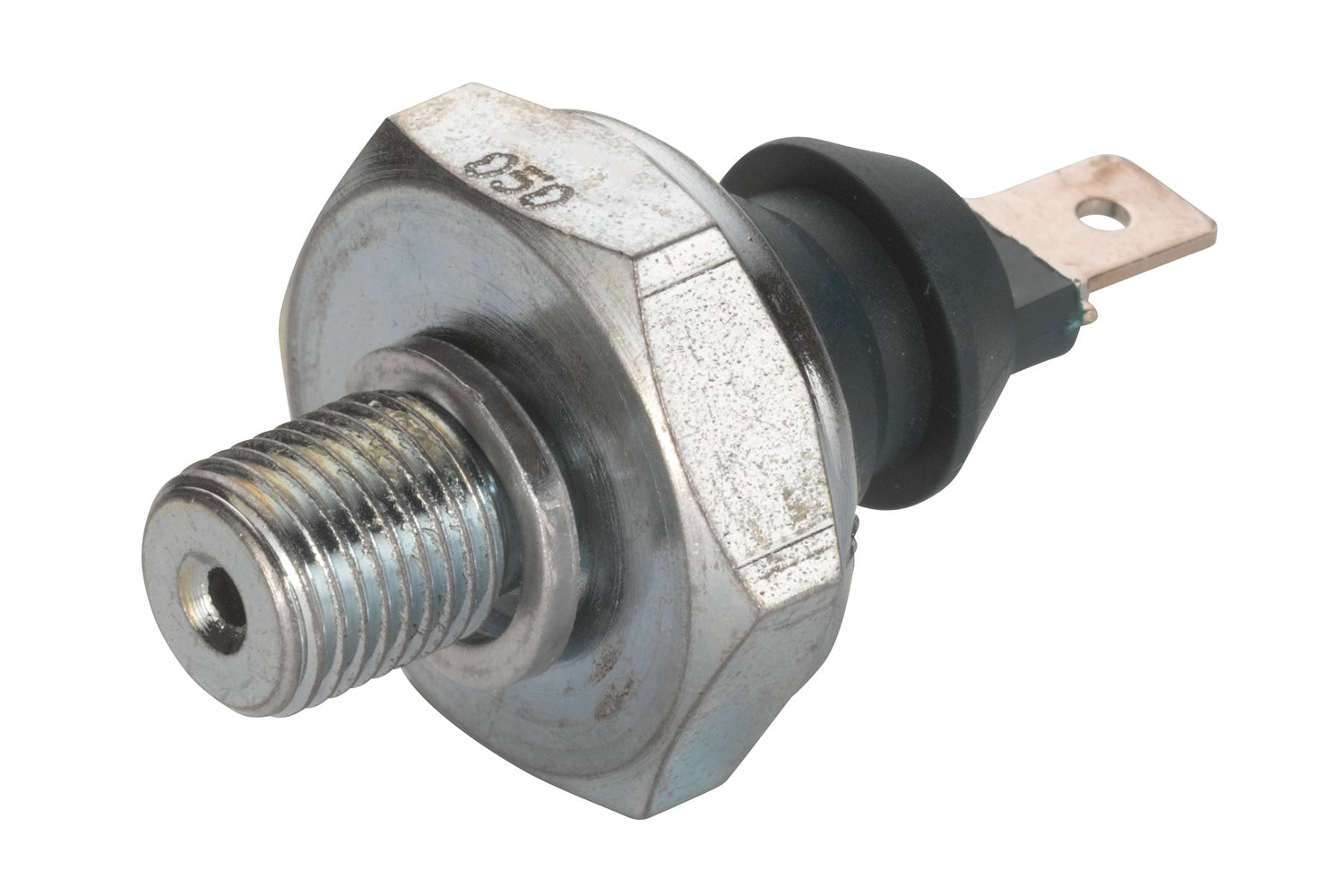

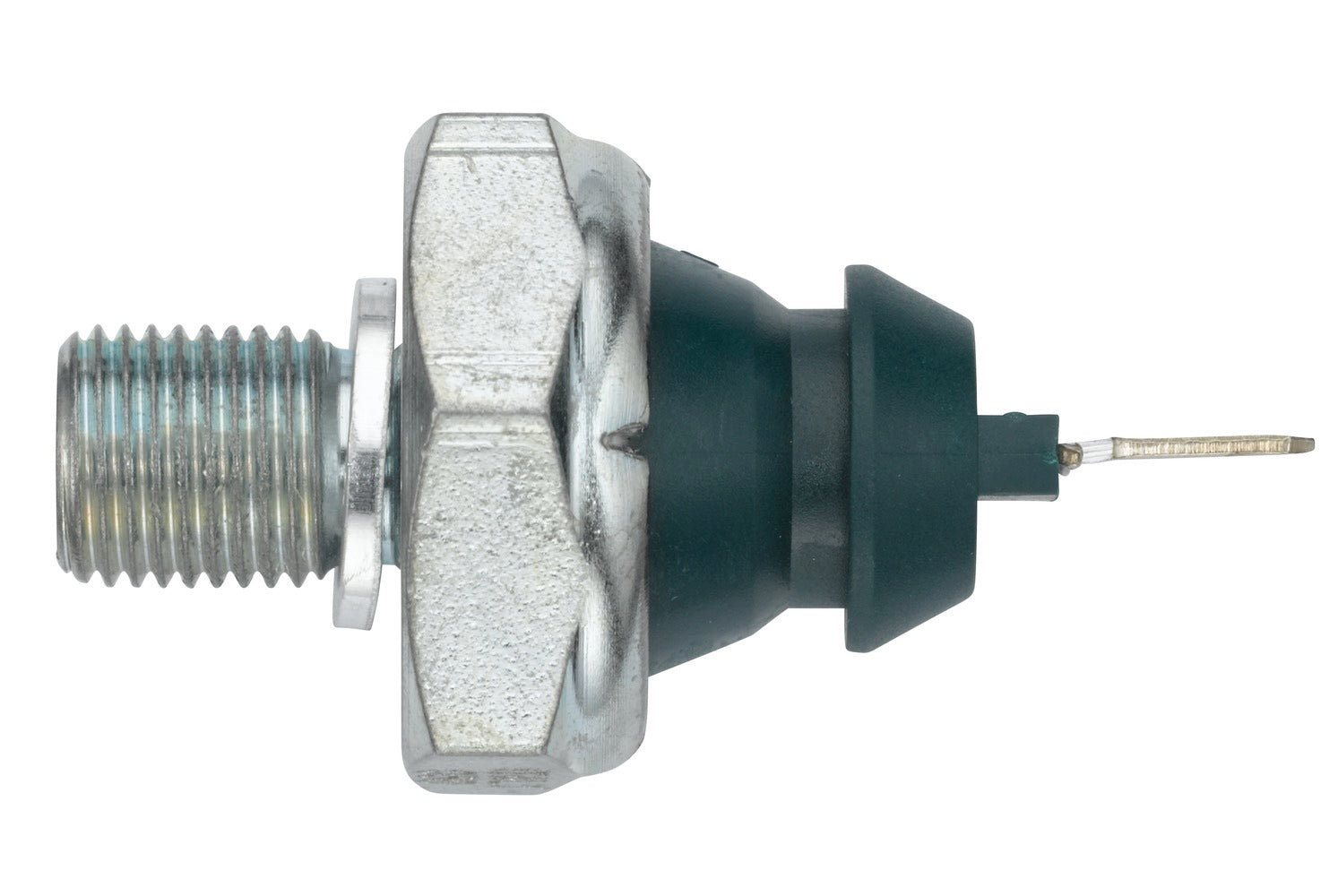

HELLA Oil Pressure Switch - 12V - 1-pin connector 6ZL009600-071

Oil Pressure Switch - 12V - 1-pin connector - Normally Open Contact

At HELLA we offer you a wide range of different switches for every function. Whether screwed, clipped or with rotary actuation, in black, silver, smooth or grained, we have an extensive range for everything that needs to be switched on or off in vehicles - and yet all our switches have one thing in common: The high quality of HELLA.

• Spanner size: 24
• Corresponds to the original part in colour: Green
• Thread size M10x1
• Thread type with metric thread
• Width across flats 24
• Pressure 0.5 bar
• The oil pressure switch is installed in the oil circuit of the engine and controls the oil pressure in the engine block

Item Attributes:
Voltage: 12 V
Thread Type: with metric thread
Pressure [bar]: 0.5 bar
Switch Function: Normally Open Contact
Thread Size: M10x1
Spanner Size: 24
Number of pins: 1 -pin connector
Corresponds to the original part in colour: green
Assembly by qualified personnel required!

OE references: SEAT 030 919 081 B; SEAT 309 190 81C; SKODA 030 919 081 B; SKODA 030 919 081 C; VW 030 919 081 B; VW 030 919 081 C
