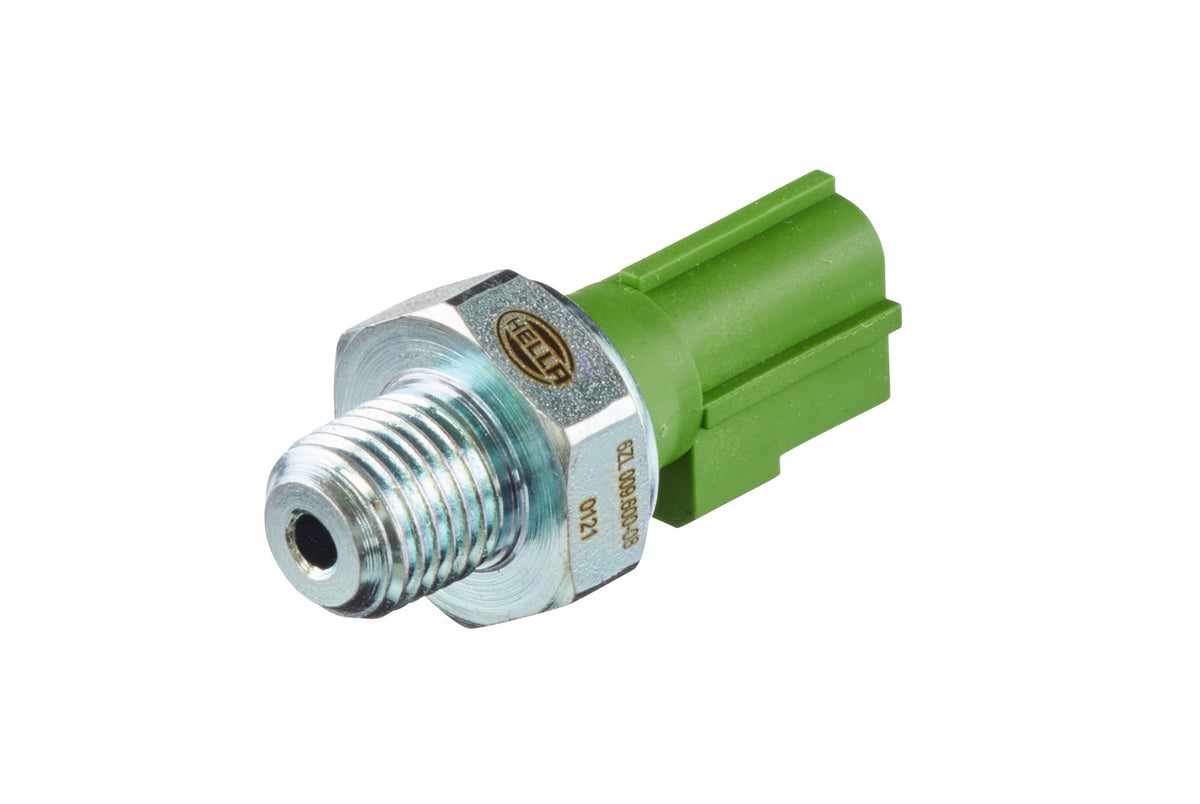

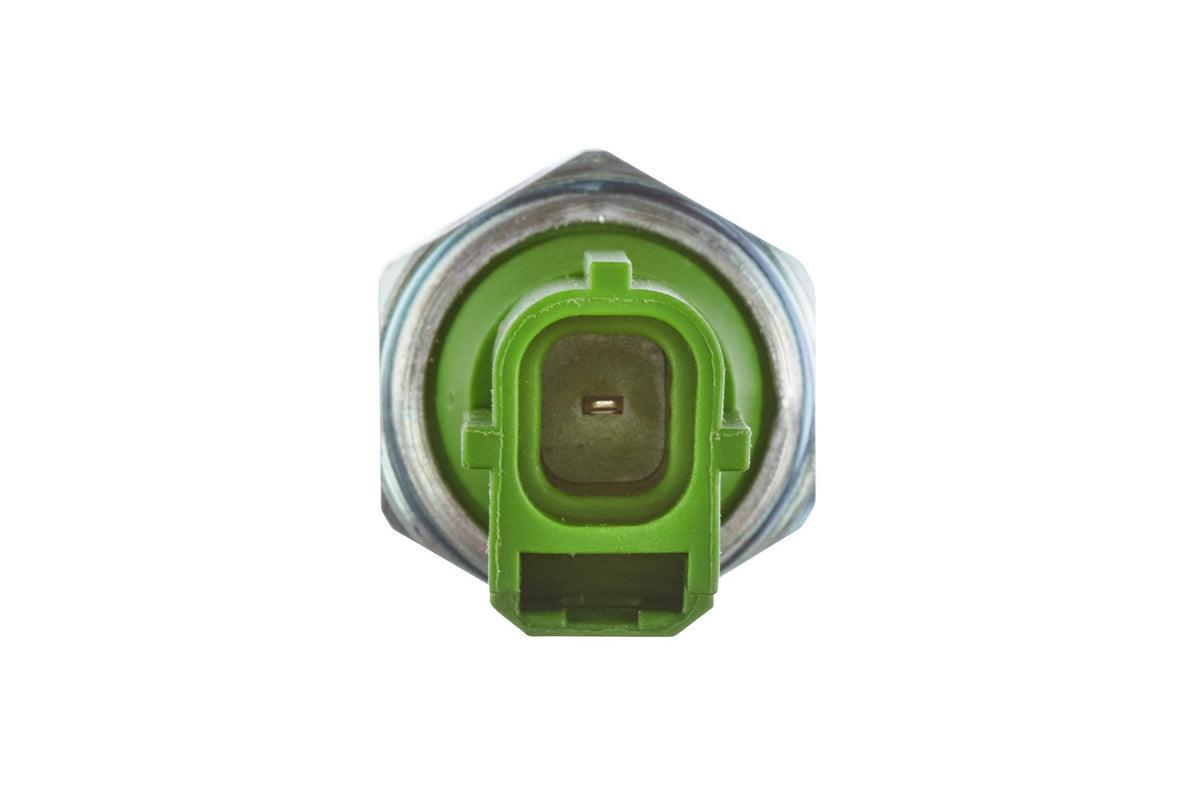

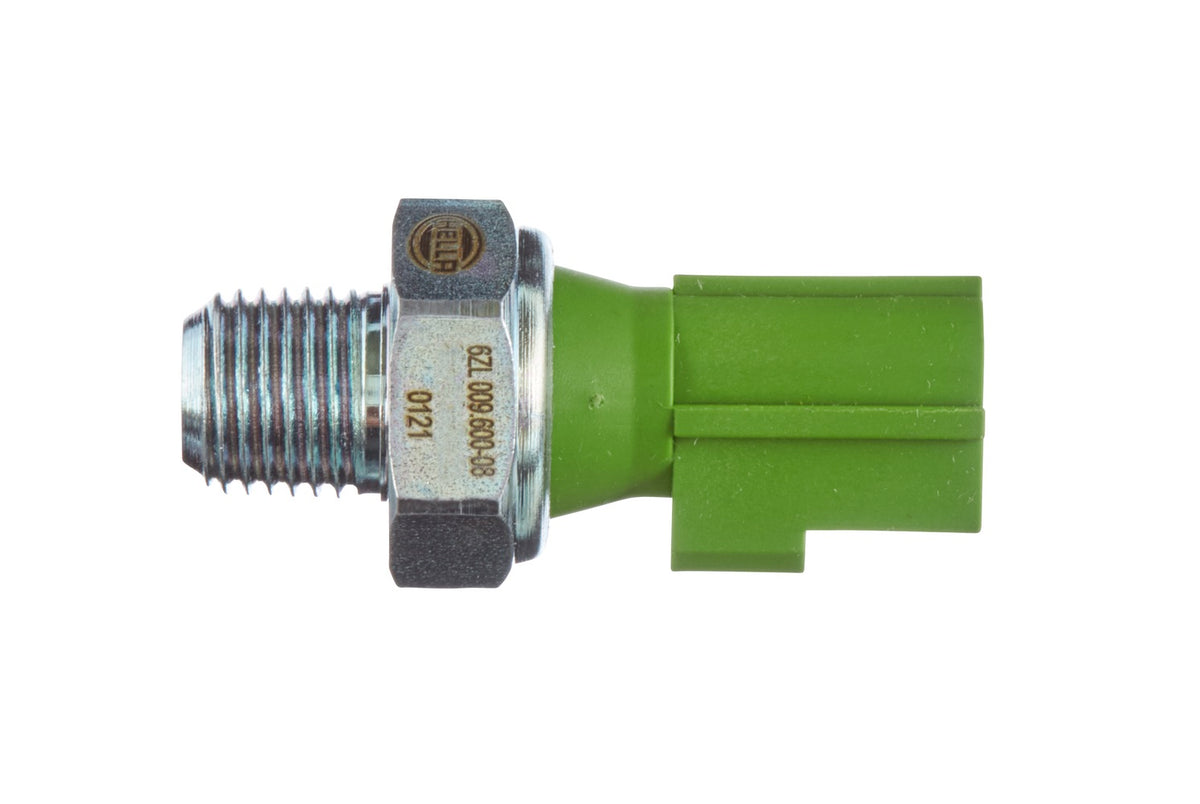

HELLA Oil Pressure Switch - 12V - 1-pin connector 6ZL009600-081

Oil Pressure Switch - 12V - 1-pin connector - Normally Closed Contact - Colour: Green

At HELLA we offer you a wide range of different switches for every function. Whether screwed, clipped or with rotary actuation, in black, silver, smooth or grained, we have an extensive range for everything that needs to be switched on or off in vehicles - and yet all our switches have one thing in common: The high quality of HELLA.

• Spanner size: 24
• Thread size M10x1
• Thread type with metric thread
• Width across flats 24
• Pressure 0.5 bar
• The oil pressure switch is installed in the oil circuit of the engine and controls the oil pressure in the engine block

Item Attributes:
Voltage: 12 V
Thread Type: with inch thread
Pressure [bar]: 0.25 bar
Switch Function: Normally Closed Contact
Thread Size: 1/4-18NPT
Colour: green
Spanner Size: 24
Number of pins: 1 -pin connector
Assembly by qualified personnel required!

OE references: FORD 1 116 647; FORD 1 226 188; FORD 1 363 512; FORD 1S7A 9278 AA; FORD 3M51 9278 AA; FORD 3M51 9278 AB; FORD USA 3M519278AB; JAGUAR AJ81 3129; LAND ROVER LR000633; MAZDA LF01-18-501; VOLVO 30711658; VOLVO 30757396
