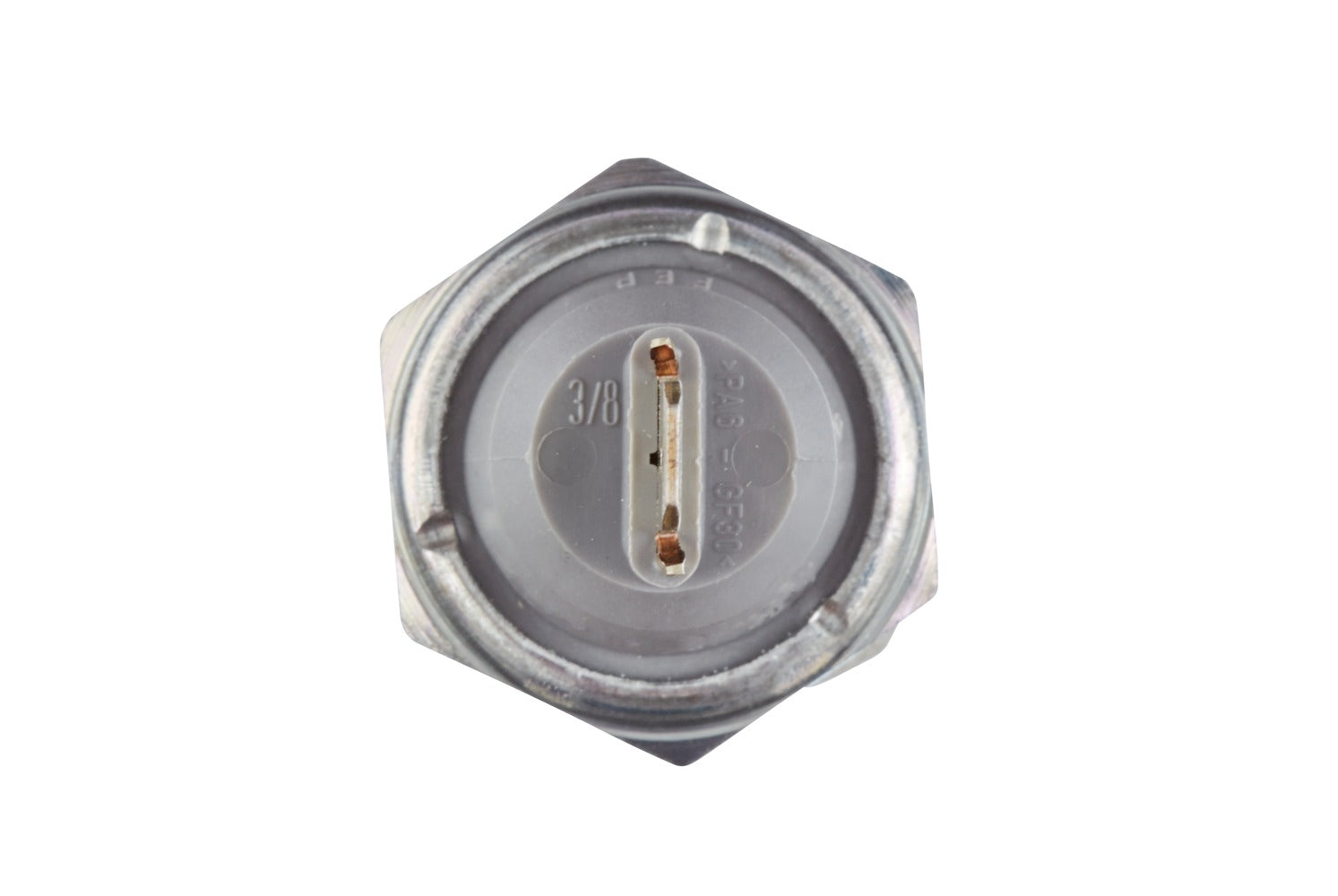

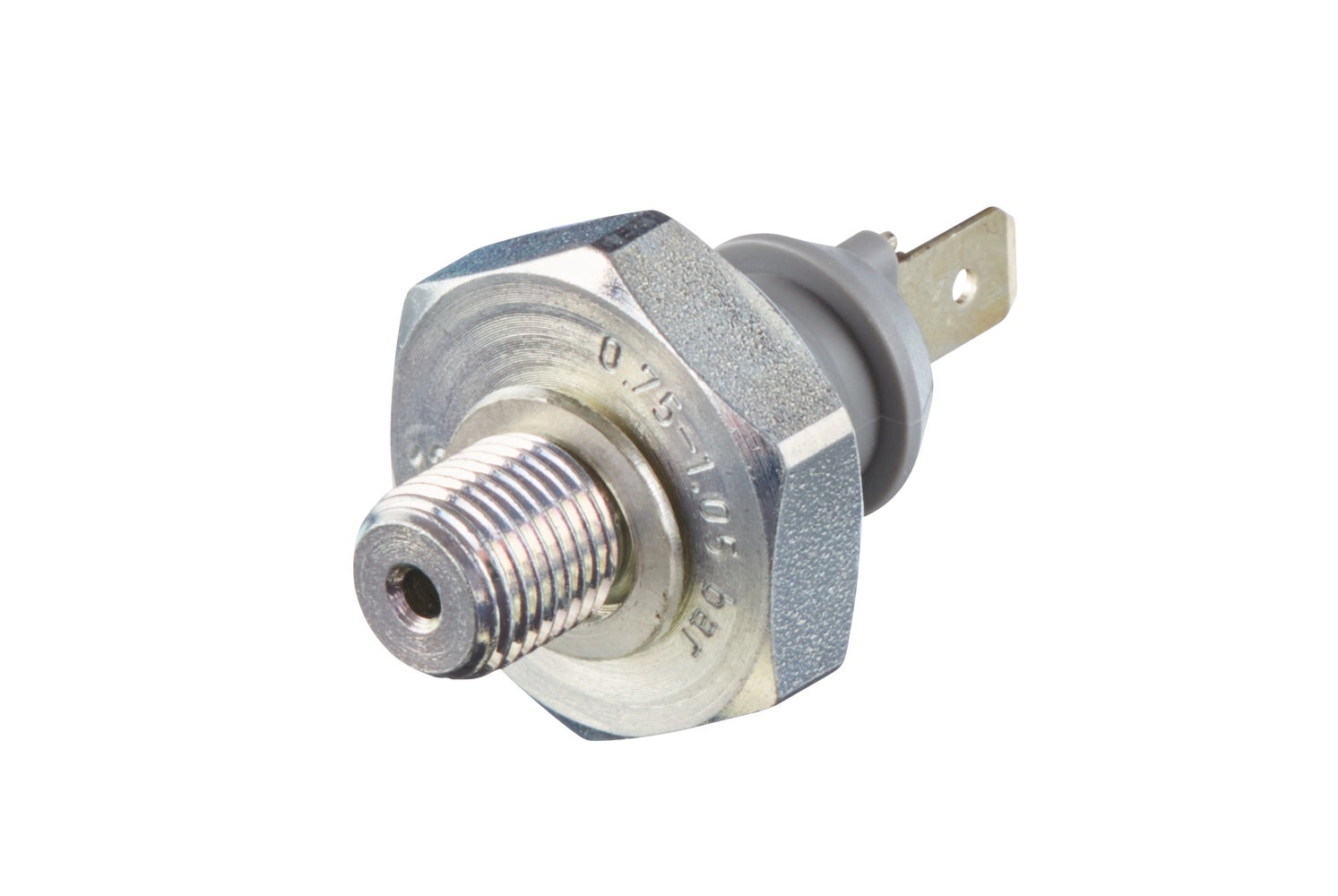

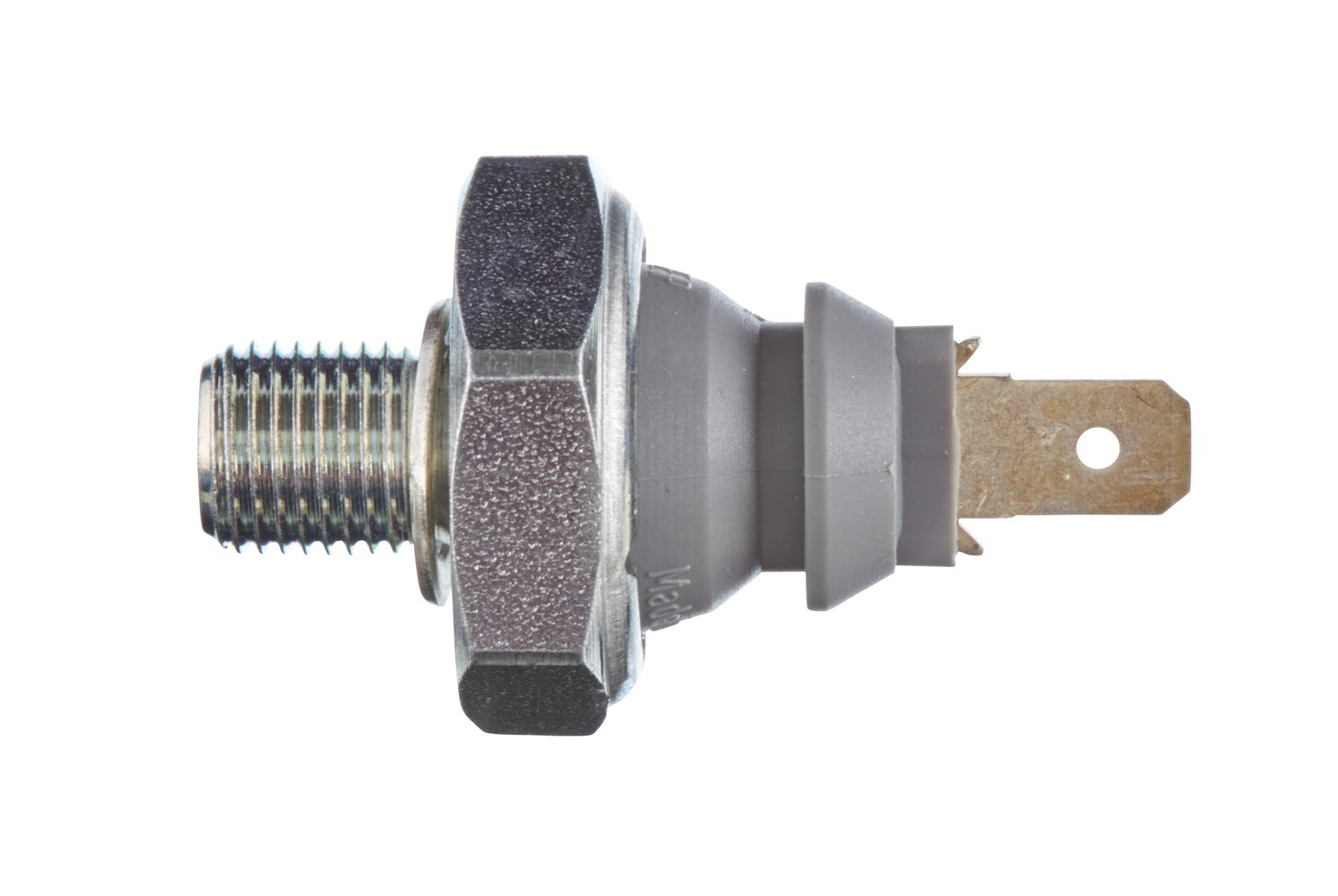

HELLA Oil Pressure Switch - 12V - 1-pin connector - Blade Terminal 6ZL003259-481

Oil Pressure Switch - 12V - 1-pin connector - Blade Terminal - Normally Open Contact

At HELLA we offer you a wide range of different switches for every function. Whether screwed, clipped or with rotary actuation, in black, silver, smooth or grained, we have an extensive range for everything that needs to be switched on or off in vehicles - and yet all our switches have one thing in common: The high quality of HELLA.

• from: 0.75bar - to: 1.05bar
• Tightening torque from: 20Nm
• Tolerance: 15%
• Spanner size: 24
• Corresponds to the original part in colour: Grey
• Thread size M10x1, spanner size 24
• Tightening torque of 20 Nm

Item Attributes:
Tightening torque from: 20 Nm
Voltage: 12 V
Switch Function: Normally Open Contact
Rated Current: 0.250 A
Tolerance: 15 %
Thread Size: M10x1
Spanner Size: 24
from: 0.75 bar
to: 1.05 bar
Number of pins: 1 -pin connector
Plug: Blade Terminal
Corresponds to the original part in colour: grey
Assembly by qualified personnel required!

OE references: AUDI 038 919 081 A; AUDI 068 919 081 A; AUDI 068 919 081 C; FORD 1 669 964; FORD 95VW-9278-CA; LIEBHERR 1 121 203 4; SEAT 038 919 081 A; SEAT 068 919 081 A; SEAT 068 919 081 C; SKODA 038 919 081 A; VW 038 919 081 A; VW 068 919 081 A; VW 068 919 081 C
